What grades of malleable iron are available?

When sourcing pipe fittings for critical infrastructure projects, understanding material grades is non-negotiable. Malleable iron remains a cornerstone material for industrial piping systems, particularly in applications requiring robust 90-degree directional changes. The choice of material grade directly influences system integrity, compliance with international standards, and long-term operational costs. This guide explores the available grades of malleable iron and how they relate to the procurement of high-performance pipe fittings such as the malleable iron 90 degree elbow.

Introduction to Malleable Iron Grades

Malleable iron is a special kind of cast iron that is heated in a controlled way to make it more flexible while keeping its strength. Gray cast iron is brittle, but malleable iron is stronger and more resistant to shock. This makes it perfect for threaded pipe fittings that are put through mechanical stress during installation and use. The substance comes from white cast iron that is heated in a certain way, which changes its carbon structure into nodular graphite clusters set in a ferrite or pearlite framework.

When selecting parts like pipe elbows for fire protection systems, gas distribution networks, or HVAC installations, it's important to know about the different types of malleable iron. Each grade number is based on a specific mix of chemical composition, tensile strength, yield strength, and stretch percentage. These features show how well a fitting works in settings with high pressure, changing temperatures, and toxic substances. If engineers and procurement experts understand these technical differences, they can make systems more reliable and avoid costly failures or problems with following the rules during project reviews.

Grade understanding is important for more reasons than just basic details. Decisions about procurement affect the ways to get certified, the ways to find qualified suppliers, and the paperwork that needs to be submitted. When buyers fully understand, they can clearly state what they need, correctly assess the skills of potential suppliers, and make sure that the supplier's abilities are in line with project standards and local building rules in various markets.

Common Grades of Malleable Iron for Pipe Fittings

The piping industry around the world uses a number of standard grades of malleable iron. These grades are controlled by regional or international standards that say what chemical makeup and mechanical qualities are allowed.

ASTM A197 Standard

The most important American standard for pipe valves made of malleable iron is ASTM A197. This standard calls for black-heart iron that can be shaped and has a ferritic texture that can be achieved by heating it for a long time. The standard requires a tensile strength of at least 345 MPa and a length elongation of no more than 10% in a 50mm gauge. The amount of carbon in the material is usually between 2% and 2.9%, and the amount of silicon is kept between 0.9% and 1.9%. This mix is great for making threaded joints because it can be machined and welded easily. Fittings made to ASTM A197 are often used in North American fire sprinkler systems, compressed air lines, and low-pressure steam systems. The standard is widely recognized by certifying groups, such as FM Approvals and UL. This makes it easier for contractors working on business and educational projects to follow the rules.

EN 10242 / EN-GJMB Series

EN 10242, which controls malleable cast iron threaded fittings and the material types that go with them, is mostly used in European markets. The EN-GJMB method makes it easy to tell what kind of material something is (GJ means cast iron, M means flexible, and B means blackheart). The grades EN-GJMB-350-10 and EN-GJMB-450-6 are popular ones. The numbers next to them show the minimum tensile strength in MPa and the stretch percentage. When comparing European grades to American standards, the amounts of silicon and manganese are often a little different. This is because of differences in how metal is cast and the availability of raw materials. Manufacturers that sell products such as a malleable iron 90 degree elbow to customers in the Middle East and Southeast Asia often have two types of approval, one for ASTM and one for EN. This way, they can meet the needs of a wide range of projects.

GB/T 3287 and Regional Variations

The Chinese standard GB/T 3287 describes pipe fittings made of malleable cast iron that are widely used in the construction markets of the Asia-Pacific region. The design is mostly in line with international standards, but it also includes testing procedures and marking rules that are better suited to how things are inspected in the area. In procurement papers, material names like KTH 300-06 and KTH 350-10 are used. These materials have qualities that are similar to those of ASTM and EN materials. When looking at providers or other options, it's important to know about these area differences because chemical composition tolerances and testing methods can be slightly different while still providing the same level of performance in service.

In real life, these many standards mean that paperwork is more complicated and quality control procedures are needed. Purchasing teams need to make sure that the certifications of suppliers exactly match the project requirements. They also need to make sure that the material test certificates list the proper standard and grade. Misalignment between stated and provided grades can cause inspections to fail, expensive replacements of materials, and delays in the project.

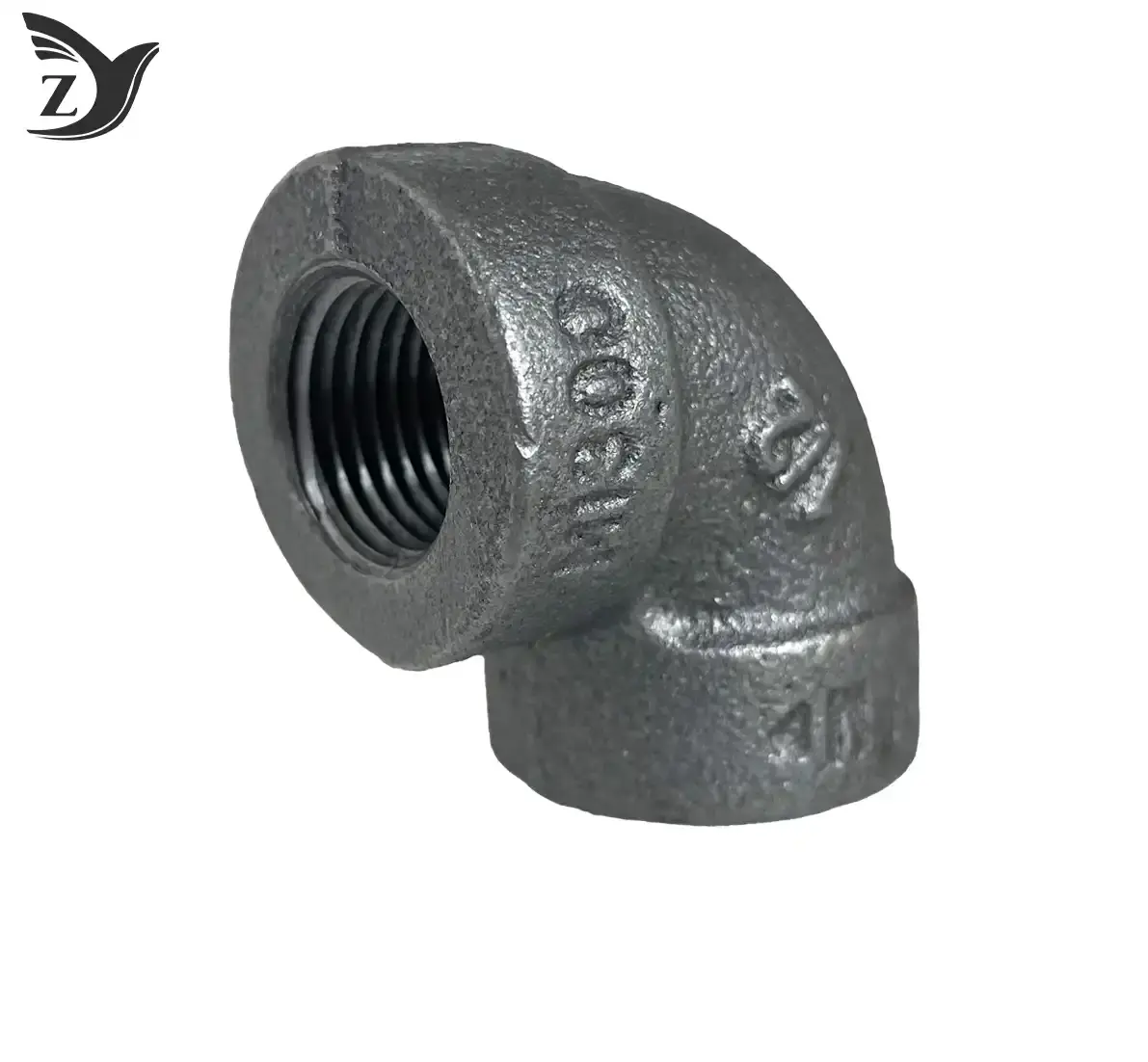

Grade Selection Criteria for Malleable Iron 90-Degree Elbows

To choose the right grade of 90-degree malleable iron elbow, you have to weigh a lot of technical factors against the needs and conditions of the application.

Pressure Rating Compatibility

Ratings of system pressure are the main factor used for selection. Most commercial building systems can handle pressures between PN16 and PN25 (1.6 to 2.5 MPa) for a standard malleable iron 90-degree elbow that is cast in sand. As per ASME B16.3, fire protection uses usually call for Class 150 or Class 300 fittings. The grade choice makes sure that the walls are thick enough and the material is strong enough to keep the structure together under both standing and surge pressures. When the fitting goes through temperature expansion cycles, the female-threaded design with BSPT or NPT threads needs to stay true to its measurements so that the threads don't strip or the joint doesn't leak.

Temperature and Environmental Factors

Operating temperature ranges have a big effect on how materials behave. Black-heart malleable iron stays stable in structure at temperatures ranging from -20°C to 300°C, which is enough for most heating systems, compressed air, and steam transport needs. Extreme thermal cycles, on the other hand, can cause stress at threaded joints. This makes grade selection very important in situations where temperatures change often. The choice between a black finish and a hot-dip galvanized surface treatment is often based on how resistant the material is to corrosion. Galvanized fittings last longer in environments with corrosive chemicals, potable water systems, and outdoor installations. However, the zinc coating must be at least the minimum thickness required by ASTM A153 for the fittings to work as promised.

Comparative Material Analysis

As an option to ductile iron or steel, malleable iron has clear benefits in threaded fitting situations. While ductile iron has a higher tensile strength, it is not as easy to machine or thread-form precisely as malleable iron grades. Steel valves can handle higher pressures, but they need to be bonded together instead of threaded, which requires more work and special skills during installation. Due to its balanced properties, malleable iron is the best option for systems that need connections that can be adjusted in the field, are simple to maintain, and adhere to building codes that mandate threaded connections in specific situations.

When choosing a grade, the decision matrix takes into account the pressure class, the temperature exposure, the corrosive environment potential, the installation method preferences, and the certification requirements. For applications involving a malleable iron 90 degree elbow, engineers weigh these factors against the project's budget and the supplier's abilities.

Advantages of Choosing the Right Malleable Iron Grade

When you choose the right grade, you directly get measurable performance benefits and lifecycle cost advantages in a wide range of industrial settings.

Enhanced System Reliability

When properly stated, malleable iron fittings are much tougher and more resistant to shock than cast iron options. The material's ability to take in impact energy without breaking is useful during installation processes where the screws might get too tight or there might be mechanical stress. This makes it less likely for pressurized systems to fail in catastrophic ways. This is especially important in fire defense networks, where dependability can mean the difference between small events and big property losses. It stops cracks from spreading from small surface flaws to structural fails because of the irregular graphite microstructure that is naturally found in malleable iron grades.

Cost Efficiency and Maintenance Benefits

In addition to the initial cost of purchase, the total cost of ownership includes the cost of repairs and the length of time the service will last. Galvanized malleable iron 90-degree elbows prevent rust better than painted steel ones, so water distribution systems don't have to be inspected or replaced as often. The threaded connection design gets rid of the need for hot work permits and specialized welding equipment. This cuts down on the cost of installation labor, especially in buildings that are already occupied or undergoing renovations. Material compatibility with different thread sealants and sealing compounds makes inventory management easier for repair teams that are in charge of a variety of pipe systems across multiple facilities.

Global Application Versatility

Internationally known standards are used to make malleable iron fittings, which ensure stability in specification across foreign projects. A fire protection company that works in Dubai, Singapore, and Houston can agree on ASTM A197 parts that are certified by FM/UL. This makes it easier to buy supplies, train employees, and ensure the quality of the work. There are fewer risks in the supply chain when products from certified manufacturers are widely available. This also helps competitive bidding environments. Many installations in petrochemical complexes, high-rise commercial towers, and hospital infrastructure show that the material works well in tough service conditions.

All of these benefits work together to help people make smart purchasing choices that balance short-term cost concerns with long-term performance needs. When buyers know the differences between grades, they can give suppliers clear instructions that they can always follow. This cuts down on the time needed for qualification and builds stable supply relationships.

Conclusion

When procurement workers know about the different types of malleable iron, they can choose, find, and use pipe fittings that meet technical needs and keep project costs as low as possible. The differences between ASTM A197, EN 10242, and GB/T 3287 grades are due to area preferences and testing methods. However, when properly matched to application needs, they all work similarly. Pressure ratings, temperature compatibility, and corrosion resistance are the most important things to look at when choosing a pipe. Threaded malleable iron 90 degree elbow configurations offer installation flexibility that is valued in fire protection, gas distribution, and building services. A good procurement process takes into account the total cost of ownership, the validity of the certification, and the supplier's ability to do the job. It goes beyond just comparing prices to build trusting supply relationships that help the project succeed and keep the system running smoothly in the long term.

FAQ

1. What distinguishes ASTM A197 from ductile iron grades?

As per ASTM A197, malleable iron is made by heating white cast iron until it turns into a ferritic matrix with irregular graphite that is easy to stretch and shape. Ductile iron (ASTM A536) has spheroidal graphite that forms when magnesium is added during solidification. This gives it higher tensile strength but different machining properties. Due to its greater thread-forming precision and long history of use in building services, malleable iron is better suited for the manufacture of threaded fittings.

2. How do material grades affect corrosion resistance?

The base grade of malleable iron has a steady oxide layer that protects it from atmospheric rust to a mild degree. Surface cleaning, on the other hand, determines how well rust works in real life. Hot-dip galvanized finishes that meet ASTM A153 standards greatly increase the service life in outdoor and potable water uses, with the thickness of the zinc covering directly affecting the length of time it protects. Black finishes work well in dry places like compressed air systems, but they need extra protection in places where things are corrosive.

3. Can we order custom sizes and grades?

Manufacturers with a good reputation can meet special requests like non-standard sizes, unique thread configurations, and changed pressure classes. Custom production runs usually have minimum order numbers, and wait times are longer than when an item is in stock. A technical feasibility study makes sure that the desired specs are in line with the manufacturer's abilities and the standards that apply. This protects the interests of both the supplier and the customer.

Partner with Zhiyuan Malleable Steel for Certified Quality

Zhiyuan Malleable Steel has been making precisely designed malleable iron 90 degree elbows for 18 years. These bends meet the high standards of fire protection, gas distribution, and MEP builders around the world. Our factory in Shanxi uses ISO 9001 quality control systems to make parts that meet ASME B16.3, EN 10242, and GB/T 3287 standards and have full FM and UL approvals. We keep standard sizes from 1/8" to 6" in stock, in both black and hot-dip galvanized styles. This means that we can deliver within 48 hours for urgent project needs and offer OEM customization for unique uses.

Our full technical support, which includes MTC 3.1 material certificates, batch-specific pressure test reports, and dimensional inspection documentation with every shipment, gives procurement teams a competitive edge. Threaded connections are safe during international shipping thanks to our two-layer export packaging, and flexible Incoterms allow for a range of logistics needs. Our team can help you with quick quotes and technical advice, whether you need a dependable provider of malleable iron 90-degree elbows for long-term framework deals or a manufacturer partner for custom-engineered solutions.

Email our engineering experts at q1236800000@gmail.com to talk about the details of your project, get full product datasheets, or set up visits to the workplace to look around.

References

1. Davis, J.R. (Editor). ASM Specialty Handbook: Cast Irons. ASM International, Materials Park, Ohio, 1996.

2. American Society for Testing and Materials. ASTM A197: Standard Specification for Cupola Malleable Iron. ASTM International, West Conshohocken, Pennsylvania, 2019.

3. European Committee for Standardization. EN 10242: Threaded Pipe Fittings in Malleable Cast Iron. CEN, Brussels, Belgium, 2013.

4. Janowak, J.F., and Gundlach, R.B. "Guidance for Improving the Thermal Fatigue Resistance and Toughness of Gray Iron Castings." AFS Transactions, Vol. 90, 1982, pp. 847-856.

5. Standardization Administration of China. GB/T 3287: Malleable Cast Iron Pipe Fittings. Standards Press of China, Beijing, 2015.

6. Elliott, R. Cast Iron Technology. Butterworth-Heinemann, Oxford, United Kingdom, 1988.
