What Does a Square Face Reducing Tee Fitting Do?

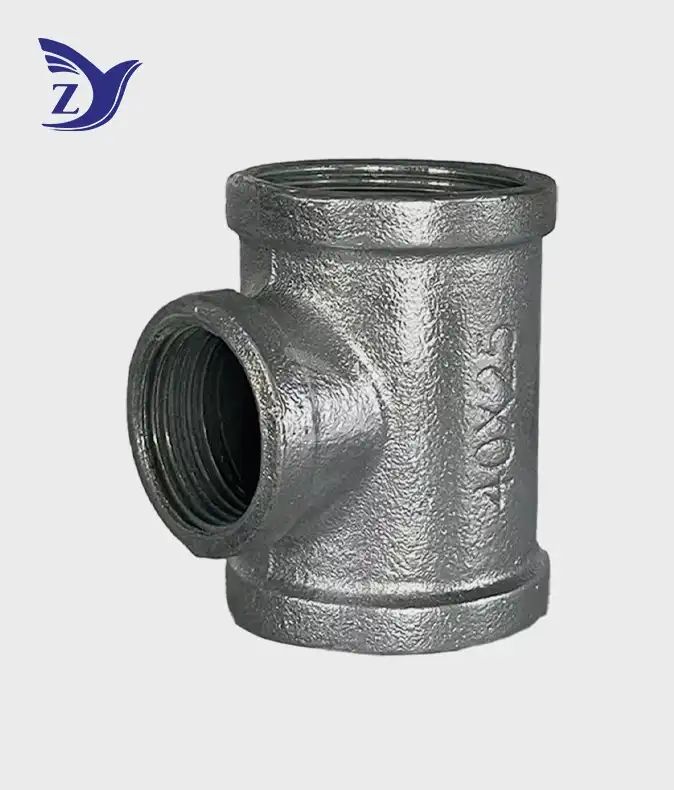

A square face galvanized square edge reducing tee pipe fittings connects three pipe segments at a 90-degree branch while transitioning between two different pipe diameters in a single component. Made from hot-dipped galvanized malleable iron, it eliminates the need for separate reducer bushings by integrating diameter transition directly into the tee body. The reinforced square-banded openings grip pipe wrenches securely during installation, reducing slippage and thread damage. These fittings serve industrial water, gas, and HVAC pipeline systems where reliable branching, corrosion resistance, and precise NPT or BSPT thread compliance are non-negotiable requirements.

Understanding Square Face Reducing Tee Fittings

What Defines a Square Face Design?

The "square face" or "square edge" refers to the flat, banded rings of reinforcement cut around each threaded hole. This shape provides bulk to high stress locations unlike round-bead fittings so that installers may utilize higher torque without breaking the fitting body. Stronger square edge fittings are the finest solution for industrial pipe systems that are subject to a lot of mechanical stress every day.

Technical Specifications That Matter

These fittings are manufactured to ASME B16.3 sizes and the threads are made to ANSI / ASME B1.20.1 (NPT) with 60 degree angle and 1:16 taper or BSPT with 55 degree angle and the same taper ratio. Temperature range of class 150: -20°F to 150°F. 300 psi WOG According to ASTM A153, hot-dip galvanization is a process that produces a zinc coating that exceeds 85 microns in thickness, providing a durable barrier against oxidation.

Manufacturing Process and Quality Controls

Black Heart Malleable Iron (ASTM A197) is the primary material, with a minimum tensile strength of 40,000 psi and elongation properties that prevent it from fracturing into brittle fragments while under applied pressure. All pieces are cast, annealed, precisely threaded and hot-dip galvanized in temperature controlled ovens. Finished items go through three quality tests before they are shipped: a measurement check, a thread gage check and a coating thickness test. In this three-step method, failure rates are minimal for large orders.

Benefits and Applications of Galvanized Square Edge Reducing Tee Fittings

Corrosion Resistance in Harsh Environments

The zinc layer on a hot-dipped galvanizing reducing tee works as a sacrifice anode, corroding faster than the iron underneath to keep it safe. This coating makes square face galvanized square edge reducing tee pipe fittings last much longer than black steel that hasn't been coated when used in high-humidity warehouses, outdoor gas distribution lines, and coastal HVAC installations. The American Galvanizers Association says that hot-dip coatings can protect steel for more than 50 years in moderate environments. This number directly lowers the cost of replacement over the lifecycle for both distributors and end users.

Typical Industrial Applications

A lot of different pipeline projects use these 3-way flow fittings. Here are the main areas of use where they provide measured value:

• Industrial water distribution: A 2" × 2" × 1" NPT square-edge reducing tee connects a main supply line to a smaller branch feed, eliminating a separate bushing and reducing joint count by one per branch point.
• Gas pipeline branching: The precision-threaded NPT or BSPT connection forms a self-sealing mechanical joint suitable for natural gas and propane systems rated to Class 150 pressures.
• HVAC and fire protection: Square-edge fittings handle the thermal cycling and vibration that plagues standard round-bead alternatives in mechanical rooms and rooftop units.

Industries that use water: A 2" × 2" × 1" NPT square-edge reducing tee links a main supply line to a smaller branch feed. This gets rid of the need for a separate bushing and lowers the number of joints by one at each branch point.

Comparison with Stainless Steel and Black Steel Tees

These uses show why purchasing managers put thread accuracy and covering regularity high on their list of priorities when buying in bulk.

How to Select the Right Square Face Galvanized Reducing Tee for Your Project?

Match Thread Standard to Your Market

NPT threads are the standard throughout North America. BSPT threads are the standard across Europe, Asia and the Commonwealth countries. The two thread standards are not compatible. The 60 degree NPT angle does not fit correctly with the 55 degree BSPT profile and when you mix the two you get leaks and damage to the threads. Find out the thread standard your customers need downstream before you make a significant purchase and then order accordingly. Dual-standard inventory management is a common practice among distributors who service more than one export market.

Size Selection and Customization Options

Run — Run · Branch rule Run — Run · Branch rule size of t-shirts should be decreased A 2” x 2” x 1” fitting has a 2” main run, and a 1” branch exit. When suppliers provide over 1,000 size variations, distributors may complete orders from hardware stores, project contractors and installation teams without having to purchase from a number of different vendors. Customization via ODM and OEM, such as selecting the precise thread depth or creating special packaging, also reduces downstream complaints.

Supplier Evaluation Criteria

Choosing a reliable manufacturer protects profits and keeps returns from being expensive. Before agreeing to a seller, it's important to check the following:

• Certifications: ISO 9001, CE, UL, and FM certifications confirm consistent process control across production runs.
• Batch consistency: Request third-party test reports showing coating thickness and thread gauge data from recent production lots.
• Packaging standards: Export-grade double-layer cardboard or woven bag packaging prevents transit rust, which is a common cause of customer complaints on arrival.
• Delivery reliability: Confirm warehouse stock levels and stated lead times. Suppliers with ample finished-goods inventory can ship standard products within two business days, which supports your own inventory planning.

Installation and Maintenance Guidelines for Square Face Galvanized Reducing Tee Fittings

Step-by-Step Installation Best Practices

Wire brushing the pipe threads before to assembly. Use pipe dope or PTFE tape on the male threads alone. And not only on female threads. "First hand-tighten the fitting. Then, gripping the square face band directly, add another two or three turns with a pipe wrench. The flat banding surface ensures excellent contact with the teeth of the wrench, preventing the slippage that often causes broken fits with round-bead choices. Don't overtighten beyond what the manufacturer advises. Too much torque might strip the threads, causing spiral leak paths.

Routine Maintenance and Inspection

Check square face galvanized square edge reducing tee pipe fittings once a year in harsh environments like salt air, industrial chemicals, or wet soil underground. Look for red rust spots and white zinc oxide layers. Red rust spots mean that the zinc is being used up quickly. Cold-spray paint that is high in zinc can be used to fix light zinc bloom. If you see red rust at the thread roots of a fitting, it needs to be replaced because exposing the base metal to air speeds up failure under pressure. Keeping a written record of inspections helps project managers plan replacements before leaks happen.

Commercial Plumbing Case Study

A medium-sized Texas construction firm for commercial applications moved from round-bead black steel tees to square-edge hot-dipped zinc reduction tees, 1 ½" × 1 ½" × ¾" NPT, in a 200-unit sprinkler system. Fitting rust was reduced by 40% throughout 18 months of maintenance calls and no thread leaks were observed during the yearly pressure testing. The square-face design made it simpler to handle the wrench in confined ceiling locations, cutting installation time by around 15%.

Market Insights and Procurement Strategies for Galvanized Square Edge Reducing Tee Fittings

2026 Pricing and Wholesale Dynamics

Global malleable iron fittings prices rose from 2023 to 2026 because to higher costs for raw iron and zinc. Distributors claim they may receive 15 to 25 per cent better rates if they purchase from manufactures directly rather than intermediaries, thus affecting their margins on sales. Factory-direct suppliers sometimes use tiered pricing schemes that lower the price per unit when the order amount is 1 ton, 5 tons, or 20 tons.

Identifying Certified Manufacturers

It is important for buyers to choose organizations who are ISO 9001 certified and have verifiable manufacturing records. The CE, UL and FM designations on anything signify that the quality of the material AND the size of the material have been verified by a 3rd party. Before sending out purchase orders, ensure factory certificates are cross-checked with official registrar databases. This way, you prevent sending out fraudulent documents.

Conclusion

Zhiyuan Malleable Steel has been making pipe parts out of malleable iron since 2006. They can make 30,000 tons of them every year and have more than 1,000 different specs. We offer square face galvanized square edge reducing tee pipe fittings that are certified by ISO 9001, CE, UL, and FM. They come in export-grade double-layer cardboard packaging. Tiered pricing and standard product delivery within two business days are good for people who buy a lot.

FAQ

What is the difference between square edge and round edge reducing tees?

The square edge design adds flat reinforcement bands at each outlet. This allows higher installation torque without cracking and gives pipe wrenches a positive grip surface, making it the better option for high-pressure industrial applications. Round-bead fittings suit lighter-duty residential plumbing where lower torque is acceptable.

Can NPT and BSPT fittings be interchanged?

No. NPT uses a 60-degree thread angle while BSPT uses 55 degrees. Connecting the two thread forms causes cross-threading, leaks, and potential fitting failure. Dedicated adapters are required when bridging the two standards in a single pipeline system.

Are these fittings approved for potable water use?

Only if the manufacturer holds a lead-free compliance certificate (less than 0.25% lead content per US Safe Drinking Water Act requirements). Always request this document specifically before using galvanized malleable iron fittings in drinking water systems.

Is custom sizing available for bulk orders?

Yes. Reputable manufacturers offer ODM and OEM services covering non-standard run and branch diameter combinations, custom thread depths, and private-label packaging—ideal for distributors serving specialized regional markets.

What causes leaks in NPT threaded reducing tees?

NPT threads seal through metal-to-metal interference plus sealant. Leaks occur when PTFE tape or pipe dope is omitted, or when the fitting is under- or over-tightened. The square-face geometry reduces over-tightening risk by giving installers confident wrench control.

Request a Quote from Zhiyuan Malleable Steel — Your Trusted Square Face Galvanized Square Edge Reducing Tee Pipe Fittings Supplier

Flat bands of support are added to each outlet on the square edge shape of square face galvanized square edge reducing tee pipe fittings. This lets you use more installation power without cracking and gives pipe wrenches a better surface to grip, making it the better choice for high-pressure industrial uses. For lighter-duty plumbing in homes where less torque is okay, round-bead fittings work well.You can get examples or a quote for a large order today by going to zymalleablepipefitting.com or emailing q1236800000@gmail.com.

References

1. American Galvanizers Association. Hot-Dip Galvanizing for Corrosion Protection: A Guide for Specifying Engineers. 2021.
2. American Society of Mechanical Engineers. ASME B16.3: Malleable Iron Threaded Fittings, Classes 150 and 300. 2021.
3. American National Standards Institute. ANSI/ASME B1.20.1: Pipe Threads, General Purpose (Inch). 2013.
4. ASTM International. ASTM A197: Standard Specification for Cupola Malleable Iron. 2020.
5. ASTM International. ASTM A153: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. 2022.
6. British Standards Institution. BS EN 10242: Threaded Pipe Fittings in Malleable Cast Iron. 1994.
