What Are Pipe Nipple Types? OEM Sourcing and Import Guide

Pipe nipples are small pieces of threaded pipe fittings used to join two female threaded components in industrial piping systems. These connectors are mainly used to link valves, couplings, and fixtures in water, gas, and oil distribution systems while preserving system integrity. Pipe nipples are made from a variety of materials, including galvanized malleable iron, stainless steel, and carbon steel, to suit a wide range of pressure ratings and corrosive conditions. They are compatible with conventional threading formats such as NPT (National Pipe Taper) and BSPT (British conventional Pipe Taper), thereby ensuring general use in worldwide markets. Knowing the types of these helps the procurement managers to improve the inventory mix and reduce the project delays.

Understanding Pipe Nipples: Definition, Types, and Key Features

What Defines a Pipe Nipple in Industrial Applications?

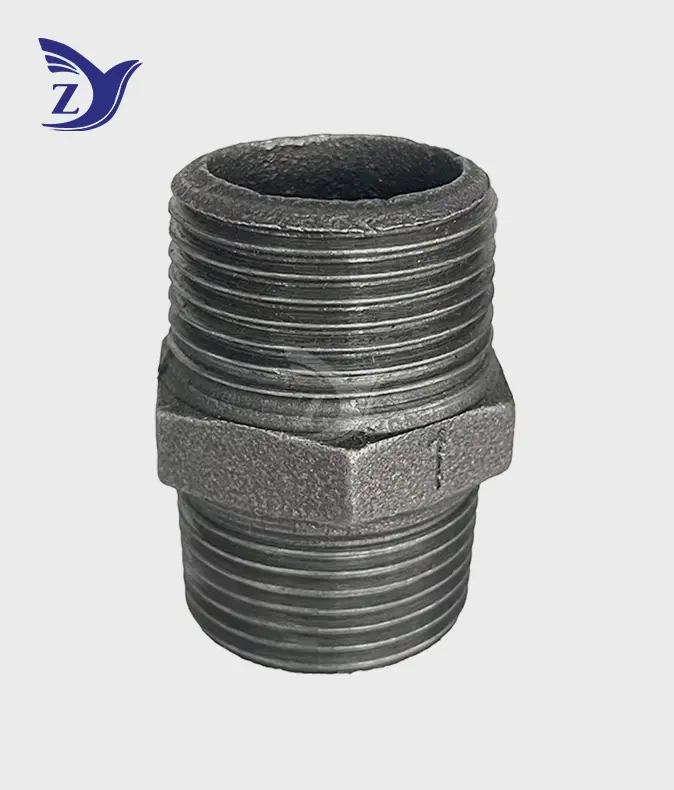

A pipe nipple is a short section of pipe with male threads on either end used to join female-threaded fittings together. Nipples aren’t couplings since they don’t link two pipes together end to end. Instead, they will run out existing lines of pipe or attach such things as gauges and valves. The compact size keeps waste to a minimum while maintaining the strength of the structure under hydraulic pressure. Most industrial norms are based on ASME B16.3 or ISO 49 to ensure the dimensions and threads are right.

Primary Categories of Pipe Nipples

Threaded Nipples: feature threads on both ends that protrude out beyond the nut and come in either NPT or BSPT. In low-pressure applications, the tapered thread profile provides a wedging action that seals links without the need of additional gaskets. Threaded connections are most popular in plumbing and gas distribution systems because they are straightforward to assemble and disassemble for maintenance.

Galvanized Malleable Iron Nipples: Hot-dip galvanizing is a process that provides a protective zinc coating on malleable iron surfaces, which prevents the formation of rust in outdoor applications. These bolts are manufactured from ASTM A197-grade malleable iron by Zhiyuan Malleable Steel with a tensile strength of more than 350 MPa. Galvanization is a method of adding a zinc coating of 70 to 100 microns that extends the life of the metal when used in damp coastal locations or chemical processing industries.

Welded versus Seamless Designs: Seamless nipples have no weld seams and are less likely to fail in high-vibration areas such as hydraulic systems. Welded options are less expensive but require X-ray inspection for big-diameter applications to locate any internal faults. As temperatures climb beyond 400°F, procurement teams are looking for the easy options in a steam system.

Dimensional Variations and Measurement Standards

Length Classifications: Close nipples thread tightly together with minimal space between them; good for tight installations. Short nipples leave 1-2 inches of shoulder unthreaded. Long nipples extend over 6 inches for offset connections. If you're downsizing nipples, you don't need separate reducer fittings to get from a 1-inch diameter to a 3/4-inch diameter.

Important Thread Specifications NPT threads are 60 degrees in angle, with a drop of 3/4 inch per foot, as ASME B1.20.1 indicates they should be. The Whitworth form for BSPT threads is 55 degrees, consistent with ISO 7-1. Mixing threads that don't work together causes cross-threading and leaks. Our plant in Taigu District inspects the thread gauges of each output batch and maintains the accuracy level at ±0.05mm.

Size Chart: Nominal sizes vary from 1/8-inch to 6 inches in diameter. The tip is 1 inch NPT with 11.5 threads per inch and an outer width of 1.315 inches. Buyers purchasing from foreign countries should compare DN (metric) and NPS (imperial) diameters. For example, a DN25 nipple is the same size as an NPS 1-inch size.

Comparison of Pipe Nipple Types: Selecting the Right One for Your Application

Material Performance Across Operating Conditions

Galvanized malleable iron is inexpensive and very flexible and works well with low- to medium-pressure water systems (up to 300 PSI). When white cast iron is heated to 1650°F, it becomes more malleable and forms lumps of graphite that may be molded. This increases the impact resistance of the iron. Stainless steel versions such as 316Ti are more expensive for offshore platforms or pharmaceutical industries since they do not corrode or pit in chloride-heavy conditions. Carbon steel is suitable for high-temperature steam lines but requires more coatings to avoid corrosion.

Pressure Rating Considerations

Class 150 pipe nipples may be rated for a working pressure of 300 PSI at room temperature, which is sufficient for household plumbing. The 3000 class units can handle 5000 PSI, which is important for hydraulic control systems in industries. Temperature derating factors can cause pipe nipples rated at 300 PSI at 68°F to be rated at 225 PSI at 250°F. Procurement managers must use ASME B31.3 pipe stress calculations to identify safety gaps, taking into consideration thermal expansion and cycle loads.

Threaded Connection Advantages

Threaded nipples enable pipe wrenches to be assembled without any tools compared to welded junctions. This lowers installation labor expenses by 30%. The threads curl over each other to provide a mechanical seal that tightens as system pressure increases. But vibration loosening has to be checked often, and thread sealant needs to be reapplied. Flanged nipples simplify the job of disconnecting equipment that has to be disassembled for repairs.

Length Impact on System Design

Closed nipples limit the amount of vacant space inside pipe systems but also make it more difficult to access the wrench during installation. Long nipples provide up to 3 degrees of angular compensation for misalignment between previously placed fixtures. Zhiyuan Malleable Steel’s engineering team employs pipe routing software in 3D to assist customers in determining the ideal nipple lengths, saving them from making costly revisions in the field.

OEM Sourcing and Procurement Guide for Pipe Nipples

Evaluating Supplier Manufacturing Capabilities

When companies get bulk orders of more than 10 tons, they need to have automated threading tools and in-line galvanizing systems. Our 50,000-square-meter building has 156 producing equipment units that work together to make 120 tons of goods every day. Check that the seller has the right qualifications, such as ISO 9001:2015 quality management and CE marking for exports to Europe. Ask for Inspection Test Plans (ITPs) that include checks on dimensions, validation of thread gages, and measurements of zinc coating thickness using magnetic induction gages.

Pricing Structures and Volume Discounts

When compared to LCL shipping, container-load prices (20GP holding 22–25 tons) lower the cost per unit by 18–22%. Zhiyuan Malleable Steel's tiered price models give extra 5% discounts for annual orders over $200,000, which is in line with what distributors need to make a profit. The FOB Tianjin Port price gets rid of all the uncertainties that come with domestic freight, while CIF terms include marine insurance and destination port charges in one clear quote.

Customization Protocols for Non-Standard Specifications

Customized thread pitches, hexagonal corners, or zinc-nickel metal finishes are all possible with ODM services. Using CNC machine tools, prototypes take about 7–10 days to make. After that, they are tested for hardness (Rockwell B 60–70) and coating bonding according to ASTM A153. For custom sizes, the minimum order quantity starts at 500 pieces, which is the right amount to balance the cost of tools with the rate at which inventory is sold.

Quality Assurance and Defect Management

Using AQL 2.5 sampling plans during pre-shipment inspections finds problems before the containers are loaded. Threads that aren't finished, thin galvanization patches, and measurement overruns are all common fails. Zhiyuan Malleable Steel's replacement policy covers problems with the way the product was made within a year. To keep downtime to a minimum, replacement items are sent via express courier. Independent verification reports from third-party testing agencies like SGS or TÜV boost buyer trust during the initial seller qualification process.

Installation and Maintenance Best Practices for Pipe Nipples

Proper Threading Techniques

To keep the material from bunching up, wrap the PTFE tape three to four times clockwise, starting two threads from the end of the thread. For gas systems, pipe dope sealants with PTFE particles in them work well, while for hydraulic oil systems, anaerobic compounds cure in thread gaps without oxygen. For 1/2-inch pipe nipples, the torque ranges from 25 ft-lbs to 180 ft-lbs. Tightening them too much cracks the galvanized coats, leaving the base metal open to rust.

Avoiding Installation Errors

Cross-threading happens when nipples that aren't lined up right force engagement at the wrong angles, ripping thread peaks off. Damage can be avoided by using thread-start guides and turning the fittings by hand for the first three turns. Pipe wrenches should never be used on galvanized surfaces without jaw covers to protect the surface. Teeth marks in the zinc layer weaken it. Thermal expansion joints can handle linear growth rates of 0.0000065 inches per inch per °F, which keeps fixed nipple connections from stress cracking.

Corrosion Prevention Strategies

Cathodic protection systems give up zinc anodes to protect steel substrates in buried pipelines. This makes nipples last up to 40 years longer, instead of 15 years. Visual checks every six months show the growth of white rust (zinc oxide), which needs to be fixed with wire cleaning and cold galvanizing spray. Stainless steel nipples get rid of rust worries in marine settings, but they need to be paired with suitable stainless steel pipe and fittings to keep galvanic cells from forming.

Maintenance Scheduling Recommendations

Ultrasonic thickness gages must be used every three months to check threaded joints in high-vibration areas like compressor discharge lines for wall thinning. Every six months, use marine-grade anti-seize products with nickel flakes to grease any exposed threads. If the erosion patterns show that the wall thickness has decreased by more than 10%, calculated by comparing the remaining wall to its nominal Schedule 40 dimensions, the nipples should be replaced.

Leading Brands and Supplier Profiles in the Pipe Nipple Market

Established Global Manufacturers

Anvil International controls the North American market with NFPA-compliant parts that are UL-listed and FM-approved. Their prices are 12–15% higher than Asian imports, but they include shipping the same day from warehouses in the region. Charlotte Pipe sells color-coded packaging systems to retail chains that make it easier for counter staff to find SKUs. Ward Manufacturing focuses on making black iron nipples for natural gas companies that meet ASTM A733 standards for services that use flammable gas.

Emerging Asian Suppliers

Since 2006, Zhiyuan Malleable Steel has sent goods to 47 different countries. To keep costs down, the company uses iron ore resources in Shanxi Province. We make more than 1,000 different SKUs, ranging from tiny 1/8-inch instrument nipples to heavy-duty 6-inch industrial connectors. With CE and ISO certifications, you can enter EU markets duty-free, and our $0.18–0.75 per pound price (FOB Tianjin) gives wholesalers 30–35% margins to compete with big-box stores.

Certification Priorities for OEM Buyers

Pressure-temperature ratings for steam heating systems in commercial buildings are confirmed by UL 213 certification. According to NFPA 13 standards, FM approval makes sure that the product works with automatic sprinkler systems. The NSF-61 certification shows that the product is lead-free and meets the requirements of the Safe Drinking Water Act for use with potable water. Buyers should ask for certified material test reports (CMTRs) that link heat lot numbers to chemical makeup analyzes. Outdoor setups in cold weather should not have carbon content higher than 0.30% to avoid brittle failures.

Conclusion

To choose the right pipe nipples, you have to weigh the material's properties, threading standards, the supplier's abilities, and the needs of the specific project. Galvanized malleable iron parts from reputable companies like Zhiyuan Malleable Steel have been shown to work well in systems that use water, gas, and industrial fluids. Strategies for buying in bulk that focus on container loads and tiered prices keep wholesale wholesalers' important profit margins. Tough construction methods and regular preventative maintenance schedules extend the life of assets, which lowers the total cost of ownership. By working with ISO-certified suppliers that offer a wide range of products and quick technical support, procurement teams can ensure the stability of the supply chain, which is important for staying ahead of the competition.

FAQ

1. How Do I Measure Pipe Nipple Dimensions Accurately?

To account for manufacturing tolerances, use calipers to measure the outer diameter three times along the barrel and then take the average of those readings. When measuring thread length, you don't count the curved lead thread; instead, you count the threads that are joined when they are hand-tight. A "1-inch" NPT nipple is actually 1.315 inches in diameter, not the same size as it sounds. Always look at ASME B36.10M for information on schedule thickness.

2. What Are the Pros and Cons of Galvanized Versus Stainless Steel?

Galvanized nipples are 40–60% less expensive than stainless steel ones and can be used in water systems with a neutral pH. Zinc coats break down in settings that are too acidic (pH below 5) or too basic (pH above 12), which limits their use in chemical plants. In saltwater desalination units, stainless steel 316 doesn't crack from chloride stress corrosion, but it needs special threading dies to keep it from hardening during production.

3. Can I Order Custom Lengths in Bulk Quantities?

To cover the cost of setting up the die, the minimum order quantity for non-standard widths is usually set at 500 pieces per size. Lead times are 3–4 weeks longer than for standard stock items. Give detailed drawings that show the thread engagement depth and the allowed overall length variations (usually ±1/16 inch). When you buy more than 2,000 pieces of a custom item, the cost per unit goes down because the cost of the tools is spread out over many production runs.

Partner with Zhiyuan Malleable Steel for Reliable Pipe Nipple Supply

Zhiyuan Malleable Steel helps wholesalers and project workers on six continents by selling precision-threaded galvanized fittings, including pipe nipples, at prices that come straight from the plant. Our 30,000-ton annual capacity means that over 1,000 SKU versions, such as close nipples and reducing connections, are always available. Production methods and hot-dip galvanizing systems that are ISO 9001-certified keep the coating uniformity above and beyond what is required by the industry. Email our export team at q1236800000@gmail.com for a complete price to see all of our products. Discover the benefits of working with a reliable pipe nipple manufacturer that is dedicated to quality control and offering fair wholesale terms.
