What are male and female pipe fittings?

Industrial piping systems rely on male and female pipe fittings, which are identified by their threaded designs, as essential connecting components. For reliable mechanical connections, use male fittings, which have exterior threads, and female fittings, which have interior threads. Water, gas, and industrial pipeline installations can benefit from the detachable connectors offered by galvanized male female threaded union 331 pipe fittings, which combine the two thread types into one unit. This allows for efficient maintenance access while still preserving system integrity.

Understanding Male and Female Pipe Fittings

Basic Definitions and Threading Concepts

Thread orientation and connecting mechanism are the main differentiating factors between male and female pipe fittings. Threading is machined into the inner bore of female fittings, while threading is externally spiraled around the outer diameter of male fittings. When assembly of connections is necessary, its complementing design guarantees correct engagement.

To ensure interoperability across various pipe systems, threading standards are vital. Thread angles of 60 degrees and tapered profiles are characteristics of National Pipe Thread (NPT) requirements, which are based on ANSI/ASME B1.20.1 standards. The threading of British Standard Pipe Taper (BSPT) pipes is 55 degrees with a 1:16 taper ratio, according per ISO 7-1 standards. Accurate dimensions are necessary to avoid cross-threading and guarantee seals that are resistant to leaks, which are crucial in industrial settings.

Material Considerations for Industrial Applications

When it comes to fitting performance in different operating settings, material selection is a big deal. Despite being subjected to high temperatures, malleable iron retains its flexibility, making it an exceptionally strong material relative to its weight. As a sacrificial barrier against corrosion in severe industrial environments, hot-dip galvanization provides protective zinc coatings averaging 70-85 microns thickness.

The mechanical strength needed for high-pressure applications is lacking in brass fittings, despite their greater corrosion resistance in maritime conditions. The high cost of stainless steel varieties, despite their superior chemical resistance, could cut into project budgets. While galvanized options provide more adaptability across a variety of installation settings, black iron fittings are better suited for interior uses where corrosion exposure is less.

Dimensional Standards and Compatibility Requirements

The 331 fitting designation is used by industry categorization systems to identify certain design qualities. These fittings are different from the 341 options with cone seats because they have flat seats that need gasket sealing. In order to guarantee adequate mechanical strength when subjected to operating forces, thread engagement lengths must fulfill minimum specifications.

Material composition and production standards determine pressure ratings. Class 300 fittings can manage greater pressure needs, whereas Class 150 fittings can usually withstand 300 PSI of water, oil, and gas (WOG) at room temperature. In order to meet the safety standards and specifications of a given system, these ratings help engineers choose the right components.

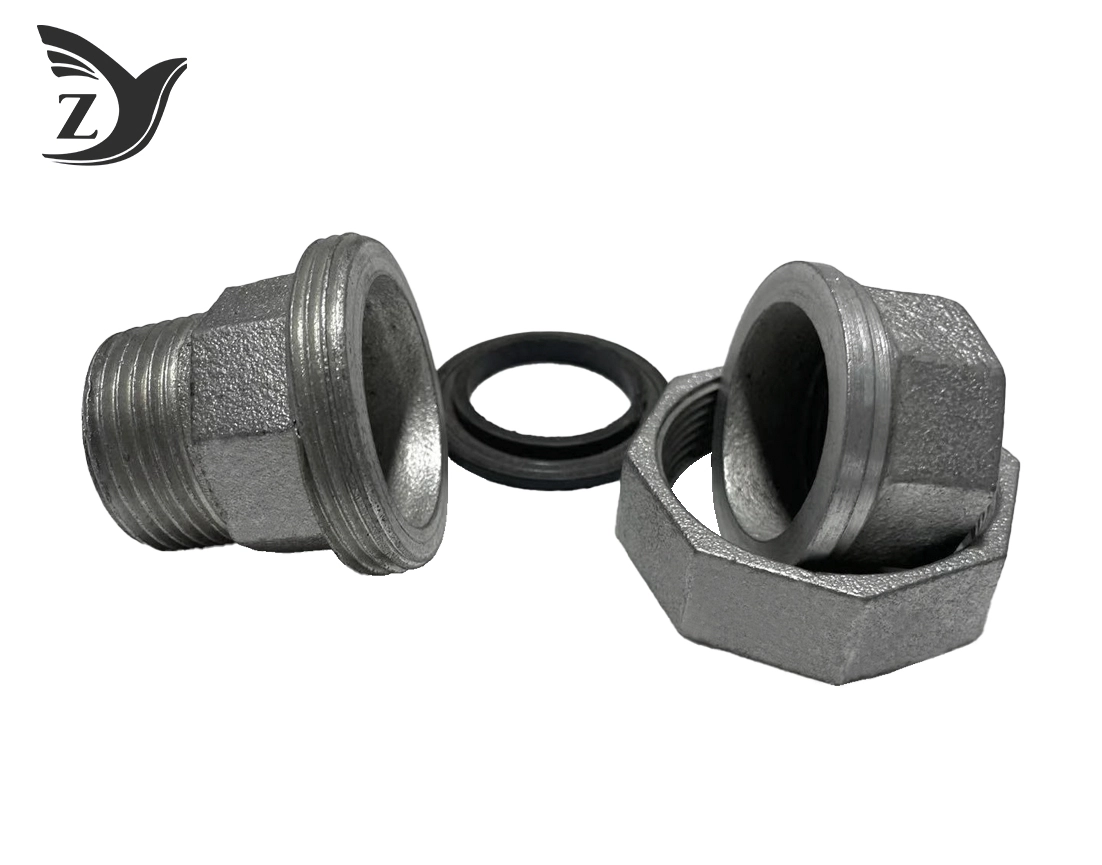

Advantages of Galvanized Male Female Threaded Union 331 Pipe Fittings

Superior Corrosion Protection Through Galvanization

Protected from oxidation and chemical assault for an extended period of time, hot-dip galvanization forms metallurgical connections between zinc coatings and basic iron materials. In order to preserve the iron substrates below, the zinc layer corrodes preferentially, serving as a sacrificial anode. When compared to painted or untreated alternatives, this electrochemical protection greatly increases the service life.

The galvanized fittings have been tested and shown to be able to endure salt spray exposure for more than 1,000 hours, in accordance with ASTM B117 requirements. In the long run, industrial installations have a cheaper total cost of ownership and need less maintenance throughout their regular 20-year service lifetimes. Installation forces that may harm other surface treatments do not affect the protective coating's integrity.

Mechanical Strength and Pressure Performance

Superior mechanical qualities are guaranteed when manufactured from blackheart malleable iron according to ASTM A197 requirements, as opposed to conventional gray iron castings. Its ductility protects it from brittle failure in stress loading situations, and its tensile strength is usually more than 35,000 PSI. For systems that are vulnerable to vibration or heat cycling, this combination is necessary.

Hydrostatic testing is performed on galvanized male female threaded union 331 pipe fittings to ensure that their pressure ratings are accurate before they are shipped. By including safety considerations into the design calculations, standard setups are able to tolerate operating pressures up to 1.6 MPa, or around 232 PSI. Systems for fire prevention, heating, ventilation, and air conditioning (HVAC), and public water distribution are just a few examples of the demanding industrial applications that may benefit from these performance features.

Economic Benefits and Maintenance Advantages

Galvanized fittings provide the best value offering for the majority of industrial applications, according to cost-benefit analysis. While the material's mechanical strength is better, its initial cost is comparable to that of brass competitors. Compared to components that need to be changed often, the lifetime costs of these components are significantly reduced since maintenance needs remain modest during long service durations.

When access is needed for equipment repair, the removable union fittings save the need to cut pipes destructively. Dismantling complete sections of pipeline is not necessary to remove instruments, pumps, and valves. Commercial and industrial settings, where operational continuity is paramount, greatly benefit from these fittings due to their capacity to decrease downtime costs and manpower needs.

How to Install Galvanized Male Female Threaded Union 331 Pipe Fittings

Pre-Installation Preparation and Tool Requirements

Before installing, make sure the pipe ends and any threaded surfaces are properly prepared. Square, smooth ends devoid of burrs that can compromise gasket sealing are required when cutting pipes. To achieve clean, precisely formed threads that match dimensional requirements, threading operations need sharp dies and sufficient cutting fluid.

Essential equipment includes torque measuring devices, thread gauges for verification, pipe wrenches of the correct size for the fitting dimensions, and threads. Proper lifting mechanisms for heavier fittings, work gloves, and eye protection are also part of the safety equipment. Workspace accessibility and sufficient illumination minimize installation time demands without sacrificing quality.

Thread Engagement and Sealing Procedures

In order to guarantee connections that are resistant to leaks, thread engagement adheres to particular standards. When the gasket makes contact, hand thread the bolts until they are snug, and then tighten them using a wrench to the specified torque. Thread damage or gasket extrusion may occur from over-tightening, while leakage under system pressures can occur from inadequate torque.

Fluid compatibility and temperature requirements determine the gasket to be used. While PTFE gaskets are more suited to chemical services or high temperatures, rubber gaskets are more suited to typical water applications. In order to avoid uneven stress concentrations that might lead to early failure, it is crucial to position gaskets correctly so that compression is equal throughout seating surfaces.

Quality Verification and Testing Methods

Thread engagement and gasket location are visually inspected as part of the installation verification process. Joint integrity is confirmed prior to system commissioning by pressure testing at 1.5 times operating pressure. In order to find any issues that need fixing, leak detection is done utilizing electronic gas detectors or soapy water solutions.

Installation records, results of pressure tests, and certificates of materials are all necessary pieces of documentation. These documents are necessary for regulatory compliance and maintenance planning purposes. Installation information and component specifications may be found in proper documentation, which also makes future service work easier.

Comparative Analysis: Galvanized vs Other Pipe Fittings

Material Performance Comparison

Depending on the service requirements, material selection affects both the initial price and the long-term performance. Despite its low prices, galvanized malleable iron is quite long-lasting and suitable for use in a wide variety of industrial settings. While black iron is much more corrosion resistant, specialised stainless steel alloys provide better chemical resistance for use with strong media.

Despite its superior performance in saltwater and potable water systems, brass fittings aren't up to snuff when it comes to industrial settings with high pressure. Although thread lubricants and torque standards might differ, the overall installation difficulty is consistent across materials. In contrast to brass, which could soften at high temperatures, malleable iron retains its strength.

Cost Analysis and Value Propositions

Instead than focusing only on the initial material prices, economic evaluations should take the complete lifespan costs into account. Union 331 pipe fittings made of galvanized metal are 20-30% cheaper than their brass counterparts and have double the mechanical strength. Typical 15-20 year service cycles have minimum maintenance needs, which significantly reduces operating expenses.

Galvanized alternatives are more cost-effective in the event that system adjustments are required. Compatibility with existing installations is guaranteed by standardized dimensions, which eliminates the need for special construction. Shorter procurement lead times and lower inventory holding costs for maintenance operations are achieved via established distribution networks' availability.

Application Suitability Assessment

Depending on the circumstances and performance needs of the application, different materials are better suited. Municipal water systems, fire protection installations, and general industrial operations are some of the best places to use galvanized fittings. Specialized alloys may be necessary for chemical processing, while stainless steel components may be required for food service applications due to hygiene concerns.

Decisions about selection are also impacted by thread norms. While BSPT specs are more often used in foreign applications, NPT threading is more popular in North American markets. Products with dual compatibility make it easier to manage inventories and purchase parts for mixed systems with different threading standards in a single installation.

Procurement Guide for Galvanized Male Female Threaded Union 331 Pipe Fittings

Supplier Evaluation and Quality Assurance

Evaluation of suppliers' production capacities, quality processes, and delivery performance must be thorough for procurement to be successful. Industry-specific certifications, such as UL or FM clearances, show that products comply with safety regulations, while ISO 9001 certification demonstrates that quality management systems are implemented.

To make sure suppliers can achieve volume needs within the given timeframes, manufacturing capacity evaluation is done. In order to meet specifications for surface polish and dimensional tolerances, production facilities should have state-of-the-art equipment. In order to guarantee that the product consistently performs as expected, quality control systems should include procedures for material verification, dimensional inspection, and pressure testing.

Specification Development and Technical Requirements

To avoid confusion and make sure the items are up to par, it's important to have detailed specifications. Things like thread standards, pressure ratings, material grades, and coating requirements should be laid forth in technical documentation. Marking has to be defined, as are dimensional tolerances and gasket specifications, so that installation and maintenance may go smoothly.

Pay close attention to the thread engagement lengths and gasket seating dimensions while dealing with galvanized male female threaded union 331 pipe fittings. Conformity with project standards and regulatory requirements is essential, as are specifications for coating thickness, pressure tests, and material certifications. It is recommended that compliance certificates, records of dimensional inspection, and material test results be included in the documentation packages.

Logistics and Inventory Management

Manufacturing lead times, transportation needs, and installation schedules all need to be included into delivery timing. Although unique requirements may need longer manufacturing times, standard goods usually ship out within days of order submission. Coatings should be protected before transport and handled efficiently at construction sites according to packaging standards.

There has to be a balance between carrying costs and availability requirements in inventory management techniques. While just-in-time delivery may work for typical maintenance items, safety stock maintenance may be warranted for critical applications. Consignment agreements, made possible via supplier relationships, allow for the reduction of inventory expenditures while guaranteeing the availability of components when required.

Conclusion

The foundation of every industrial piping system is the male and female pipe fittings. One specialized option that offers connection variety and easy maintenance is the galvanized male female threaded union 331 pipe fittings. Their consistent service across varied applications is made possible by their dual-threaded design, which removes the need for extra components. In demanding industrial settings, these fittings are invaluable due to the hot-dip galvanization process's guarantee of long-term corrosion resistance. Engineers and buying specialists may specify components with optimum performance across prolonged service cycles provided they understand the correct selection criteria, installation techniques, and procurement strategies.

Partner with Zhiyuan Malleable Steel for Your Industrial Fitting Needs

Zhiyuan Malleable Steel brings over 26 years of specialized experience in manufacturing premium galvanized male female threaded union 331 pipe fittings that meet the demanding requirements of industrial applications. Our state-of-the-art facility in Shanxi Province operates with ISO 9001 quality certification and maintains an annual production capacity of 30,000 tons across more than 1,000 product specifications. We understand the critical nature of reliable pipe connections in your operations, which is why every fitting undergoes rigorous testing protocols including hydrostatic pressure testing and thread precision verification. As a trusted galvanized male female threaded union 331 pipe fittings supplier, we offer comprehensive OEM/ODM customization services, CE/UL/FM certifications, and rapid delivery within two hours for standard products. Contact our technical team at zhiyuan@mifittings.com to discuss your specific requirements and discover how our advanced manufacturing capabilities can enhance your project success.

FAQ

What makes galvanized male female threaded union 331 pipe fittings different from standard unions?

The 331 designation identifies flat-seat design configurations requiring gasket sealing, while the male-female threading eliminates additional nipple requirements. This combination reduces installation complexity and component counts compared to traditional union assemblies.

How do NPT and BSPT threading standards affect compatibility?

NPT features 60-degree thread angles with specific taper rates according to ANSI standards, while BSPT uses 55-degree angles per ISO specifications. These differences prevent interchangeability, requiring careful specification matching to ensure proper fit and sealing performance.

What pressure ratings apply to galvanized threaded union fittings?

Standard configurations typically handle Class 150 ratings (300 PSI WOG) at ambient temperatures. Higher pressure applications may require Class 300 variants or specialized designs depending on specific service conditions and safety requirements.

Why choose galvanized coatings over other surface treatments?

Hot-dip galvanization provides sacrificial protection where zinc corrodes preferentially to protect base iron materials. This electrochemical process offers superior longevity compared to painted coatings while maintaining cost-effectiveness for industrial applications.
