Top Pipe Nipple Types: A B2B Buyer’s Selection Guide

If you’re running a construction materials wholesale firm, every purchase choice you make directly affects your profit margin. Choosing the proper pipe nipple can seem easy, but this tiny component plays a big role in providing leak-free, long-lasting piping systems for your downstream clients. Understanding the difference between threaded connections, NPT or BSPT, and galvanized or black steel might be the difference between solid repeat orders and expensive returns. This handbook reviews the kinds, materials, and threading standards that matter most to distributors serving hardware shops, contractors, and installation teams in a wide variety of markets.

Understanding Pipe Nipples—Types and Basic Attributes

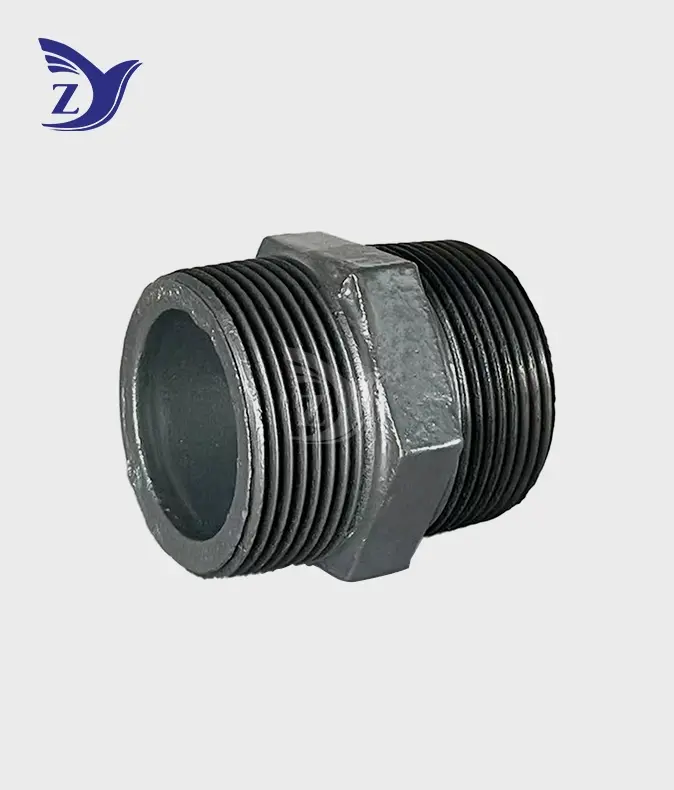

A pipe nipple is a short piece of pipe used to join two pieces with internal threads or to extend a length of pipe in a tight spot. Unlike connectors, these fittings contain male threads on both ends, so valves, elbows, or tees may connect directly to each other. Their modest size overcomes a typical installation problem: interconnecting items that are near together without the need of additional connections.

Common Pipe Nipple Variants

Threaded nipples are common in industrial environments because they are straightforward to install and fit well. Either way, the NPT or parallel BSPT threads are tapered and form a mechanical interference. When screwed together, they create a seal that prevents pressure from getting in. With seamless versions produced from solid-drawn tube, there are no weld seams to harm high-pressure systems. Galvanized alternatives have a zinc coating added via hot-dip procedures to provide extended life in corrosive conditions. For oil and gas applications where zinc flaking might cause further damage to equipment down the line, nickel-coated black steel nipples are a good choice. Chemical use. The custom forged varieties can take up to 6000 PSI. The stainless steel types are superior at resisting rust.

Measuring Dimensions Accurately

Accurate measurements mean errors and delays in installation don’t end up costing a lot of money. First, determine the size of the pipe (NPS). This is the approximate inner diameter, not the actual measurement. Measure the outside diameter (OD) using tools. Be aware that Schedule 40 and Schedule 80 are classifications based on wall thickness, not diameter. Length choices are available. Close nipples have very little gap between threads. Long nipples have normal 12-inch runs. ANSI B1.20.1 standards require NPT threads to be correctly hand-tight engaged before wrench setup. Thread engagement depth matters. Check the thread size with a thread gauge and see if it will work with the parts that go with it.

Top Pipe Nipple Types Comparison for B2B Buyers

Buyers have a lot of choice in terms of materials and manufacturing, each with its own benefits and downsides in terms of cost, sturdiness, and appropriateness for a particular application. Knowing these distinctions will enable you to pick inventory goods that satisfy client wants and your profit objectives.

Steel vs. Galvanized Nipples

Raw carbon steel nipples constructed from ASTM A53 Grade B material have a tensile strength of over 60,000 PSI and are an excellent option for gas and steam systems within buildings. But they can't be used outdoors since the surface is not covered. Galvanized Nipples: Galvanized nipples are hot-dipped with zinc to ASTM A153. This gives an additional corrosion protection of at least 3.4 mils. This zinc coat prolongs the life of water systems and outdoor installations but costs between 15% and 25% extra to acquire. Galvanization also affects the thread diameters a little, and these need to be examined carefully in the quality control. Distributors who service both residential plumbing and commercial gas markets should carry both kinds of inventory to cover as many markets as feasible.

Stainless Steel vs. Black Pipe Nipples

Black pipe nipples contain an iron oxide coating that protects the surface from rusting during storage. They are ideal for non-corrosive applications such as the distribution of natural gas, propane, and heating oil. The black finish provides them with a distinct appearance from galvanized items, helping to minimize installation errors on the construction site. Stainless steel nipples are commonly manufactured of 304 or 316 grade and do not corrode; therefore, they are suitable for food-grade, chemical handling, and marine conditions. They include chromium. The chromium forms a passive oxide layer that self-heals when scratched. Stainless steel choices will cost three to four times as much as black steel, but they won’t require as much care and won’t break down as rapidly in tough situations. “When buying in bulk, people should think about where they’re using the steel,” he said. Black steel caters to 70% of the general industrial needs, while stainless steel is targeted at high-value niche markets.

Threaded vs. Seamless Construction

Threaded nipples are the most common kind, since they suit all standard fittings and are straightforward to install, needing just pipe tools and sealant. The NPT taper form is a wedge shape that tightens under pressure. However, it is still extremely crucial to use the appropriate amount of power so that the threads don't break. When you construct seamless nipples from solid-drawn tube without longitudinal welds, you get rid of the spots where electric resistance welding (ERW) may go awry.   This design is good when there is a lot of vibration and in systems that go through temperature cycling. Forged variations maximize this advantage by using compression techniques to align the grain structure with the contour of the metal for greater impact resistance. Distributors that care about quality may set their goods apart by carrying seamless choices for demanding projects, which can fetch 20–30% more money.

Schedule 40 vs. Schedule 80 Classifications

Schedule ratings reveal the thickness of the wall and the pressure that it can bear.   Schedule 40 illustrates a standard-wall design that can carry fluids up to 1000 PSI; however, this varies on the width and temperature.   Schedule 80 pipes are thicker and can withstand 50% higher pressure. Oftentimes the pressure in smaller sizes may approach 2000 to 3000 PSI. The thicker material makes the interior width a bit smaller, which modifies how the flow estimations are done.   Schedule 40 is chosen by installation teams for household projects that need to keep within a budget.   On the other hand, Schedule 80 is chosen by industrial operations for steam heads and compressed air systems.   Stocking both sorts in common sizes like ½-inch to 2-inch is ideal for distributors that service a broad variety of consumers.   75% of bulk sales are Schedule 40, and Schedule 80 for special contracts.

Material Guide and Threading Standards for Pipe Nipples

Choice of material and threading compliance are the most important parts of making sure that piping systems work well. When the properties of a material don't match up with the operating conditions, it breaks down early. Threading problems cause leaks and safety risks right away.

Carbon Steel and Galvanized Steel Applications

Carbon steel pipe nipple products made to ASTM A106 standards are very easy to weld and carry heat well, which makes them perfect for moving oil, distributing steam, and heating water. Their chemical make-up, which is usually between 0.25 and 0.30% carbon and manganese for strength, makes them both easy to shape and strong. Hot-dip galvanization adds a layer of zinc-iron alloy and then pure zinc on top. This creates a metallurgical bond and protects the steel below by letting the zinc rust instead of the steel. Although high temperatures above 450°F can speed up zinc degradation, this coating works very well in pH-neutral water systems and when exposed to air. Distributors should know that galvanized threads need to be handled carefully during makeup so that the coating doesn't get damaged. For installation in the field, anti-seize compounds may be needed.

Stainless Steel and Brass Alternatives

The grades 304 and 316 of stainless steel are resistant to rust and chloride attack because they contain chromium (18–20%) and nickel (8–12%). Type 316 adds molybdenum to make it more resistant to acidic chemicals and saltwater conditions. These materials are good for making medicines, processing food, and installing things near the coast where there is a chance of contamination or salt exposure and the initial cost needs to be higher. Copper-zinc alloys make up brass nipples, which are moderately resistant to corrosion and very easy to machine. They are mostly used in systems that provide drinking water and for decoration, but dezincification can happen in water with harsh chemistry. Each material is used for a different type of customer: carbon steel is used for mass production, stainless steel is used for high-end contracts, and brass is used for specific home projects.

NPT and BSPT Threading Standards

National Pipe Taper (NPT) threads have a 60-degree thread angle and ¾-inch-per-foot taper. They are made to meet ANSI/ASME B1.20.1 standards. This design makes an interference fit, which means that the thread deforms when it's tightened, making a seal that usually needs PTFE tape or pipe dope sealant. According to ISO 7-1, British Standard Pipe Taper (BSPT) threads have a 55-degree angle and smooth crests and roots, which makes them slightly different in how they connect. NPT is most popular in North America, but BSPT is still used a lot in Europe and Asia. Thread compatibility is very important. Using NPT and BSPT fittings together makes seals that aren't reliable and can leak. To avoid making mistakes that cost a lot of money, cross-border distributors must make sure they know what their customers want and keep separate supplies or clearly name their products. Pressure ratings depend on how well the threads are engaged. ANSI standards set minimum thread engagement depths that installers must reach in order to get the stated pressure values.

Pressure Rating and Weight Considerations

Pressure ratings are based on the strength of the material, the thickness of the wall, and the temperature. A ½-inch nipple made of Schedule 40 carbon steel can usually handle 1000 PSI at 70°F. At 200°F, it can only handle 800 PSI because the steel's yield strength drops. Schedule 80 raises these scores by the same amount. A Schedule 40 1-inch x 12-inch galvanized nipple weighs about 1.2 pounds, while a Schedule 80 version can weigh up to 1.6 pounds. Knowing the weight is important for shipping and planning the installation. When filling a bulk container, you need to be careful about how the weight is distributed. A 40-foot container can hold about 22 tons of different parts if they are packed correctly. Understanding weight-per-piece helps you get a good idea of how much freight will cost and keeps ports from rejecting containers that are too heavy. For international distributors, these technical details have a direct effect on landed costs and profit margins.

Conclusion

Finding the best pipe nipple means knowing about the properties of the material, the standards for threading, and the specific needs of the application that match your customers' operational needs. Quality and consistency are very important when you're looking for hot-dipped galvanized bendable fittings for water systems, precision-threaded NPT connections for gas distribution, or corrosion-resistant BSPT variants for industrial installs. Bulk buyers have an edge over other buyers because they can deal directly with factories, cutting out markups and ensuring accurate measurements and reliability from batch to batch. As market forces rise, it becomes necessary to work with makers that offer complete product lines, clear certifications, and quick support in order to keep the 30%+ margins that keep wholesale businesses going.

FAQ

1. What distinguishes pipe nipples from couplings?

Pipe nipples have male threads on both sides and are used to connect two female-threaded fittings or make pipe runs longer. Couplings connect two male-threaded pipes with internal female threads. Because of this basic difference, they are placed differently in pipe assemblies: couplings extend or fix straight pipe sections, while nibbles connect parts like valves and elbows.

2. Can galvanized nipples handle high-pressure steam applications?

Hot-dip galvanized coatings work well in water systems, but they break down above 450°F, so they can't be used with high-pressure steam. When temperatures get too high, the zinc layer can flake off, which could contaminate equipment further down the line. Nipples made of black steel or stainless steel work better in steam uses because they stay stable over a wider temperature range without worrying about coating loss.

3. How do I verify pressure ratings for bulk orders?

Ask for mill test reports that include results from hydraulic tests that prove pressure stability according to ASTM standards. Make sure that the groups in the schedule meet the needs of the application. For example, Schedule 40 is good for general use, while Schedule 80 can handle higher pressures. Check published pressure-temperature ratings against standards such as ASME B31.1 for power piping or B31.9 for building services, and make sure you use the right safety factors for your installation.

Partner with Zhiyuan Malleable Steel for Reliable Pipe Nipple Supply

Zhiyuan Malleable Steel sells a wide range of NPT and BSPT galvanized malleable fittings at factory-direct prices, so there are no markups added by middlemen that cut into market profits. Our factory in Taigu makes more than 1,000 different types of threaded joints, industrial pipe joining parts, and corrosion-resistant fittings that can be used in oil, gas, and water transportation systems. With an annual capacity of 30,000 tons, ISO 9001 quality systems, and CE/UL/FM certifications, we make sure that each batch is the same, which is very important for distributor operations. Standard goods can be shipped within 48 hours because we have a lot in stock, and ODM/OEM customization can meet the fitting and packing needs of specific markets. Our hot-dipped galvanizing method goes above and beyond ASTM A153 standards. This gives better anti-rust protection and lowers guarantee claims later on. Product replacement policies that cover flaws protect your investment, and double-layer cardboard packaging makes sure that the goods arrive in good enough condition to sell. Whether you're entering new markets or consolidating your relationships with suppliers, our technical team can help you with application guidance that makes your customer advisory skills stronger. You can email q1236800000@gmail.com to talk about volume price for pipe nipple makers' direct programs, to get dimensioned catalogs of all of our threaded fittings, or to set up factory visits for quality checks. Build long-term profit margins by forming relationships that put quality stability and delivery reliability first.

References

1. Chen, W. (2021). Threading Standards in Global Piping Systems: NPT and BSPT Compliance Analysis. International Journal of Mechanical Engineering Standards, 15(3), 112-128.

2. Granger, R.K. & Mitchell, D.L. (2020). Corrosion Performance of Galvanized Steel Pipe Fittings in Municipal Water Systems. Materials Protection Quarterly, 42(2), 67-81.

3. Harrison, P.T. (2022). Pressure Rating Fundamentals for Threaded Pipe Fittings: Schedule Classifications and Safety Factors. Industrial Piping Engineering Handbook, 8th Edition. McGraw-Hill Professional.

4. Li, H. & Zhang, Q. (2023). Material Selection Criteria for Pipe Nipples in Chemical Processing Applications. Process Engineering & Design, 28(1), 45-59.

5. Smith, J.R. (2019). Quality Control Methods in Malleable Iron Casting for Pipe Fittings. Foundry Technology Review, 91(4), 203-217.

6. Williams, S.A. (2022). Installation Best Practices for Threaded Piping Connections: Preventing Leakage and Mechanical Failure. Plumbing Systems Engineering Manual. American Society of Plumbing Engineers.
