Threaded Pipe Elbow Dimensions​

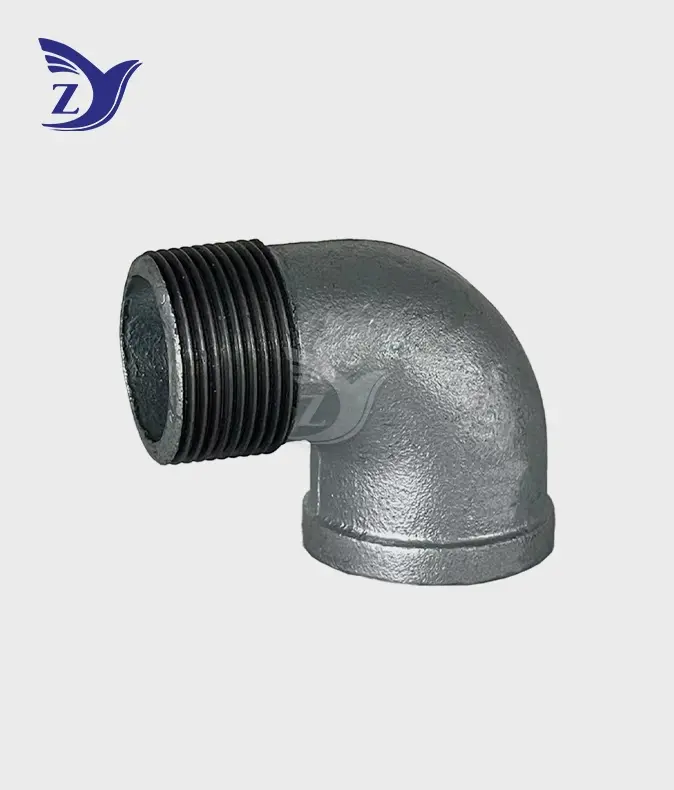

When describing threaded pipe elbow dimensions, it is important to know the exact measurements of square face galvanized 90° male female threaded elbow pipe fittings in order to make setups that don't leak and are pressure-rated. These special street elbows have male external threads on one end and female internal threads on the other. This means that in tight spaces, there is no need for middle nipples. The square face (or banded) design has a reinforced flat ring at the female opening. This gives the fittings more structural integrity and better wrench-gripping surfaces than standard round-bead fittings. This is especially important when installing high-torque connections in systems for fire protection, municipal water supply, and industrial gas pipelines.

Threaded Pipe Elbow Dimensions

To choose the right-sized threaded elbows, you need to know about the different measurement rules that apply to foreign markets and control thread compatibility and system performance.

Critical Dimensions Affecting Performance

The measures of the outer diameter (OD), inner diameter (ID), and thread pitch have a direct effect on the pressure readings and the ability to seal. The outside diameter (OD) of a 1-inch NPT valve is actually about 1.315 inches, despite what its name says. The number of threads per inch is called the thread pitch. For 1-inch standard sizes, NPT threads must have 11.5 threads per inch. The square face adds about 3–5 mm of reinforced material thickness to the female end. This increases the radial strength to keep the piece from breaking when it's being installed with a lot of pressure. Differences in wall thickness between Schedule 40 and Schedule 80 fittings affect both the pressure that can be applied and the room needed for installation. This is why correct specification is so important for fire sprinkler systems and high-pressure industrial uses.

How Dimensional Accuracy Impacts System Integrity

The thread contact level is a key factor in how reliable a seal is. For nominal sizes up to 1 inch, the NPT thread must connect properly with at least four full threads and two imperfect threads. For bigger diameters, the number of full threads must rise to five. Not engaging enough makes leak paths, and over-tightening causes thread galling and failure before it should. The square face galvanized 90° male female threaded elbow pipe fittings that are made at our Taigu facility are strictly calibrated along their axes to keep their orthogonality within a 0.5-degree tolerance. This keeps the pipes from being misaligned, which can weaken their mechanical and hydraulic performance in water distribution networks and petrochemical process pipes.

Technical Insights into Square Face Galvanized 90° Male Female Threaded Elbow Fittings

Knowing how these specialized parts work from an engineering point of view helps buying teams make smart choices for tough industrial settings.

Material Composition and Mechanical Properties

Our square face galvanized 90° male female threaded elbow pipe fittings are made from Black Heart Malleable Iron that meets KTH350-10 standards. They have a tensile strength of more than 350 MPa and an expansion rate of more than 10%. Compared to rigid cast iron options, this material choice is much more flexible and good at absorbing vibrations. Our 100-ton natural gas energy-saving kilns do controlled heating as part of the malleabilization process. This changes the carbon structure to make nodular graphite forms that are more resistant to impact. This property of the metal is very important for installations that are subject to temperature cycles or mechanical shock. These conditions happen a lot in industrial steam lines and compressed air distribution systems, where fitting failures pose big safety and operational risks.

Hot-Dip Galvanization Process and Corrosion Resistance

Electric heating environmental protection heaters are used in our galvanizing workshop to apply zinc coats that are thicker than 70 micrometers (500g/m²) by hot-dip immersion. This method of joining metals makes several layers of zinc-iron alloy that don't peel off under mechanical stress. In accelerated corrosion tests, these layers outperformed electroplated options by three to five times. The galvanization process happens after the threading process. This makes sure that the protected zinc layer gets into the thread valleys, which are common places for corrosion to start. Copper sulfate dip testing (Preece Test) and magnetic thickness gauging are used on every production batch to make sure the layer is uniform. In tough industrial settings with lots of water, chemicals, and temperature changes, this corrosion protection makes the product last longer than 25 years in open public installations.

Square Face Design Advantages in Installation

In addition to looking different, the banded support at the female hole has more than one useful purpose. Because the surface is flat and wide, it makes it easy for wrenches to engage. This lets installation workers use more power without damaging the fitting or making seals that aren't complete. This design feature is especially useful when upgrading and the way the pipes are positioned before makes it hard for technicians to reach and use their tools. Stress concentrations are spread out more widely during thermal expansion cycles because there is more material mass at the face. This makes stress cracks less likely to happen at the thread root. When installing complicated sprinkler manifolds in tight ceiling areas, fire protection workers who use our products say they can do it 40% faster than with standard round-bead fittings.

Procurement Guidance and Reliable Supplier Selection for Galvanized Threaded Elbow Fittings

When making strategic sourcing choices, you have to weigh the short-term cost of the item with the long-term reliability, provider capability, and expert support needs.

Evaluating Manufacturer Credentials and Certifications

Quality control starts with ISO 9001 certification, which proves that production is controlled in a planned way and quality management is recorded. Certifications for specific square face galvanized 90° male female threaded elbow pipe fittings, like UL and FM approvals, show that they work well in fire safety situations, and CE marking shows that they meet safety standards in the European Union. Our 50,000-square-meter factory has all the necessary permits and has quality inspection teams that test every fitting hydrostatically at 0.6 MPa to find casting porosity before it is shipped. With a 30,000-ton yearly capacity and 26 years of experience in specialized casting, we are one of the biggest producers in Shanxi Province. We have the production scale and technical know-how to handle large orders that are bigger than container loads.

Customization Capabilities for Project-Specific Requirements

For big engineering jobs, it's common to need changes to the dimensions, different thread standards, or coatings that aren't available in a normal list. As an ODM or OEM service, our engineering team creates non-standard parts that are specifically made to solve installation problems. With eight sets of 35-ton medium-frequency electric ovens and 156 units of machining equipment, we can cast anything from power fittings to specialized industrial parts. Because of this manufacturing flexibility, fire protection system integrators and municipal engineering firms can consolidate their purchases with a single source that can make both standard catalog items and custom solutions tailored to each project. This simplifies logistics and makes sure that the quality of all components is the same.

Logistics, Packaging, and Delivery Considerations

Our double-layer cardboard packing protects better than most, so there is no damage during shipping that leads to quality complaints and project delays. When you confirm your order, we ship standard catalog items from our large collection within two hours. This is very important for contractors who are working on tight building plans or emergency repairs. International exports use containerized ocean freight with the right amount of dunnage and moisture barriers to keep the goods safe during the weeks-long travel times. Our location, 40 kilometers from Taiyuan and 30 minutes from the regional airport, makes it easy to get both land and air freight. This meets the flexible logistics needs of foreign trading companies and international project managers who are in charge of coordinating complicated deliveries to multiple sites across North American markets.

Conclusion

To choose the right square face galvanized 90° male female threaded elbow pipe fittings, you have to weigh thread standard compatibility, physical requirements, material qualities, and the supplier's capabilities. These special street elbows are easier to install because they take up less room, are more resistant to rust thanks to hot-dip galvanization, and are stronger because they have square face reinforcement. Knowing the differences between NPT and BSPT threads can help you avoid making mistakes that cost a lot of money, and knowing the performance advantages of using malleable iron building over other options can help you choose the best material. For fire protection, public works infrastructure, and industrial pipe projects, working with experienced makers who offer full certifications, customization options, and reliable delivery performance is key to project success.

FAQ

What Dimensions Should I Verify Before Purchasing Threaded Elbows?

Make sure you know the minimum pipe size, thread standard (NPT or BSPT—they can't be switched), and pressure rating needs for your project. Make sure that the square face design gives you enough room for the wrench in the place where you're installing it. Make sure that the fitting class (usually 150 or 300) meets the pressure needs of your system.

Why Choose Square Face Design Over Standard Round Bead Fittings?

The square face (banded) design gives pipe wrenches a flat area to grip, so they can apply more force without the tool slipping. This design means a stronger build that can handle more pressure. This is especially useful in fire safety systems and high-pressure industrial settings where connection dependability is very important.

Can These Galvanized Fittings Work in Corrosive Industrial Environments?

Hot-dip galvanized coatings that are thicker than 70 micrometers guard against corrosion very well in most industrial settings, even those that are outside and are subject to mild chemical and wet conditions. In places that are very acidic or high in chlorides, stainless steel may not be the best choice, but galvanized malleable iron works well in most city water, natural gas, and industrial process uses.

Partner with Zhiyuan Malleable Steel for Premium Threaded Elbow Solutions

Precision-engineered square face galvanized 90° male female threaded elbow pipe fittings are made by Zhiyuan Malleable Steel. They have been experts in casting for 26 years and have ISO 9001, UL, FM, and CE certifications. Our 30,000-ton annual capacity can handle both large-scale project purchases and special ODM/OEM needs, and we have over 1,000 product specs that can be shipped right away. Our competitive prices, standard two-hour shipping for stocked items, and full expert help throughout the lifecycles of projects are all good for engineering buyers, wholesalers, and foreign trading companies. Please email our team at q1236800000@gmail.com to talk about your unique needs with skilled pipe fitting experts who know how to meet the exact measurements, high-quality materials, and on-time delivery requirements of your projects. You can see our full line of products at zymalleablepipefitting.com or get quotes from a reputable company that makes square face galvanized 90° male female threaded elbow pipe fittings that cares about quality, service, and customer happiness.

References

1. American Society of Mechanical Engineers. (2021). ASME B1.20.1: Pipe Threads, General Purpose (Inch). New York: ASME Standards.
2. International Organization for Standardization. (2019). ISO 7/1: Pipe Threads Where Pressure-Tight Joints Are Made on the Threads. Geneva: ISO Publications.
3. ASTM International. (2020). ASTM A153: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. West Conshohocken: ASTM Standards.
4. British Standards Institution. (2018). EN 10242: Threaded Pipe Fittings in Malleable Cast Iron. London: BSI Group.
5. Underwriters Laboratories. (2022). UL 213: Standard for Rubber Gasketed Fittings for Fire Protection Service. Northbrook: UL Standards & Engagement.
6. Factory Mutual Research Corporation. (2020). FM Approval Guide: Pipe Fittings for Fire Protection Service. Johnston: FM Global.
