Square Face Galvanized 45° Elbows: Sizes, Uses, and Specs

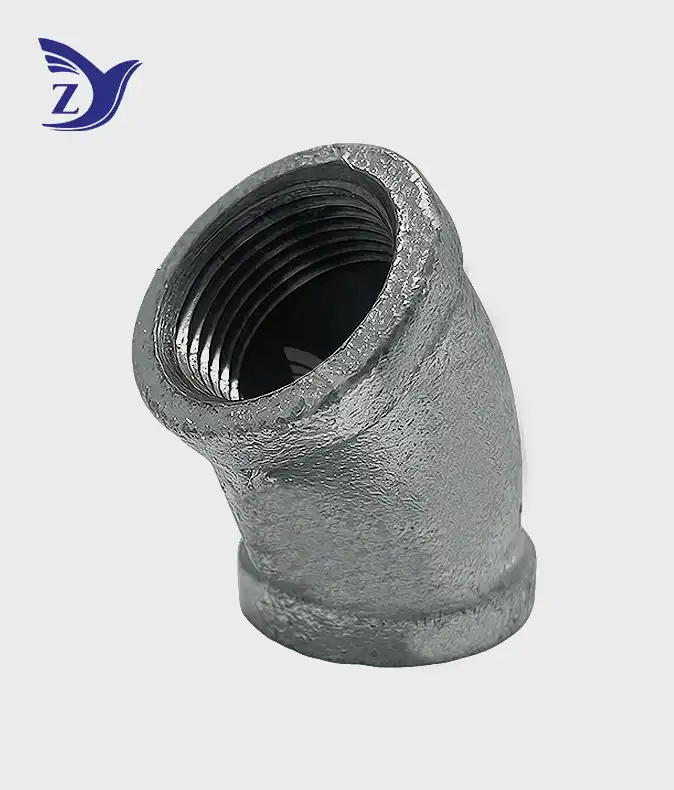

When sourcing pipe fittings for industrial water, gas, or HVAC systems, the square face galvanized 45° square edge elbow pipe fittings stand out as a dependable choice. These malleable iron fittings redirect flow at a precise 45° angle, feature a flat banded edge for a secure wrench grip, and carry a hot-dip galvanized zinc coating that meets ASTM A153 standards. Available in NPT and BSPT thread profiles, they cover sizes from ⅛" to 4", making them practical for large-volume procurement across multiple project types.

Understanding Square Face Galvanized 45° Elbow Fittings

What the "Square Edge" Design Actually Means

There is a flat, rectangular reinforcement ring that is cast around the threaded opening. This is called a "square edge" or "banded" edge. When you are tightening tapered NPT or BSPT threads to a leak-free seal, this band is better than a rounded bead because it spreads the hoop stress out equally. If you're installing something in a tight spot, the flat surface gives the pipe wrench a firm, non-slip place to rest.

Material and Coating Specs

The square face galvanized 45° square edge elbow pipe fittings are made from ASTM A197 conical malleable iron, which is strong enough to pull apart but flexible enough to handle sudden changes in temperature. The hot-dip galvanized finish adds a zinc layer that is usually thicker than 85 microns. This layer acts as both a physical barrier and a cathodic protection layer. This two-part treatment works better than painting or electroplated finishes in damp, outdoor settings, where bare iron would rust in months.

Standard Sizes and Thread Options

Sizes range from ⅛" to 4" standard pipe size, and must meet the requirements set out in ASME B16.3. While ASME B1.20.1 calls for a 60° thread angle and a 1°47' taper for NPT threads, BS 21 calls for a 55° thread angle for BSPT threads. It is very important to match the right thread standard to the pipe system downstream; mixing NPT and BSPT will damage the threads and cause leaks.

Applications and Benefits of 45° Square Edge Galvanized Elbow Fittings

Where These Fittings Perform Best

A 1" NPT square face galvanized 45° elbow is a useful example that you should look at. In a cooling tower on top of a building, this fitting guides pipe runs around structural beams. The galvanized coating protects against constant exposure to water. Oil and gas secondary lines rated WOG (Water, Oil, Gas) at 300 psi can use the square edge band. This lets field crews apply the pressure needed without cracking the fitting, which can happen with thinner beaded designs.

In the three places listed below, these square face galvanized 45° square edge elbow pipe fittings always show their worth:

• Industrial vapor and steam lines: The 45° sweep reduces pressure drop by roughly 40–50% compared to a 90° elbow, keeping pump energy costs lower over the service life of the system. The galvanized body handles the thermal expansion cycles common in processing plant steam headers.
• Outdoor fire suppression and HVAC: Exposed rooftop sprinkler entries and cooling tower piping face constant rain and UV. The zinc coating prevents rust seizure, meaning maintenance crews can still disassemble joints years after installation rather than grinding them apart.
• Gas distribution and water mains: Municipal and commercial gas lines require fittings that hold pressure consistency across temperature swings. Class 150 (150 psi steam) and Class 300 variants cover most code requirements in these systems.

These performance benefits directly mean fewer warranty calls back and lower replacement costs for companies that sell to hardware shops and installation providers.

Joint Integrity and Maintenance

Because interference fit between NPT threads makes a pressure-tight seal, you should always use PTFE tape or pipe dope before putting the parts together. Check joints once a year in places where corrosion is likely to happen. Look for white zinc oxide layers that show the covering is doing what it's supposed to do and giving up. Use a wire brush to clean the threads and re-tape if you need to take it apart for maintenance.

Comparing Square Face Galvanized 45° Elbows with Other Elbow Fittings

Square Edge vs. Beaded (Round Edge)

The edge with beads is thinner and doesn't offer as much radial support. When curved threads are tightened with a lot of force, beaded fittings are more likely to crack. Why do banded designs tend to have Class 300 pressure ratings? The square edge band adds measured wall thickness at the fitting mouth.

Galvanized Malleable Iron vs. Stainless Steel

Stainless steel elbows are normal for food-grade or highly acidic media and cost a lot more per piece. For water, gas, and general industrial service—which make up most of the hardware that is sold—galvanized malleable iron offers the same level of corrosion resistance at a much lower cost, which helps wholesalers keep their profit margins.

45° vs. 90° Elbows in Bulk Orders

It is common for full-service wholesalers to keep both 45° and 90° curves in stock. The 45° fitting costs a little less per piece in many catalogs, and it works well in HVAC and gas line projects where the direction of the line needs to change slowly. Getting both angles from the same supplier makes freight consolidation easier.

How to Choose and Install Galvanized 45° Square Edge Elbow Pipe Fittings?

Selection Checklist for Procurement Teams

Before you place a large order, make sure you know the minimum pipe size, the thread standard (NPT or BSPT), the pressure class (150 or 300), and the medium you will be using it for (water, gas, steam, or oil). Check to see if the seller is ISO 9001 certified and that the galvanization meets ASTM A153 standards. Ask for a mill test report and information on the zinc coating thickness for that particular lot.

Step-by-Step Installation

A wire brush can be used to clean the male threads of the connecting pipe. Put on PTFE tape in the direction of the drilling. For NPT, do two or three wraps. Tighten the elbow by hand until it fits well, then use a pipe wrench on the square edge band to make it even tighter. To get a 1" NPT fitting to hand-tight, you should only turn it three to four turns past hand-tight. Before putting insulation or concrete over the joint, test it for pressure.

Bulk and Custom Order Tips

Negotiate different prices based on the size of the container. Usually, the best factory price is unlocked when you place an order for 20GP or 40HQ. Before committing to the full volume, ask for samples of important sizes. Write down the lead times, especially for private label or custom thread specifications, and ask for export-grade woven bags or wooden crates to keep rust from forming during transit.

Leading Brands and Suppliers of Galvanized 45° Square Edge Elbows

What to Look for in a Manufacturer

A reputable company that makes square face galvanized 45° square edge elbow pipe fittings should have ISO 9001, CE, UL, and FM certifications, as well as a documented quality system that includes casting, annealing, galvanizing, thread machining, and final inspection. If the annual production capacity is more than 20,000 tons, it means that container-load orders can be filled without any production problems during the busy season.

Evaluating Supplier Reliability

Check the factory's references with past clients, ask for information on its production capacity, and see if it has its own galvanizing line. If it doesn't, the coating will not be consistent. The standard way to check the evenness of a zinc coating is with a copper sulfate (Preece) test. Ask your supplier if they do this test in-house before shipping.

Customization and After-Sales Support

Strong sellers offer ODM/OEM services, such as private labels, custom packaging, and thread setups that aren't standard. As part of after-sales help, there should be a clear strategy for replacing broken products and a technical contact person. These things help you keep your good name with hardware stores and contractors who depend on consistent quality.

Conclusion

In industrial plumbing, square face galvanized 45° square edge elbow pipe fittings meet a specific and frequent need: they change the direction of flow without losing too much pressure and are resistant to corrosion. They are made of hot-dip galvanized malleable iron and have precision NPT or BSPT threads. They also have a banded square edge design that makes them a reliable stock item for wholesalers who work with water, gas, HVAC, and fire suppression. The best way to protect margins and lower returns further down the line is to choose a qualified maker with stable production capacity and a well-documented quality system.

FAQ

Q1: Can I connect BSPT fittings to NPT pipes?

No, the thread angle for BSPT is 55° and the thread angle for NPT is 60°. Pressing them together hurts the threads and causes leaks. Thread standards should always be the same across the whole joint.

Q2: What pressure rating do these fittings carry?

Standard Class 150 fittings can handle 150 psi of saturated steam or 300 psi WOG when the temperature is normal. For higher-pressure uses, there are Class 300 versions. When the temperature goes above 150°F, the pressure capacity goes down.

Q3: How do I detect poor-quality galvanization?

Check for uneven coloring, rough surfaces, or sharp zinc spikes called dross that are inside the metal. Before receiving a package, the copper sulfate dip test, also known as the "Preece Test," is the standard way for the industry to check that the zinc coating sticks well and is uniform.

Q4: Is the galvanized coating safe for potable water?

Yes, as long as the zinc process uses materials that are free of lead and meet NSF/ANSI 61 standards. Before selecting these fittings in drinking water systems, you should always ask for the manufacturer's certification paperwork to confirm the lead level.

Q5: Why does the square edge outperform the beaded edge?

The flat banded support makes the wall thicker around the fitting mouth, so it doesn't crack when the high torque needed to seal tapered threads is applied. With a stable grip surface, pipe wrenches are less likely to slip and cause damage on the job site.

Request a Bulk Quote from Zhiyuan Malleable Steel

Since 2006, Zhiyuan Malleable Steel has been making approved pipe fittings. They can make up to 30,000 tons of them each year and have more than 1,000 product specs. We sell direct square face galvanized 45° square edge elbow pipe fittings at factory prices and package them in a way that meets export standards. Our products are certified by ISO 9001, CE, UL, and FM. You can email us at q1236800000@gmail.com or go to zymalleablepipefitting.com to get samples or a bulk quote right away.

References

1. American Society of Mechanical Engineers. ASME B16.3: Malleable Iron Threaded Fittings. ASME, 2021.
2. ASTM International. ASTM A153: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. ASTM International, 2016.
3. ASTM International. ASTM A197: Standard Specification for Cupola Malleable Iron. ASTM International, 2020.
4. American Society of Mechanical Engineers. ASME B1.20.1: Pipe Threads, General Purpose (Inch). ASME, 2013.
5. NSF International. NSF/ANSI 61: Drinking Water System Components — Health Effects. NSF International, 2023.
6. British Standards Institution. BS 21: Pipe Threads for Tubes and Fittings Where Pressure-Tight Joints Are Made on the Threads. BSI, 1985.
