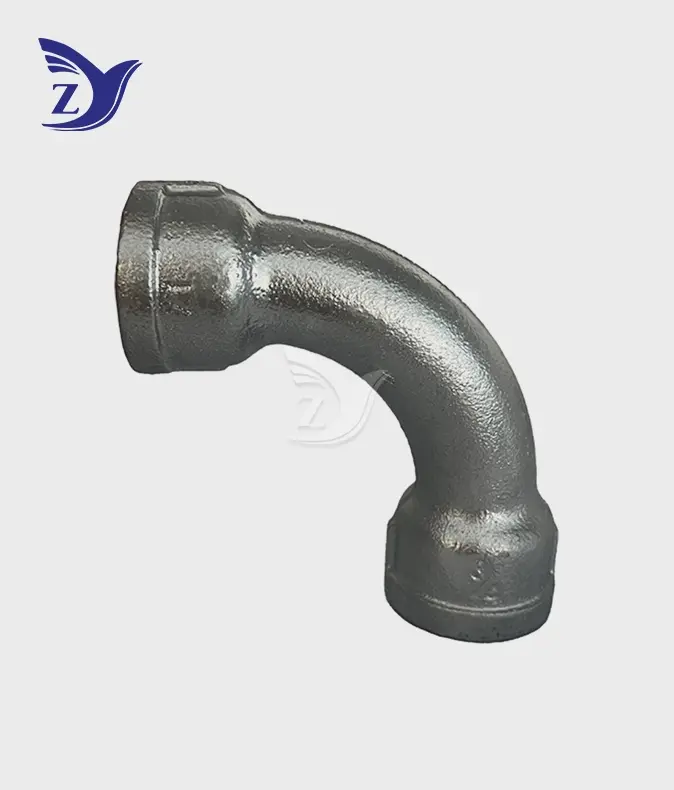

Specifications of NPT Galvanized Female-Female 90° Long Radius Elbows

NPT galvanized female-female 90° long radius elbow pipe fittings optimize fluid flow direction changes while minimizing turbulence and pressure loss in industrial water, gas, and heating systems.

Detailed Specifications of NPT Galvanized Female-Female 90° Long Radius Elbows

Components for industrial piping systems need to meet strict technical requirements and work reliably in a wide range of working circumstances. The NPT galvanized female-female 90° long radius elbow pipe fittings represent a very specific product that was made for tough uses.

NPT Threading Standards and Design Advantages

National Pipe Taper (NPT) threads meet the requirements of ANSI/ASME B1.20.1. They have a side angle of 60 degrees and a taper of 1 in 16 on the width. When the threads contact, this tapered shape makes a mechanical seal, and thread interference makes links that don't leak without the need for extra sealants in many situations. Female-female setups let male-threaded pipe sections or equipment ports connect directly to each other, so there's no need for intermediate nipples and the system is less likely to leak.

The double female design is especially useful for retrofits where standard ways of coupling can't be used because of lack of room. Installers only need to thread the male parts of the pipes straight into both sides of the elbow. This makes assembly easier while keeping the structure strong. We make these fits at Zhiyuan Malleable Steel out of high-strength malleable iron that has a tensile strength of more than 300 MPa and a stretch rate of more than 6%. This makes sure that the part can handle physical shock and temperature changes without breaking.

Long Radius Geometry and Measurement Techniques

In contrast to short radius designs, where the radius is the same as the pipe diameter, NPT galvanized female-female 90° long radius elbow pipe fittings have centred radii that are 1.5 times the standard pipe diameter. This longer curve path cuts down on noise and pressure drop by a lot, which is especially important in high-volume situations like water distribution systems or industrial process lines. To make sure the measurements are correct, you need special measuring tools like radius gauges and optical comparators to make sure the 90-degree angle keeps the limits within ±0.5 degrees. This stops pipe displacement stress that could weaken the system.

Galvanization Process and Material Comparisons

When you do hot-dip galvanizing, you put finished iron parts into molten zinc pools that are about 450°C. This makes a coating that is metallurgically bonded and usually more than 70 microns thick. This zinc layer acts as a sacrifice anode, corroding more quickly to protect the iron base below. Galvanized malleable iron valves are more cost-effective than stainless steel options and are resistant to corrosion well enough for most industrial settings. Because black steel fittings don't have this protection layer, they need to be painted or coated before they can be used outside. This is why galvanized options are better for fire sprinkler systems, outdoor hydrant networks, and industrial sites along the coast.

Benefits and Applications of Using Long Radius Elbows in Pipe Systems

Choosing the right pipe parts has a direct effect on how well the system works, how much upkeep it needs, and how long it lasts. Long radius elbows offer measured benefits across a number of performance factors, which directly affect how much an industrial business spends.

Hydraulic Performance and Pressure Management

The basic rules of fluid dynamics show that abrupt changes in direction cause turbulence zones where flow speed slows down and pressure drops rise. Long radius curves help fluids change directions more slowly, keeping the laminar flow features that keep energy losses to a minimum. When flow rates are the same, engineering estimates show that NPT galvanized female-female 90° long radius elbow pipe fittings lower pressure drops by about 30 to 40 percent compared to short radius elbows of the same size. When it comes to high-pressure steam systems, chemical process lines, and city water networks, where pumping costs are big running costs, this efficiency gain is especially important.

The smoother flow path also stops erosion at the inside of the bend, which is a frequent place where things break when they are used in rough situations like moving mud or fluids with particles in them. The bigger contact area spreads out wear more widely, which makes parts last longer and require less upkeep.

Corrosion Resistance in Challenging Environments

Industrial sites often have to deal with difficult conditions like being exposed to wetness, chemicals, and temperature changes. In these situations, galvanized coats offer strong defence against rusting. Real-world performance data from petroleum plants along the coast shows that properly galvanized fittings keep their structural integrity for 20 to 25 years in salty environments, while steel parts that aren't protected would break after 5 to 7 years.

The zinc layer doesn't break down when exposed to UV light, which makes these fittings perfect for fire protection systems outside and HVAC installs on roofs. Agricultural irrigation networks also benefit because the galvanized surface can handle constant touch with soil and changes in moisture without rusting through and polluting water sources.

Industry Applications and Case Studies

For sprinkler system installs where dependability can't be compromised, fire protection engineering firms use corrosion-proof threaded elbows a lot. The NPT/BSPT design works with a variety of equipment standards, and the smooth insides keep sediment from building up and blocking the spray heads during an emergency. Industrial-grade double female elbows are used in municipal building projects for water distribution networks because they are strong and don't rust, so they don't need to be serviced for decades.

Petrochemical plants employ these fittings for liquid return lines and measurement pipes. The anti-rust, malleable iron construction can handle changes in temperature and pressure without leaking. Precision-threaded connections make installation easier for HVAC system installers, and the long radius configuration lowers noise from turbulent flow, which is important in business buildings.

Conclusion

Understanding the carrying angle in females reveals basic facts about effective angled design, ideas that go beyond biology and are used in industrial pipe fitting engineering. These biomechanical ideas are put into practice in NPT galvanized female-female 90° long radius elbow pipe fittings fits, which improve performance by using better flow shapes and resisting rust better. When procurement workers choose parts that combine hydraulic efficiency, material durability, and lifecycle costs, they gain a competitive edge. Precision NPT threading, hot-dip galvanization, and high-strength malleable iron construction work together to make fittings that are reliable in a wide range of settings, from local water systems to industrial plants. Strategically buying from certified makers guarantees the success of a project by ensuring quality, allowing for customization, and ensuring quick delivery.

FAQs

What distinguishes long radius from short radius elbows?

The centerline radius of a long radius elbow is 1.5 times the standard pipe diameter. The centerline radius of a short radius elbow is the same as the pipe diameter. Long radius fittings are better for high-pressure systems even though they take up more room when installed because their extended curve lowers pressure drops by 30 to 40 percent and prevents erosion.

How can I identify NPT threading on pipe fittings?

NPT threads have a tapered shape with a side angle of 60 degrees and a taper of 1 in-16 on the width. When you look closely, you can see that the threads get narrower as you get closer to the pipe end. Thread gauges are the only way to be sure of something for sure. L1 plug gauges should connect properly within the limits given to confirm compliance with ANSI/ASME B1.20.1.

Why does galvanized coating matter for outdoor installations?

When you do hot-dip galvanizing, you add a layer of zinc that acts as a sacrifice anode, corroding more than the iron below it to protect it. This layer protects against corrosion for 20 to 25 years in outdoor settings, keeping black steel parts from rusting through within 5 to 7 years in the same conditions if they weren't protected.
