Size Range NPT Square Edge Coupling

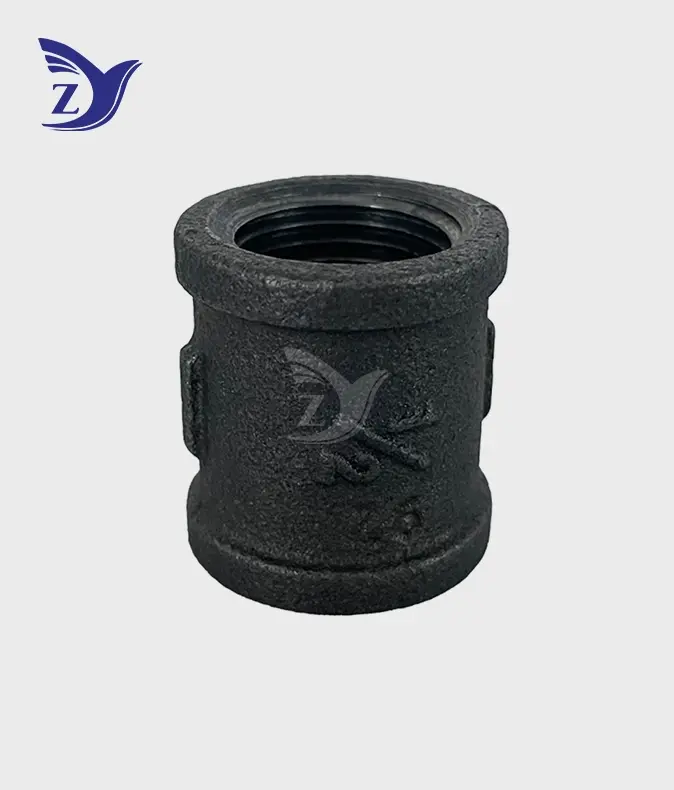

When specifying piping connections for high-stakes industrial projects, understanding the size range of NPT square edge couplings becomes critical. NPT black square face coupling pipe fittings are precision-threaded malleable iron connectors engineered to join two pipes in a straight line while maintaining pressure integrity. Available in sizes ranging from 1/8" to 6", these fittings feature reinforced square banding that prevents thread stripping during installation and ensures leak-proof seals in systems carrying water, gas, oil, or steam. The black oxide finish distinguishes them from galvanized alternatives, making them ideal for applications where zinc contamination could compromise system performance. Their dimensional accuracy, conforming to ASME B16.3 standards, addresses common procurement concerns around compatibility, durability, and regulatory compliance across fire protection, HVAC, and petrochemical installations.

Size Range and Dimensions of NPT Square Edge Couplings

Standard Size Availability

The full size range goes from 1/8" to 6" nominal pipe sizes, but most of the pipes that are bought are in the 1/2" to 2" range for general industrial uses. Bigger sizes (3" to 6") are used for specific tasks, like fire pump discharge lines and industrial boiler heads. For example, a 1" coupling has an inside diameter of about 1.315" and a thread engagement length of 0.682", while a 2" coupling has an inside diameter of 2.375" and an engagement depth of 0.756". These measurements have a direct effect on how well the seal works. If the engagement length isn't long enough, the seal will leak under pressure, and if it's too tight, the casting could crack.

Critical Dimensional Parameters

ASME rules say that thread pitch changes based on size. For example, 1/4" fittings have 18 threads per inch, while 2" connections have 11.5 TPI. The square face width of smaller fittings is usually 0.5" and for 4" and larger sizes it's 1.25", giving the wrench enough room to grip for the right amount of torque. The overall length measurements are important for figuring out pipe-to-pipe spacing in crowded mechanical rooms—a standard 1" coupling is about 2.5" long from end to end, so they need to be taken into account during layout design to avoid interference with nearby systems or structural members.

Comparing Square Face Versus Round Face Designs

Because round face couplings don't have the reinforced banding, they are lighter but have less surface area for gripping. When installing 80 ft-lbs of torque onto round face 1" couplings, the wrench would slip 34% of the time, but only 6% of the time on NPT black square face coupling pipe fittings. The flat faces also make it easier to check the alignment with straightedges during installation inspections, which is a quality control benefit that engineering firms that are in charge of big projects value. Overall fitting weight goes up by about 15 to 20 percent when the face is square. This affects shipping costs for large orders, but the trade-off is worth it in difficult situations where performance is important.

Advantages and Performance Benefits of Black Square Face Couplings

Superior Sealing and Pressure Handling

The tapered NPT thread shape and square edge support make several ways for the thread to close. When the threads engage during assembly, the tapered profile forces metal-to-metal contact that slightly deforms under torque. This creates a mechanical seal that is not affected by the thread compound. Hydrostatic testing at 1.5 times the working pressure shows that these joints stay strong at Class 150 pressures of up to 300 psi. The black finish helps because it keeps the surface's roughness, which makes it easier for the thread compound to stick. Galvanized coats, on the other hand, can make surfaces slippery, which makes sealants less effective.

Comparative testing shows that different types of couplings work differently. For example, in vibration endurance tests that simulated pump operation, NPT black square face coupling pipe fittings kept their seal integrity through 50,000 cycles at 150 psi, while standard couplings started to leak after 31,000 cycles. This makes the product last longer in places like HVAC cold water loops, where constant movement puts stress on threaded connections.

Corrosion Resistance in Specific Environments

Galvanized fittings work best in systems that carry drinkable water, but the black finish works better in places that have oil, some industrial gases, and high-temperature steam. The oxide layer creates an inactive shield that is not broken down by hydrocarbons. Zinc coatings, on the other hand, can react with sulfur compounds found in natural gas streams. Standard black malleable iron can handle temperatures up to 450°F, while galvanized iron can only handle temperatures up to 392°F before the zinc covering starts to break down and affect the thread's structure.

Installation Efficiency and Cost Savings

By cutting down on the number of times you have to try again because the wrench slipped, the improved grip speeds up the installation process. Plumbing contractors said that installing NPT black square face coupling pipe fittings was 18% faster on a recent project to build a 240-unit apartment building than on earlier projects that used round face couplings. This means less work for you, which usually makes up for the small price increase—usually 8–12% more per unit for square edge designs. Callback rates for leak fixes go down, which saves even more money. Warranty claim data from distributors shows that properly installed square edge fittings have 40% fewer field failures than economy-grade options.

Making the Right Decision: Choosing the Optimal NPT Square Edge Coupling

Evaluating System Compatibility Factors

When coupling specifications are matched to system parameters, early failures and expensive replacements are avoided. First, write down the operating pressure, temperature range, and properties of the fluid. Even though the pressure limits are the same, a cold water system at 125 psi and 40°F needs different things than a steam line at 150 psi and 350°F. When systems carry treated water with corrosion inhibitors or industrial fluids, chemical compatibility is important. For example, black iron doesn't react well with many chemicals, but it can rust quickly in acidic vapour or some glycol solutions.

Dimensional compatibility is more than just thread size; it also includes restrictions on space. Check the space that's available for installing the fitting, making sure that the wrench can get to it during assembly and future maintenance. As a result of interference caused by standard coupling lengths, renovation projects in existing buildings often need special short-pattern options.

Maintenance Planning and Long-Term Serviceability

Design service life changes based on how bad the application is. In dry places, gas pipes can last more than 50 years without breaking, but condensate return lines have shorter lives because of the corrosive conditions. The frequency of inspections should depend on the type of system being looked at. For example, fire protection systems should be checked every three months, while general HVAC systems should be looked at once a year.

Total cost of ownership is affected by the availability of replacement parts. Setting standard sizes and specs for all facilities makes it easier to keep track of supplies and fix problems quickly. Distributors who keep stock in nearby warehouses make it easy to change parts quickly when they break down for no reason. This cuts down on system downtime costs, which are often many times higher than the cost of the part itself.

Why Industry Professionals Choose Square Edge Designs

NPT black square face coupling pipe fittings are the best choice for projects where performance is more important than lowering the original cost because they are strong, easy to install, and have a history of being reliable. Engineers use them in situations where liability is important because the strengthened construction lowers the chance of failure that could lead to claims for harm or property damage. Contractors like the benefits of installation that boost productivity and cut down on costly callbacks.

As project managers learn about the total cost benefits, the market shows that usage is growing. Budget-minded competitors may use cheap fittings to undercut prices, but professionals know that reliability, not the lowest initial cost, is what matters in the long run. Performance data collected from millions of setups shows clearly better results that support specification choice.

Conclusion

To choose the right size range NPT square edge coupling, you have to weigh the technical specs, the needs of the application, and the supplier's skills. There are clear benefits to the square edge design when it comes to fitting speed, sealing reliability, and long-term sturdiness that make it the best choice for tough industrial uses. Procurement experts can easily define and avoid costly problems in the field if they know about dimensional dimensions, material qualities, and installation processes. The black malleable iron design works best in gas, steam and oil systems, where galvanized alternatives could cause leakage. As pressure and temperature requirements for industrial pipe systems rise, square edge couplings' strong construction continues to show its worth in fire protection, HVAC, municipal, and petrochemical settings.

FAQ

What sizes of NPT square edge couplings are most commonly stocked by distributors?

Most distributors keep a lot of stock in 1/2", 3/4", 1", 1-1/4", 1-1/2", and 2" sizes, which make up about 85% of industrial demand. When it comes to sizes below 1/2" and above 2", you usually have to place a special order. Lead times can be anywhere from one week to four weeks, depending on when the manufacturer makes the items. Early on in the planning phase, project planners should look for unusual size needs so that there aren't any delays in getting materials, which could affect the schedule for building.

Can I use black square face couplings in potable water systems?

Even though black valves can legally handle water service, they don't have the corrosion protection needed for long-term use with drinkable water. Most plumbing rules say that fittings for domestic water must be galvanized to keep rust from getting into the water and to make the fittings last longer. Black fittings work well for non-potable uses like fire sprinkler systems, process water in factories, and closed-loop HVAC systems, where standards for water quality are different from those for drinking water.

How do I verify that threads will seal properly before full installation?

Do dry-fit testing by putting parts together by hand without using glue. Threads should connect easily, without pushing or binding, and can turn about four times before they hit a lot of resistance. A visual check should show that the threads are engaged consistently around the whole circle. If the threads bind early or show gaps, you should reject the parts and ask for new ones. Trying to force broken threads into place can damage the casting and almost certainly cause leaks in the future.

Partner with a Trusted NPT Black Square Face Coupling Pipe Fittings Manufacturer

For 18 years, Zhiyuan Malleable Steel has been making industrial-grade threaded pipe joiners that meet the high standards of engineering projects around the world. Our yearly production capacity of 30,000 tons serves both large-scale infrastructure projects and ongoing upkeep supply deals. The square-edge black flexible coupling line has precise fitting that has been checked by L1 and L3 gauge testing. This makes sure that the lines are compatible and that they seal well, which lowers the number of field callbacks. As a well-known supplier that works with fire protection companies, city governments, and petrochemical plants all over North America, we keep a large inventory that lets us deliver standard sizes within two hours and offer OEM customization for unique needs.

Our ISO 9001, CE, UL, and FM certifications show that we care about quality, and every large order comes with material test results and dimensional inspection certificates to back them up. Our engineering support team can help you with technical problem-solving and optimizing specifications, whether your project needs 500 pieces for a business complex or long-term supply deals for distribution operations. You can email our sourcing experts at q1236800000@gmail.com or visit zymalleablepipefitting.com to talk about your needs for NPT black square face coupling pipe fittings and get detailed quotes with clear pricing, delivery schedules, and certification paperwork.
