Pressure Rating of Black Malleable Coupling

Knowing the pressure ratings of pipe fittings for industrial systems isn't just important for meeting requirements; it's also important for making sure the safety and life of your whole business. Because they are strengthened and have precision-engineered threading, black flexible couplings, especially NPT black square face coupling pipe fittings, can handle a lot of pressure. If you need fire protection, gas distribution or HVAC systems that can't fail, these industrial-grade threaded pipe joiners are a good choice. They usually support Class 150 ratings, which means they can handle up to 150 psi at room temperature, and Class 300 ratings for more demanding uses.

Understanding Pressure Ratings in Black Malleable Couplings

Pressure numbers tell you how much pressure an internal joint can safely handle in certain situations. These ratings are directly related to system safety and following the rules for black malleable couplings that are used in water, gas and steam applications.

What Determines Pressure Capacity in Malleable Fittings

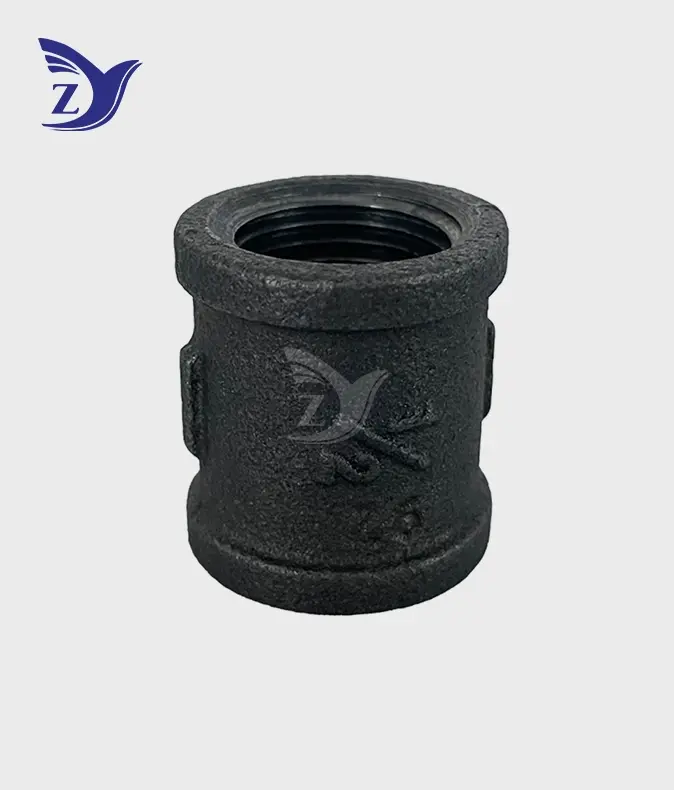

There are a number of factors that affect how much pressure NPT black square face coupling pipe fittings can handle. The basic part is the material makeup. ASTM A197 cupola malleable iron has a tensile strength of more than 40,000 psi (276 MPa) and at least 5% elongation, which means it can bend and stretch to absorb shocks without breaking in a terrible way. This material's ability to bend is very important during water hammer events or heat expansion cycles, which happen a lot in industrial pipes.

For buying managers looking at sellers, these technical specs mean that the supplier will be reliable in the real world. When compared to standard round-face couplings, the square-edge design adds about 20–30% more mass at stress concentration points. This makes it much less likely that the couplings will crack or bell-mouth when pressure changes.

Standard Pressure Classes and Industry Benchmarks

The dimensions and pressure requirements for black flexible joints are set by ASME B16.3 standards. For water service at room temperature, Class 150 fittings can handle pressures up to 150 psi. In some cases, Class 300 fittings can handle higher pressures. Temperature has a big effect on pressure grades. For example, at 400°F, the working pressure of a Class 150 fitting drops to about 125 psi because the material's properties change at high temperatures.

The ISO 9001 certification makes sure that the manufacturing process is the same across all batches. This solves a problem that many engineering buyers have when they need to know the quality of big orders. For foreign projects, CE marking and UL/FM approvals give you even more peace of mind that the parts you buy meet the rules in more than one country.

Comparing Black Square Face Couplings: Pressure Ratings & Performance

Different types of couplings have different performance qualities that are important in harsh industrial settings.

Design Advantages Over Alternative Coupling Types

When installing things with a lot of force, NPT black square face coupling pipe fittings work better than round face ones. The flat sides give the wrench a place to grip, which keeps the tool from slipping. This lets workers get the right tightening torque without rounding the edges. This installation reliability has a direct effect on field pressure performance—a lot of system leaks that happen during commissioning are caused by couplings that are not tightened enough.

When compared to hex couplings, square face designs have more gripping areas and a more even spread of stress. This structural benefit lowers the tendency for seals to become loose over time, which is important in places where shaking is common, like pump rooms or platforms for mechanical equipment.

Application-Specific Performance Profiles

When they are turned on, fire safety systems need fittings that can handle sudden pressure spikes. Because it is made of stronger materials, the square face coupler can handle water hammer shock loads that would break thinner options. The strong square bead design is especially helpful for dry pipe systems that work with air pressures between 50 and 60 psi during rapid water fill events.

Getting natural gas to where it needs to go can be tricky, and the black finish is important. Zinc particles are released into gas lines by galvanised fittings, which causes maintenance problems further downstream. This risk of contamination is eliminated by black malleable couplings, which also offer enough corrosion resistance for dry gas environments.

Fittings in industrial steam lines that work at 100 to 150 psi are put under both pressure and heat stress. The thermal shock resistance of malleable iron stops stress breaking that happens in grey iron or weak cast iron alternatives when systems go through quick temperature changes when they start up or shut down.

Installation Best Practices to Ensure Pressure Integrity

Without the right way to put it, even the best, most lasting square-edge threaded pipe coupling will not work. Systematic steps protect your investment and make sure it works as expected.

Pipe Preparation and Threading Requirements

Pipe cuts that are clean and straight are the basis for links that don't leak. Pipe threads must meet NPT standards by having the right amount of pitch and thread width. For field threading to work, the dies need to be adjusted. Worn-out threading equipment makes threads that don't meet specifications and can't achieve the right seal tightness.

Use the right thread sealer or PTFE tape and put it on in the right way (clockwise from the pipe end). The type of sealant used depends on the medium it's in. For example, compounds that are rated for hydrocarbon compatibility are needed for gas lines, while high-temperature sealants that won't break down when temperatures change are needed for steam systems.

Tightening Techniques and Torque Management

Tighten the connection by hand until the resistance goes up a lot, then use a wrench to apply pressure. For ¾-inch joints, it usually takes two to three more turns than hand-tight to properly tighten them. If you tighten the connection too much, the body could crack or the threads could come off. If you tighten it too little, there are gaps that let pressure through.

The square face shape lets you see if everything is lined up right during fitting. Aligning pipes parallel to each other lowers stress levels that could lower pressure ratings. When connections aren't lined up right, they cause bent moments that speed up fitting fatigue.

Some common installation mistakes are mixing NPT and BSPT threads (they have different tapers), using thread sealant from previous installations (sealant that is contaminated or dried out doesn't work as well), and not supporting the pipe weight properly (external force stresses coupling bodies).

Maintenance Protocols for Long-Term Reliability

Set up regular eye checks of the outside of the NPT black square face coupling pipe fittings, looking for signs of corrosion, weeping at the thread surfaces, or damage from impacts. In places where things rust, protective coatings might need to be replaced every so often to make them last longer.

After fitting, system pressure testing makes sure that the connection is still good before full operation starts. Hydrostatic testing at 1.5 times the working pressure makes sure there is enough pressure margin and finds any problems with the installation before they become operational.

Over time, changing temperatures can weaken a thread seal. Systems that go through a lot of heat expansion cycles should be checked once a year, paying special attention to any parts that are loosening or leaking a little.

Procurement Considerations for NPT Black Square Face Couplings

Strategic buying choices aren't just based on the unit price; they also look at the total cost of ownership and the dependability of the supply chain.

Supplier Evaluation and Quality Assurance

In manufacturing, ISO 9001 certification means that quality control is carried out in a planned way. For project-based engineering buyers in charge of big projects, uniform product quality across multiple shipments cuts down on the need for expensive rework in the field. Ask for proof of the material's certifications and the testing methods used for pressure; reputable makers will give you mill test results that prove they meet ASTM A197 standards.

When project deadlines get tight, production ability is important. Suppliers who keep a lot of stock on hand can fill urgent orders that keep building plans on track. Our large inventory and 30,000-ton annual production capacity at Zhiyuan Malleable Steel allow us to send standard products within two hours to customers in the region, meeting the needs of mechanical contractors and system designers who need to act quickly.

When it comes to fire safety, certifications like UL and FM approval are very important, and the authority having jurisdiction (AHJ) may need listed parts. By showing that a product meets European standards, CE marking makes international projects easier.

Cost Optimization Through Strategic Purchasing

When you buy in bulk, you save a lot of money because you get big deals and your per-unit logistics costs go down. For distributors who work on multiple projects, keeping a safety stock of common sizes and using just-in-time delivery for unique configurations is a good idea.

Custom OEM skills meet non-standard needs without the high costs that come with one-time changes. Our ODM services can handle specific threading needs, different finishes, or changes to the size of goods so they fit perfectly with custom system designs.

Price changes for bendable iron fittings are linked to changes in the prices of raw materials and energy that affect how foundries work. Long-term supply deals can keep the cost of buying things stable and make sure that attention is given during times when the market is tight. Building connections with makers that offer technical support is valuable beyond the purchase order. For example, getting engineering help during the specification development process can save you a lot of money on redesign rounds.

Shipping and storing items safely in double-layer cardboard boxes keeps them in good shape, which cuts down on damage claims that throw off project schedules. This attention to logistics details shows that the company wants to make sure the customer is completely happy, not just meet their needs.

Zhiyuan Malleable Steel has been researching castings and making pipe fittings for 18 years. They bring this knowledge to every connection with a customer. Our Taigu facility is close to transport systems—it's only 40 kilometres from Taiyuan and 30 minutes from the airport. This makes logistics easy and keeps your projects moving forward. We promise that we will fix any high-strength, corrosion-resistant NPT black square face coupling pipe fittings that aren't working right. This shows that we trust our manufacturing processes and quality control systems.

Conclusion

Pressure ratings are more than just technical details; they also show the safety margin that keeps your investment and employees safe. Through proven material qualities and engineering development, black malleable couplings provide solid performance in a wide range of industry settings. The square face design makes these fittings useful for tough environments because it makes installation easier and increases the strength of the structure. To choose the right provider, you need to look at their reasonable pricing, production skills, quality systems, and responsive customer service. If you install and take care of these industrial-grade threaded pipe joiners the right way, they will last for decades in water distribution, gas systems and fire protection uses that need the highest level of dependability.

FAQ

What pressure rating should I specify for fire sprinkler systems?

Most fire safety systems use Class 150 black malleable connections that can handle 150 psi at room temperature. This rating gives enough room above the normal operating pressures of 50 to 80 psi for pressure surges to happen during activation. It is important to make sure that the fittings have UL or FM approval, as the authorities usually need listed parts in fire safety systems. The square face shape works especially well for fire systems because it is more resistant to water hammer shock loads.

Can NPT black square face couplings handle high-temperature steam applications?

When used with steam, these fittings work well, but their pressure ratings drop when the temperature rises. At 400°F, the working pressure for Class 150 fittings drops to about 125 psi because the material isn't as strong when it's hot. Because it doesn't break easily when the temperature changes quickly, malleable iron is better for steam systems than brittle alternatives. For your unique working conditions, you should always look at the manufacturer's pressure-temperature charts.

How do NPT and BSPT couplings compare for pressure applications?

Because they taper at different angles, NPT and BSPT threads can't be used together. Mixing them makes seals that don't work and break under pressure. When properly matched with the right threaded pipe, both can handle about the same amount of pressure. NPT is used most often in North American markets and standards, while BSPT is used in European and Commonwealth standards. Choose a thread standard based on the system infrastructure that is already in place and the code needs for your area.

Partner with Zhiyuan Malleable Steel for Reliable Industrial Pipe Fittings

Zhiyuan Malleable Steel offers high-quality NPT black square face coupling pipe fittings that are designed to meet or exceed your performance and pressure needs. We have been making NPT black square face coupling pipe fittings manufacturer for a long time and have 18 years of experience working with metals. Our quality systems are ISO 9001 certified, and we have CE, UL, and FM approvals that meet the strictest buying standards. Our 30,000-ton production capacity makes sure that we always have stock for urgent orders, and our ODM/OEM skills let us meet the specific needs of different uses. Whether you're looking for fire protection systems, infrastructure for cities, or pipes for industry processes, our expert team can help you with your specifications so that you can choose the best products. You can email us at q1236800000@gmail.com or go to zymalleablepipefitting.com to get full datasheets, pressure-temperature charts, or custom quotes. Partnering with a manufacturer who cares about quality, responsiveness, and the success of your project will give you peace of mind.

References

1. American Society of Mechanical Engineers. (2016). ASME B16.3: Malleable Iron Threaded Fittings - Classes 150 and 300. New York: ASME Press.
2. American Society of Mechanical Engineers. (2013). ASME B1.20.1: Pipe Threads, General Purpose (Inch). New York: ASME International.
3. ASTM International. (2019). ASTM A197/A197M-15: Standard Specification for Cupola Malleable Iron. West Conshohocken: ASTM Standards.
4. Smith, J.R. & Thompson, M.L. (2018). Industrial Piping Systems: Design, Installation, and Maintenance. Boston: Technical Publishing Group.
5. National Fire Protection Association. (2020). NFPA 13: Standard for the Installation of Sprinkler Systems. Quincy: NFPA Publications.
6. Hydraulic Institute. (2017). Pipe Fitting Pressure Ratings and Material Selection Guide for Industrial Applications. Parsippany: Hydraulic Institute Technical Papers.
