Pipe Nipple Types vs. Uses: Which Fitting Fits Your System?

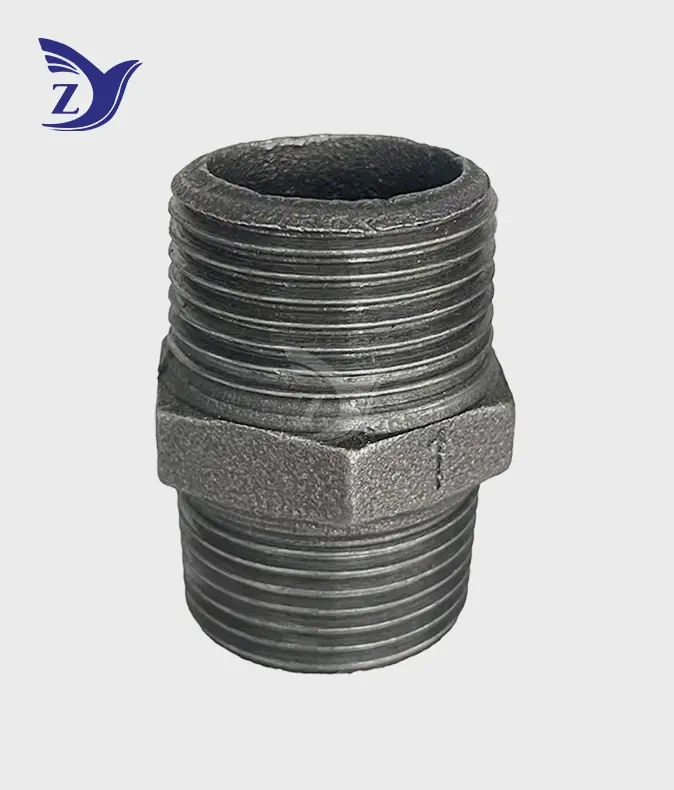

Choosing the right threaded connection is a direct driver of performance, safety, and long-term operating costs in the construction and maintenance of a pipe system. Pipe Nipple. A small length of pipe having male threads on either end used to unite two female threaded fixtures like valves, couplings, or fittings across a short distance. Knowing what kind is right for your system pressure, temperature, fluid type, and environmental conditions eliminates leaks, lowers downtime, and increases service life. If you operate with municipal water systems, industrial gas lines, or HVAC systems, understanding the differences between NPT, BSPT, galvanized, black, and forged types can assist you to choose the best option while shopping, taking into account your operational needs and budget.

Understanding Pipe Nipple Types and Their Characteristics

There are a variety of threaded connectors, each intended to fulfill the demands of a specific sector. By understanding the construction and material composition, you may discover a fair balance between cost, sturdiness, and compliance.

NPT Black Male Nipple Pipe Fittings

The fittings are composed of carbon steel pipe or malleable iron. The fittings contain National Pipe taper threads. The threads are at 60 degrees and taper 3/4 inch per foot. Black is available with a lacquer or an iron oxide coating that offers basic corrosion protection suitable for indoor usage. The zinc doesn’t flake and protects equipment further down the line, such as controllers and burner nozzles. They perform excellently in low- to medium-pressure systems that transfer oil, natural gas, or steam. Quality control includes inspection of the L1 ring gauge thread to ANSI B1.20.1 standards to verify the right makeup depth and sealing stand-off is achieved. ASTM A53 Grade B material has a minimum tensile strength of 60,000 psi as determined by optical emission spectrometry. Random samples are hydrostatically tested and will indicate seam weld faults that are not visible.

NPT Galvanized Male Nipple Pipe Fittings

The best for corrosion protection are hot-dip galvanized varieties, which have a coating of zinc-iron alloy covered with pure zinc. They fulfill ASTM A153 specifications with a cover thickness of more than 3.4 mils (86 microns). Their cathodic protection enables them to endure longer in moist or outdoor environments, making them ideal for water supply networks, irrigation systems, and gas lines left exposed. Schedule 40 versions are ideal for transferring fluids in general. Schedule 80 models can manage high-pressure circumstances up to 3000 PSI depending on the width. The NPT thread standard (ANSI/ASME B1.20.1) deforms the thread until it is tight enough to establish a pressure-tight seal; thus, gaskets are not as essential. The steel is stable thermally to 350F. The true limits are imposed by the sealant, not the steel.

BSPT Galvanized Male Nipple Pipe Fittings

British Standard Pipe Taper fittings use a 55-degree thread with rounded roots and crests, significantly different from the 60-degree geometry of NPT. They are composed of malleable iron or carbon steel (ASTM A106/A53 Grade B) with tensile strengths more than 300 MPa. The design of the curve produces a self-sealing mechanical lock that can’t be broken by shaking, especially critical in mechanical stress or temperature change areas. Hot-dip varieties generally have zinc coatings of 70-85 microns and are resistant for >500 hours to salt spray. Pressure ratings are based on pipe schedules. Pipes may withstand operating pressures of up to 2000 PSI depending on the diameter and temperature class. These fittings conform to ISO 7-1 and are suitable for use with pipe systems throughout the Commonwealth and Europe.

Forged Threaded Reducing Male Nipple Pipe Fittings

These high-integrity components connect various nominal-diameter female threaded pipes or fittings. They are hit instead of thrown. When heated solid metal (such as ASTM A105 carbon steel, A182 stainless steel, or alloy steel) is pressed into certain dies, the grains will flow continuously along the contour of the part. This process eliminates any holes in the casting, which considerably increases the tensile strength so it can withstand strong pressure spikes and water hammer occurrences. The hex-reducing nipples feature a triangle nut in the center that may be tightened with a wrench. Barrel-reducing nipples have smooth transitions. ASME B16.11 certified for Class 2000, 3000, and 6000 pressure pipe systems, they provide leak-proof seals in critical applications where mechanical vibration wear is a concern.

The decision of these kinds relies on the demands of the system, the environment, and the norms that must be followed. For outdoor installations, galvanized fittings are preferable, black fittings are better for indoor setups, and forged fittings are excellent for high-pressure conditions. The composition of a material determines its corrosion resistance, its mechanical strength, and its capacity to work with fluids that are being transported.

How to Choose the Right Pipe Nipple for Your System？

When choosing the suitable portion of the industrial piping for joining, you must check the operational characteristics and make sure they are in agreement with the design requirements and material qualities.

Define Critical Operational Parameters

First, what will be the system's maximum operating pressure, temperature range, and fluid characteristics? Water. Gas. Steam. Chemicals. Oil. They all have various criteria as to how well materials need to operate together and how well they need to avoid corrosion. In the presence of environmental challenges such as UV radiation, dampness, earth contact, or vibration, the selection variables become more particular. In chemical processing facilities, stainless steel fittings are more resistant to severe chemicals than carbon steel fittings. Galvanized fittings are useful for HVAC systems, as they can deal with water without rusting too fast. If you have steam lines in a factory, you need fittings such as a pipe nipple that can tolerate high temperature and variable pressure.

Evaluate Material Compatibility and Thread Standards

Most applications employ inexpensive carbon steel, which is robust enough. But galvanized steel will keep rust away in moist locations or outside. Stainless steel is more expensive, but it is worth it for food processing or pharmaceutical applications, since it is superior at resisting chemicals and high temperatures. Thread type is significant. NPT threads are the most frequent in North America, whereas BSPT threads are more popular in Europe, Asia, and Commonwealth nations. Mixing different thread types may lead to locking difficulties and leaks, and even system failures. • Make sure that precision threaded fittings from your supplier are manufactured to either ANSI B1.20.1 (NPT) or ISO 7-1 (BSPT) specifications so that diameters are accurate and fittings mate properly.

Consider Size, Schedule, and Wall Thickness.

The nominal pipe size (NPS) offers a broad indication of the interior diameter, but the actual sizes are dependent on the schedule. Schedule 40 fittings are normal wall thickness fittings that may be used with moderate pressure. Schedule 80 fittings feature thicker walls and are suitable for high pressures. Choosing the proper strategy can save you from the expense of over-engineering or the danger of catastrophic failure from under-engineering. Removing the nipples allows you to swap between various sizes, improving flow rates and system efficiency. Always make sure that the drawings for fittings and pipes match so that the wall widths and the levels of thread engagement are the same.

Balance Cost-Effectiveness with Reliability

Procurement managers are under a lot of pressure to maintain quality high and prices low. It costs substantially less per unit to purchase in bulk from factory-direct suppliers rather than middle-man distributors. Businesses might ask for multiple pricing models, dependent on the number of orders, to maximize their revenue. The cheapest price, meanwhile, is not necessarily the greatest offer. For example, loose threads may leak, galvanizing that is not done well might cause rust to build early, and materials that are not combined properly can fail in unusual ways. Working with authorized manufacturers that rigorously apply quality standards is advantageous for your company in the long run, as it decreases the quantity of returns, warranty claims, and harm to your brand.

Considerations such as these will assist you in finding fittings that fulfill technical requirements and that have the lowest total cost of ownership. It is simpler to make judgments when you write down the system requirements and compare them to product data sheets.

Installation and Maintenance Best Practices for Pipe Nipples

The right way to put things and do regular repair keeps systems leak-free and increases the life of parts.

Accurate Measurement and Dimensioning

Ordering mistakes can be avoided by knowing the difference between nominal sizes and actual dimensions. The outside diameter of a nominally ½-inch pipe nipple is not the same as its nominal diameter. The real measurements depend on the schedule. Check the sizes with calipers or micrometers before installing. Check the length of the thread connection to make sure there is enough contact area for sealing. Before using tools, the threads of the pipe nipple should be hand-tight for a few turns. This shows that they are aligned correctly and that the two types of threads are interchangeable.

Thread Sealant Application and Torque Control

Leaks can be stopped without damaging the threads by using the right sealer. For water and low-pressure gas, PTFE tape works well. For high-temperature steam and oil, pipe dope is better. Only put sealer on the male threads; leave the first two threads clean to keep the system from getting dirty. Do not tighten too much, as this can damage the threads or cause the fittings to crack. Follow the manufacturer's instructions and use a torque tool for important connections. If you don't tighten something enough, it will leak, and if you tighten it too much, it will build up stress that will cause it to break early.

Corrosion Prevention and Inspection Routines

Galvanized coats keep rust away, but if they get damaged during installation, the bare steel can rust. Check parts often for red rust (steel rusting) or white rust (zinc oxidation). Replace parts that are corroding a lot before they start to leak. In chemical environments, check the compatibility of materials on a regular basis, since fittings can break down faster than expected if reactions don't go as planned. During maintenance breaks, clean threaded connections by getting rid of old sealant and corrosion products. Putting anti-seize compounds on threads that will be used in high-temperature situations stops galling and makes it easier to take apart later.

These practices keep the system's security, cut down on downtime, and increase the time between service cycles. When you teach repair teams the right way to do things, the effects are the same across all installations.

Procurement Guide: Buying Pipe Nipples for Your Business Needs

Cost-effective sourcing strategies make sure that quality is always the same and that supply chains are reliable.

Identify Reliable Factory-Direct Suppliers

Cutting out middlemen and buying directly from manufacturers lowers costs and makes communication better. Look for providers that have ISO 9001, CE, UL, and FM certifications, which show that they follow international quality standards. Shanxi Taigu Zhiyuan Malleable Steel Co., Ltd. has been in business since 2006 and has 26 years of experience in casting research and development, making them a dependable partner. Their 30,000-ton annual production capacity can handle large orders, and their 1,000+ product specifications make it easy to buy everything in one place. Their location is in Taigu District, Jinzhong City, Shanxi Province. It is only 40 kilometers from Taiyuan and 30 minutes from the airport, making it easy to get to and saving money on resources.

Evaluate Bulk Pricing and Custom Options

Ask for tiered price models that reward dealers and wholesalers for placing larger orders, which will help them make more money. Custom lengths and thread types can be used with different systems without affecting their compatibility. With ODM and OEM services, you can change your brand's look and feel, which helps you stand out in the market. Check inventory change rates against minimum order amounts (MOQ) to make sure that capital isn't stuck in stock that doesn't sell quickly. When suppliers offer flexible MOQs or mixed-container options, they keep variety while lowering the stress on their inventory.

Assess Quality Control Processes and Lead Times

Check the quality control procedures, such as thread gauging, material makeup proof, and hydrostatic testing. Suppliers should give you approval papers, mill test results, and records of measurement inspections. Delivery speed is important—having a lot of stock and good operations lets you respond quickly to urgent needs. Standard goods that are supplied within two hours keep project delays to a minimum. Make production schedules clear for custom orders, making sure that lead times don't interfere with important project deadlines. Good packaging affects how the product is when it arrives. Double-layer cardboard and materials that don't absorb moisture keep items safe during shipping, which lowers the number of returns and the costs that come with them.

Supply chain stability is achieved by building long-term relationships with reliable providers. Quality that doesn't change, lead times that can be predicted, and quick customer service all help businesses grow and keep customers happy.

Conclusion

To choose the correct threaded connector, such as a pipe nipple, for your piping system, you need to know the differences between NPT and BSPT standards, the benefits of galvanized finishes over black ones, and the stronger nature of forged construction over cast. Matching the qualities of the material to the operating conditions (such as pressure, temperature, fluid type, and environmental pressures) ensures that the system works well and lasts a long time. To be successful at procurement, you need to buy from certified makers who offer stable quality, flexible order numbers, and quick customer service. By following the installation and maintenance tips in this article, you can protect your investment and make the system safer and more reliable in a wide range of industrial settings.

FAQ

1. What is the difference between Schedule 40 and Schedule 80 pipe nipples?

Schedule 40 fittings have a standard wall thickness that works for moving fluids at mild pressures. They are commonly used in water systems in homes and businesses. Schedule 80 fittings have thicker walls, which makes them stronger for high-pressure uses up to 3000 PSI, based on the width. The thicker walls make the inside diameter a little smaller, which changes the flow rates. For industrial gas lines, steam systems, or situations where the pressure changes quickly, choose Schedule 80. For lower-pressure areas, choose Schedule 40 for more cost-effective options.

2. How do I measure pipe nipples correctly?

To find the right size fitting, measure the length from end to end, including the threads. When you hear the term "nominal pipe size" (NPS), you should know that it means the inside diameter, not the outside diameter or thread size. Before installing, use thread gauges to make sure that the NPT or BSPT connection will work. When engaging by hand, the threads should be able to turn a few times before wrenches are used. This shows that the threads are properly aligned and compatible.

3. Can galvanized nipples be used in chemical applications?

Water and atmospheric moisture can't rust galvanized fittings, but some chemicals may react with them and break down the zinc layer. Solutions that are too acidic or too basic can speed up rusting and release zinc particles into the fluid stream. Fittings made of stainless steel are more durable in harsh chemical environments. Before using zinc parts in chemical processing, you should always make sure the materials are compatible with the fluids that will be moving through them by looking at chemical resistance charts or tests for compatibility.

Partner with a Trusted Pipe Nipple Supplier for Reliable Performance

Zhiyuan Malleable Steel makes hot-dipped galvanized fittings with precision threads that are made to last and make connecting pipelines easy. These NPT/BSPT-compatible malleable iron valves and pipe nipple fittings are used in gas, water, and industrial setups. They are strong and resistant to rust. We can handle 30,000 tons of cargo a year, have more than 1,000 standards, and are ISO 9001 certified. We offer tiered prices for large orders and fast delivery—standard goods ship within two hours. Our quality control makes sure that the threads are precise according to ANSI B1.20.1 and ISO 7-1 standards. This helps prevent leaks and cuts down on returns. Get in touch with our experts at q1236800000@gmail.com to talk about unique solutions, low prices, and how our factory-direct benefits can help you make more money.

References

1. American National Standards Institute, "ANSI/ASME B1.20.1: Pipe Threads, General Purpose (Inch)," American Society of Mechanical Engineers, 2013.

2. ASTM International, "ASTM A153/A153M: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware," ASTM International, 2016.

3. ASME, "ASME B16.11: Forged Fittings, Socket-Welding and Threaded," American Society of Mechanical Engineers, 2016.

4. International Organization for Standardization, "ISO 7-1: Pipe Threads Where Pressure-Tight Joints Are Made on the Threads," ISO, 2000.

5. McGuire, J.T., "Materials Selection for Piping Systems: A Comprehensive Guide to Standards and Applications," Industrial Press, 2018.

6. National Association of Pipe Fabricators, "Best Practices for Threaded Pipe Fitting Installation and Maintenance," NAPF Technical Bulletin, 2020.
