NPT Round Face Galvanized Round Edge Coupling For Pipe Fitting

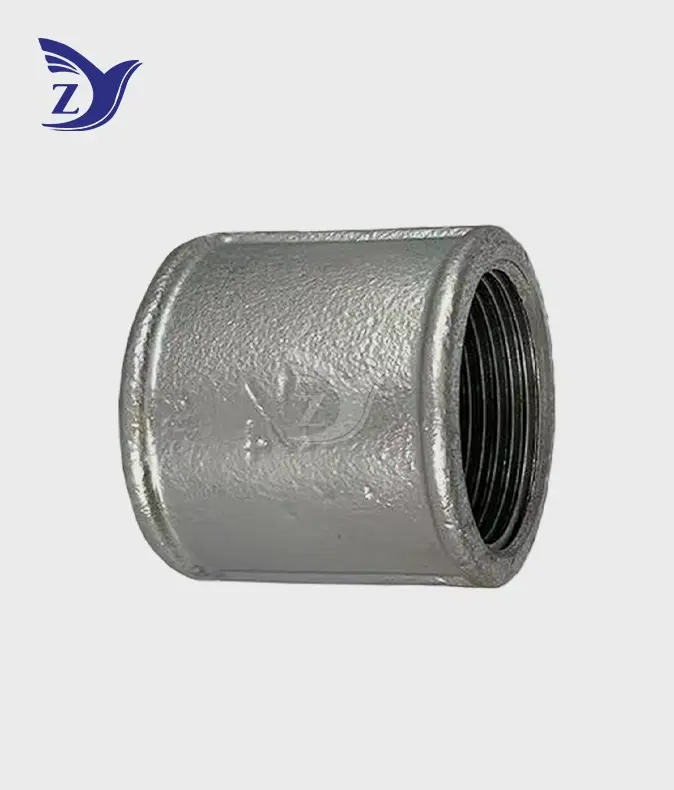

NPT round face galvanized round edge coupling pipe fittings are made of special, malleable iron parts that are designed to make safe links between pipes in a wide range of industrial settings. These threaded pipe joiners use National Pipe Taper (NPT) threading standards and have a unique round edge bead support at the exit points that spreads mechanical stress better than flat band options. The hot-dipped galvanization process covers these connections with a zinc layer that meets ASTM A153 standards. This gives water, gas and HVAC systems that are exposed to harsh environments great corrosion protection.

Understanding NPT Round Face Galvanized Round Edge Couplings

What Makes These Couplings Different

These fits are different because they have a round edge and structural support around the coupling hole. Unlike plain fittings, this bead formation can handle the torque of the wrench during installation without cracking and can keep its shape even when the pressure changes. The round face number refers to the chamfered entry point, which makes it easier for pipes to fit into place and lowers the risk of cross-threading during assembly.

Material Composition and Galvanizing Protection

NPT round face galvanized round edge coupling pipe fittings are made from cast iron that can be shaped easily. This metal goes through annealing processes that turn brittle carbon structures into ductile forms that can handle being deformed mechanically. When fittings are finished, they are dipped in molten zinc pools that are about 840°F. This creates a coating that is metallurgically bound and is usually between 2 and 3 mils thick. This zinc layer acts as a sacrifice anode, corroding more quickly to protect the iron base below in wet, salty, or chemically harsh conditions.

Threading Standards and Compliance

NPT threading is made according to ASME B1.20.1 standards. It has a 60-degree thread angle and a 1-in-16 taper ratio, which makes an interference fit seal. BSPT (British Standard Pipe Taper) threads, on the other hand, use 55-degree curves and can't be switched out without adapters. Quality companies like Zhiyuan Malleable Steel keep dimensions within the limits set by ASME B16.3 standards. This makes sure that pipeline systems from different makers can work together. Controls for production quality are based on ISO 9001 certification standards. For some uses, NSF/ANSI 61 approval for potable water contact may be needed.

Benefits and Applications of Galvanized Round Edge Couplings

Core Performance Advantages

When industrial procurement teams choose these fittings, they get a lot of practical benefits that directly lead to lower upkeep costs and longer system life. The galvanized layer protects against oxidation for decades, which is especially useful for outdoor installations, underground public pipes, and sites near the coast, where salt air speeds up the breakdown of ferrous metals. The strength of malleable iron is about 30% higher than that of regular cast iron. This means that these couplings can handle pressures of up to 300 PSI for water, oil, and gas uses at room temperature.

In a number of measured ways, the round edge design makes installation more reliable. When they are tightened, the stress spreads out around the bead instead of building up at the corners like it does with hex-faced options. This shape makes edge chipping less likely when fitters use the right amount of force, which is especially important when they use pipe wrenches on fittings that are too big. The shape also makes it easier to check visually after installation, since the uniform bead makes it clear what the right seating level is.

Industry-Specific Applications

Companies that work in fire protection engineering use these threaded couplings in sprinkler systems to make sure that the links between the branch lines are solid. The fire inspector says that the galvanized finish is resistant to corrosion in both wet and dry pipe designs. Municipal water companies use these fittings in their distribution networks because they can handle changes in the soil's chemistry and stray electrical currents that can damage metal parts if they are not protected.

When temperatures change from 40°F to 180°F, HVAC workers like round edge connections for condensate drain assemblies and chilled water loops. These applications need materials that can expand and contract with the temperature changes without the joints coming apart. NPT round face galvanized round edge coupling pipe fittings are used in process water systems and fire suppression structures at petrochemical sites because they can handle high pressures and are resistant to chemicals. They are used by gas companies in low-pressure distribution networks with up to 5 PSI. The NPT taper seal and approved thread sealants stop stray emissions.

Comparison and Selection Guide for Pipe Fittings

NPT Versus BSP Threading Standards

When doing business internationally, it's important to be clear about handling systems that don't work with each other but look a lot alike. When you put NPT threads together, the self-sealing taper designs and side angles of 60 degrees cause mechanical conflict. BSP (British Standard Pipe) threads use parallel configurations and angles of 55 degrees. They rely on bonded screws or O-rings to close. Crossed threads and catastrophic leaks happen when these systems are tried to be mated, so thread recognition is very important before purchase. The United States, Canada, and most South American countries use NPT connections as normal, while Europe, Asia, and Australia mostly use BSP links.

Material Performance Comparisons

When buying things, procurement teams often compare galvanized malleable iron to stainless steel and black iron, which each have different performance profiles. 316 grade stainless steel couplings are very resistant to rust and work reliably from very cold temperatures to 1200°F. This makes them perfect for use in medicine and food processing processes. However, the cost of the materials is about 400% higher than for galvanized iron, and special anti-seize chemicals are needed to prevent galling during installation.

While black iron fittings work well indoors when it's dry, they are about 60% more expensive than galvanized versions, and they start to rust within weeks of being exposed to moisture. Galvanized malleable iron is the best compromise for most industrial uses because it has 90% of stainless steel's corrosion protection at only 25% of the cost, and it's stronger against impacts than brittle cast iron options.

Edge Design Considerations

The round edge form mostly goes up against banded styles that have flat support rings. In Europe and Asia, where traditional looks are important for installations that people can see, round edges are more popular. In North America, on the other hand, banded fittings are more common because they are slightly cheaper (about 8%). There aren't any noticeable changes in performance when the fittings are covered or hidden, but round edges do a slightly better job of spreading out impacts when they come into touch with something mechanical outside of service.

Conclusion

NPT round face galvanized round edge coupling pipe fittings have been used successfully in many industrial settings that need long-lasting, corrosion-resistant pipeline links. Precision-threaded malleable iron, hot-dipped zinc protection, and reinforced edge geometry work together to solve important problems in fire protection, city water systems, HVAC installs, and industrial process pipes. To be successful in procurement, you need to know about sewing standards, material qualities, and the supplier's abilities that guarantee delivery on time and in accordance with specifications. If you buy these fittings from certified makers who follow strict quality controls, they will last for decades with little need for upkeep or system downtime.

FAQ

What Thread Sealant Works Best with Galvanized NPT Couplings?

When used properly, PTFE tape that is rated for the service (gas, water or steam) will close well in most situations. Anaerobic thread seals are better at resisting vibrations in gas systems because they cure inside the thread contact without oxygen, which keeps the threads from coming loose. If you want to use potable water systems, don't use standard pipe dopes that contain lead or petroleum distillates. Instead, choose NSF-certified chemicals.

Can These Couplings Handle High-Pressure Gas Applications?

Class 150 galvanized malleable joints can handle 300 PSI of natural gas at room temperature and are good for light industrial and business distribution. Class 300 valves with thicker walls are usually required for high-pressure gearbox systems that go over 125 PSI. Always check your local code, because some places require steel parts above certain pressure levels even if the iron is flexible.

How Do You Identify Authentic Quality Fittings?

Fittings made by real companies are stamped with information about their sizes, pressure classes, and countries where they were made. Ask for certificates of the materials that show they meet ASTM A47 for malleable iron and ASTM A153 for galvanizing thickness. Do Preece tests (copper sulphate dip) on sample fittings to make sure the zinc coating sticks. Good galvanization can withstand four one-minute immersions without leaving red copper spots that show base metal exposure.

Partner with Zhiyuan Malleable Steel for Your Pipeline Component Needs

Every order for NPT round face galvanized round edge coupling pipe fittings is met by Zhiyuan Malleable Steel, which has 18 years of experience making these parts and can produce 30,000 tonnes of them every year. Their quality systems are ISO 9001-certified. Our plant in Taigu, Shanxi Province, has eight medium-frequency electric furnaces and specialized galvanizing lines that meet ASTM A153 coating standards for widths from 1/8 inch to 6 inch. We provide value by having a large stockpile that allows standard products to be shipped within two hours, the ability to customize products to meet non-standard needs, and promises for replacing defective products that keep your project on schedule.

We are a well-known company that makes NPT round face galvanized round edge coupling pipe fittings. We work with fire protection contractors, municipal building firms, and industrial site managers all over North America and the world. Our double-layer cardboard packing keeps packages safe during transcontinental shipping, and our CE, UL, and FM certifications make it easier to show that we're following the rules. Email our technical sales team at q1236800000@gmail.com to get quotes, dimensional models, and material certifications that are unique to your project and meet your buying needs. You can look through our full product catalogue at zymalleablepipefitting.com and learn how Zhiyuan's production skills can help your pipeline infrastructure projects.

References

American Society of Mechanical Engineers. (2020). ASME B16.3: Malleable Iron Threaded Fittings - Classes 150 and 300. New York: ASME Press.

ASTM International. (2019). ASTM A47/A47M: Standard Specification for Ferritic Malleable Iron Castings. West Conshohocken: ASTM International.

ASTM International. (2021). ASTM A153/A153M: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. West Conshohocken: ASTM International.

National Fire Protection Association. (2019). NFPA 13: Standard for the Installation of Sprinkler Systems. Quincy: NFPA Publications.

Porter, Frank C. (2018). Corrosion Resistance of Zinc and Zinc Alloys. Boca Raton: CRC Press.

Smith, William F., & Hashemi, Javad. (2020). Foundations of Materials Science and Engineering (7th ed.). New York: McGraw-Hill Education.
