Is straight tee the same as equal tee?

People often get straight tees and equal tees mixed up when they are selecting pipe fittings for industrial jobs. Even though these words sound like they mean the same thing, they actually refer to different ways of fitting that have a direct effect on how well the system works. A straight tee is one where all three openings are in the same plane. It is often used in layouts for straight pipes. An equal tee, on the other hand, means that all three outlets are the same size, which makes sure that the flow is spread out evenly. NPT black square face straight tee pipe fittings combine both ideas by having outlets that are lined up and the same size. This allows for balanced three-way distribution in gas, oil and low-pressure steam systems that must have leak-tight connections.

Understanding Straight Tee vs Equal Tee Pipe Fittings

If you don't fully understand the terms used for tee fits, they can lead to design mistakes. Knowing the difference between straight and equal tees helps procurement teams avoid installation mistakes that cost a lot of money.

Structural Design and Configuration

A straight tee keeps the geometric orientation, which means that the run outlets and branch outlets meet at a right angle without changing angles. This design works really well in small spaces where exact flow in a certain way is needed. Equal tees, on the other hand, focus on dimensional regularity. All three holes have the same standard pipe size, which helps spread pressure evenly across branches. Some fittings have both features; for example, a straight equal tee has an aligned geometry and regular output measurements. These are often found in distribution headers and manifold systems.

Functional Applications in Industrial Systems

When directionality is important, like when vertical risers branch off of horizontal mains in fire protection networks, straight tees are the best choice. Equal tees work well for systems that need to split flow proportionally, like HVAC supply lines that serve various zones. When engineers ask for black malleable iron tees to distribute natural gas, they usually want them to be straight-aligned so that wrenches can be used easily during maintenance and the same size so that there are no pressure drops that could starve appliances further downstream. The square-edge design makes thread engagement even stronger, which lowers the risk of threads coming loose during thermal cycling.

Key Identification Factors for Procurement

By measuring the lengths of the outlets, you can tell if two tees are equal; ones that aren't equal show one less branch. To be sure of the straight shape, check the alignment. When looked at from the side, all three holes should be in the same plane. The fitting body of moulded steel tees from approved manufacturers usually has dimensional codes stamped on it. For example, "1x1x1" means a one-inch equal tee. Before accepting shipments, buyers should compare these signs to the project specs. This is especially important when buying in bulk for petrochemical plants or local water systems, where mistakes in compatibility can cause delays in the project.

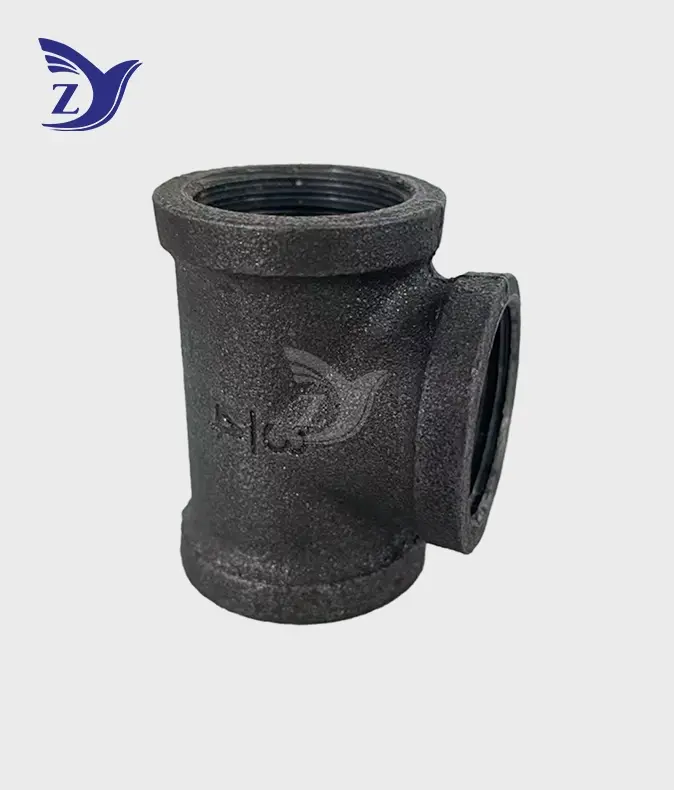

In-Depth Look at NPT Black Square Face Straight Tee Pipe Fittings

When parts need to be taken apart for repair, threaded industrial fittings are most common. When you combine NPT threading with square-face reinforcement and malleable iron construction, you get a reliable solution for tough environments.

National Pipe Thread Standards and Sealing Mechanics

NPT threads have a 1:16 taper and a 60-degree thread angle, which is what ASME B1.20.1 says they should have. As the male thread moves into the female port, the metal-to-metal contact gets stronger. This creates a mechanical lock that gets tighter when the system pressure rises. The curved shape of NPT makes it different from parallel thread standards like BSPP, which use seals instead of thread interference. Black tees that can be shaped and fitted with precision-threaded NPT connections make sure that propane tanks and fuel oil lines have gas-tight seals. Even small leaks in these areas can be dangerous. When installers use the 40–60 ft-lbs of torque needed for proper sealing, the square-edged bead around the thread entrance doesn't bend.

Material Composition and Performance Characteristics

An annealing process changes brittle carbon structures in high-grade malleable iron into ductile ones. This gives the iron a tensile strength of about 40,000 psi and an elongation of 10%. This material can handle cycles of thermal expansion in low-pressure steam systems without cracking, which is a common way for cast iron fittings to break. The black oxide or lacquer finish keeps the surface from rusting while it's being stored, and it works well in non-potable settings where galvanized coats could flake off onto sensitive equipment. Manufacturers of corrosion-resistant square-edge tees often use spectroscopy to confirm the material composition and provide mill test results that show compliance with ASTM A197 standards. This is the kind of proof that procurement managers use to choose providers for multi-year contracts.

Industrial Applications Across Sectors

A lot of NPT black square face straight tee pipe fittings are used at meter sets and appliance connections in natural gas distribution networks. The strong square band can handle being torqued over and over again during yearly meter swaps. The flexible substrate can handle ground movement without breaking underground joints. Heavy oil lubrication systems in factories can use these fittings because they are resistant to vibration. The reinforced thread zones keep the engagement integrity even when the machinery is running all the time. HVAC workers who install process heating lines like how resistant it is to thermal shock. For example, when steam first enters cold pipe during startup sequences, malleable tees bend slightly instead of getting stress cracks, which can happen with less durable materials.

Choosing the Right Supplier and Procuring NPT Black Square Face Straight Tee Pipe Fittings

Choice of supplier affects the quality of the product, the dependability of shipping, and the value of the long-term relationship. Supply chain problems that put project plans at risk can be avoided by using strict review methods.

Certification and Compliance Verification

Manufacturers with a good reputation use ISO 9001 quality management systems and send their products to a third party for certification. UL and FM approvals show that fittings meet standards for the fire prevention business, which is very important when providing sprinkler providers. CE label shows that a product follows European safety rules, which is very important for companies that sell their goods abroad. Before signing off on a purchase order, make sure you have copies of the licenses and mill test results that show what the material is made of and how accurate the measurements are. Suppliers that offer both BSPT and NPT threading give international projects more options when they need to make sure that equipment from different parts of the world works together smoothly.

Bulk Ordering and Customization Capabilities

Customization services from providers are helpful for big projects. Customized coatings, non-standard sizes, or private labelling help contractors with their branding efforts and meet the specific needs of each project. Different suppliers have different minimum order amounts. Some allow small batches for prototyping, while others need full containers to support production runs. When planning your purchases, you should weigh the costs of keeping stock against the benefits of buying in bulk. Standard sizes like 1-inch and 1.5-inch tees should be ordered in bigger quantities because they are used on more than one job, while speciality fittings should be ordered based on the needs of the particular project to avoid having extra stock.

Evaluating Production Capacity and Lead Times

When demand changes, NPT black square face straight tee pipe fittings suppliers with a lot of production capacity can handle it without making wait times longer. For example, Zhiyuan Malleable Steel has facilities that make 30,000 tons of steel every year across more than 1,000 specs. This ability to grow is very important during construction booms, when competitors are limited by a lack of materials. A lot of stock means that regular goods can be shipped the same day, which speeds up project timelines when coordination problems or changes to the design make installation times shorter. Purchasing managers should look at how close warehouses are to job sites. Suppliers in the United States usually deliver faster than importers, but when large orders are placed, foreign sources may offer lower prices. By asking for production samples before signing big contracts, you can make sure that the quality is consistent and find any problems before they affect activities that are on the critical path.

Conclusion

Knowing the difference between straight and equal tees helps you avoid making mistakes in your specifications that hurt the performance of your system. NPT black square face straight tee pipe fittings deliver reliable three-way distribution through precision-threaded connections, long-lasting malleable iron, and strengthened square-face shape. The service life can be extended by using the right installation methods and regular maintenance. To make cost-effective purchasing decisions, it is helpful to compare different fitting types. You can get goods that meet strict industry standards as long as you choose certified sources with proven production ability and full quality systems. By using these tips, engineers and procurement professionals can confidently choose fittings that meet both the short-term needs of the project and the long-term needs of the business.

FAQ

Do Straight Tees Always Feature Equal Branch Sizes?

Not all the time. "Straight" refers to geometric alignment, not uniformity in dimensions. One branch of a straight tee can be smaller than the run outlets, making it less steep. On the other hand, equal tees have the same size across all three openings, but they don't always guarantee straight alignment in certain designs. Both of these things are explained in detail on specification sheets. Before placing an order, make sure that the dimensions and orientation mentioned fit the needs of the system.

How Do NPT Threads Create Leak-Resistant Seals?

As parts are tightened, the curved thread shape causes interference fit. As the thread lengthens, more metal touches metal, creating a mechanical bond that is strengthened by system pressure. Thread seals plug the tiny holes between crests and roots, stopping fluid from moving along the spiral path. This two-part system—mechanical interference and chemical sealing—makes joints that can handle changes in pressure and temperature in oil and gas uses.

Can NPT Tees Mix With BSPT Threading Standards?

Both use tapered threads, but there are small changes in angle and pitch. If you cross-connect NPT and BSPT fittings, they might not engage completely, which could cause leaks when pressure is applied. Companies that make valves that are compatible with both NPT and BSPT machine the threads to tighter specs so that they can work with both standards. When putting together tools from different parts of the world, make sure the threads are compatible or use transition adapters to avoid problems in the field during testing.

Partner With Zhiyuan Malleable Steel for Reliable Industrial Pipe Fittings

Industrial-grade 3-way fluid transport systems are available from Zhiyuan Malleable Steel, which has been making them for 18 years. Our precision-threaded black malleable tees meet ISO 9001, CE, and FM standards, which means that the quality stays the same as we make 30,000 tons of them every year. We help builders and distributors meet tight project deadlines without sacrificing the quality of the materials because we keep enough stock in stock to supply standard sizes in two hours and offer ODM/OEM customization for non-standard specs. Before it is shipped, every NPT black square face straight tee pipe fittings undergoes a strict inspection process. If a product is found to be defective, it will be replaced at no cost to you. You can talk to our technical team at q1236800000@gmail.com about your unique needs, ask for mill test results, or set up plant checks. You can look through our full catalogue of malleable steel pipe fittings, grooved couplings, and custom casting products at zymalleablepipefitting.com. Choose an NPT black square face straight tee pipe fittings supplier that is dedicated to providing value through high-quality products and quick service.
