Is 340 malleable iron union anti-rust for gas lines?

When procurement managers and engineering teams plan gas line setups or upgrades, they often come up with the same question: Is the 340 malleable iron union really anti-rust for gas line uses? The simple answer is "yes," but only if it is properly hardened. NPT galvanized union 340 pipe fittings have a protective zinc coating that is applied through hot-dip galvanization. They are made of black heart malleable iron, which is naturally strong, and they are perfect for natural gas delivery, propane systems, and industrial gas piping. This layer of protection is a sacrifice that keeps the iron base safe from rust and moisture in the air, which could damage the system and make it less safe.

340 Malleable Iron Union Anti-Rust Properties

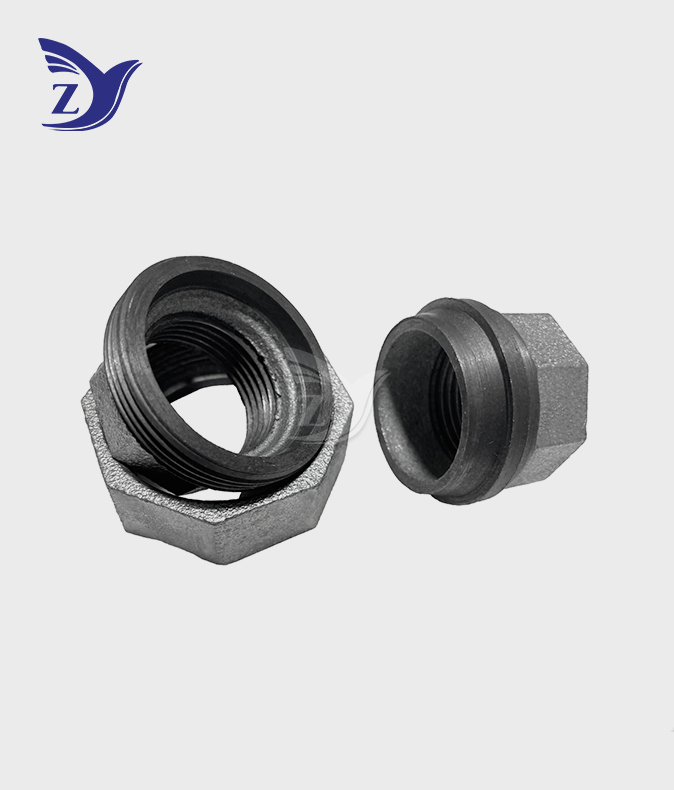

What Makes the 340 Union Design Unique?

The number "340" refers to a certain internal shape with a conical iron-to-iron seat design. This precision-machined taper makes a metal-to-metal seal that can survive the pressure changes and temperature cycles that are common in gas delivery networks. This is different from flat-seat or gasket-dependent unions. Made from black heart malleable iron that meets ASTM A197 standards, these three-piece fittings are more flexible than grey cast iron options that are more common. The nanoscale of the material lets it handle mechanical shock without breaking, which is a very important safety trait when working with gas systems that are under pressure.

How Galvanization Enhances Corrosion Resistance

Even though raw, pliable iron is better for mechanics, it can still rust in damp or outdoor conditions. This weakness is fixed by soaking the finished fitting in liquid zinc at around 450°C. This forms a coating that is usually more than 86 microns thick and is metallurgically bound. This process follows the rules set by ASTM A153, which makes sure that the threads, shoulders, and body areas are all covered evenly. Cathodic protection is provided by the zinc layer; even if it gets scratched, the zinc will rust faster to protect the iron base below. Because of this, galvanized unions are very useful in places like seaside sites, underground gas mains, and outdoor measurement stations where they will be exposed to water.

Industry Standards and Safety Certifications

Specificators can be sure that NPT galvanized union 340 pipe fittings meet basic performance standards because they comply with well-known standards. When properly put together with the right seals, NPT threading meets the requirements set out in ASME B1.20.1 for taper, pitch, and thread form. This makes sure that connections are leak-tight. Dimensional conformity to ASME B16.39 makes sure that parts from different makers can be used together. Before sending their goods out, good makers test their products for gas airtightness at 0.6 MPa to make sure the conical seat can seal. Certifications like CE, UL, and FM give you extra peace of mind for foreign projects and places with strict code standards.

Installation and Maintenance of NPT Galvanized Union 340 Pipe Fittings for Gas Lines

Step-by-Step Installation Process

The right way to put something starts with properly preparing the pipes. Use a wire brush to clean all thread surfaces and get rid of any dirt, old sealant, or metal shavings that could damage the seal. Use a gas-rated thread sealant, like PTFE tape or anaerobic pipe dope that is allowed for natural gas service. Wrap the tape around the male thread end clockwise. Thread the tailpiece onto one pipe and the body onto the pipe next to it to make the union. Then, bring the two pipes together and hand-tighten the union nut before using two wrenches to get the final force. To keep the threaded joints from getting too stressed or out of alignment, the important method is to hold one part still while turning the union nut.

Common Installation Pitfalls to Avoid

Cross-threading is the most common NPT galvanized union 340 pipe fittings mistake. It happens when parts are pushed together at small angles. This hurts the precision threads and makes leak paths that might not show up right away during pressure tests but will get worse over time. Too much pressure can break the iron body, which is flexible, or bend the conical seat, which weakens the metal-to-metal seal. On the other hand, not tightening enough leaves holes where gas can escape. Using the wrong thread glue, especially ones that aren't rated for gas service, can break down when exposed to hydrocarbons, which can cause dangerous leaks months after the installation.

Maintenance Best Practices for Extended Service Life

Routine checks should happen at times set by local laws and working conditions. For important sites, this is usually once a year. By looking closely, you can see that the zinc layer is wearing away, water is leaking around the union nut, or white rust is forming, which means that moisture is getting in. Natural gas systems sometimes hide small leaks with odorant fade. To find these leaks during maintenance rounds, electronic leak detectors or soap solution tests are useful. If you have to take something apart to service equipment further down the line, check the conical seat for any damage or cutting that might make it impossible to close properly again. Before putting the seat back together, clean it with a soft brush and use new thread sealer. Keeping detailed service records helps find trends that point to environmental factors that need to be fixed.

Procurement Guide for NPT Galvanized Union 340 Pipe Fittings

Evaluating Supplier Qualifications

If you want to find a reputable producer, you need to look at more than just unit price. A supplier's production ability shows whether they can meet large orders within the time frames needed. This is especially important for big building projects with planned installation schedules. Zhiyuan Malleable Steel can make 30,000 tons of steel every year, in more than 1,000 different product specs. This gives project-based engineering buyers the scale and range they need. Manufacturing experience is important. Our 26-year focus on casting research and pipe fitting development has given us knowledge in metals, quality systems, and application engineering that new companies can't match.

Critical Certifications and Quality Verification

Standards for quality control tell the difference between professional-grade sources and ordinary sellers. Pneumatic airtightness tests at 0.6 MPa should be done on every NPT galvanized union 340 pipe fittings to make sure the cylindrical seat seals don't let air leak out. Using NPT ring and plug gauges to check the quality of the threads makes sure that the dimensions are in line with ASME B1.20.1, which stops problems with assembly and leak routes. Using magnetic scales to measure galvanization thickness shows that the zinc coating depth meets the ASTM A153 minimums, which are usually around 86 microns. ISO 9001 recognition shows that quality management is done in a planned way, and UL and FM approvals make it easier to follow the rules in North American markets.

Understanding Pricing Models and Order Terms

Clear pricing systems help buyers stick to their budgets and compare sellers in an unbiased way. Understanding these "break points" can help you get the best deal on your orders by letting you know when volume discounts start to apply. When it comes to standard configurations, minimum order numbers (MOQs) are often cheaper than MOQs for unique sizes. Logistics skills have a big effect on landing costs. Zhiyuan is in Taigu District, Shanxi Province, which is close to transportation networks. It is only 30 minutes from Taiyuan Airport and is linked to major logistics lines that serve foreign shipping routes. Standard items from stock can be shipped within two hours of an order being confirmed. Custom items, on the other hand, have production wait times that responsible sellers make clear during the quote process.

OEM and Customization Capabilities

Industrial jobs sometimes need measurements that aren't standard, threading that isn't standard, or finish that isn't standard. Companies that offer ODM/OEM services give their products a competitive edge by making them unique and able to meet the needs of specific operations. Distributors and trade businesses that want to build a position in a regional market can use custom branding. Getting engineering help during the specification phase keeps you from having to make expensive changes in the field. Before production starts, experienced providers look over the application conditions and suggest the best options.

Conclusion

When galvanized correctly, the 340 malleable iron union works reliably to prevent rust in gas line applications in household, business, and industrial settings. The cylindrical shape of the seat makes sure that there are no leaks, and hot-dip galvanization gives it strong rust protection that can withstand harsh environments. When you look at the mechanical strength of malleable iron, the accurate NPT threading, and the long-lasting zinc covering on these fittings, you can see that they are cost-effective options that balance the initial investment with long-term performance. To be successful at procurement, you need to choose makers with proven quality systems, the right certifications, and enough production capacity to safely meet project deadlines.

FAQ

Can 340 Malleable Iron Unions Handle Natural Gas and Propane?

For proper installation with gas-rated thread sealer, these unions can be used for both natural gas and propane service. The iron-to-iron conical seat can handle the pressure ratings that are common in household and light business gas distribution. These ratings are usually Class 150, which means they can handle 300 psi at normal temperatures. Thread sealants must not break down when exposed to hydrocarbons. For long-term bond integrity, use PTFE tape or anaerobic substances that are labeled for gas service.

How Does Galvanization Extend Product Longevity?

Hot-dip galvanizing makes a zinc covering that is metallurgically bound and protects in two ways. Water and air can't get to the iron base because the zinc works as a physical barrier. Zinc's electrochemical qualities also make it dissolve more quickly when the covering is damaged, giving up its own protection to protect the metal below. In similar conditions, this mixture usually adds 20 to 30 years to the service life of black iron that hasn't been polished.

What Certifications Should I Verify Before Purchase?

ASTM A197 for base material compliance, ASTM A153 for galvanization standards, and ASME B1.20.1 for thread correctness are some of the most important qualifications. UL and FM approvals make it easier for sites in North America to follow the rules. Getting ISO 9001 certification means that you handle quality in an organized way. To make sure that production quality control is being followed, ask for test records that show the results of pneumatic pressure testing, thread gauging, and readings of the thickness of the zinc layer.

Partner with Zhiyuan Malleable Steel for Reliable Gas Line Solutions

Zhiyuan Malleable Steel has been making precision-threaded, hot-dipped galvanized malleable unions for 26 years. These unions are designed to meet the needs of demanding gas delivery uses. Our factory in Taigu District has eight medium-frequency electric furnaces. For every batch of products we make, we do strict quality control checks like air testing, thread verification, and galvanization thickness analysis. We are a reliable NPT galvanized union 340 pipe fittings provider for project-based engineering companies, local utilities, and foreign distributors who need certified products shipped on short notice. Each year, we handle more than 30,000 tons of products across more than 1,000 specifications. Our ISO 9001, CE, UL, and FM certifications show that we are dedicated to making the best products. We can deliver standard products within two hours and offer full OEM/ODM customization options to meet both urgent needs and specific uses. You can email our technical sales team at q1236800000@gmail.com to talk about the needs of your gas line project, get full specs, or set up an inspection visit to our 50,000-square-meter plant. You can look through our full catalog of products and get access to technical tools at zymalleablepipefitting.com. This will help you make smart purchasing choices.

References

1. American Society of Mechanical Engineers (2020). ASME B16.39: Malleable Iron Threaded Pipe Unions, Classes 150, 250, and 300. New York: ASME Press.
2. ASTM International (2019). ASTM A197: Standard Specification for Cupola Malleable Iron. West Conshohocken: ASTM International.
3. ASTM International (2021). ASTM A153: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. West Conshohocken: ASTM International.
4. Porter, Frank C. (2018). Corrosion Resistance of Zinc and Zinc Alloys. Boca Raton: CRC Press.
5. McAllister, Eugene W. (2013). Pipeline Rules of Thumb Handbook: A Manual of Quick, Accurate Solutions to Everyday Pipeline Engineering Problems. Houston: Gulf Professional Publishing.
6. National Fire Protection Association (2022). NFPA 54: National Fuel Gas Code. Quincy: NFPA Publications.
