Installation Guide for Galvanized Square Edge Coupling Fittings

If you work in industrial piping procurement or distribution, you already know that one poorly chosen fitting can bring an entire pipeline project to a halt. This guide walks through everything you need to know about square face galvanized square edge coupling pipe fittings — from material properties and installation steps to maintenance schedules and bulk sourcing strategies. Whether you manage a hardware distribution network or oversee large-scale pipeline construction, the goal here is simple: give you clear, actionable information so your team installs these fittings correctly the first time and keeps them running long-term.

Understanding Galvanized Square Edge Coupling Fittings

Before you pick up a wrench, you should know what you're working with and why this type of fitting works the way it does in tough conditions.

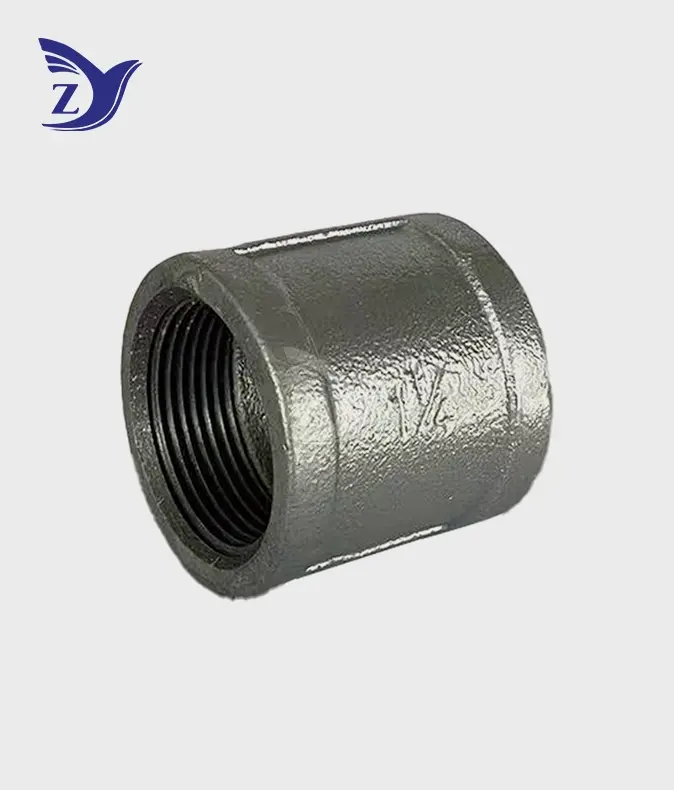

What Makes the Square Edge Design Different

A square edge, also known as a square face, is a strong flat band that goes around the opening of the socket. This band adds about 15–20% more collar mass than beaded or plain-face designs. This keeps the collar from cracking in the middle when the wrench force is high. That extra structural margin is important for installation teams who have to tighten parts in small areas or in the field.

Material: Malleable Iron and Hot-Dip Galvanizing

Blackheart malleable iron (grade KTH300-06 or KTH330-08), which is used to make square face galvanized square edge coupling pipe fittings, has a minimum tensile strength of 300 MPa and good ductility. After being cast, each fitting goes through a hot-dip galvanizing process that coats it with zinc that is thicker than 70 microns (per ASTM A153 / ISO 1461). This makes a barrier that keeps the metal from rusting in wet, corrosive, and outdoor settings.

Thread Standards and Size Selection

When it comes to threads, most galvanized square edge couplings are either NPT (60° angle) or BSPT (55° angle, 1:16 taper). These can't be switched out; mixing NPT and BSPT threads leads to cross-mating and leaks. Make sure you know which thread standard your downstream piping system needs before you place your order. Sizes range from 1/8" to 4" nominal bore, which is wide enough to cover most industrial water, gas, and steam distribution needs.

Step-by-Step Installation Guide for Galvanized Square Edge Coupling Fittings

Once you have the right tools, it takes about 15 to 20 minutes per joint to do the job right. It's more likely that threads will get damaged or leak under pressure if you hurry through any step.

Pre-Installation Checklist

Before you start, get the following: A pipe wrench that is the right size for the square face galvanized square edge coupling pipe fittings, thread sealer or PTFE tape that is rated for the fluid (water, gas, or steam), a wire brush to clean the threads, a torque chart, and safety gear for yourself. Look at each fitting and throw away any that has flaking zinc, holes that can be seen, or threads that have become deformed. As per ASTM A197, the iron body shouldn't have any cracks or cold shuts.

Alignment and Thread Engagement

A wire brush can be used to clean the male pipe threads and get rid of dirt and old sealant. Spread the thread sealant out evenly. For NPT/BSPT joints, two to three wraps of PTFE tape or a brush coat of paste compound work well. Tighten the coupler by hand until you feel strong resistance. Then, move it two or three more turns with a pipe wrench. The square edge on the face of the wrench gives the mouth a flat, solid grip that keeps it from slipping when tightening the last bit.

Safety and Leak Verification

Test the joint for leaks at 1.5 times the working pressure after putting the line together before using it. The working pressure for these fittings is up to 25 Bar (362 PSI) at room temperature and 20 Bar at 120°C. If you notice a slow drip at the thread interface, take a step back, add sealant, and then tighten again. Do not force more turns, as this can cause the fitting collar to split.

Comparison & Decision-Making: Why Choose Square Edge Couplings?

Teams in charge of buying things often look at galvanized malleable iron connections next to options made of stainless steel, painted iron, or plastic. This is where each one stands.

Galvanized vs. Painted Iron Fittings

Painted fittings are cheaper up front, but they lose their rust protection when the paint chips, which usually happens between 18 and 24 months in high-humidity or outdoor service. Hot-dipped galvanized fittings, on the other hand, protect against corrosion with zinc and can fix small surface scratches on their own through galvanic action. When it comes to water treatment plants, irrigation systems, or sites near the coast, galvanized iron certainly has a lower total cost of ownership.

Galvanized Iron vs. Stainless Steel

When temperatures are above 300°C or when chemicals are present, stainless steel couplings work better than other materials. Below that limit, which includes most water and gas distribution projects, hot-dipped galvanized malleable iron is much cheaper and has the same level of corrosion resistance. That price difference is big for wholesalers who handle large orders that depend on margins.

Selecting the Right Size and Thread Type

Find the outside diameter of the male pipe end and compare it to the thread charts for ANSI/ASME B1.20.1 (for NPT) or ISO 7-1 (for BSPT). For example, a 3/4" coupling will fit a 3/4" nominal pipe whether the thread standard is NPT or BSPT. However, the thread size is different, so the standard must match perfectly. If you're not sure, ask for sample fits before you order a whole container.

Procurement Considerations and Reliable Supplier Insights

When distributors place orders for container loads, qualifying the seller is just as important as specifying the square face galvanized square edge coupling pipe fittings. Here are the things that set trustworthy makers apart from those that aren't.

• Thread precision verification: Request go/no-go gauge test reports for NPT or BSPT threads on sample batches. Undersized or oversized threads are the leading cause of field returns in the wholesale hardware market.
• Zinc coating documentation: Ask for third-party coating weight test reports (minimum 500 g/m² per ISO 1461) on each production batch, not just on product approval samples.
• Tiered pricing structure: A trustworthy manufacturer offers transparent price breaks tied to order volume — for example, different rates for 1-ton, 5-ton, and 20GP container quantities.
• Lead time commitments: Confirm production lead times in writing, including peak-season capacity guarantees. Stock disruptions during high-demand periods are a real risk when working with undersized foundries.
• Zinc coating paperwork: Ask for coating weight test records from a third party (at least 500 g/m² per ISO 1461 standards) on every production batch, not just the samples used for approval.

FAQ

Can I connect a BSPT coupling to an NPT pipe?

No, the angle between BSPT and NPT threads is 60°, not 55°. Cross-threading and leakage will happen if you mix the two thread types. Before installing, you should always check the thread standard.

What pressure rating do these couplings carry?

Standard heavy-duty steel square edge connections can handle 20 Bar at 120°C and 25 Bar (362 PSI) at room temperature. When temperatures rise, pressure values go down, so always check the manufacturer's datasheet for the exact working situation.

How do I verify zinc coating quality on arrival?

Check it out visually first. Good hot-dip galvanizing looks shiny or matte silver all over, with no peeling or bare spots. A copper sulfate (Preece Test) or magnetic thickness gage reading can be used to check if a batch is correct by confirming the thickness of the zinc layer against the ASTM A153 standard.

What is the shelf life of an uninstalled galvanized coupling?

Galvanized malleable iron fittings keep their full protective integrity for 10 years or more before they are installed if they are kept in a dry, well-ventilated building away from direct wetness and acidic vapors.

Are these fittings suitable for gas lines?

Yes, NPT and BSPT threaded galvanized connections are commonly used in LP gas and natural gas delivery systems, as long as the sealant solution is approved for gas service.

Get a Quote from Zhiyuan Malleable Steel — Square Edge Coupling Supplier

Since 2006, Zhiyuan Malleable Steel has been making pipe fittings out of malleable iron. They can make up to 30,000 tons of them each year and have more than 1,000 different product specifications. Our square face galvanized square edge coupling pipe fittings are certified to ASTM A153 and meet ISO 9001, CE, and FM standards. The hot-dip zinc coatings are also certified. Standard items can be shipped within two hours if they are in stock, and OEM/ODM orders are welcome. To get prices or samples, email our team at q1236800000@gmail.com or go to zymalleablepipefitting.com.

Conclusion

When installed and kept up properly, square face galvanized square edge coupling pipe fittings are a reliable and affordable choice for industrial water, gas, and steam pipeline systems. The square face design stops cracking caused by torque, the hot-dip zinc coating protects against corrosion for a long time, and the precise NPT/BSPT threading makes sure that the joints don't leak. Before making bulk orders, procurement managers should check thread standards, zinc coating paperwork, and supplier wait times to protect both product quality and profit margin. If you buy these fittings from a recognized maker with output records that can be tracked, they will work perfectly for decades.

References

1. American Galvanizers Association. Hot-Dip Galvanizing for Corrosion Protection: A Guide for Specifiers. 2023.
2. ASTM International. ASTM A153: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. 2023.
3. ASTM International. ASTM A197: Standard Specification for Cupola Malleable Iron. 2022.
4. International Organization for Standardization. ISO 1461: Hot Dip Galvanized Coatings on Fabricated Iron and Steel Articles. 2022.
5. International Organization for Standardization. ISO 7-1: Pipe Threads Where Pressure-Tight Joints Are Made on the Threads. 2021.
6. American Society of Mechanical Engineers. ASME B1.20.1: Pipe Threads, General Purpose (Inch). 2022.
