How to Select Galvanized Non-Flanged Pipe Plug Pipe Fittings?

Selecting appropriate galvanized non-flanged pipe plug pipe fittings involves evaluating thread compatibility (NPT or BSPT standards), material composition (malleable iron or carbon steel), galvanization coating thickness (minimum 70 microns for hot-dip), pressure ratings (typically 300-1000 psi WOG), and environmental conditions. Verify dimensional accuracy against ASTM A197 or EN 1562 standards, ensure the thread taper matches your system requirements, and confirm the manufacturer provides certifications meeting ISO 9001, CE, or FM standards for quality assurance and long-term reliability in industrial applications.

Understanding Galvanized Non-Flanged Pipe Plugs: Basics and Benefits

What Are Galvanized Non-Flanged Pipe Plugs?

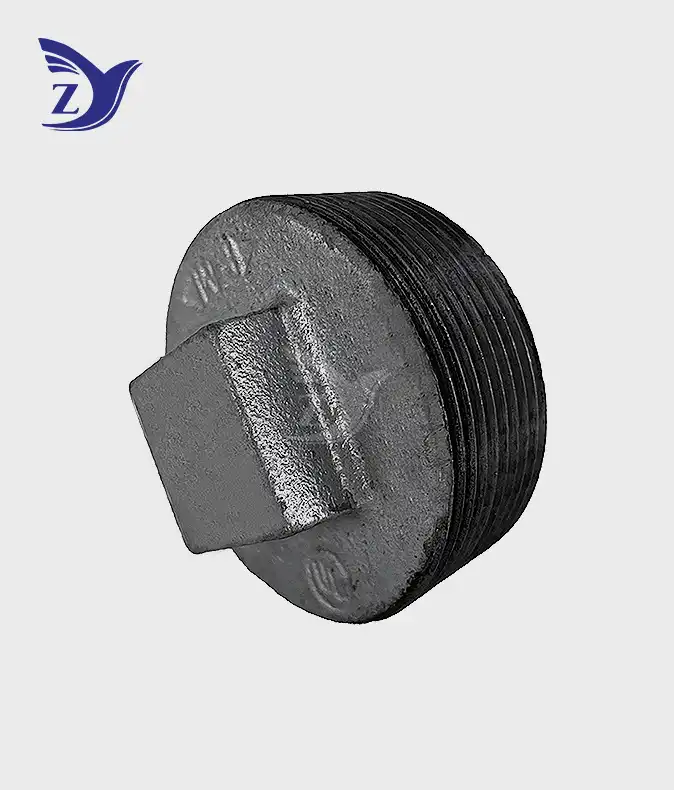

Galvanized non-flanged pipe plug pipe fittings are threaded sealing parts that are designed to permanently or temporarily close pipe ends in industrial piping systems. Non-flanged designs don't have a wide collar or washer face sticking out from the body like flanged designs do. Instead, they have small square or hexagonal heads that stick out straight from the threaded shaft. This shape is more efficient, which makes it easier to install and keeps the structure strong even in harsh operating conditions.

When hot-dip methods are used to apply the galvanized coating, they make a protective zinc layer that is about 70 to 85 microns thick. This layer protects against oxidation and chemical damage. This treatment makes the service life a lot longer than untreated black iron fittings, especially in places with a lot of humidity or outside installations where the material breaks down faster when it's exposed to water.

Key Material Properties and Thread Standards

Usually, carbon steel that meets ASTM A105 requirements or malleable iron that meets ASTM A197 standards are used in manufacturing. By heating it, malleable iron can be changed from brittle white cast iron to a flexible material that can handle mechanical shock and changes in temperature without breaking. The material's tensile strength is between 345 and 415 MPa, which is strong enough for water, gas, and oil pipeline uses in industry.

The threads are set up according to either the NPT (National Pipe Taper) or BSPT (British Standard Pipe Taper) standards. NPT threads have a flank angle of 60 degrees and a taper rate of 3/4 inch per foot. This makes progressive interference that gets tighter as the installation torque goes up. The BSPT specifications use a 55-degree thread angle and a 1:16 taper ratio, which gives the same level of sealing performance when metals touch each other. In many situations, both designs do not need gaskets, but thread sealant tape or pipe dope makes them more reliable.

Corrosion Resistance and Durability Advantages

The zinc layer that is put on during galvanization protects in two ways. The shield effect keeps corrosive elements away from the base metal, and the galvanic protection gives up zinc ions more willingly when the layer gets scratched or damaged. According to research, fittings that have been properly galvanized can withstand 500 hours or more of salt spray testing according to ASTM B117 standards. This shows that they are suitable for use in coastal areas and chemical processing environments.

For liquid service, the operating temperature range is usually -20°C to 120°C, and for steam service, it can go up to 10 bar. This covers most municipal and industrial system needs. The thermal expansion rate of malleable iron is about 11 × 10⁻⁶ per °C, which is similar to that of standard carbon steel pipe. This means that there is less stress at the connection places when the temperature changes.

Essential Criteria for Selecting Galvanized Non-Flanged Pipe Plug Fittings

Sizing and Thread Compatibility Assessment

To do accurate sizing for galvanized non-flanged pipe plug pipe fittings, you must first find the standard pipe size (NPS) and the internal pipe plan. Standard sizes for most industrial uses are from 1/8 inch to 4 inches, but other sizes up to 6 inches can be ordered for certain systems. It is up to the procurement manager to check if the current system uses IPS (Iron Pipe Size) threading and make sure that the sizes are compatible by using ANSI/ASME B1.20.1 charts for NPT threads or ISO 7-1 references for BSPT threads.

The thread contact length is very important for the stability of the seal. NPT standards say that there should be at least three or four full threads visible after the right fitting. This shows that the threads have penetrated enough without being too tight. Using calipers or thread gauges to check the taper rate makes sure it meets the requirements, since even small differences can affect how well the seal works when pressure is applied and released.

Pressure Rating and Service Classification

Fittings are put into different service classes based on their pressure ratings. These include Class 150 (rated to 300 psi WOG for Water, Oil, and Gas), Class 300 (rated to 1000 psi WOG), and other high-pressure types. These ratings are directly affected by the thickness of the walls and the type of core (solid or cored construction). For high-pressure uses that need the most strength, solid plugs without open centers work best. For lower-pressure systems, cored designs save money on materials.

When engineers define pressure values, they should use safety factors and usually choose parts that are rated at least 150% above the highest pressure they expect to be used. This margin takes into account pressure spikes that happen when valves are working, the effects of thermal expansion, and possible system transients that could cause stress levels to rise above normal.

Environmental and Chemical Compatibility

Different service environments require different material things to be thought about. For potable water contact, municipal water systems need to make sure that the galvanized coating has as few metals that can leach out as possible, in line with NSF/ANSI 61 standards. Gas delivery networks need to be able to work with mercaptan odorants and possibly hydrogen sulfide, which can speed up zinc rusting in some situations.

Chemical exposure studies should look at pH ranges, salt levels, and the presence of organic solvents. Standard galvanized coatings work best in neutral to slightly alkaline (pH 6–12) environments. They break down more quickly in strongly acidic (pH < 4) or highly alkaline (pH > 13) environments. Chemically aggressive surroundings might be better suited to different coatings or materials, such as metal.

Comparative Analysis with Alternative Plug Types

There are a few differences between non-flanged galvanized plugs and other options. Flanged versions have better surfaces for engaging wrenches and cover bigger openings, which makes them better for places that need to be accessed often for upkeep. When it comes to potable water systems, brass plugs are more resistant to corrosion than iron plugs, but they lose strength at high temperatures. Stainless steel choices are very resistant to chemicals, but they are very expensive and can't be used for bulk installs that need to be kept low.

Black iron fittings are cheaper at first, but they need extra rust protection when used outside or in damp places, which often cancels out the original cost savings by requiring more frequent replacement. For balanced performance in a wide range of industrial settings, full lifecycle cost analyses usually recommend galvanized malleable iron.

Installation Best Practices for Galvanized Non-Flanged Pipe Plugs

Preparation and Tool Requirements

For a proper installation of galvanized non-flanged pipe plug pipe fittings to start, both the pipe plug and the receiving part must be carefully prepared. Use wire brushes to clean all threaded surfaces and get rid of any dirt, rust, or old sealer that might get in the way of the threads engaging. Make sure there is enough light to check the threads for damage, cross-threading, or differences in size that could weaken the bond.

Essential tools include flexible pipe wrenches that are the right size for the fitting, thread sealant tape (PTFE) or anaerobic pipe sealant compound that is rated for the service medium, and torque measuring tools for very important tasks. Don't use pliers or broken wrenches because they can damage the galvanized finish or round off the hexagonal sides, making them harder to remove later.

Step-by-Step Installation Process

Start applying thread sealant at the second thread from the plug's leading edge and work your way clockwise when looking at it from the end that is already installed. This way, the tape or cement won't come apart while it's being installed. For NPT threads, use two to three wraps of PTFE tape or a small amount of anaerobic glue to keep hydraulic lockup from happening in blind holes.

Hand-tighten the plug at first to make sure it can turn freely without any binding or resistance that could mean cross-threading. Once it is hand-tight, slowly apply torque with a wrench while checking to make sure it seats properly. The NPT tapered threads get tighter over time, and installation should stop when there is a lot of resistance, which usually happens after 3–4 more turns after hand-tight positioning.

Common Installation Errors and Prevention

The most common mistake during installation is overtightening, which causes too much hoop stress that can break the fitting body or strip the threads. This problem can be avoided by setting torque requirements based on fitting size. For example, 1/2-inch plugs need 25–40 ft-lbs of torque, while 2-inch sizes need 100–150 ft-lbs. Checking the manufacturer's torque charts takes the guessing out of it.

Even though they look the same, NPT and BSPT fittings don't seal properly because their threads don't match. The difference in thread angles keeps them from fully engaging, which makes leak routes. Costly mix-ups can be avoided by keeping separate inventory, marking it clearly, and teaching installation staff how to spot differences in how things look.

Maintenance and Inspection Guidelines

Set check times based on how important the system is and how much it will be exposed to the surroundings. Places with a lot of vibration or systems that go through a lot of thermal cycles should have eye checks every three months to see if the coating is wearing off, the threads are weeping, or the fitting is moving. Every year, pressure testing makes sure that seals are still good without having to take apart important systems.

Damage to the coating that reveals the base metal needs to be fixed right away. Surface rust that only covers 5–10% of the whole area can be fixed with zinc-rich paint, but parts that have a lot of corrosion need to be replaced. The condition of the galvanized layer directly affects how long it will last. If you have access to ultrasonic gauges, check the zinc thickness and replace any fittings that show less than 40% of the original coating thickness.

Conclusion

Technical specifications, environmental factors, and supplier capabilities must all be carefully considered when choosing galvanized non-flanged pipe plug pipe fittings. Long-term performance and system dependability are directly affected by thread standards compatibility, pressure ratings, and the quality of the galvanization. The best results are achieved when procurement professionals work with certified manufacturers who can show they have the production capacity, quality certifications, and full service support. True economic efficiency is found in the balance between beginning costs and lifecycle value, and smart supplier relationships allow for adaptability as project needs change. The service life of fittings is extended by following the right installation and maintenance procedures. This protects infrastructure assets in municipal, industrial, and business settings.

FAQ

What distinguishes non-flanged from flanged pipe plugs in practical applications?

Non-flanged pipe plugs have small square or hexagonal heads that stick out directly from the threaded body. This saves space during installation and gives wrenches direct surfaces to engage. This style works well in places where space limitations mean that the fittings can't be very big, or where the plug will stay in place forever. For flanged forms, the collar surfaces are wider and extend perpendicular to the thread axis. This makes them better at transmitting torque and covering bigger openings. These are useful for access ports that need to be taken off often or when the flange face gives an extra sealing surface against a mating part.

How long do galvanized pipe plugs typically last in industrial environments?

Service life varies a lot depending on how it is maintained and how it is exposed to the environment. When installed indoors in climate-controlled spaces with little to no moisture exposure, they usually last 25 to 30 years before they need to be replaced. When used outside in mild conditions, they usually last between 15 and 20 years. But in harsh settings with salt spray, industrial pollutants, or extreme temperature changes, they may only last 8 to 12 years. Regular inspection and recoating when zinc thickness drops to 40% of original coverage greatly increases operational life.

Are galvanized fittings suitable for potable water distribution systems?

Standard hot-dip galvanized iron plugs that meet the requirements for NSF/ANSI 61 certification can still be used for potable water service. The zinc coating's ingredients and how it leaches are put through a lot of tests that make sure that very little metal gets into drinking water sources, which is within the allowed levels set by regulators. But, after being fitted, galvanized parts should be flushed to get rid of any manufacturing residues or zinc particles that are only weakly attached before they are put into service. Systems that move highly acidic water with a pH below 6.5 or high salt levels may experience zinc dissolving more quickly, so you might want to think about using brass or stainless steel instead for longer service life.

Partner with Zhiyuan Malleable Steel for Reliable Pipeline Solutions

With over 26 years of casting experience and a 30,000-ton annual production capacity, Zhiyuan Malleable Steel is a reliable supplier of galvanized non-flanged pipe plug pipe fittings. Our hot-dip galvanized malleable iron plugs are made using ISO 9001 quality systems and have CE, UL, and FM certifications, which means they are safe to use in all international markets. We are conveniently located 40 kilometers from Taiyuan and have easy access to the airport. We can send standard goods within two hours from our large inventory, and we also offer full ODM/OEM customization services. Our engineering team offers technical advice to help you improve your specifications, and our guarantee for replacing a defective product protects your investment in buying from us. You can talk to our experts about your project needs and get specific quotes by emailing q1236800000@gmail.com or visiting zymalleablepipefitting.com. If you need NPT or BSPT thread configurations, wholesale prices in bulk, or custom casting solutions, Zhiyuan's manufacturing infrastructure and service pledge will help your pipeline system succeed from the planning stage to the installation stage.
