How to Measure a Galvanized 90° Reducing Elbow Correctly?

Measuring a galvanized 90° reducing elbow correctly means recording four key dimensions: the inlet diameter, outlet diameter, center-to-face distance, and wall thickness. Use a vernier caliper for the threaded ends and a steel tape for the center-to-face length. Always clean the fitting first—zinc coating adds measurable thickness. Because NPT and BSPT threads follow different taper rates, confirm the thread standard before recording nominal pipe size. Getting these numbers right protects your procurement orders from costly mismatches and keeps downstream installers on schedule.

Understanding the Basics of a Galvanized 90° Reducing Elbow

It's helpful to know what you're measuring and why each dimension is important in a real pipeline before you take out the caliper.

What This Fitting Actually Is?

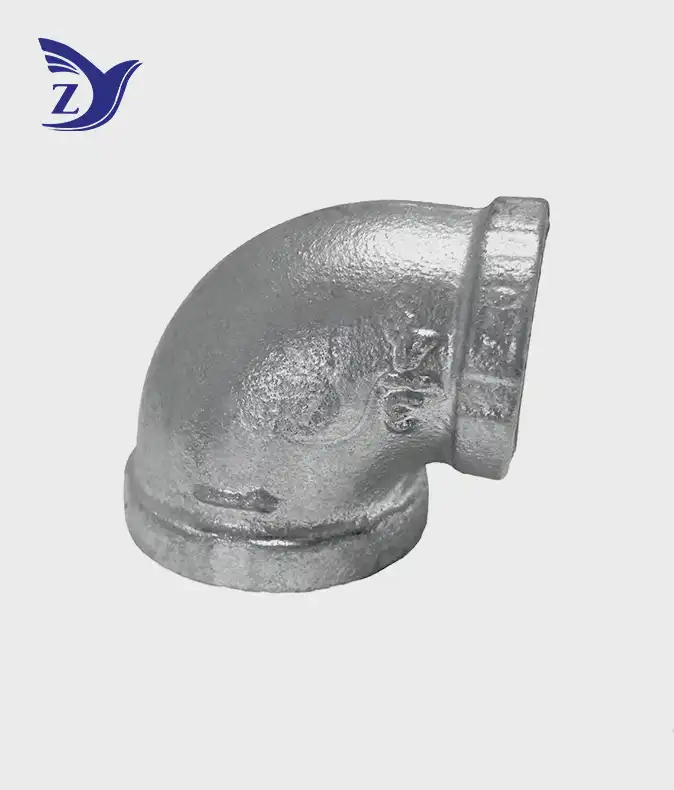

An iron pipe fitting called a galvanized 90° reducing elbow is hot-dipped and malleable. It changes the flow direction by 90° and steps down the pipe diameter at the same time. Both ends are precision-threaded to either NPT (ASME B1.20.1) or BSPT standards, and the inlet and exit have different nominal sizes. Common combos are 1" × ¾" and ¾" × ½". This two-threaded, 90° reducing pipe connector gets rid of the need for a separate bushing and bushing adapter. This speeds up installation and lowers the number of places where water and gas pipelines could leak.

Materials and Protective Coating

Reduction elbows for industrial applications are often manufactured from malleable iron that fulfills ASTM A197 requirements. The next stage is to add a zinc coating, usually thicker than 85 microns, by hot-dip galvanizing to ASTM A153. The zinc layer acts as a buffer and prevents the iron layer from oxidizing too fast. This is why hot-dipped galvanized precision-threaded malleable iron fittings for HVAC pipes outdoors or agricultural wash-down lines may persist for decades. The coatings vary in thickness by about 80 to 100 microns per surface and this variation must be considered when doing hole and thread measurements.

The Four Dimensions That Define Compatibility

If you are shopping for a corrosion-resistant, flexible elbow for industrial usage, there are four factors you will want to consider: nominal intake diameter (DN or NPS), nominal outlet diameter, center-to-face distance (C-to-F), and minimum wall thickness. Skipping one of these procedures often leads to order revisions and late delivery. The ASME B16.3 standard includes reference tables for malleable iron fittings of Class 150. These tables should be the same as your supplier’s production drawings (at a minimum).

Step-by-Step Guide on How to Measure a Galvanized 90° Reducing Elbow Correctly

As long as you know the steps, you can always get the number right. Before I order a whole container of NPT/BSPT reducing male-female 90° steel elbows, this is how I check a lot of them.

Tools You Need and How to Prepare the Fitting

You will need the following tools: A Digital Vernier Caliper (0-150 mm, 0.01 mm precision) Steel Tape (easy to bend) L1 NPT Ring Gage Set Magnetic Coating Thickness Gage. Wipe the fitting with a dry towel to remove any oil or zinc dross. Loose zinc particles in the bore may produce a change in caliper readings of from 0.3 to 0.5 mm, sufficient to change the depth of thread engagement.

Measuring Inlet and Outlet Diameters

Make that the thread face on the inside of the hole is flush with the caliper jaws. Take the reading and write it down . Rotate the item around 90 degrees and take a second reading . The average of the two nonparallel measurements will provide the working hole diameter. You may validate the nominal pipe size (NPS) by checking the bore against the tables in ASME B16.3. For example, on a simple male-female connection that tapers down, if you are working with a 1" aperture you should be about 26.6 mm of inner hole before the thread crests. Don't think the nominal size and the real bore are the same, they are totally different.

Measuring Center-to-Face Distance and Verifying the 90° Angle

Place the arm on a flat surface with the bigger opening pointing upward. To get the precise center point of the elbow arc, saw the fitting in half along its curve. Then measure with a steel tape from this point to the faces of the threaded ends. ASME B16.3 specifies the distance C to F to be 38 mm (1½"). This is for ¾" Class 150 fitting. Place the fitting against a machinist’s square to make sure it is at a straight angle. Rotational misalignment stress (where the deviation reaches ±0.5°) reduces the joint’s lifetime.

Comparing Measurement Considerations for Different Types of 90° Reducing Elbows

Not only does the type of material change how well it works, but it also changes how you measure it in the field or when you get the things.

Galvanized Steel vs. Stainless Steel

Galvanized malleable iron is coated with zinc while stainless steel is not. This coating is what makes the iron more robust and prevents rust. For example, it is vital to check the coating, thickness and size of galvanized fittings. In contrast, stainless fittings, particularly thin wall 304 or 316 grades, may flex a little when threaded. Checking bore tolerance is more important. For industries, galvanized iron is hard to beat in price and durability in terms of altering the diameters of large water and gas pipes. Stainless elbows are not as practical as their raw materials are more expensive.

Galvanized Steel vs. Black Steel and PVC

Galvanized and black steel elbows have the same ASME B16.3 shape, which means that the C-to-F lengths are the same on paper. Surface finish makes a difference: black steel has a slightly smaller outer diameter because it doesn't have a copper layer on it. On the other hand, PVC elbows don't follow the same size standards (ASTM D2466 or D2661) and can't be used with galvanized 90° reducing elbow for 90° flow turn valves for iron pipe systems that are NPT or BSPT compatible. One of the most common mistakes I see in B2B procurement is thread standards being mixed up between different types of material.

Practical Tips for B2B Procurement and Installation Based on Accurate Measurement

Accurate measurement is only useful if it directly affects decisions about what to buy and how things turn out during installation.

Matching Sizes Across Applications

For HVAC rooftop gas manifolds, 1" × ¾" reducer elbows are often used, as are plumbing drop lines that step down from ¾" to ½". In the case of industrial water systems, 2" × 1½" arrangements may be necessary. Before submitting a request for quote, compile a size matrix with all the inlet-outlet combinations that you sell or stock. According to typical sourcing cycles I've seen in the construction materials distribution sector, this single step reduces email correspondence with vendors by around 40%.

Avoiding Supplier Dimensional Discrepancies

"1 inch" is not always the same length from factory to factory . I suggest you should ask for factory drawings for each SKU in your order that will include bore diameters, pitch of the threads and C to F tolerances. These documents may be given to you routinely by manufacturers that are qualified to follow ISO 9001 and ASME B16.3. In case the measurements of the samples do not correspond to the dimensions stated on the plan, it is high time to rethink the connection with the supplier before raising the quantity.

Here are three useful steps that can be taken to cut down on measurement-related mistakes in large-scale procurement:

• Request pre-shipment inspection reports that include bore diameter readings, coating thickness test results from a magnetic gauge, and ring gauge thread verification records for every production lot.
• Cross-reference sizing charts against ASME B16.3 Class 150 tables before confirming any bulk order, particularly for less common reducing combinations like 1¼" × ¾".
• Specify thread standard explicitly in your PO—NPT or BSPT—because a factory may default to BSPT unless you state otherwise, and the two standards are not interchangeable without re-threading.

These steps cut the cost of return freight directly and protect the profit margin that makes wholesale distribution possible.

Conclusion

To get the right size for a galvanized 90° reducing elbow, you need to know its inlet bore, outlet bore, center-to-face distance, and wall thickness. Compare those measures to the right thread standard (NPT or BSPT) and check them against ASME B16.3 before you place a large order. Taking into account the thickness of the zinc coating during checking keeps shipping sizes from being a surprise. When your measurements are exact and the factory drawings from your supplier match them, it's easier to get what you need, there are fewer mistakes during installation, and customers further down the line stop sending back fittings. That dependability saves your wholesale profit right away.

FAQ

How do I measure the center-to-face distance accurately?

Put the elbow on a flat surface to stand on. Find the geometric center of the elbow curve by measuring from both thread sides to the bend the same amount of distance. Use a steel tape from that center point to each thread face and check against ASME B16.3 published numbers. Large-batch inspections can be more accurate with the help of a dial indicator.

Does the galvanized coating affect my dimensional readings?

Yes, hot-dip zinc coating does add about 80 to 100 microns to each surface that is visible. This changes the reading at the thread face when using a ruler to measure the hole diameter. Always write down if the measurements on your reference drawing are for the material before or after galvanizing, and use a magnetic coating thickness gage to make sure they meet ASTM A153 standards.

When should I measure wall thickness?

For any high-pressure use or when parts will carry steam, measure the thickness of the walls during the incoming quality check. To test without damaging the material, use an ultrasound thickness gage. ASME B16.3 Class 150 sets the minimum wall thickness for each pipe size. If the wall thickness falls below that level, it changes the hydrostatic pressure ratings, which has a direct effect on system safety and compliance.

Can I use NPT-threaded elbows with BSPT pipes?

No. NPT (60° thread angle, ASME B1.20.1) and BSPT (55° thread angle, BS 21) are not mechanically compatible. Pressing them together hurts the thread crests and makes leaks happen. Always check with your downstream installer about the thread standard before you place an order.
