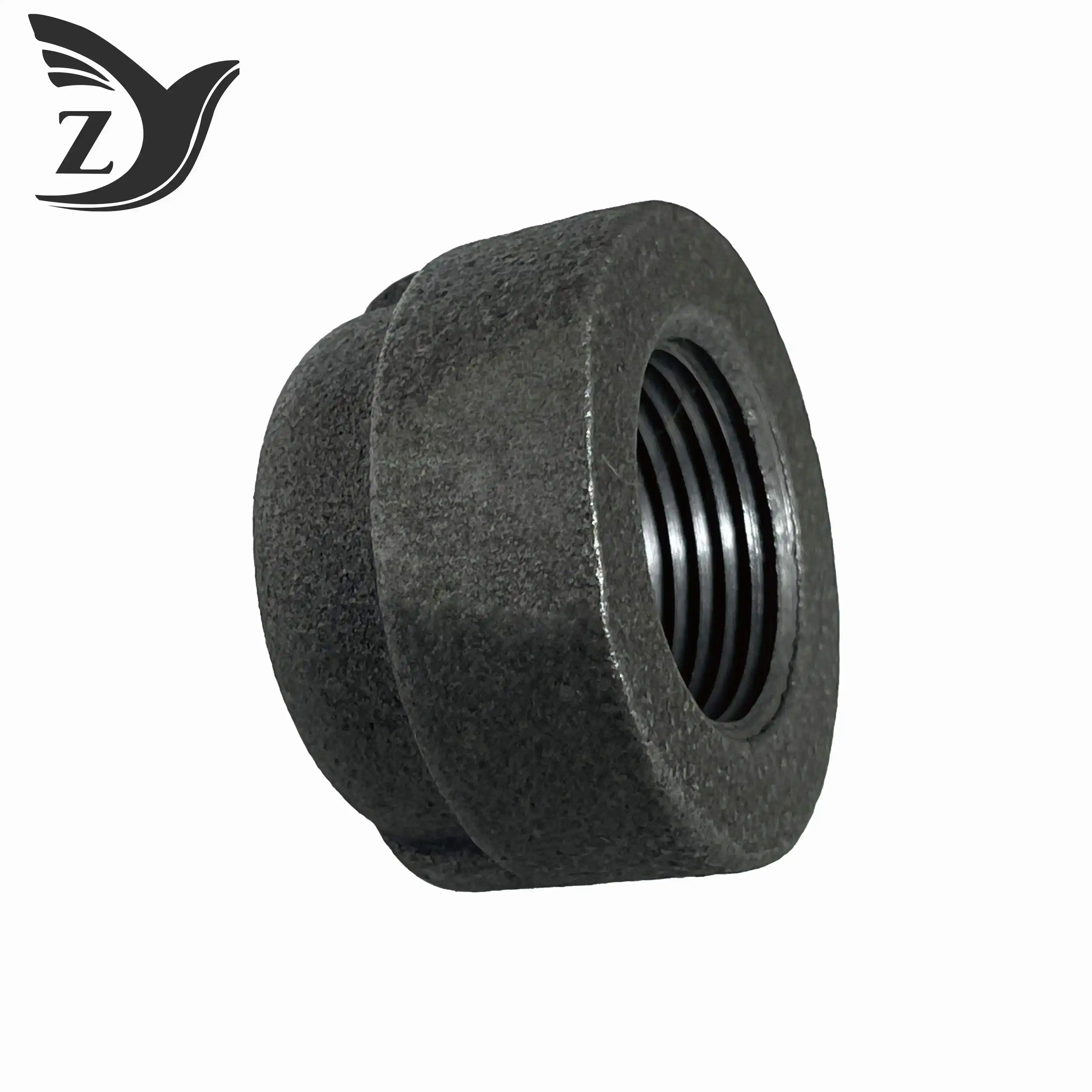

How is malleable iron made by sand casting?

Malleable iron sand casting is the cornerstone manufacturing process for producing pipe fittings with exceptional toughness and ductility. This method begins by pouring molten white cast iron into carefully prepared sand molds, which—after cooling and an intensive annealing heat treatment—transforms brittle carbides into graphite nodules. The result is malleable iron (typically grade KTH350-10) that resists impact and thermal shock, making it the go-to material for threaded elbows, tees, and bushings used in water, gas, fire protection, and HVAC piping systems worldwide.

Understanding this process is crucial for procurement professionals seeking reliable, cost-effective components that meet international standards such as EN-1562, ASTM A197, and GB/T9440.

Understanding Malleable Iron Sand Casting

Because of the way it is made, malleable iron is different from regular cast iron. There are flake graphite particles in regular gray iron that make it rigid. But ductile iron changes in two steps. When white cast iron is first made, it has iron carbides in it that make it hard but fragile. By heating these carbides at a high temperature for a long time, they break down into graphite groups with odd shapes that are set in a flexible ferrite matrix. This change in the microstructure gives the material its unique properties, such as a tensile strength of more than 350 MPa, an elongation rate of 10% or more, and the ability to take impact without breaking.

The Core Stages of the Sand Casting Process

The process of sand casting has several steps that depend on each other and all work together to make the final product strong. Pattern making comes first. This is where aluminum or resin patterns are made to exact measurements, taking into account how much they will shrink as they cool. The mold hole is then made by pressing these designs into molding sand, which is usually silica sand that has been mixed with clay or resin. The sand has to be strong enough to hold up under the pressure of liquid metal while also being porous enough to let gases escape.

Once the mold is put together, liquid iron that has been heated to about 1,450°C is poured through systems with gates that control the flow speed and reduce turbulence. If you pour too quickly, air holes can form, and if you pour too slowly, the mixture could solidify too soon. The sand mold is broken off after the casting has cooled for a few hours to reveal the rough casting with its sprues and risers. After that comes the important annealing phase, where the castings are heated to 900–950°C for 20–80 hours in controlled-atmosphere kilns, based on how thick the walls are. This long-term heat process changes the weak carbide structure into tough iron that can be shaped and machined.

Metallurgical Characteristics That Matter

The way ductile iron works in piping is directly related to its microstructure. The graphite spheres absorb stress inside the fittings, stopping cracks from spreading when they are tightened during installation or when they expand due to heat. The ferrite matrix makes the material easy to machine, which lets you make exact threading operations that make sure the links don't leak. The amount of carbon is carefully kept between 2.2% and 2.9%—just enough to turn into graphite during annealing but not so much that carbides are left over. Silicon levels between 1% and 1.6% help the material turn into graphite, and manganese and sulfur levels are kept low to keep the material from breaking.

Key Factors Influencing Quality in Malleable Iron Sand Casting

To get consistent quality in malleable iron sand casting, you need to be careful at a lot of different control points. One of the most common flaws is still porosity, which is caused by trapped gasses or sand inclusions. Using molding sands with high permeability and the right air openings can help gasses escape while the concrete is being poured. Shrinkage holes happen when the casting doesn't get enough liquid metal as it hardens; risers and chills placed strategically control this thermal gradient. Cracking that happens during cooling or heating is often a sign of bad cooling rates or raw materials that are contaminated.

Practical Strategies to Enhance Casting Outcomes

Pattern design optimization has a direct effect on the number of defects in malleable iron sand casting. Gradual changes in wall thickness keep stress from building up, and the right draft angles (usually 1 to 3 degrees) make it easy for the mold to come off cleanly. The design of the gating system controls the speed and direction of the metal. Bottom gating lowers turbulence compared to top pours. Verifying the quality of the sand through sieve analysis and testing for moisture content makes sure that the mold properties are the same from batch to batch.

The Metallurgy and Process Parameter Interplay

Precision in heat treatment is what sets high-quality products apart from average castings. To make sure that all the carbides are broken down, the temperature inside the heating kiln must stay within ±15°C. Controlling the atmosphere stops surface rust or decarburization, both of which make threaded areas weaker. Calibrated thermal profiles are needed to control the cooling rate after annealing so that it is neither too fast to cause stress cracks nor too slow to waste energy. These process disciplines make it possible for makers to consistently make parts that meet pressure and tensile standards.

The final mechanical properties are determined by how long the annealing process lasts and how much carbon and silicon are present. Higher silicon speeds up graphitization, but if it's too high, it may lower the tensile strength. Too low of an annealing temperature leaves behind carbides, and too high of a temperature can cause grains to become bigger and the shape to change. Foundries like Zhiyuan Malleable Steel carefully check all the materials that come in and keep an eye on the process in real time to make sure that these factors stay within the acceptable ranges. This focus on the basics of metalworking makes it possible to consistently make fittings that pass testing by a third party to make sure they meet ASTM A197 standards. This gives buying teams faith in the long-term dependability of the products.

Comparing Malleable Iron Sand Casting with Other Casting Methods

Knowing how sand casting compares to other technologies helps buyers choose the best production method for their needs. Gray iron sand casting makes parts quickly and cheaply, but the flake graphite structure isn't flexible, so gray iron fittings can break when they are hit or vibrated. Ductile iron is tougher than malleable iron because it is treated with magnesium during casting. However, it usually needs more expensive raw materials and stricter process controls.

When it comes to complex geometries, investment casting has the best surface finish and most accurate dimensions. On the other hand, the ceramic shell process is too expensive for large production runs of simple threaded fittings. Permanent mold casting with metal dies has faster cycle times than sand casting, but the cost of the dies and the fact that shapes can't be very complicated mean that it can't be used for pipe systems that need a wide range of fittings. Steel casting makes pipes stronger, but it costs a lot more to make, and the materials are more expensive, so it's not necessary for home or light business pipes.

Malleable iron sand casting is ideal because it has the right amount of strength and toughness, and the mold is flexible enough to allow for complex internal pathways, such as the flow paths in reducing bushings or cross fits. For threaded connections, where accuracy comes from machining after casting rather than as-cast surfaces, the sand texture surface finish is fine. The option to change the batch size makes it cost-effective to make anything from 500-piece test runs to 50,000-piece annual contracts. The cost of materials stays low because white iron feedstock doesn't need expensive alloying elements like molybdenum or nickel.

Procurement Insights for Malleable Iron Sand Casting Parts

Supplier approval checks should come first when making choices about malleable iron sand casting parts. Standardized process control is shown by ISO 9001 quality management systems, and product certifications (CE for European markets and UL/FM for North American fire protection uses) show that the product meets regional safety standards. Foundries that have been open for more than ten years have usually improved their sand reclamation systems, heat treatment protocols, and ways to stop defects through a process called "iterative learning."

Evaluating Minimum Order Quantities and Lead Times

MOQ arrangements are affected by economies of scale in production. Pattern tooling for custom fittings can cost anywhere from $800 to $3,000, depending on how complicated the design is. Because of this, small batches are not cost-effective unless they are spread out over several orders. Standard catalog items, like 1/2" to 2" elbows and tees, often have lower MOQs—sometimes as little as 500 pieces—because they already have designs that don't need to be made, so there are no production costs. There are three parts to the lead time: making the pattern (if it's new) takes two to three weeks, casting and annealing take three to four weeks, and machining and surface treatment take one to two weeks more. These deadlines can be shortened for rush orders, but they usually cost more.

Unit cost is not the only thing that affects prices. When shipping across continents, freight costs can make up 15 to 25 percent of the total cost of a big, heavy casting. Working capital needs are changed by the type of payment, like a 30% deposit with the rest due against a copy of the bill of lading or a letter of credit. Suppliers who offer open payment terms show that they are financially stable and care about their customers.

Building Collaborative Buyer-Supplier Relationships

Sample evaluation is the first step in technical collaboration. By asking for pre-production samples, you can check the sizes and test the mechanical properties before placing a full order. Using calibrated plug gauges to check thread gauges makes sure that NPT or BSPT threads meet tolerance requirements. Metallographic analysis of cross-sections shows that the graphite has been properly shaped and that the annealing process was complete. Trial shipments, like one or two containers, give you real-world data on how well the packing works and make sure it's right for your transportation chain.

Unclear communication rules keep mistakes from costing a lot of money. Giving full technical drawings with important measurements clearly marked, stating the surface finish needs (black oxide, hot-dip galvanized, or electro-galvanized), and making it clear at the start what markings are needed will save time in the long run. When suppliers answer emails within 24 hours and are willing to set up video calls for technical talks, it shows that they are professional and want the relationship to succeed.

Conclusion

For the mass production of high-quality threaded pipe fittings, malleable iron sand casting remains the most practical and cost-effective method. Through careful sand molding, controlled pouring, and a long annealing heat treatment, the process turns brittle white cast iron into tough, bendable parts. Pay close attention to the sand's qualities, the form of the gates, and how the heat is managed during the casting and annealing stages to get good results. Compared to other casting methods, sand casting is the most adaptable for complicated shapes and the least expensive for medium to large production numbers. For procurement to go well, you need to work with qualified providers who show they know what they're doing, can communicate clearly, and are willing to work with you on trials and samples. As the industry adopts automation, digital monitoring, and environmentally friendly methods, buyers can get better quality and dependability while also supporting manufacturing that is good for the environment.

FAQ

1. What standards govern malleable iron pipe fittings production?

International standards, such as EN-1562 (Europe), ASTM A197 (North America), and GB/T9440 (China), set limits on chemical makeup, mechanical property requirements, and size variations. These standards make sure that all parts of the global supply chain can be used together and are safe. Reliable providers give test certificates for materials that show they meet the standards for each production batch.

2. How does annealing time affect fitting performance?

The length of time spent annealing directly affects how completely carbides break down. Not enough cooling leaves behind iron carbides that make the metal less flexible and more rigid. Annealing for longer than required loses energy and doesn't improve properties. Depending on the size of the fitting, the best annealing schedules take into account both production speed and wall thickness. Thicker parts need longer soak times.

3. Can malleable iron fittings be used for potable water systems?

Most places allow hot-dip galvanized malleable iron fittings to be used with potable water because the zinc coating keeps rust from getting into the water. Fittings with a black finish that aren't galvanized shouldn't be used in systems with fresh water because they could rust. Check the local plumbing codes and make sure the right surface treatments are chosen when you buy something to make sure you follow the rules and the service lasts a long time.

Partner with a Trusted Malleable Iron Sand Casting Manufacturer

Zhiyuan Malleable Steel has been specializing in malleable iron sand casting for pipe fittings for more than 18 years. They work with procurement leaders and supply chain workers in North America, Europe, and the Middle East. Our plant in Shanxi Province is ISO 9001-certified and has eight medium-frequency electric furnaces and two 100-ton natural gas annealing kilns. It can produce 30,000 tons of products each year, meeting more than 1,000 different standards. We keep a lot of standard fittings in stock so that we can deliver them quickly—often within 48 hours—and we also offer flexible ODM/OEM customization services to meet your specific technical needs.

Every casting is carefully checked for quality against ASTM A197, EN-1562, and GB/T9440 standards. This is backed up by detailed material test certificates and options for third-party verification. During the sampling process, our engineering team works closely with clients to provide metallographic analysis and pressure testing documents to confirm performance before starting full-scale production. Our strategic position and integrated supply chain help us offer competitive prices, and clear English-language contact makes sure that expert discussions and project planning go smoothly.

Get in touch with us right away at q1236800000@gmail.com to talk about your needs for malleable iron sand casting. Zhiyuan Malleable Steel is ready to be your reliable supplier partner whether you need 500 pieces for a test order or yearly contracts for more than 10,000 tons.

References

1. American Society for Testing and Materials. (2019). Standard Specification for Malleable Iron Castings. ASTM A197/A197M-19.

2. European Committee for Standardization. (2018). Founding – Malleable Cast Irons. EN 1562:2011+A1:2018.

3. Campbell, J. (2015). Complete Casting Handbook: Metal Casting Processes, Metallurgy, Techniques, and Design (2nd ed.). Butterworth-Heinemann.

4. Elliott, R. (1988). Cast Iron Technology. Butterworth & Co. Publishers Ltd.

5. Davis, J.R. (Ed.). (1996). ASM Specialty Handbook: Cast Irons. ASM International.

6. British Standards Institution. (2017). Specification for Malleable Cast Iron and Cast Copper Alloy Threaded Pipe Fittings. BS EN 10242:2017.
