How is a malleable iron 90° elbow manufactured?

A malleable iron 90 degree elbow is produced through a carefully controlled multi-stage process that transforms brittle white cast iron into a ductile, tough fitting capable of withstanding high-pressure environments. The manufacturing journey begins with sand casting molten iron into the elbow shape, followed by an annealing heat treatment that converts the carbon structure from hard carbides into nodular graphite clusters. This thermal process grants the material exceptional malleability and shock resistance. After heat treatment, precision machining creates the internal female threads at both ends, and finishing processes—such as hot-dip galvanising—provide long-lasting corrosion protection for demanding applications in water, gas, and fire protection systems.

Overview of Malleable Iron 90° Elbows

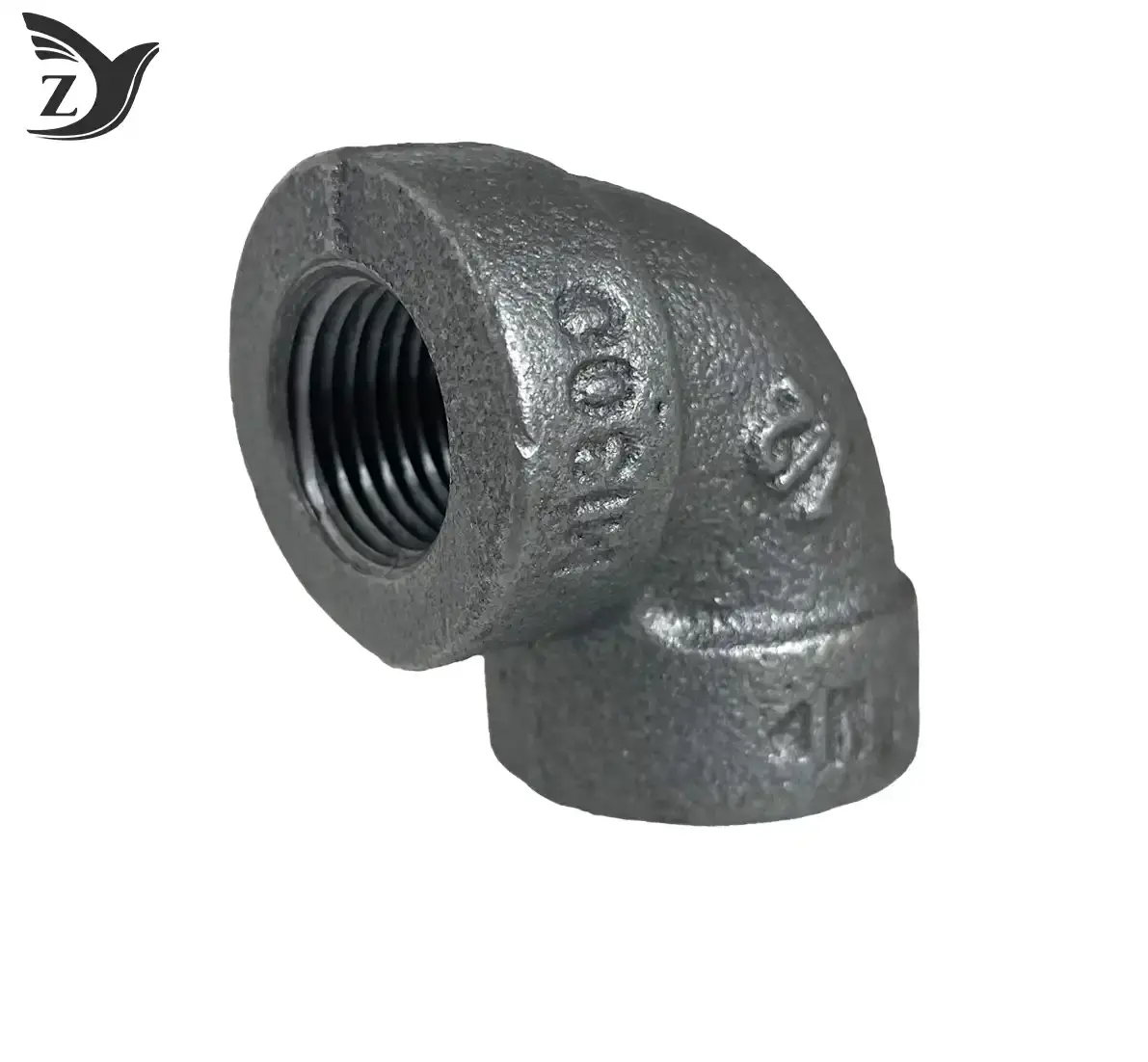

Many pipe systems around the world are held together by malleable iron fittings, especially in places where dependability and sturdiness are very important. A standard malleable iron 90-degree elbow is designed to change the flow direction at a right angle in systems with connected pipes. These elbows are made from black-heart malleable iron, which has the strength of cast iron and the flexibility to bend and handle sound and mechanical stress without breaking.

Core Technical Specifications

The structure is made with female-by-female internal threads at both ports. This lets you connect securely to steel pipes or nipples that have external threads. Thread setups come in both BSPT (British Standard Pipe Taper) and NPT (National Pipe Thread) forms, so they can be used anywhere in the world. Since the pressure number is usually between PN16 and PN25 (1.6 to 2.5 MPa), these fittings can handle moving fluids with a mild pressure. The operating temperature ranges from -20°C to 300°C, which covers a lot of different workplace situations. Sizes range from 1/8 inch to 6 inches, so they can be used for a wide range of projects, from small domestic installations to big commercial piping networks.

Standards Compliance and Material Properties

Internationally known standards, such as EN10242, ASME B16.3, and GB/T3287, are used to make sure that quality products are made. These rules say how to measure accurately, what materials to use, how to do pressure tests, and how precise the threads should be. For indoor, dry settings, you can choose a black finish. For outdoor, wet settings, you can choose a hot-dip galvanised coating for better rust protection. The galvanised layer creates a strong metal bond that lasts longer than most paint or coating methods, making the product last a lot longer in tough circumstances.

The Manufacturing Process of a Malleable Iron 90° Elbow

When you know how these important parts are made, you can see why quality varies so much between suppliers and why manufacturing expertise should be given more weight than price alone when making purchasing decisions for a malleable iron 90-degree elbow.

Raw Material Selection and Melting

The process of making something starts with carefully choosing the raw materials. Pig iron, steel scrap, and ferroalloys are mixed together by manufacturers to get the right chemical makeup. For the next heat treatment to work, the carbon level must stay within tight limits. The amounts of silicon, manganese, and sulphur are managed to change the quality of the casting and its final mechanical features. Modern foundries use medium-frequency electric furnaces, such as the SNGKDX-35003T units found in the most advanced facilities. These furnaces allow precise temperature control and consistent melt quality. These furnaces get hotter than 1,500℃, which makes sure that all of the alloying elements dissolve and that any impurities are removed by slag formation.

Sand Casting Formation

When the metal is at the right temperature and makeup, it is put into sand moulds that have been specially made for the malleable iron 90 degree elbow shape. Sand casting is still the best way to make fittings out of malleable iron because it can make complicated internal passages and threaded areas while keeping costs low for a range of production volumes. The sand mould is made of a carefully mixed substance that doesn't break down at high temperatures. This keeps the mould's dimensions accurate as the metal hardens. The cooling process is done slowly so that there aren't any buildups of stress inside the material that could cause it to crack during later processing.

Annealing Heat Treatment: The Transformation Process

The property that makes malleable iron unique is that it is both strong and flexible. This property comes from a controlled annealing process. Newly cast elbows are made of white cast iron that is too hard and brittle to be used for threaded pipe uses. Through careful heat treatment, the annealing cycle changes this structure. Castings are put into special furnaces that heat them up to temperatures between 900°F and 950°F. They stay at that temperature for a long time, and then they slowly cool down over several days. During this thermal cycle, the carbon that is in the hard carbide form breaks down and reforms as nodular graphite clusters that are spread out in the iron matrix. This change in the microstructure makes the fitting much more resistant to contact and lets it bend slightly under high stress instead of breaking in a huge way. Modern factories use annealing kilns that use natural gas and save energy, like Blue Sky HTL-1 type 100-tonne capacity units. These kilns make sure that the temperature is evenly distributed and the atmosphere is controlled, which is important for getting consistent results.

Precision Machining and Threading

Once the elbows have been annealed, they are machined to make the internal threads that allow pipes to join. To make sure that joints don't leak, thread cutting must follow the exact tolerances set out in ASME B1.20.1 standards. Machining also gets rid of flaws in the casting and makes flow changes that are smooth, which reduces turbulence and pressure drop. Facilities with a lot of cutting options—sometimes more than 150 processing units—can handle a lot of output while keeping the dimensions the same from batch to batch. This cutting infrastructure is especially important for big purchases where thread compatibility across thousands of parts can't be compromised.

Surface Finishing: Black or Galvanised Options

Surface treatment to prevent corrosion is the last step in the manufacturing process. The black finish has a light oil layer that works well indoors or in systems that use fluids that don't corrode. By submerging final elbows in liquid zinc at about 450℃, hot-dip galvanising offers better protection. The zinc forms a metallic link with the iron surface, forming several alloy layers that give up their own safety to protect the metal below. This galvanised coating can stand up to hundreds of hours of salt spray testing, which meets the strict needs of fire protection contractors and marine uses. Electric heating and environmental protection galvanising ovens make sure that the covering thickness is always the same and have less of an effect on the environment than traditional galvanising methods.

Quality Inspection and Testing

Every production batch goes through strict quality control before it is packed. Dimensional inspections make sure that all measurements are within the ranges that have been set. Pressure testing makes sure that the structure is solid and finds any flaws in the casting that could affect how well it works. Thread gauges check the pitch width, side angle, and thread form to make sure that pipes will fit properly. Material Test Certificates (MTC 3.1) keep track of mechanical property test results and allow users who need paperwork to be able to track down raw material lots. Professionals in procurement are often worried about how consistent and reliable the next batch will be, and this thorough quality assurance process addresses that concern.

Comparing Malleable Iron 90° Elbows with Other Types of Elbows

Knowing how malleable iron 90-degree elbows work compared to other materials is important for choosing the right elbow material for a job.

Malleable Iron vs. Carbon Steel Elbows

Most high-pressure and high-temperature jobs in the industrial and power generation industries are done with carbon steel elbows, especially butt-weld types made to ASME B16.9. These fittings have bevelled ends that make permanent joints that are welded together and have the same strength as the pipe. When temperatures and pressures go above 400℃ and 10 MPa, carbon steel does its best. This is when malleable iron fails. Although threaded connections using a malleable iron 90 degree elbow are easier to maintain, they do have some benefits. Threaded connections make it possible to take parts apart for inspection or replacement without having to cut pipes or do hot work. When it comes to installation speed, malleable iron also wins because threading only needs basic tools, while butt-welded joints need trained welders and quality control processes. When you add up the cost of both the material and the work to install it, malleable iron fittings are usually 40 to 60 per cent more expensive than carbon steel soldered fittings of the same size.

Malleable Iron vs. Ductile Iron Fittings

Another type of cast iron is ductile iron, which has better mechanical properties because magnesium is added during casting instead of after casting. The tensile strength of ductile iron parts is higher than that of malleable iron, and they can handle more impact loads. However, malleable iron still has benefits when it comes to accurate machining and thread quality. Because annealing creates a fine-grained microstructure, it is easier to cut threads with tighter limits. This lowers the chance of thread breaking or leaking. Additionally, malleable iron behaves better in low-temperature settings, keeping its flexibility at temperatures that would normally make ductile iron break. This quality is very important for fire safety systems in cold places, where pipe freezing puts a lot of stress on fittings.

Malleable Iron vs. Stainless Steel Elbows

Fittings made of stainless steel in grades ASTM A403 WP304 or 316 are the best at resisting rust in harsh chemical conditions. When treating acidic substances like some petrochemicals or seawater, the higher cost of stainless steel is worth it. Hot-dip galvanised malleable iron, on the other hand, protects against corrosion well and costs much less for standard water supply, compressed air, natural gas, and fire protection systems. When budgets are tight, procurement workers find that malleable iron lets them meet specifications without hurting the project's economics. Galvanised malleable iron is about 25–35% less expensive than stainless steel alternatives. This makes it the best choice for large-scale projects that span several sites.

Installation and Maintenance Best Practices

The right way to install something has a direct effect on how long it lasts and how well it works without leaks. This leads to a lower total cost of ownership, which is a big deal for procurement teams that are looking at supplier proposals.

Thread Preparation and Joint Assembly

Threads that are clean and properly prepared are the building blocks of strong links. Before putting the parts together, check the internal threads for dirt, sand, or metal chips that could stop them from fully engaging. The thread protector you choose is very important. When used in the direction of the threading, PTFE tape, also known as Teflon tape, seals well in water systems. Thread sealant compounds that are rated for fuel gas service and stay flexible when temperatures change are needed for gas systems. To keep contaminants from getting into the pipe system, start applying the sealer from the second thread. Use the right amount of force to tighten connections. If you over-tighten, the joint could crack, and if you under-tighten, it could leak. To keep the pipe from deforming, pipe wrenches should hit the hexagonal body part instead of the rounded sections.

System Pressure Testing

Once the installation is done, test the system for hydrostatic pressure before putting it to use. Gradually raise the pressure until it is 1.5 times the design working pressure. Keep it there for at least as long as the relevant codes say you have to. Check all of the links for leaks or tears. This check before the system is put into use finds software mistakes before they cause problems with operations or damage to property.

Routine Maintenance Protocols

Regular inspections keep systems working longer and stop them from breaking down without warning. Visual checks should be done to see if the rust is getting worse, especially at thread joints where crevice corrosion can start. In harsh environments, galvanised coatings break down over time, so keeping an eye on the zinc layer's integrity helps plan replacements before substrate corrosion starts. For gas systems, checking for leaks on a regular basis with electronic monitors or soap solution tests keeps joints strong as thermal cycling slowly stresses threaded connections. Installations that are prone to vibration should have their torque checked once a year to make sure that connections haven't come loose under mechanical stress.

Conclusion

Complex mechanical science is hidden behind the high-quality making of malleable iron 90 degree elbows, which look like simple fittings. From melting operations that keep the carbon content within strict limits to multi-day cooling cycles that change the microstructure to precision cutting that makes threads that won't leak, every step of the production process is important for the performance reliability that procurement professionals need. When you compare malleable iron to other materials, you can see where it works best: in medium-pressure systems with threaded connections for easier maintenance and hot-dip galvanising for corrosion protection without the high cost of stainless steel. Best practices for installation and regular repair procedures make parts last longer, which is something that picky buyers look for. For procurement to work well, specs must be perfectly matched to application needs, and producers must be able to show that they have the production capacity, quality certifications, and supply chain stability that are needed.

FAQ

1. What pressure rating should I specify for fire protection systems?

For fire safety setups, fittings with a rating of PN25 (2.5 MPa) are usually needed to handle the system pressures that happen when the pump is running and when water hammer happens. Class 300 fittings add an extra safety cushion for high-rise buildings where pump output pressure is increased by static pressure from height. Check that the pressure values given match the figures used to build the system and the NFPA standards that apply in your area.

2. How does hot-dip galvanising compare to a black finish?

Hot-dip galvanising uses metallurgical bonding to create a zinc coating that is more resistant to corrosion than a black finish. Galvanised fittings can handle being outside, getting wet, and being around some chemicals. The black finish works well for dry indoor uses where there isn't much chance of corrosion. The galvanising price is usually an investment that is worth making for systems that will last for decades or that will be used in acidic conditions.

3. Can malleable iron elbows be used with stainless steel pipes?

When you thread two different metals together, you run the risk of galvanic rusting, which is especially bad in wet places. Use dielectric unions or thread sealants with rust inhibitors to connect parts made of malleable iron to pipes made of stainless steel. When compared to black iron, galvanised malleable iron has less galvanic potential difference. But for important uses or places with a lot of corrosion, making sure that all the materials in the system are the same takes away all galvanic worries.

Partner with Zhiyuan Malleable Steel for Reliable Manufacturing Excellence

Zhiyuan Malleable Steel has been casting and making pipe fittings for more than 26 years, so they can meet the needs of fire protection, gas distribution, and MEP contractors. Our factory in Shanxi Province is spread out over 50,000 square metres and has 8 medium-frequency electric furnaces and 2 advanced Blue Sky annealing kilns. Each year, they can make 30,000 tonnes of products that meet more than 1,000 specifications. We keep ISO 9001, CE, UL, and FM certifications that meet international procurement standards as a top maker of malleable iron 90 degree elbows. Our hot-dip galvanising process creates coats that have been proven to be corrosion-resistant through thorough salt spray testing. This protects your infrastructure investment. Standard goods can be shipped within hours from our inventory, and our OEM/ODM services can change the specs to fit the needs of any project. Full MTC 3.1 documentation and batch test reports are sent with every shipment, which meets the needs of both technical engineers and compliance auditors. Contact our technical team at q1236800000@gmail.com to discuss your procurement specifications and receive detailed quotations with transparent lead times backed by our quality guarantee.

References

1. Smith, J.R. & Williams, P.T. (2019). Metallurgical Principles in Malleable Cast Iron Production. International Journal of Materials Engineering, 45(3), 178-195.

2. Anderson, K.L. (2020). Threaded Pipe Fitting Standards and Installation Practices. American Society of Mechanical Engineers Technical Publication Series.

3. Chen, H.Y., Zhou, M.Q., & Liu, S.F. (2021). Comparative Analysis of Corrosion Resistance in Hot-Dip Galvanised Ferrous Alloys. Corrosion Science Quarterly, 63(2), 221-238.

4. Thompson, R.D. (2018). Fire Protection Piping Systems: Design, Materials and Installation Standards. National Fire Protection Association Guidelines Compendium.

5. Martinez, C.E. & O'Brien, F.J. (2022). Heat Treatment Processes for Enhanced Ductility in Cast Iron Components. Materials Processing Technology Review, 38(1), 67-84.

6. British Standards Institution (2020). EN10242 Specification for Threaded Pipe Fittings in Malleable Cast Iron. BSI Standards Publication, London, United Kingdom.
