How does a threaded street elbow work?

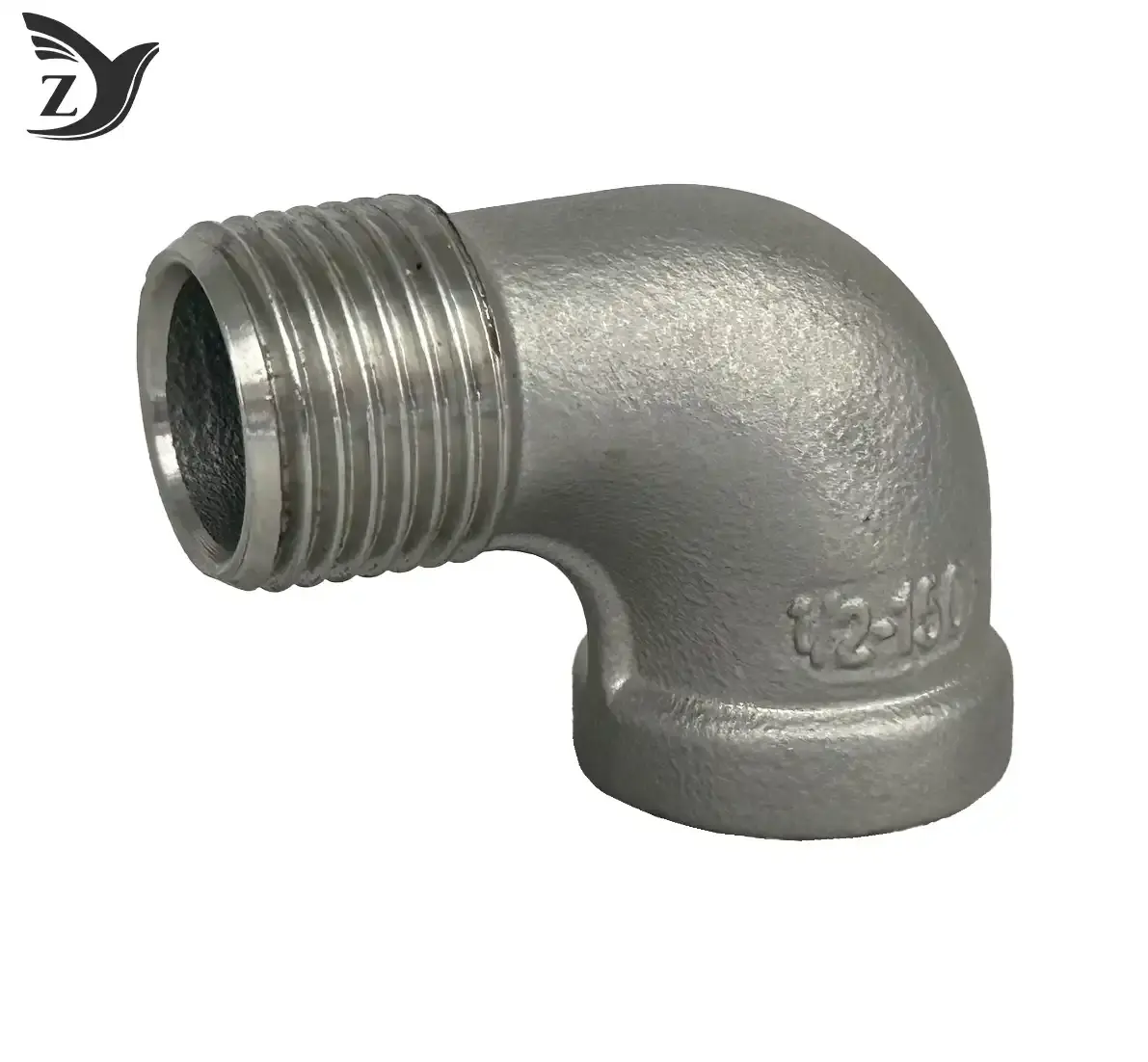

When compact piping layouts demand efficiency, a threaded street elbow proves indispensable. This specialized fitting, commonly called a street ell, features one male external thread end and one female internal thread end, enabling direct connection to valves or equipment ports without requiring additional nipples. The male end screws directly into a female-threaded component, effectively reducing assembly length and eliminating potential leak points. Manufactured from malleable iron, carbon steel, or stainless steel, these elbows typically redirect flow at 90° angles, though 45° versions remain available for applications requiring gentler directional transitions in fire protection systems, gas pipelines, and equipment interfaces.

Understanding Threaded Street Elbows: Definition and Function

What Makes Street Elbows Unique in Piping Systems？

Threaded street elbows have threading that isn't regular, which is different from normal female-female elbows that need barrel nipples for male-to-male links. This two-gender design solves a common problem in the equipment manufacturing process: connecting valves or pump ports that are too close to the walls of the structure. When our assembly teams in factories don't have enough room around boiler interfaces or hydraulic manifolds, threaded street elbows are the only thing that can be used instead of custom fabrication.

How Flow Dynamics Work Through Angled Fittings？

This fitting works with NPT (National Pipe Taper) or BSPT (British Standard Pipe Taper) threads that are tapered. The male thread has an angle of either 60° or 55°, which makes a wedging lock when the part is tightened. Matching taper angles inside the female end let the threads press against pipe sealant or PTFE tape, making a joint that can withstand pressures from PN16 to PN25. This pressure level can handle most medium-pressure industry tasks that involve moving water, oil, or gas.

When fluid enters the threaded street elbow, it changes direction within a small area. The 45° version reduces turbulence for uses that are sensitive to pressure drop, while the 90° version changes the flow so that it goes perpendicular to the inlet line. The quality of the casting inside determines how well the flow works, and precision manufacturing reduces surface roughness that could cause friction losses. Some types of malleable iron, like KTH350-10, which has a tensile strength of more than 350 MPa, can handle the mechanical stress from changes in fluid momentum without cracking when loaded and unloaded over and over again.

When compressed air moves through a street elbow in a pneumatic system, pressure jumps happen for a short time because of the sharp turn. Good fits let these forces go away by using the flexibility of the material instead of the brittle failure modes that happen with gray cast iron. This is why procurement engineers at compressor makers put a high value on specs for malleable iron: the material absorbs the shaking energy that comes with installing reciprocating equipment.

Types, Materials, and Specifications of Threaded Street Elbows

Angular Configuration Options

The 90-degree threaded street elbow is most common in industrial settings where horizontal manifolds are connected to vertical risers by perpendicular transitions. In fire sprinkler systems, these valves connect the main pipes that bring water to the spray heads to the branch lines that bring water to each head. The right-angle shape makes the best use of ceiling space in business buildings where HVAC pipes and electrical trays are competing for room.

On the other hand, 45-degree forms are used in places where direction changes need to be made slowly. These fittings are used on water treatment skids to route water between filter stages when quick turns would cause too much pressure loss. The angled design keeps the laminar flow qualities that are needed to add chemical additions at exact amounts. When engineers make special hydraulic power units, they include 45° bends to cut down on noise caused by turbulence that could mean there is a risk of cavitation in pump suction lines.

Material Selection Criteria

Because they are reliable and don't cost much, malleable iron threaded street elbows are the most common type used in plumbing and HVAC. The annealing process changes brittle white cast iron into flexible black-heart pliable iron. This makes the iron resistant to shock, which is important for systems that experience water hammer. Galvanized surface treatments protect against rust for gas meters and water lines that are outside and subject to weather changes.

Different types of carbon steel work well in high-pressure hydraulic systems in mobile equipment and industrial presses. Forged carbon steel threaded street elbow made to ASTM A105 can handle pressures of over 3000 PSI, which is a lot more than the 300 PSI limit for malleable iron. But in corrosive environments, carbon steel needs protective coatings because bare steel oxidizes quickly when it comes in contact with water or chemical vapors.

CF8 (304) and CF8M (316) are grades of stainless steel that are used in pharmaceutical, food processing, and marine settings. The molybdenum content in 316 grade keeps salt from causing pitting in evaporation plants and offshore platforms. These investment-cast fittings are about three times more expensive than similar ones made of malleable iron, but they don't have to worry about galvanic rusting when they connect to stainless steel valves and instruments.

Thread Standards and Pressure Ratings

North American markets are mostly made up of NPT threads, which have a side angle of 60° and a taper ratio of 1:16 according to ASME B1.20.1. The tapered shape makes mechanical interference that seals when the thread engages with torque that is usually 30 to 50 percent higher than ISO parallel threads. ISO 7-1 standards say that BSPT threads should have angles of 55°, which is typical in European and Asian tools. Cross-threading damage and leaks are likely when NPT and BSPT threads are mixed. Procurement teams must check thread compatibility before accepting suppliers.

Pressure scores show both how strong the material is and how deeply the threads connect. At room temperature, 232 PSI can safely be applied to a 1-inch malleable iron threaded street elbow with a rating of PN16. When the temperature goes up, derated factors kick in. For example, at 200°C, the material softens and the PN16's capacity drops by about 15%. Class 150 stainless steel fittings can handle full steam service at 285 PSI, and Class 3000 forged versions can handle high hydraulic pressures in offshore drilling equipment.

Comparison and Selection Criteria for Threaded Street Elbows

Threaded Versus Welded Connection Methods

When it comes to installation, threaded street elbows give you more options than welded fittings. Field-adjustable orientation is useful for equipment makers who put together valve manifolds because it's much easier to loosen and place a threaded elbow than to cut and reweld a socket-weld version. Accessibility for maintenance is very important in pump stations where parts have to be taken out every year for inspections. With threaded connections, technicians can take apart pieces of pipe without having to get a hot work permit or be a trained welder.

Welded links, on the other hand, get rid of the thread engagement factors. Butt-weld elbows can handle higher loads and vibrations without coming loose. Socket-weld or butt-weld fittings are usually required for high-pressure steam lines above 600 PSI to avoid severe thread failure. The choice depends on the pressure, temperature changes, and maintenance philosophy of the system. Threaded fittings work best for systems that need to be reconfigured on a regular basis, while welded joints are better for permanent installations.

Sizing Compatibility with Existing Infrastructure

To match the measurements of a threaded street elbow to the specs of a pipeline, you need to check both the nominal pipe size and the thread type. There is a 1-inch NPT street elbow that only fits 1.315-inch OD Schedule 40 pipe and not metric 25 mm tube with a 25 mm OD. When buying things, mixing imperial and metric standards can lead to expensive rework in the field when fittings come that don't work with the pipes that have already been put in.

Thread engagement depth affects the strength of the joint. For pressure-tight seals, NPT standards call for at least 4-5 thread turns. When pipe threads wear out or manufacturing tolerances stack, they shorten the engagement, which lowers the pressure capacity. Good sources, like Zhiyuan Malleable Steel, keep thread tolerances very tight, which can be checked with go/no-go gaging. This makes sure that all production runs have the same level of engagement. When workers on an assembly line put in hundreds of parts every day without checking each one for leaks, this regularity is important.

Cost-Efficiency Analysis for Procurement Teams

Threaded street elbows get rid of the need to buy nipples, store goods, and do fitting work. A single threaded street elbow link is enough for a standard female-female elbow plus nipple assembly, but it needs two more threaded joints. Each part that is taken out gets rid of a possible leak path and cuts construction time by about 40%. When applied to thousands of connections in facility retrofits, these time savings more than make up for the slightly higher cost of street elbows compared to standard elbows.

Lessening the cost of maintenance is also important. There are fewer places to check for damage during regular integrity surveys when there are fewer threaded joints. NFPA fire sprinkler reliability studies show that the nipple joint, which is made up of hundreds of sprinkler branch connections, is less likely to leak when threaded street elbows connect directly to sprinkler heads. This is because 30% of system leaks happen at this joint.

Installation, Maintenance, and Common Challenges

Step-by-Step Installation Protocol

Preparing the threads is the first step in a proper installation. Use a wire brush to clean male threads and get rid of any industrial oils, rust, or other debris that might make it harder for the glue to stick. Apply PTFE tape in three to four layers that overlap, going clockwise (looking at the thread end-on). Leave the first two threads bare to keep tape bits from getting on the system media. Other pipe dope sealants can be used in high-temperature situations where PTFE's limit of 260°C is not enough.

Tighten the threads by hand until the resistance rises, then use a wrench to apply torque. For pressure-tight seals, NPT threads need to be tightened two to three full turns with a wrench. Not tightening them enough leaves gaps, and tightening them too much can cause thread breaking in brass and other soft materials. When about two threads can still be seen past the female port's face, the thread engagement finish light turns on. Different sizes need different amounts of torque. For example, 1/2-inch fittings need about 30 ft-lbs of torque, while 2-inch sizes need 150+ ft-lbs of torque. To get consistent results, use calibrated tools when applying torque.

With threaded street elbows, it can be hard to change orientation while tightening. When compared to female-female elbows, which allow for some shifting after full engagement, the male-female asymmetry only allows for limited rotational change. It takes experience to plan thread engagement to get the desired outlet direction. Installers with a lot of experience first measure the depth of engagement, then use sealant to exactly place the outlet within 15° of the target orientation. They then make any final changes that are possible within the rotational window.

Preventive Maintenance Best Practices

The main goals of routine checks are to find leaks and keep an eye on thread rust. Visual surveys should be done every three months to look for moisture spots that could mean leaky joints. Finding small seeps early stops them from wearing away threads through galvanic action. In galvanized systems, the buildup of white powder around the threads means that the zinc coating is wearing off and needs to be replaced before the base metal is exposed and corrosion starts to happen more quickly.

Vibration-prone systems need to have their torque checked on a regular basis. Pump outlet pipes and rotary compressor lines are loaded and unloaded over and over again, which can loosen threaded joints after months of use. Witness marks on the torque seal that were put on during installation show rotational movement. Marks that are broken require retightening to restore the integrity of the joint. Lock-wiring through drilled fittings is used in critical applications to physically stop movement when the system is vibrating.

Troubleshooting Common Installation Issues

Thread galling happens a lot in stainless steel threaded street elbow installations when there isn't enough lubrication and metals stick together. This happens when layers of chrome oxide on threads that fit together mechanically stick together under installation pressure, stopping parts in the middle of their contact. To avoid this, you should only use nickel-based anti-seize chemicals that are made to work with stainless steel. Never use copper-based products, which can cause galvanic corrosion in marine settings.

When leaks appear after installation, they are usually caused by differences in temperature expansion. When carbon steel pipe heats up, it expands, putting tension stress on threaded joints that could cause sealant barriers to crack. Systems that are properly designed can handle expansion by placing unions in a way that keeps threaded fittings from being affected by axial loads. Before starting hot services, retrofit jobs that add threaded street elbows to existing pipes must make sure the growth loops are adequate.

Conclusion

Because they have male and female threads, threaded street elbows are very useful in pipe systems that don't have a lot of room. The two-gender design gets rid of extra nipples, which cuts down on leak points and speeds up installs for hydraulic, fire protection, and industrial gas uses. Which type of material to use—moldable iron, carbon steel, or stainless steel—depends on the temperature, pressure, and chemical contact. Using the right sealants and torque specifications during installation will ensure reliable pressure containment, and regular inspections will keep the threads from wearing down. To be successful in procurement, you need to work with makers who can show that their products are consistent in size, have the right certifications, and can deliver quickly and on time, all while meeting project deadlines and quality standards.

FAQ

1. What pressure ratings are suitable for different industrial applications?

PN16-rated malleable iron threaded street elbows can handle 232 PSI, which is enough for plumbing, HVAC systems, and distributing low-pressure compressed air in homes. PN25 types can handle 363 PSI and are used in industrial fire sprinkler systems and medium-pressure steam condensate return lines. For hydraulic systems that need 3000 PSI or more, you need cast carbon or stainless steel valves that can handle that much pressure.

2. Can threaded street elbows function in high-temperature environments?

The temperature range varies on the material used. For most steam and hot water uses, malleable iron can handle temperatures up to 300°C all the time. In power production equipment, carbon steel can handle temperatures up to 450°C. Stainless steel 316 stays strong up to 550°C, but its pressure ratings drop by 15–20% at high temperatures, which means that the design has to be changed.

3. How do I ensure accurate sizing for pipe fitting compatibility?

Check both the stated pipe size and the thread standard. Check the outside diameter of the pipe you already have. A 1-inch standard NPT fits a 1.315-inch OD, but a BSPT fits a different size. Use a pitch gauge to check the type of thread. For a 1-inch size, NPT threads measure 11.5 threads per inch, while BSPT threads show a different pitch. Cross-threading does damage that can't be fixed and leaks that can't be fixed.

Partner with Zhiyuan Malleable Steel for Reliable Street Elbow Solutions

Zhiyuan Malleable Steel is a reliable company that has been making threaded street elbows since 2006, when we first opened our doors in Shanxi Province. We keep enough inventory in stock to support two-hour shipping for common sizes, and our 30,000-ton annual capacity covers more than 1,000 specifications. Our production is ISO 9001-certified and uses 156 machining centers and 8 medium-frequency furnaces to ensure thread accuracy and material consistency, which are very important for equipment assembly lines.

Our expert team can make any changes you need, including laser marking and non-standard angles, whether you want to use malleable iron for low-cost projects or stainless steel for harsh marine settings. The CE, UL, and FM certifications show that the quality meets international standards, and our guarantee to replace any faulty products takes away the risk of buying. Our responsive engineering support and low prices are good for marine contractors, valve integrators, and companies that make equipment.

To talk about your threaded street elbow needs, please email our buying experts at q1236800000@gmail.com. Ask for material test reports, dimensional drawings, or samples that show the thread precision and surface quality that will help you make the best use of your time during assembly.

References

1. American Society of Mechanical Engineers. ASME B16.3: Malleable Iron Threaded Fittings—Classes 150 and 300. ASME Standards Committee, 2016.

2. Harvey, John F. Theory and Design of Pressure Vessels. Van Nostrand Reinhold, 1985.

3. National Fire Protection Association. NFPA 13: Standard for the Installation of Sprinkler Systems. NFPA Technical Committee, 2019.

4. Nayyar, Mohinder L. Piping Handbook, 7th Edition. McGraw-Hill Professional, 2000.

5. Smith, Peter R. Piping Materials Guide. Gulf Publishing Company, 1986.

6. Zappe, Reuben W. Valve Selection Handbook: Engineering Fundamentals for Selecting the Right Valve Design for Every Industrial Flow Application, 5th Edition. Gulf Professional Publishing, 2004.
