How does 341 NPT Galvanized Male Female Threaded Union Ensure Tight Sealing?

Leak-free links in industrial pipe systems can mean the difference between running the business smoothly and having to pay a lot for downtime. NPT galvanized male female threaded union 341 pipe fittings are an important choice for fire protection engineering firms, city building projects, and factories that need to connect pipes in a way that is reliable and easy to remove. Many buying managers, engineers, and dealers now choose the 341 union configuration over other options. This is because it works best in tough situations where repeated assembly, high pressure, and corrosive conditions push the limits of regular fittings.

The 341 union seals well thanks to its carefully polished cylindrical metal-to-metal seat and tapered NPT threads. Instead of flat-seat designs that need weak gaskets, the 341's cone-to-sphere joint causes mechanical interference that gets stronger under pressure. This stops leaks even at high temperatures where elastomeric seals would fail. This book talks about the technical engineering, buying factors, and upkeep methods for these parts that make them essential for people who are in charge of water supply, gas distribution, HVAC systems, and fire prevention infrastructure.

How 341 NPT Galvanized Male Female Threaded Unions Achieve Tight Sealing

Leak-proof performance is based on three combined design elements that work together to keep pressure fluids inside even when the temperature changes and the structure moves.

Conical Metal-to-Metal Seat Design

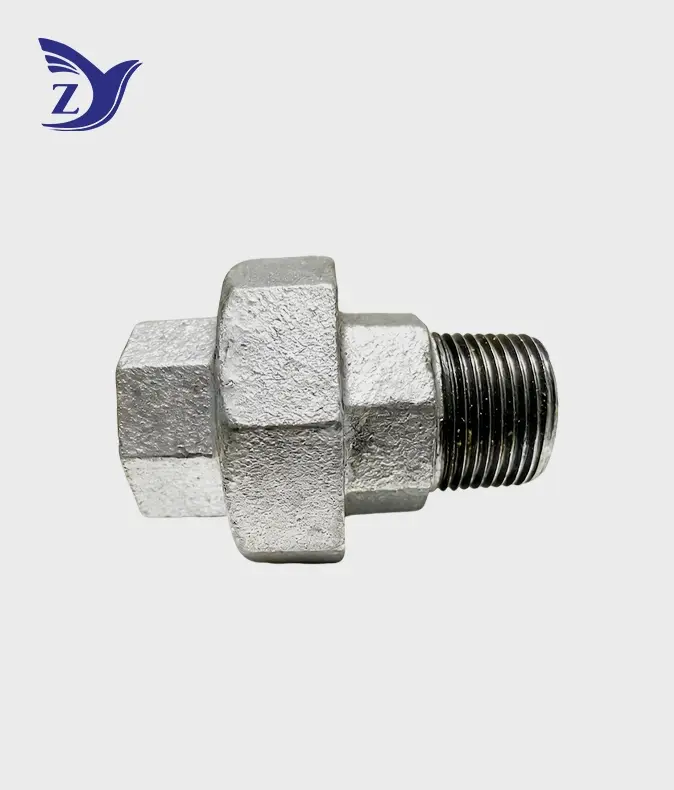

The precision-machined conical joint on the 341 is what makes it unique. NPT galvanized male female threaded union 341 pipe fitting has a circular surface on the male tail that fits into a matched cone in the female body. This metal-to-metal contact improves the sealing force as the internal pressure rises, unlike flat-seat 331 unions that need fiber or EPDM gaskets that can be damaged by chemical breakdown and compression set. The shape makes a seal that works on its own: as the pressure rises, the circular surface is pushed deeper into the cone, increasing the contact area and closing stress in a proportional way. This gets rid of the need to change the gaskets so often that happens with flat-seat designs in places where high-temperature steam is used or chemicals are processed. Controlling manufacturing tolerances is very important. Our CNC machining centers can keep the accuracy of the cylindrical angle to within 0.5 degrees and the surface finish to less than 32 microinches Ra. The union nut provides axial compression through precision threads during construction. This turns torque into radial sealing force across the cone contact. For 1-inch fittings, the right mounting force is usually between 40 and 60 ft-lbs. Calibrated wrenches must be used to make sure that the seat engages properly without damaging the threads.

Tapered Thread Sealing Mechanism

As the male taper moves into the female taper, the NPT threads make a wedging interference fit. The 1:16 taper ratio means that the width gets smaller by 0.0625 inches for every inch of length. This forces the thread crests to touch the thread roots of the other thread as the makeup goes on. This change in shape stops fluids from moving along the spiral thread path. Tapered threads don't need O-rings to be pressure-tight like parallel threads do. They only need mounting force. Using thread compound improves this closing mechanism by smoothing out tiny surface flaws and lubricating the joint to keep it from galling. PTFE tape is still commonly used for water service. It is wrapped around the male thread end clockwise, with three to four wraps going out from the second thread to keep dirt from getting into the system. For gas uses, anaerobic thread sealants that form in thread areas without oxygen are more reliable over time. For stainless steel joints, anti-seize compounds with nickel or copper are required to stop cold welding during removal.

Installation Best Practices

To get the recommended sealing performance, you need to follow tried-and-true NPT galvanized male female threaded union 341 pipe fittings steps. Cross-threading damage or debris that could risk sealing surfaces are found during thread checking before assembly. Damaged threads can be fixed by running male threads through a die, but female threads need to be tapped to get them back to their original dimensions. Cleanliness of the thread has a direct effect on the stability of the seal. Hydrocarbon leftovers from machining must be removed with solvent wipes before the sealant is applied. Hand-tighten during makeup until resistance rises significantly, which shows that the threads are engaged for the first time. Use tools on the flat surfaces on the union nut and fitting body; never grip threaded sections or zinc surfaces that are likely to flake off. Cross-threading under pressure can crack malleable iron, so tighten slowly while keeping an eye on the line. The union nut should move forward until the cylindrical sides touch, which can be seen by the increased torque resistance. If you tighten the nut more than the maker recommends, you can damage the threads and break the nut ears. If you tighten it too little, the conical seat is not fully engaged.

Comparison and Selection: 341 NPT Galvanized Unions vs. Alternatives

When purchasing piping parts, people in charge have to look at the qualities of the materials, the prices over their whole life, and the performance requirements for each application.

Galvanized vs. Black Steel

Black malleable iron costs 15–20% less at first, which makes it a good choice for jobs with limited funds. But oxidation starts right away when something is exposed to wetness in the air, and in warm places, rust can be seen within weeks. When fire protection systems are drained on a regular basis, the internal corrosion speeds up because the water forms oxygen concentration cells at low places. Because zinc protects galvanized fittings, you don't have to worry about these things. The small extra cost is worth it because the fittings last longer and need less upkeep. More and more, building rules require galvanized materials to be used in drinking water systems. Controlling corrosion byproducts and making sure that lead-free standards are met protect public health.

341 Cone Seat vs. 331 Flat Seat

When it comes to functionality, these union types are compared based on temperature limits and upkeep times. Flat-seat 331 unions can handle less fitting pressure, which is helpful in situations where too much force could damage threaded equipment. The gasket contact can handle small flaws on the surface and can be hand-tightened for short-term links. But gaskets break down when temperatures rise above 250°F, so they need to be replaced every so often during system maintenance. The metal-to-metal seat of the NPT galvanized male female threaded union 341 pipe fittings can handle ongoing service up to 450°F and can be taken apart and put back together many times without needing new parts. This lowers the total cost of ownership in situations where the part needs to be serviced often.

Optimizing Procurement: How to Buy High-Quality 341 NPT Galvanized Threaded Unions

To do strategic sourcing, you need to know how to compare product specs to application needs and make sure that the parts you buy work as promised and don't break down too soon.

Critical Specification Parameters

The material grade should be checked to make sure it meets ASTM A197 standards. It should have a carbon content of 2.0 to 2.6% and a silicon content of less than 1.5%. This creates the pearlitic structure that is needed for flexibility. Tensile test papers showing a minimum final strength of 40,000 psi and a 5% elongation rate prove that the metal was properly annealed. Using plug and ring gauges to check the accuracy of the threads according to ASME B1.20.1 makes sure that the threads are properly engaged. Worn-out tools in poor facilities make male threads that are too big or too small, which leak no matter how well they are installed.

Cost Structure and Lead Time Optimization

To check the quality of NPT galvanized male female threaded union 341 pipe fittings, start by measuring the covering weight. A minimum of 2.0 oz/ft² (610 g/m²) is needed to get an 85-micron thickness. Visual inspection shows bare spots, runs, or flux particles that mean the surface wasn't prepared well enough or the bath was contaminated. As per ASTM B571, adhesion testing proves metallic bonding. Coatings that flake when bent on a mandrel will also flake when shipped and installed. To confirm the pressure number, the fittings must be hydrostatically tested to 1.5 times their working pressure and must not leak at 450 psi for at least one minute. Standard 341 unions cost between $2.80 and $18.50 for 1,000 pieces, with savings of up to 20% for orders that include a container. Prices start at ½-inch fits and go up to 2-inch sizes. The cost of air freight is $4.80 to $6.20 per kg, and the travel time is 5 to 7 days. This is fine for emergency supplies but too expensive for regular purchases. Costs drop to $0.30/kg for ocean freight, but wait times grow to 28–35 days, so inventory planning needs to be in sync with project plans. To cut down on lead times without having to pay more for air freight, you need to strategically place your goods. Zhiyuan has consignment stock deals with major wholesalers. This means that inventory is stored ahead of time at regional hubs, which makes it possible to send goods anywhere in North America within 48 hours. Just-in-time delivery that is timed with building milestones cuts down on storage space on-site and makes sure that materials that are needed right away get to the job site before the installation teams do.

Conclusion

NPT galvanized male female threaded union 341 pipe fittings don't leak because they have precision-engineered conical seats and tapered thread interference, which eliminates gasket weaknesses and allows for repeated assembly. For reliable sealing, you need to work with makers who have strict quality control systems and a lot of scientific know-how. This includes things like malleable iron metallurgy and galvanization chemistry. When installed correctly and kept up with, it can last longer than 25 years in corrosive conditions where other materials would break after 10 years. With careful attention to specifications, screening of suppliers, and smart buying, procurement teams can find parts that meet project needs at the lowest total cost of ownership.

FAQ

What Distinguishes the 341 Union from the 331 Configuration?

The 341 has a cylindrical metal-to-metal seat that makes a self-energizing seal that can handle temperatures up to 450°F without the need for covers. The 331 has a flat seat that needs fiber or elastomeric seals. This means that it can only be used at 250°F and requires less force for setup. Both have male-female thread pairs, but the 341 is better for situations where long-term dependability is more important than ease of fitting at first.

How Do I Verify Proper Thread Engagement?

For fits up to 2 inches, male NPT threads should turn 5-7 times to become female threads. By looking at it, you can see that the thread taper has moved forward until you can only see 1-2 threads. Checking the unit with a torque wrench makes sure it meets the manufacturer's requirements, which are usually between 40 and 60 ft-lbs for 1-inch fits. This means that the conical seat is fully engaged without over-stressing the threads.

Can Galvanized Unions Handle High-Pressure Applications?

Most business uses Class 150 unions that can handle 300 psi at room temperature, while industrial process lines need Class 300 unions that can handle 750 psi. The grade is shown by pressure number impressions stamped on the union body. All grades are based on the wall being properly installed with suitable sealants and not having any mechanical damage or rust that would make the wall thinner.

Partner with Zhiyuan Malleable Steel for Superior NPT Galvanized Male Female Threaded Union 341 Pipe Fittings

Zhiyuan Malleable Steel has been casting for 26 years and is ISO 9001 approved. They make male-female pipe joiners that meet ASTM A197 and ASME B16.39 standards and are used in industry. Our 30,000-ton annual capacity lets us handle large orders, and we can send standard products within two hours from a large collection. We also offer ODM/OEM services to meet the unique needs of foreign markets. Our corrosion-resistant 341 threaded unions have been approved by CE, UL, and FM for use in fire protection, public water systems, and factories. Your supply chain will work reliably if you have rules for replacing broken products and double-layer protective packing.

Get in touch with our engineering team at q1236800000@gmail.com to talk about your needs with a skilled NPT galvanized male female threaded union 341 pipe fittings maker who can offer you low prices, expert technical support, and help with logistics around the world. You can view our full product list at zymalleablepipefitting.com, which includes hot-dipped galvanized, precision-threaded fittings made for tough B2B buying needs.

References

1. American Society of Mechanical Engineers. (2020). ASME B16.39: Malleable Iron Threaded Pipe Unions Classes 150, 250, and 300. New York: ASME Press.
2. American Society for Testing and Materials. (2019). ASTM A197: Standard Specification for Cupola Malleable Iron. West Conshohocken: ASTM International.
3. American Society of Mechanical Engineers. (2018). ASME B1.20.1: Pipe Threads, General Purpose (Inch). New York: ASME Press.
4. American Society for Testing and Materials. (2021). ASTM A153/A153M: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. West Conshohocken: ASTM International.
5. National Fire Protection Association. (2022). NFPA 13: Standard for the Installation of Sprinkler Systems. Quincy: NFPA Publications.
6. Plumbing-Heating-Cooling Contractors Association. (2021). National Standard Plumbing Code: Installation Standards for Threaded Pipe Fittings. Falls Church: PHCC Educational Foundation.
