How do you dimension a threaded elbow?

To properly dimension a threaded elbow, you need to establish a number of key criteria that will guarantee that it will fit into your pipe system. You need to ascertain the nominal pipe size (NPS), which is the internal diameter categorisation from 1/8" to 6" (DN6-DN150), and check the thread type, NPT (National Pipe Taper) or BSPT/RC (British Standard Pipe Taper). It is important to measure the distance from the centre to the face, i.e., the distance from the centre of the elbow to the end face of each threaded aperture, to be able to properly design the layout. Furthermore, verifying the elbow angle (usually 90° or 45°), material grade (malleable iron, carbon steel or stainless steel) and pressure rating (typically PN16-PN25 for medium-low pressure applications) ensures the fitting complies with dimensional and operational specifications for water supply, gas, fire protection and HVAC systems.

Understanding Threaded Elbows and Their Key Dimensions

Threaded fittings are vital components of a great variety of industrial and commercial piping installations all throughout the globe. These elbows allow for a change in the fluid flow direction without the need for welding equipment. That’s why they are so valuable to contractors who are working under tight timelines or in locations where hot labour is prohibited. A threaded elbow is a specific kind of pipe fitting with threads on the inside or outside of both sides. This allows a secure screw-in connection to be made, which modulates the flow at a fixed angle.

Defining Threaded Elbows and Common Configurations

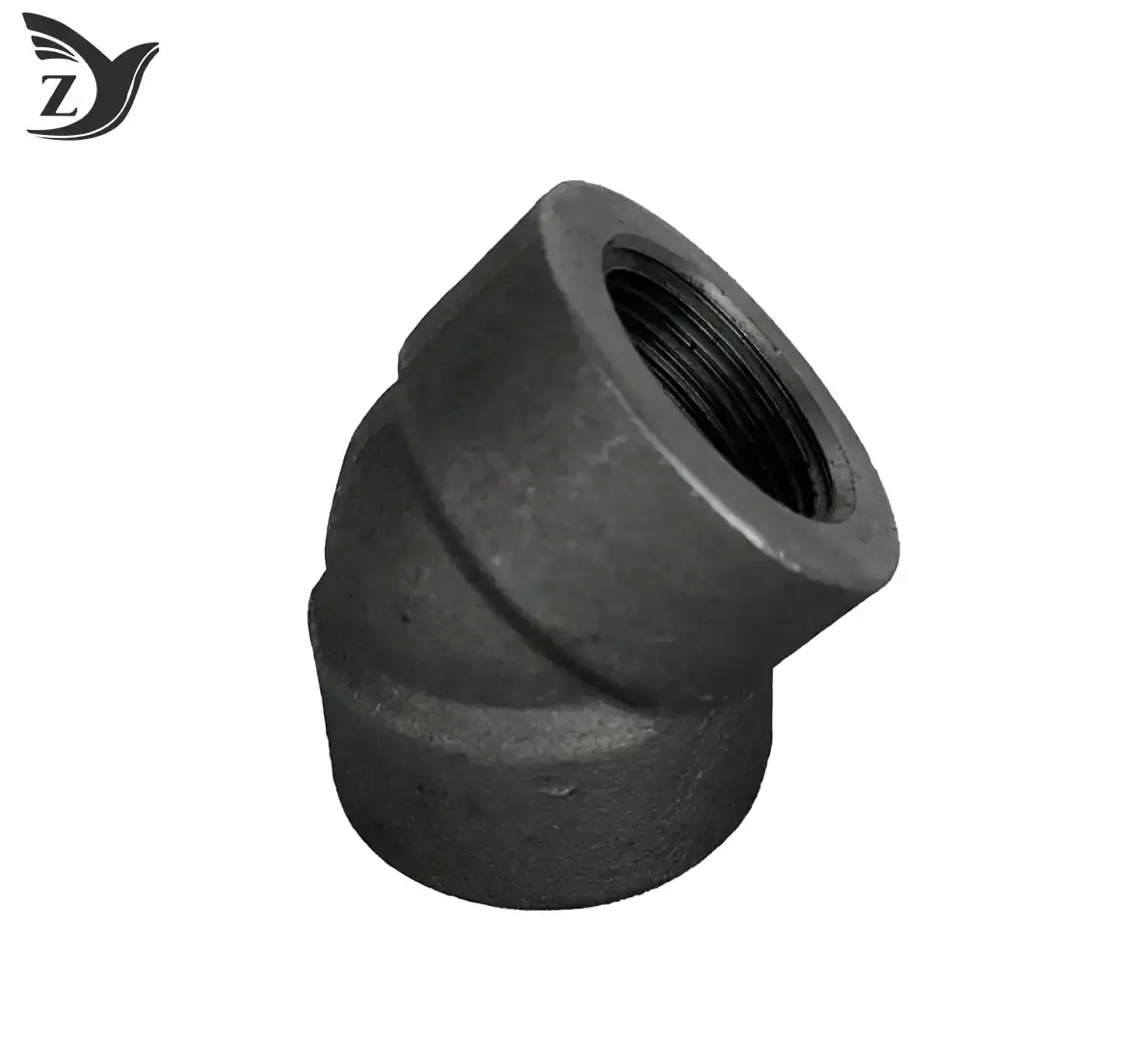

A threaded elbow is a kind of elbow fitting with threaded sides to alter the direction of flow in a pipeline. The most common angles are 90° and 45°, although some manufacturers have special angles which are utilised for certain applications. The usual layout has female (internal) threads on both ends; however, other configurations, such as street elbows, have one male and one female end so they do not require additional nipples in tiny installations. Different things are made of different materials. For example, malleable iron is robust and inexpensive enough for conventional plumbing; carbon steel is suitable for industrial procedures at high temperatures; and stainless steel is more resistant to corrosion in chemical or marine conditions. There are two primary kinds of threads: NPT with a 60° angle and a tapered shape for closure and BSPT/RC with a 55° angle and a popular choice in European and Asian markets. These fittings are typically rated for medium and low pressures from PN16 to PN25. They are suitable for household, commercial and light industrial applications when pressures are below 25 bar.

Essential Dimensions You Must Know

The precise dimensions of pipe fittings are of great importance for the quality of acquisition and installation. The NPS is the nominal pipe size. It is not an exact measurement but rather a categorisation of the inside diameter of the fitting. A 1/2" NPS fitting does not have an exact 0.5-inch bore, but it conforms to certain standards so that different manufacturers may make parts that fit together. Thread requirements are not just about diameter but also pitch (threads per inch), taper angle, and engagement length. NPT threads are tapered 1:16 (0.75 inch/foot) and make a seal by means of an interference fit under torque, while BSPT threads are in accordance with ISO 7-1 with a 1:16 taper and a different thread shape. Center-to-face is the distance from the geometric centre of the elbow to the outside face of each threaded end. Center-to-face is sometimes shortened to C-to-F. This is a significant aspect in the spatial layout of manifold assemblies and equipment skids that consolidate many fittings. The depth of the threaded connection (thread engagement length) is often between 6 and 9 threads for pipe diameters less than 2 inches. This provides sufficient mechanical strength and seal integrity without the danger of thread galling during installation.

International Standards Governing Dimensions

Meeting globally accepted standards removes the uncertainty and risk in procurement. ASME B16.11 is for forged fittings for socket-welding and threaded connections. It covers dimensions, tolerances and pressure-temperature ratings for carbon and alloy steel fittings. ISO 49 defines metric thread diameters for threaded pipe fittings to assist manufacturers to meet international criteria and be compatible worldwide. These requirements require stringent testing procedures, including hydrostatic pressure testing, dimensional inspection using calibrated gauges, and material traceability via mill test certificates. Requesting suppliers to provide proof of compliance ensures that fittings satisfy ASME B16.11 Class 3000 ratings or ISO 7-1 thread forms, preventing premature failure and guaranteeing that insurance coverage is genuine. Certification labels like CE, UL, and FM provide an extra level of assurance that items have been third-party tested for safety and performance standards for particular markets and applications.

Step-by-Step Guide: How to Properly Dimension a Threaded Elbow？

Accurate measurement avoids costly installation errors and system downtime. This approach takes procurement managers and field engineers thorough each critical measurement phase.

Identifying Pipe Size and Thread Type

First measure the outside thread diameter, using a pipe thread gauge or callipers. Don’t estimate; even expert technicians might be a quarter of an inch off on sizing. Now that you have the NPS, you have to identify if your system is tapered (NPT or BSPT) or parallel (BSPP/G). Mixing these sorts will give you leaks no matter what sealant you apply. Tapered threads seal via interference fit and deformation of the threads under torque; thus, you're going to need to utilise PTFE tape or pipe dope. Parallel threads are less prevalent in North American plumbing but popular in hydraulic systems. They utilise O-rings or bonded washcloths sitting in recesses to keep them sealed. Try screwing a known NPT fitting onto it to determine the thread type. If the screw turns in slowly with increased resistance, the threads are tapered. If they turn readily to the bottom, they are parallel.

Measuring Center-to-Face Distance Accurately

To measure the centre-to-face dimension, lay the elbow down flat on a surface and use a combination square or height gauge to measure from the surface to the centreline of the elbow's centreline and surface. Then measure from the surface to the outside of the threaded elbow end. Your C-to-F dimension is the difference between the centreline height and end face height. This measurement is critical in the design of pipe manifolds when several elbows have to align with fixed equipment ports. Incorrect C-to-F specifications may cause misalignment, which might need costly repair or field adjustments. When reviewing supplier drawings, be sure that the C-to-F measurement includes the threaded length projection. Some manufacturers measure to the end of the casting body rather than the thread termination point, which may result in discrepancies of up to 5mm in smaller sizes.

Verifying Thread Length and Pitch Using Gauges

Professionals don't simply glance at the threads to see whether they're right; they use specific gauges. This tool features imprinted metal leaves with various threads-per-inch profiles. Match the gauge to the threads on the fitting, and it will instantly determine the thread pitch. NPT fittings are typically 27 TPI (threads per inch) for 1/8” sizes down to 11.5 TPI for sizes larger than 2 inches. The only method to know a thread is complying is to use thread ring gauges and plug gauges. A GO gauge should thread freely and without effort. A NO-GO gauge should not thread more than two rotations. This means that the thread form is within the tolerance limits. This verification phase is particularly useful when receiving fittings from new suppliers or large orders, since it identifies fittings that are out of tolerance before they are fitted, which might damage costly equipment ports.

Checking Pressure Ratings and Material Compatibility

The pressure grade and material choice are linked in fitting requirements. Malleable iron valves are often rated for service to around PN25 (about 363 PSI) at ambient temperatures. They are created by melting white cast iron, thereby converting it to ductile black-heart malleable iron. Carbon steel fittings over PN40 are suitable for use in steam systems and high-temperature settings where iron loses its strength when formed. Stainless steel grades like 304 and 316 are very resistant to corrosion and can withstand the same amount of pressure as carbon steel. If you look at pressure statistics, you have to include temperature derating. For example, a 300 PSI fitting at 70°F may be only rated for 150 PSI at 400°F, as the material loses strength with increased temperature. These modifications are based on pressure-temperature rating tables from reputable manufacturers. This prevents catastrophic failure in circumstances of heat cycling.

Confirming Overall Length for System Integration

The overall length when the elbow is laid flat is the whole distance from end face to end face. This has an impact on the pipe routing design and clearance requirements. This dimension is particularly critical for retrofits when new fittings need to be installed in existing locations without impeding other pipe lines, equipment, or structural parts. Catalogue measurements should indicate whether they are nominal or maximum limits. A manufacturer’s 90-degree elbow in 1” NPT might be 2.5 inches overall, and another manufacturer’s might be 2.75 inches, although both meet ASME standards. These apparently little variations might pile up across numerous fits in a complicated assembly and result in serious misalignment at the terminal connection locations.

Comparison of Threaded Elbow Dimensions with Other Elbow Types

To choose the best elbow type, you need to know how the dimensions of a threaded elbow affect how the system is installed, how it is maintained, and how well it works over time with different combining technologies.

Dimensional Differences Between Threaded and Welded Elbows

Welded elbows, whether socket-weld or butt-weld configurations, eliminate the threaded connection interface entirely. Socket-weld elbows feature plain ends with enlarged sockets that accept pipe insertion, followed by fillet welding around the joint perimeter. Their centre-to-socket face dimension replaces the centre-to-thread face measurement, typically resulting in more compact overall assembly lengths since no thread engagement projection exists. Butt-weld elbows, bevelled at precise angles for full-penetration welding, require even greater dimensional precision, as any misalignment becomes permanently locked into the system. While threaded connections permit field adjustment through partial threading or backing off a turn or two, welded joints offer zero tolerance for dimensional error once solidified. However, welded elbows excel in high-vibration environments where threaded connections might gradually loosen and in ultra-high-pressure systems exceeding PN100, where threaded joint mechanical strength becomes limiting.

How Flanged Elbows Compare Dimensionally？

For example, a 2-inch flanged elbow takes up a lot more space than a threaded elbow because the flange face goes well beyond the pipe diameter—often by 6–8 inches in Class 150 ratings—making a much bigger footprint. The benefit is that gasket-based sealing means that the assembly can be taken apart more often for inspection or maintenance without damaging the sealing surfaces, unlike threads that can gall or strip with repeated installation cycles. Dimensional standards like ASME B16.5 govern the flange face finish (serrated, raised face, or ring-type joint), gasket seating surfaces, and bolt hole positioning, making sure that products from different manufacturers can be used interchangeably. This is why procurement managers choose flanged elbows when maintenance access is more important than space constraints, especially in critical services that require regular internal inspections.

Installation Implications of Different Elbow Dimensions

Installation methodology shifts dramatically based on elbow-joining technology. Threaded elbows require only pipe wrenches and sealant, enabling rapid assembly with minimal equipment investment and no specialised labour certifications. The weld-free screw-in connection allows easy disassembly for system modifications or seasonal equipment removal in applications like agricultural irrigation. Conversely, welded elbows demand certified welders, welding equipment, proper joint preparation, and post-weld heat treatment in some cases, substantially increasing installation costs and timeframes. Compression elbows, popular in refrigeration and instrumentation tubing, eliminate both threads and welding but require precise tube cutting, deburring, and proper ferrule compression to create leak-tight seals. Each method's dimensional characteristics cascade through the installation process—threaded fittings tolerate minor angular misalignment through thread engagement adjustment, while butt-weld joints demand perfect alignment before tacking, and compression fittings require exact tube insertion depth to avoid ferrule damage.

Conclusion

When measuring threaded elbows, it's important to pay attention to their nominal size, thread type, centre-to-face measurements, pressure ratings, and the compatibility of the material they're made of. Knowing the differences between NPT and BSPT standards can help you avoid costly cross-threading and leakage problems. Using calibrated gauges to measure correctly makes sure that fittings fit perfectly into complicated piping assemblies. Looking at threaded options versus welded, flanged, and compression options can help you find the best balance between installation speed, system accessibility, and long-term reliability. Avoiding common mistakes like confusing thread standards and applying too much torque can help keep fitting integrity and dimensional accuracy throughout its service life.

FAQ

1. Which standards govern threaded elbow dimensions?

ASME B16.11 lists all the dimensions for forged threaded fittings, from 1/8" to 4", with pressure classes ranging from 2000 to 6000 PSI. ISO 49 sets the dimensions for metric threads for international markets, and ISO 7-1 defines BSPT thread forms. These standards include tolerances for thread pitch, taper angle, and centre-to-face distances, which make sure that fittings from different manufacturers can be used interchangeably. When buying fittings, always ask for compliance documentation to make sure they meet the standards that apply to your area and application.

2. How do I distinguish between NPT and BSP thread types?

NPT threads have a flank angle of 60 degrees and taper at 1:16. Thread pitch gauges show that for 1/8" sizes, the thread pitch drops from 27 TPI to 11.5 TPI. ISO guidelines say that BSPT threads have a 55-degree angle and that their thread lengths are measured in millimetres instead of inches. When you look at them, the crests of BSP threads often look a little sharper. The real test is to try to connect it to a standard fitting that you know fits. NPT and BSP threads will cross-thread and leak even though they look like they are engaged. Thread identification gauges let you check right away without damaging the part.

3. What are typical pressure ratings for stainless steel threaded elbows?

Investment cast stainless steel elbows usually have Class 150 pressure ratings, which are good for 285 PSI at room temperature. As the temperature rises, the values need to be lowered. Forged stainless steel fittings can handle up to 6000 PSI of pressure, but this depends on the size and temperature of the fitting. Ratings depend on the grade of the material. For example, CF8M (316) stays stronger at higher temperatures than CF8 (304). Always look at the manufacturer's pressure-temperature charts that match the conditions of your service, because ratings drop a lot as temperature rises.

Source reliable threaded elbows from Zhiyuan Malleable Steel.

To understand the complicated threaded fitting specs, you need a reliable production partner that is dedicated to quality control and exact measurements. Zhiyuan Malleable Steel is a company in Shanxi Province that has been around since 2006 and makes high-quality pipe parts out of malleable iron and stainless steel that meet international standards. Our 30,000-tonne-per-year production cap lets us handle both large wholesale orders and flexible smaller packages. We serve wholesalers, online sellers, and installation workers all over the world. As required by ISO 9001, each threaded elbow goes through strict dimensional inspection and pressure testing. Certifications from CE, UL, and FM show that we are committed to safety and performance. We offer a wide range of products, from 1/8" to 6" in both NPT and BSPT thread sizes, and we can customise our packaging to help your brand grow. As a top manufacturer of threaded elbows, our engineering team offers expert advice on choosing the right material, checking the pressure grade, and making sure the threads will work together. This takes the guesswork out of buying. You can email our buying experts at q1236800000@gmail.com to talk about the specifics of your project, get approved dimensional drawings, or set up sample orders that show how good our quality is.

References

1. American Society of Mechanical Engineers. (2021). ASME B16.11: Forged Fittings, Socket-Welding and Threaded. New York: ASME Press.

2. International Organization for Standardisation. (2019). ISO 49: Malleable Cast Iron Fittings with Threaded Ends. Geneva: ISO Standards.

3. Nayyar, M. L. (2020). Piping Handbook, 8th Edition. New York: McGraw-Hill Professional.

4. Smith, P. R., & Zappe, R. W. (2018). Valve Selection Handbook: Engineering Fundamentals for Selecting the Right Valve Design. Oxford: Gulf Professional Publishing.

5. Parisher, R. A., & Rhea, R. A. (2021). Pipe Drafting and Design, 4th Edition. Houston: Gulf Publishing Company.

6. Mohitpour, M., Golshan, H., & Murray, A. (2019). Pipeline Design and Construction: A Practical Approach, 3rd Edition. New York: ASME Press.
