How do malleable black iron fittings compare to galvanized steel for plumbing?

When I evaluate pipe fittings for large-scale infrastructure projects, the choice between malleable black iron fittings and galvanized steel fittings consistently emerges as one of the most consequential material decisions. Malleable black iron fittings, produced through an annealing process that transforms brittle white iron into a ductile ferritic structure, deliver superior impact resistance and thermal stability. Galvanized steel fittings, coated with a zinc layer for corrosion protection, perform well in moisture-exposed systems. Understanding where each excels — and where each fails — directly shapes procurement outcomes, project timelines, and long-term maintenance costs across municipal, industrial, and Belt-and-Road infrastructure applications.

Understanding Malleable Black Iron and Galvanized Steel Fittings

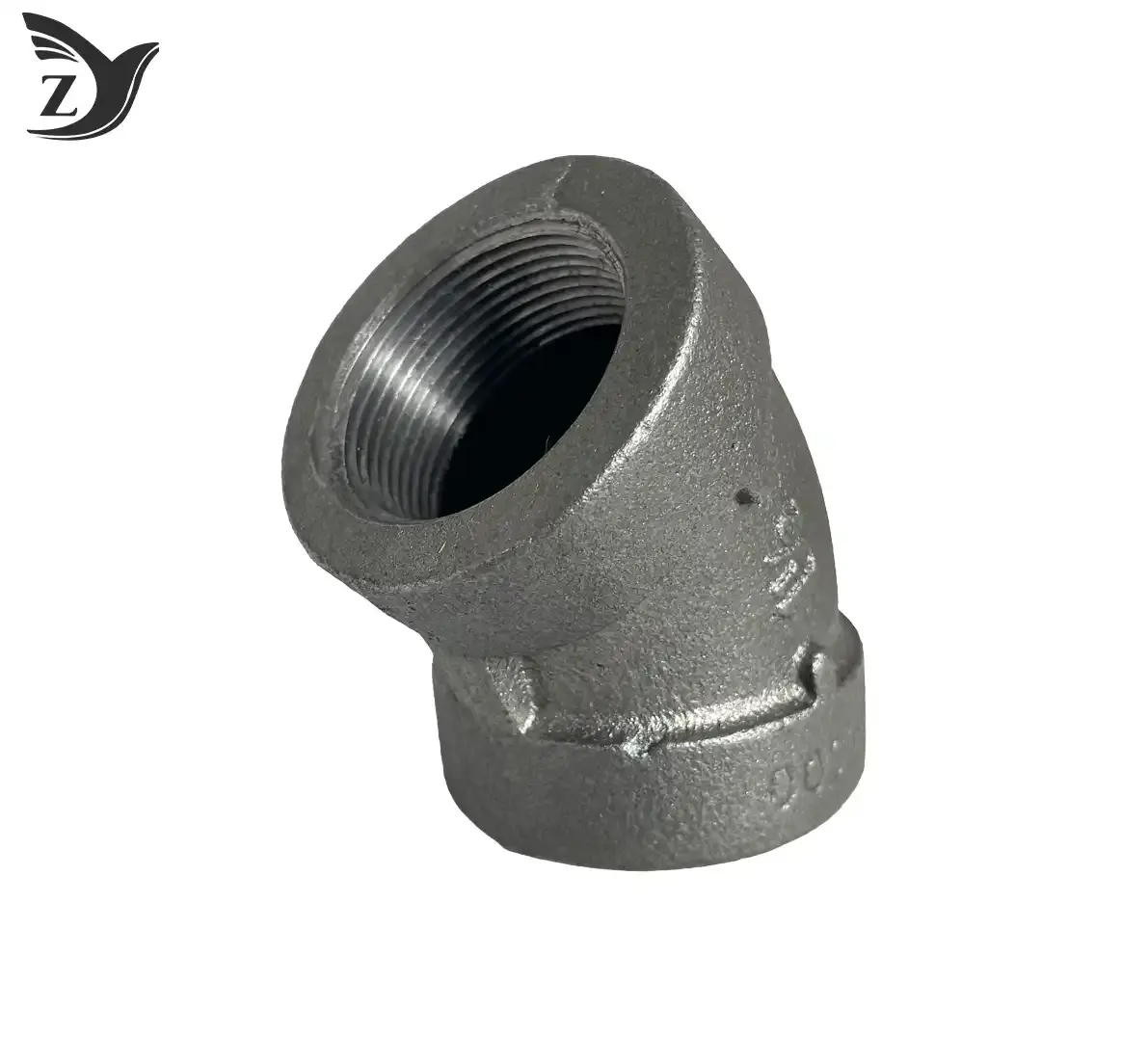

In regulated furnaces, long-annealed white iron castings become malleable black iron fittings. This method yields a ferritic matrix with carbon nodules that can stretch above 6% before breaking and has tensile strength exceeding 300 MPa. According to ASTM A197, "black" refers to an iron oxide or bituminous coating placed after casting, not paint.

Hot-dip or electro-galvanized carbon steel pipe fittings with 45–85 micron zinc coatings. These zinc shields prevent wet corrosion as sacrificial anodes.

In all categories, 90°, 45°, tees, descending tees, and street elbows fit. Zhiyuan Malleable Steel creates everything. Over 1,000 NPT and BSPT thread specifications are met by black iron and stainless variants. Several products may be used to build important infrastructure, like the NPT square face galvanized 90° square edge elbow and BSPT square edge straight tee.

Comparative Analysis: Malleable Black Iron vs. Galvanized Steel Fittings

Durability, Pressure Ratings, and Corrosion Behavior

As per ISO 49 and ASTM A197 [²ISO 49:1994], both types of fittings meet Class 150 (about 300 psi WOG — Water, Oil, and Gas) ratings under normal service conditions. At room temperature, the two have pretty much the same pressure performance. However, they behave very differently when exposed to temperature cycling and corrosives.

Because it doesn't change size when heated and cooled many times, malleable black iron fittings are the best material for steam lines and gas distribution heads that are often exposed to thermal expansion stress. Galvanized zinc coatings, on the other hand, start to break down above 200°C, giving off zinc oxide fumes that are known to be dangerous to workers' health in protected areas [³NIOSH 2014].

Here's how the two materials compare in important areas of procurement:

• Corrosion resistance in dry or oil-bearing environments: When it comes to corrosion resistance in dry or oily environments, malleable black iron fittings work better than galvanized ones. The oxide coating doesn't react badly with hydrocarbons, but zinc can clog injectors or meters when it comes into contact with some petroleum compounds.
• Corrosion resistance in wet or potable water systems: Galvanized fittings are better than other types when it comes to corrosion protection in wet or drinkable water systems. Because the zinc layer stops rust from forming over long periods of time, galvanized pipe fittings are the standard for distributing water in cities where there is ongoing contact with water [AWWA C800].
• Installation and thread engagement: When properly torqued, the NPT tapered threads on both types of fittings make joints that seal themselves. With their 55° Whitworth angle, BSPT threads make an interference fit that works well for gas and compressed air systems in international project requirements.

When a procurement manager is ordering thousands of parts for a complicated job site, these differences are very important. If you choose the wrong material, it can lead to faster rusting, maintenance shutdowns, or code violations, all of which have effects on the project costs that are much higher than the original fitting price.

Installation, Lead Times, and Supplier Ecosystem

It is usually a little cheaper to buy malleable black iron fittings than galvanized ones, since the galvanizing process costs more in both materials and labor. This difference gets bigger when orders are placed in bulk for infrastructure projects. Lead times depend a lot on how much stock a seller has. Suppliers who can make 30,000 tons of goods a year and store their stock can fill big orders with little trouble to their schedules.

Selecting the Right Fittings for Your Plumbing Needs

Fluid or gas the system flows with the environment is more accurate. Gas distribution lines, industrial steam headers, and fire control dry systems use malleable black iron fittings. The material is NFPA-approved for non-potable sprinklers. For above-ground municipal water mains, irrigation pipes, and outdoor plumbing systems, galvanized fittings prevent corrosion.

Municipal water treatment projects need 45° and 90° bends at dozens of valves. For weather-exposed manifold lines above ground, engineers utilized galvanized square NPT 90° reduction elbows. The structure's gas-purge lines used moldable black iron fittings. This split-material method lowered corrosion risk and material cost on big infrastructure projects. When procurement teams have two options from one supplier, they may cover NPT and BSPT. This streamlines logistics [ASME B16.3].

Certifications are needed in this field. ISO 9001 quality control, CE labeling, and UL/FM fire prevention hardware certificates shall accompany every shipment. Material test reports and thread gage certifications expedite site approval.

Procuring Malleable Black Iron Fittings Globally

Professionals in procurement who have to stick to tight project deadlines need suppliers who can meet a wide range of requirements and be reliable in terms of logistics. Shanxi Taigu Zhiyuan Malleable Steel Co., Ltd. was founded in 2006 and is based in Taigu District, Jinzhong City, Shanxi Province. It has become one of the most important makers of malleable black iron fittings in the area over the past 26 years [Zhiyuan Malleable Steel 2024].

The building is 50,000 square meters and has more than 500 employees, 38 of whom are technology experts. Eight SN KGDX-35003T medium-frequency electric furnaces, two Blue Sky HTL-1 natural gas annealing kilns with a 100-ton capacity each, an environmentally friendly electric-heating galvanizing furnace, and 156 machining units are spread out across the production floor. This infrastructure serves a catalog with more than 1,000 specifications and a 30,000-ton annual output. This means that a single buy order can cover the whole fitting schedule of a big infrastructure package.

Standard items are shipped within two hours from stock in the warehouse. For non-standard requirements, ODM and OEM customization is possible, and parts are kept safe during long-haul shipping in two layers of cardboard. Without a doubt, defective products are replaced. This promise lowers the administrative work needed to handle quality claims on busy projects.

Conclusion

When thermal stability and hydrocarbon compatibility are important, malleable black iron fittings are the best choice for gas, steam, and dry industrial systems. For water-bearing systems that need to prevent rust over time, galvanized steel fittings are still the standard. When procurement managers are trying to balance compliance, cost, and schedule on infrastructure projects, getting both types of fittings from a manufacturer with a large inventory, verified certifications, and full NPT/BSPT coverage gets rid of the risk of substitution and makes managing vendors easier. Zhiyuan Malleable Steel is a reliable supplier for any project because it has a large production scale, is ISO 9001 certified, and has a collection with over 1,000 specifications.

FAQ

1. Are malleable iron fittings suitable for outdoor plumbing installations?

Malleable black iron fittings shouldn't be used in outdoor systems that are exposed to water for a long time without coverings or protective coatings. With their zinc layer, galvanized choices are better at handling wet situations outside. Malleable black iron fittings, on the other hand, works well in outdoor gas distribution lines where the fittings stay dry.

2. How do these fittings perform under high-pressure conditions?

According to ISO 49, both types are rated at Class 150, which is about 300 psi WOG, at room temperature. When heated and cooled many times, malleable black iron fittings keeps its grade more consistently than galvanized fittings, where the zinc layer breaks down above 200°C and can weaken the joint.

3. What certifications should I require when procuring these fittings?

The minimum requirement is to have ISO 9001 quality control certification. For European and international infrastructure deals, CE marking is a must. Fire safety system gear is the only thing that UL and FM labels cover. With every package, you should always ask for a material test record and a calibrated thread gauge proof.

4. Can NPT and BSPT fittings be used interchangeably?

No, the thread angle for NPT is 60°, and the Whitworth angle for BSPT is 55°. When you mix the two standards, you break the threads and create twisting leak paths that can't be fixed with sealant. Make sure you are clear about the quality that your design drawings need.

Partner With Zhiyuan Malleable Steel for Your Next Project

The certified malleable black iron fittings that Zhiyuan Malleable Steel sells include NPT and BSPT elbows, reducing tees, and street elbows. These fittings have ISO 9001, CE, UL, and FM certifications to back them up. With the ability to handle 30,000 tons per year and more than 1,000 specifications in stock, we can help with bulk purchases for any size project. To get a price or a list of our products, email our team at q1236800000@gmail.com.

References

1. ASTM International. ASTM A197: Standard Specification for Cupola Malleable Iron.

2. International Organization for Standardization. ISO 49:1994 — Malleable Cast Iron Fittings Threaded to ISO 7-1.

3. National Institute for Occupational Safety and Health (NIOSH). Preventing Zinc Fume Exposure During Welding and Cutting of Galvanized Steel.

4. American Water Works Association. AWWA C800: Underground Service Line Valves and Fittings.

5. American Society of Mechanical Engineers. ASME B16.3: Malleable Iron Threaded Fittings — Classes 150 and 300.

6. Shanxi Taigu Zhiyuan Malleable Steel Co., Ltd. Company Profile and Product Catalog.
