How Do Galvanized Bushing Pipe Fittings Reduce Pipe Diameter Efficiently?

When pipeline systems require transitions between different pipe sizes, galvanized bushing pipe fittings deliver a streamlined solution that combines simplicity with reliability. These threaded reducers feature male threads on the exterior and female threads on the interior, allowing seamless connections between larger and smaller pipe diameters. The hot-dip galvanization process applies a protective zinc coating that resists corrosion in demanding environments, making these fittings ideal for water supply, fire protection, and industrial gas distribution. Their compact design eliminates the bulk of traditional reducing couplings while maintaining pressure integrity and leak-proof performance across diverse applications.

Understanding Galvanized Bushing Pipe Fittings

When it comes to industrial piping infrastructure, galvanized bushing pipe fittings are an important part. These fittings are mostly made of malleable iron that meets ASTM A197 standards. They are then hot-dip galvanized, which adds a zinc layer that is usually more than 85 microns thick. This protective layer works as a sacrifice barrier, keeping the base metal from oxidizing even when it comes into touch with water, dirt, or fluids that are corrosive.

Material Composition and Manufacturing Standards

We use a controlled annealing method to make our malleable iron bushings. This turns brittle white cast iron into a flexible material that can handle both mechanical stress and thermal expansion. With a minimum tensile strength of 40,000 psi and a stretch of 5%, the material makes sure that the structure stays strong under pressure. Either NPT (National Pipe Taper) standards according to ANSI/ASME B1.20.1 or BSPT (British Standard Pipe Taper) standards according to ISO 7-1 are used for threading. The 60-degree or 55-degree thread angles make interference fits that create pressure-tight rings.

Types and Design Variations

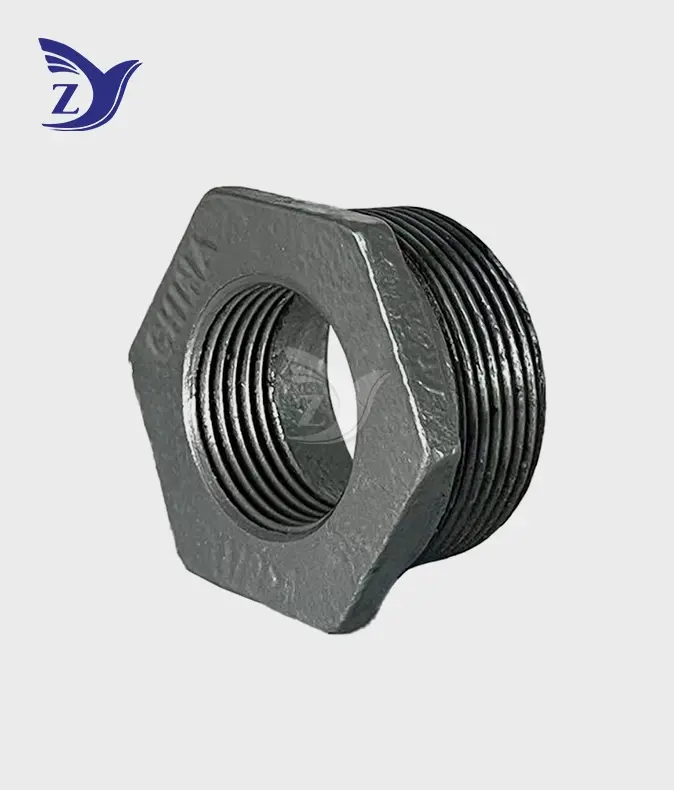

Hex bushings have a hexagonal head that makes them easier to install with a wrench and lets you use the right amount of torque without damaging the fitting body. Face bushings have a flush shape that works well in tight-clearance setups where heads that stick out would get in the way of other equipment. According to ASME B16.14 standards, the sizes range from 1/8" to 4", and the pressure values are usually Class 150 (300 psi for water, oil, and gas service) or Class 300 for higher-demand uses.

The galvanization layer is put through a lot of tests with salt spray, and it can often go over 500 hours without red rust forming. This resistance to corrosion is very important for outdoor installations, underground uses, and damp places where regular black iron fittings would break down quickly. It can withstand temperatures between -20°F and 350°F, so it can be used in both chilled water systems and low-pressure steam uses with the right thread seals.

How Galvanized Bushing Pipe Fittings Reduce Pipe Diameter Efficiently

Pipeline diameter changes are hard for engineers because they affect how well the system works, how the pressure is distributed, and how easy it is to do maintenance. Pipes of different sizes can't connect properly, and the wrong adapters can lead to noise, pressure drops, and huge leaks. Galvanized bushing pipe fittings solve these width mismatches through their dual-threaded design.

The Mechanical Advantage of Threaded Reduction

Because they have two threads, galvanized bushings can fix width mismatches. The bigger pipe has a female coupling or joint that fits on the male external thread, and the smaller pipe diameter fits on the smaller internal thread. The tapered thread shape creates a wedging action during installation. As the bushing gets tighter, the threads slightly compress and deform, making a metal-to-metal seal that can be improved with PTFE tape or pipe dope sealant. Unlike concentric reducers or reducing tees, this way of reduction takes up very little axial room. Because they are small, engineers can place sensor lines, drain connections, or gauge taps in tight equipment rooms or crowded pipe racks without having to make a lot of changes to the existing infrastructure. Unlike welded reducers, which need to be cut to be removed, the threaded link lets the system be taken apart in the future for repair or changes.

Installation Best Practices for Maximum Efficiency

The long-term performance and efficiency of a system are directly affected by how well it was installed. To keep the threads from getting damaged during assembly, we suggest starting with clean, smooth pipe ends. Thread sealer should only be used on male threads and never on female threads. Make sure the compound fills in any thread dips without going over the edge and contaminating the fluid flow. Tighten the bushing by hand until the resistance goes up. Then, use a pipe wrench on the hex head to finish the connection, which usually takes one or two more turns than hand-tight. Over-tightening can break threads or iron that can be shaped, and under-tightening leaves holes that let pressure through. Different sizes have different torque requirements, but as a general rule, you should tighten until the sealant starts to come out of the joint a little. During installation, don't use the shorter pipe as a lever. Lateral stress can deform the bushing body or cause it to be out of alignment, which can damage the seal.

Maintenance Considerations for Sustained Performance

Inspections done on a regular basis help find early signs of wear and tear before they become problems. Check the parts that you can see for white rust (which is caused by zinc corrosion) or red rust that has broken through the covering. Cleaning outdoor systems on a regular basis is a good idea to get rid of the dirt and grime that builds up and sticks to the metal surface. In situations where the soil is likely to corrode quickly, underground bushings should be ordered with thicker galvanization or extra coatings. Throughout the fitting's life, thread integrity is still very important. Over time, vibration, changes in temperature, and changes in pressure can make threaded links loose. During routine repair, especially on equipment that goes through practical cycling, it may be necessary to tighten things up again. When you replace bushings, check the matching threads for damage, rust, or wear. Threads that aren't working right won't be able to make good seals, no matter how well they fit.

Choosing the Best Galvanized Bushing Pipe Fittings for Your Project

For the best fitting pick, technical requirements must be matched with practical needs, and supply chain factors that affect project timelines and budgets must also be taken into account. Selecting high-quality galvanized bushing pipe fittings ensures long-term system integrity and compliance with industry standards.

Critical Selection Criteria

Verification of the material approval makes sure that the parts meet all the rules and standards that apply. Reliable makers give mill test results that show the chemical makeup, mechanical qualities, and measures of the coating thickness. UL and FM approvals are needed for fire prevention uses in the US, and ISO 9001 certification shows that a quality management system is being followed. Dimensional compatibility includes thread form, pitch, and engagement length. In North America, NPT threads are most common, while in countries that follow British standards, BSPT threads are more common. Cross-threading and leakage are risks that come up when you mix thread types.

Industry-Specific Application Requirements

Fittings for fire safety systems must be able to withstand high temperatures and meet strict approval standards. Listings with FM Global and UL make sure that bushings work reliably during fires. For HVAC systems, the fittings need to be able to handle thermal growth without leaking and not rust from condensation. Galvanized bushings work well in cooling tower pipes, cold water systems, and steam condensate return lines. Municipal water and gas delivery networks focus on being durable and easy to maintain over the long term. When put in meter vaults, valve chambers, and service line transitions, galvanized bushings protect against soil moisture and stray electrical currents that can rust metal that isn't shielded.

Leveraging Manufacturer Capabilities

Working with approved makers opens up benefits that go beyond just buying products. OEM and customization services let you choose non-standard sizes, threading, or better finishes that are specific to your project needs. Our engineering team helps with the technical side of developing specifications and finding the best solutions that balance performance and cost-effectiveness. When you buy directly from the factory, you don't have to pay markups to distributors, and the whole supply chain is clear. Our 30,000-ton-a-year production ability across more than 1,000 product specifications helps with both large-scale infrastructure projects and one-of-a-kind sales.

Conclusion

Galvanized bushing pipe fittings reduce the width of pipes efficiently by being designed to be simple in a way that balances performance with cost. The two-threaded design makes it safe to connect pipes of different sizes while taking up very little room in tight spaces. The process of hot-dip galvanization makes things last longer in a wide range of settings, from underground utilities to open industrial pipes. Choosing the right material based on its resistance to corrosion, temperature needs, and pressure ratings is important for making sure that the system works well for its entire life. As spending on infrastructure rises and environmental rules get stricter, these tried-and-true parts will continue to be useful because they are long-lasting, easy to recycle, and cheap.

FAQs

What are typical lead times for bulk orders of galvanized bushings?

Standard NPT and BSPT bushings in common sizes are shipped from our stock within two hours of confirmation of the order. This meets the needs of urgent projects and replacements that need to be made right away. Custom specs or non-standard threading usually take two to six weeks to make, but this depends on how complicated the part is and how busy the factories are at the moment. We plan delivery times around construction schedules to keep on-site storage needs to a minimum and make sure fittings arrive when installation crews are ready.

How does corrosion resistance compare between galvanized and black steel fittings?

Black steel fittings don't have any protective coatings, so they can rust when they come into contact with water. In damp places, surface rust appears within days, and over time, progressive corrosion leads to wall thinning and leaks. The protective zinc layer on galvanized fittings stops rusting because the base iron rusts faster than the zinc layer. Testing with salt spray shows that galvanized parts can last more than 500 hours before red rust shows up. Black steel parts usually break after a few years, but galvanizing ones last twenty to thirty years.

Are galvanized bushings suitable for outdoor installations in harsh climates?

Galvanized malleable iron bushings work reliably outside in places like coastal areas, industrial zones with dirty air, and places where the temperature changes a lot. The zinc covering keeps the metal safe from rust in the air, UV light, and rain. Inspections done on a regular basis help find any damage to the layer caused by mechanical impact or abrasion. This lets safety measures be taken before the base metal is exposed. We suggest adding extra paints or wrapping systems to places that are very active, like chemical plants or sea installations where chloride levels are higher than normal.

Partner with Zhiyuan Malleable Steel for Your Piping Solutions

Zhiyuan Malleable Steel has been casting and making high-quality products for 26 years. Our yearly production capacity of 30,000 tons lets us work on projects of all sizes, from small ones that just need one part to big ones that need thousands of fits. As a certified company that makes galvanized bushing pipe fittings, we use ISO 9001 systems to keep a close eye on quality and make sure that our products meet international standards by being CE, UL, and FM approved. Our low factory-direct prices, large selection of NPT and BSPT options, and ability to customize through OEM/ODM services all help you save money and make your supply chain stronger. We guarantee the quality of every fitting and will replace any that aren't working properly. Our helpful team also offers quotes and technical support to help you choose the best solutions. Contact us at q1236800000@gmail.com to talk about your needs, ask for samples, or place an order. Our location in Shanxi Province makes logistics easy because we are close to major traffic hubs, ensuring your fittings arrive on time.

References

1. American Society of Mechanical Engineers. (2021). ASME B16.14: Ferrous Pipe Plugs, Bushings, and Locknuts with Pipe Threads. New York: ASME Press.
2. ASTM International. (2020). ASTM A197: Standard Specification for Cupola Malleable Iron. West Conshohocken: ASTM International.
3. Revie, R.W. & Uhlig, H.H. (2008). Corrosion and Corrosion Control: An Introduction to Corrosion Science and Engineering (4th ed.). Hoboken: John Wiley & Sons.
4. International Organization for Standardization. (2019). ISO 7-1: Pipe Threads Where Pressure-Tight Joints Are Made on the Threads. Geneva: ISO.
5. Marder, A.R. (2000). The metallurgy of zinc-coated steel. Progress in Materials Science, 45(3), 191-271.
6. National Fire Protection Association. (2022). NFPA 13: Standard for the Installation of Sprinkler Systems. Quincy: NFPA.
