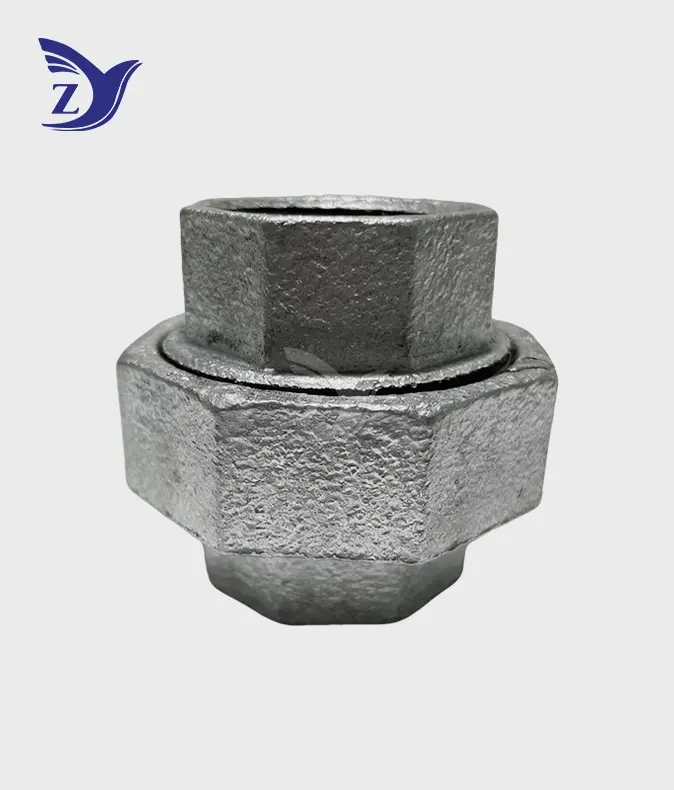

High-Quality Galvanized 342 Union Pipe Fittings with Reliable NPT Connection for Pipeline Projects

NPT galvanized union 342 pipe fittings are a sensible choice that project engineers and procurement managers trust when pipeline stability and ease of maintenance are important. These removable industrial connectors have the corrosion-protecting properties of hot-dip galvanization and the brass-to-iron seat design that is only found in the Figure 342 standard. They solve the problem of joints that won't move in water, gas, and industrial pipe systems. Standard iron-to-iron unions rust together over time, but the brass plug in NPT galvanized union 342 pipe fittings stops galling and keeps the seal's integrity through multiple assembly cycles, which is a huge benefit for uses that need to be maintained a lot.

Benefits and Performance of Galvanized Union 342 Pipe Fittings in Pipeline Projects

Because these parts are used in tough industrial settings, their performance benefits become clear. It helps buying teams make smart choices when they know how they work in the real world.

Superior Maintainability in Industrial Steam Lines

Due to differences in temperature expansion, low- to medium-pressure steam systems have their own problems. The brass-to-iron seat design can handle these cycles of expansion better than homogeneous iron joints. This keeps boiler feed lines from leaking, even though the temperature changes all the time. Maintenance crews can take these NPT galvanized union 342 pipe fittings apart without using harmful force, even after years of use. This feature cuts down on downtime during emergency fixes or planned equipment replacement.

Extended Service Life in Corrosive Environments

Pipe parts are constantly exposed to chloride and humidity in places like water treatment plants, pump rooms, and seaside sites. The thick zinc layer on these NPT galvanized union 342 pipe fittings protects them from the outside corrosion that breaks down regular black iron connections very quickly. Installation data from municipal plumbing projects shows that union 342 pipe fittings keep the integrity of the seal and make it easy to quickly remove pumps, flow meters, and valve assemblies for routine maintenance. This practical benefit makes up for their slightly higher initial cost compared to non-galvanized alternatives.

Cost-Efficiency in OEM Skid Fabrication

Manufacturers of modular equipment that make compressor boxes, generator cooling systems, and process equipment packages use these NPT galvanized union 342 pipe fittings to make break points between shipping modules that are on purpose. The NPT threading makes sure that it works with field connections in North America, and the brass seat keeps it from freezing during long ocean freight trips where humidity and salt air exposure happen. This design choice cuts down on the time needed for installation in the field and gets rid of the need for special tools during setup.

The best way to install something is to use thread sealant that is rated for the service medium (PTFE tape for water/gas systems, pipe dope for oil systems) and tighten the unions to the torque values stated by the maker, which are usually three to four full turns past hand-tight. When installed correctly, the threads are engaged enough to keep the pressure in check and the body is not over-tightened, which could crack the malleable iron.

Procurement Guide for NPT Galvanized Union 342 Pipe Fittings

When looking for NPT galvanized union 342 pipe fittings, you need to pay attention to the references of the suppliers, the certifications of the products, and the supply chain's ability to meet project deadlines and quality standards.

Verifying Manufacturer Credentials and Certifications

Manufacturers with a good reputation keep their ISO 9001 quality management system approval up to date. This shows that they consistently control production and can be tracked. Zhiyuan Malleable Steel has been making steel for 26 years and has met foreign standards like CE for European markets and UL/FM ratings for North American fire protection uses. For important projects, procurement teams should ask for mill test records that list the material's make-up, the results of any pressure tests, and whether the dimensions meet the requirements.

It's especially important to be able to track down materials for fire sprinkler systems and potable water installs, where project reviews may check for regulatory compliance. When asked, manufacturers should show papers that show their products meet the requirements of ASTM A197 for malleable iron makeup and ASTM A153 for galvanization.

Evaluating Bulk Order Capabilities and Delivery Timelines

For big building and infrastructure projects to go smoothly, suppliers need to have a large enough store and production ability to meet orders on time. Zhiyuan's Shanxi manufacturing operation, which can handle 30,000 tons of goods every year, can handle large orders of all sizes while keeping quality consistent through standard methods. With more than 1,000 product standards to choose from, procurement teams can get everything they need for a project from a single seller. This makes logistics easier to manage and cuts down on freight costs.

Just-in-time construction schedules are supported by standard product delivery within two hours from regional distribution centers. ODM/OEM customization services take care of non-standard sizing needs that come up in retrofit projects or international installations that need to be compatible with BSPT threading.

Assessing Quality Control and Product Reliability

In addition to certifications, other useful quality indicators include the manufacturer's desire to replace broken goods, the availability of expert help during installation, and proof of performance in the field through case studies or customer examples. Fittings are safer during shipping when they are packed in double-layer cardboard, which lowers the risk of damage that can delay projects. Checking the thread quality with calibrated tools and checking every fitting for pneumatic leaks—not just a random sample—shows that the manufacturing process is rigorous, which leads to solid performance in the field.

People who work in procurement for fire protection engineering firms, local water utilities, and industrial site managers should give more weight to sellers who can back up their quality promises with documented processes rather than just marketing claims.

Conclusion

Choosing the right pipe parts for a pipeline project affects the system's long-term dependability, how well it maintains itself, and the total cost of ownership. NPT galvanized union 342 pipe fittings are useful because they have a brass seat that stops joint seizure, hot-dip galvanization that makes them last longer in corrosive environments, and a build made of malleable iron that can handle mechanical stress. Their threaded form makes fitting easier and keeps the pressure integrity in gas, water, and steam uses. If you buy these parts from companies that have strict quality controls and enough production capacity, you can be sure that they will work well and help your project succeed in areas like fire protection, public works, business building, and factories.

FAQs

Can galvanized unions be used in potable water systems?

NPT galvanized union 342 pipe fittings can be used with drinkable water as long as the zinc coating meets drinking water safety standards and the brass part meets NSF/ANSI 61 lead-free requirements. Fittings made for industrial use are usually good for fire safety, HVAC, and process water systems. For drinking water projects, buyers should ask for special certificates to make sure they follow the rules.

How do I prevent galvanic corrosion when connecting galvanized fittings to black iron pipe?

When you connect metals that are not the same in a wet system, an electrical process called galvanic corrosion can happen. Even though this combo works formally, it speeds up the breakdown of the zinc layer near the junction. As a best practice, the whole system should be made of the same materials, or dielectric unions should be used at transition points to stop the flow of electricity between metals that are not the same.

What is the maximum working temperature for these malleable iron unions?

Class 150 NPT galvanized union 342 pipe fittings can usually handle constant service up to 350°F to 400°F. However, ASME B16.39 derating charts show that pressure values drop as temperature rises. It's more common for thread sealants to break down or brass seats to soften at very high temperatures than for the malleable iron body to fail. Check the manufacturer's instructions to get exact temperature-pressure relationships that work for your purpose.

Source Premium NPT Galvanized Union 342 Pipe Fittings from Zhiyuan Malleable Steel

Zhiyuan Malleable Steel has been casting for 26 years and is ISO 9001 approved. They can help buying teams that need reliable union fittings for important pipeline projects. Our Shanxi plant keeps a large inventory of over 1,000 specs, and we can deliver quickly to meet building plans. We also offer ODM and OEM customization services to meet the special needs of each project. Our engineering team can help you choose the right products and use them correctly, whether you need large amounts for city infrastructure, custom sizes for industrial retrofits, or approved parts for fire safety systems. Get reasonable quotes on NPT galvanized union 342 pipe fittings from a reliable maker and seller by emailing us at q1236800000@gmail.com to talk about your project needs. You can look at our full line of products and learn about how our quality control measures protect your investment by visiting zymalleablepipefitting.com.

References

1. American Society of Mechanical Engineers. ASME B16.39: Malleable Iron Threaded Pipe Unions, Classes 150, 250, and 300. ASME International, 2020.
2. American Society for Testing and Materials. ASTM A197/A197M: Standard Specification for Cupola Malleable Iron. ASTM International, 2019.
3. American Society for Testing and Materials. ASTM A153/A153M: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. ASTM International, 2022.
4. American National Standards Institute. ASME B1.20.1: Pipe Threads, General Purpose (Inch). American Society of Mechanical Engineers, 2018.
5. National Fire Protection Association. NFPA 13: Standard for the Installation of Sprinkler Systems. NFPA, 2022 Edition.
6. NSF International. NSF/ANSI 61: Drinking Water System Components – Health Effects. NSF International, 2021.
