Galvanized Non-Flanged Pipe Plugs for Industrial Piping Systems

When you need to terminate a pipeline securely without leaks or corrosion risks, galvanized non-flanged pipe plug pipe fittings emerge as the reliable solution for industrial operations. These precision-threaded sealing components combine malleable iron strength with hot-dipped zinc protection, creating durable pipeline closures for water, gas, and process systems. Engineered with NPT or BSPT threading standards, these plugs deliver metal-to-metal sealing integrity that withstands high pressures and environmental challenges across fire protection, municipal infrastructure, and petrochemical applications.

Understanding Galvanized Non-Flanged Pipe Plugs

For industrial piping systems to work, they need reliable ending points that stop fluid loss and protect the environment. Because of their unique design and protective coating, galvanized non-flanged pipe plug pipe fittings do this very important job.

What Makes Non-Flanged Plugs Different

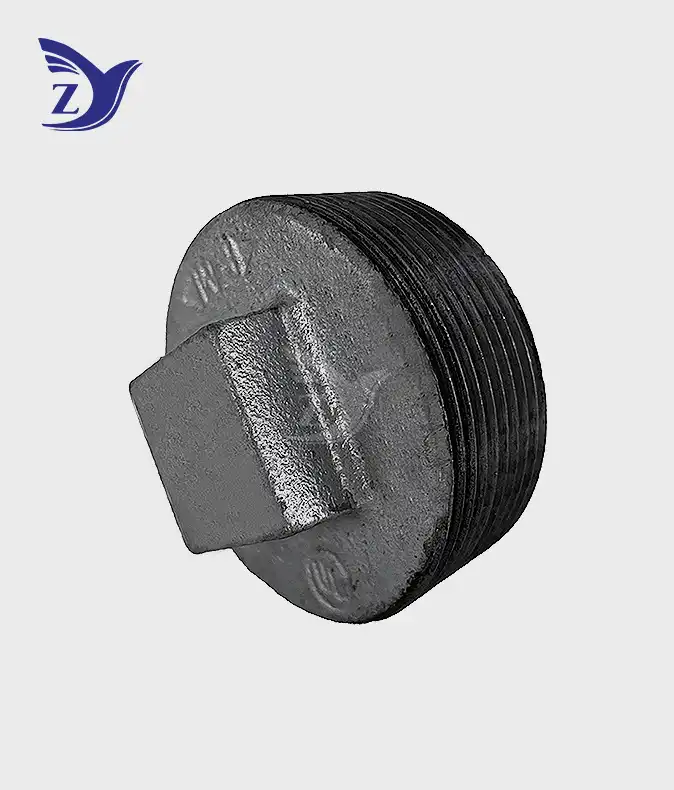

Unlike flanged plugs, which have wide collars or washer-face extensions, galvanized non-flanged pipe plug pipe fittings have a small profile and have square or hexagonal heads that stick out directly from the threaded body. This simplified design lets you use a wrench without the extra bulk of flanged designs. This makes them perfect for places with limited space or where you need a lot of termination points in a small space. Not having a port also saves money on materials while keeping the structure strong for most industrial pressure levels.

Material Composition and Thread Standards

Strong base materials are the first step in making good galvanized non-flanged pipe plug pipe fittings. Most industrial-grade plugs are made from malleable iron that meets ASTM A197 standards. This type of iron has a tensile strength of over 50,000 psi and is resistant to pressure, so it doesn't crack during installation or thermal cycles. The fitting is either based on National Pipe Taper (NPT) standards, which have side angles of 60 degrees and a 3/4-inch-per-foot taper, or British Standard Pipe Taper (BSPT) standards, which have angles of 55 degrees and a 1:16 taper ratio. Both types of threads make progressive interference fits, which means that as the force increases, the seals get tighter. This works better as the internal pressure rises.

The Galvanization Advantage

Immersion in molten zinc baths during hot-dip galvanization changes ordinary iron that can be shaped into parts that won't rust. This process makes zinc layers that are metallurgically bound and are usually more than 70 microns thick. These layers act as a sacrifice for security, as the zinc corrodes faster than the iron below it. This layer greatly increases the useful life of things that are used in wet places, outside, or with harmful fluids. Testing done in industrial fields shows that galvanized non-flanged pipe plug pipe fittings can keep their seals intact for 15 to 25 years in low rust settings, while uncoated options only last 3 to 5 years.

Common Industrial Applications

Fire protection engineering firms use these plugs for test ports and future growth points in fire sprinkler systems. The zinc finish makes sure that they are ready for emergency activations years after they were installed. They are used to cover the main branches of municipal water supply systems because the zinc coating will protect against soil moisture and electrolytic corrosion. HVAC workers like that they can be used with both hydronic heating loops and cold water circuits. This is because materials that won't crack or leak are needed in these situations because the temperatures change. Because they are chemically resistant and can handle up to Class 300 (1000 psi WOG) pressure, petrochemical plants use them in process pipes for instrument taps and cleanout access.

Key Specifications and Dimensions of Galvanized Non-Flanged Pipe Plugs

How well and how long a system lasts depends directly on how carefully the parts are chosen. Knowing the technical details of threaded pipe seals makes sure that galvanized non-flanged pipe plug pipe fittings work well in a wide range of industrial settings.

Standard Size Ranges and Threading

Industrial pipe plugs usually come in sizes ranging from 1/8 inch to 4 inches in nominal pipe diameter. Each size is made to exact specifications. NPT threads have a taper that forms a seal when they deform. To reach the stated pressure capacity, the threads must be engaged to the right depth, which is usually between 4 and 7 threads, based on the size. Because they have a 55-degree shape, BSPT threads work similarly but connect in a slightly different way. When choosing a plug, you need to take into account the type of female thread that is already in your system. Mixing NPT and BSPT makes seals that aren't reliable and can leak when the pressure changes.

Zinc Coating Thickness Standards

The protective galvanized layer is made according to ASTM A153 standards for hot-dip coating, which say that the zinc mass must be at least 500 grams per square meter. This means that there are about 70 to 85 microns of zinc on all surfaces, even the thread roots, which is where corrosion usually starts. Some makers, like Zhiyuan Malleable Steel, go above and beyond these minimums by covering their galvanized non-flanged pipe plug pipe fittings with layers that are 90 to 100 microns thick to make them last longer. The corrosion protection is directly related to the thickness of the coating. For every 10 microns added to the thickness, the service life is increased by about two to three years in outdoor sites or chemically active environments.

Pressure and Temperature Ratings

Class 150 plugs can handle working pressures of up to 300 psi for gas, oil, and water services at temperatures ranging from -20°C to 120°C. This means they can be used in most light industrial and business settings. Class 300 types can handle working pressures of up to 1000 psi, making them ideal for high-pressure steam lines, hydraulic systems, and process pipes in industrial plants. The malleable iron base material keeps its mechanical properties across this temperature range, so it doesn't become brittle at low temperatures like cast iron does, or soften at high temperatures like some plastics do.

Non-Flanged vs. Flanged: Structural Comparison

Wider heads on flanged plugs spread torque over a bigger area, making it less likely that the head will deform during high-torque setups. This benefit comes with extra weight, higher material costs, and room needs that make installs harder in piping manifolds that are already full. Galvanized non-flanged pipe plug pipe fittings are 30–40% lighter and allow end points to be closer together. The hexagonal heads, which are usually 1.5 times the nominal pipe diameter, allow the wrench to engage properly without being as bulky as flanged options. There isn't a big difference in how reliable the seal is between flanged and non-flanged plugs that are placed correctly when the pressure values are the same.

Choosing the Right Pipe Plug: Comparison and Decision-Making

To choose the best closing parts, you need to know how different types of materials and styles work in varied situations when selecting galvanized non-flanged pipe plug pipe fittings.

Material Comparison: Galvanized vs. Alternatives

Brass plugs look nicer and are better at resisting corrosion, so they are used in plumbing installations that people can see and in potable water systems where dezincification isn't a problem. But brass is two to three times more expensive than coated malleable iron, and it has lower tensile strength, which means it can't handle as much pressure. Plastic plugs (PVC, CPVC, or polypropylene) completely eliminate corrosion concerns, but they can only handle temperatures up to 90°C and pressures up to 150 psi at most. While stainless steel is the best choice because it is strong and doesn't rust, it costs 4 to 6 times more than galvanized non-flanged pipe plug pipe fittings, so it only makes economic sense in harsh corrosive environments or food-grade applications. Galvanized malleable iron is the best choice for general industrial water, gas, and non-corrosive fluid services because it is a good mix of performance, longevity, and cost-effectiveness.

Application-Based Selection Criteria

For systems with pressures above 600 psi, you need Class 300 plugs that fully engage the threads and premium thread sealants that can handle the mechanical stresses caused by pressure. Hot-dip galvanization is better than electroplated zinc for outdoor projects that will be exposed to weather because it has a thicker layer that can handle UV light and changes in moisture. Systems that work with acids that eat away at metal may need more than just galvanization. They may also need stainless steel or special coats. Extreme temperatures affect the choice of material. For example, when using steam above 120°C, you need to carefully think about how thermally stable the sealant is and how the zinc coating might break down. Anaerobic seals and regular torque checks help systems that are prone to vibration.

Here are the main reasons why galvanized non-flanged pipe plug pipe fittings are the best choice for most industrial uses:

Cost Efficiency: Galvanized non-flanged pipe plug pipe fittings usually cost 40 to 60 percent less than stainless steel plugs but work just as well in moderate corrosion environments. When you buy in bulk from well-known companies, unit costs go down even more for big projects.

Installation Speed: The small non-flanged profile makes installation faster than flanged versions, especially in pipe systems with limited room that make it hard to get to the wrench. When projects need a lot of end spots, installation times are often cut by 20 to 30 percent.

Maintenance Accessibility: The hexagonal heads are standard and accept common wrench sizes. This means that maintenance crews can service plugs without having to use special tools. This makes the system easier to reach, which cuts down on downtime during fixes or changes.

Inventory Simplification: Because NPT threading is compatible with many industrial systems in North America, repair teams don't have to keep as many different plugs on hand as they would if those systems used private or regional thread standards.

All of these benefits lower the total cost of ownership while still providing the seal integrity and corrosion resistance needed in industrial settings. This mix of economy and efficiency is good for projects ranging from distributing water in cities to pipes for petrochemical processes.

Procurement Considerations for B2B Buyers

Price for galvanized non-flanged pipe plug pipe fittings changes based on size, paint thickness, and number of units ordered. If you buy less than 100 units, most common plugs cost between $2 and $8 each. If you buy more than 5,000 units, you can save 35 to 50 percent. Lead times range from 3 to 4 weeks for large custom orders to right away for standard sizes that are in stock. Different suppliers have different minimum order amounts. For example, local wholesalers may take orders as low as 25 units, but when you buy directly from a manufacturer, you usually need to buy at least 500 to 1000 units. Check if suppliers have the right certifications (ISO 9001, CE, UL, FM), can scale their production to meet the needs of the project as it grows, and are responsive to technical questions. Long-term procurement costs are affected by payment terms, guarantee coverage, and plans for replacing broken products.

FAQs

How does galvanization prevent corrosion in pipe plugs?

Galvanization protects against rust in two ways: by acting as a shield and by sacrificing itself. Because it is physical, the zinc coating keeps oxygen and moisture from getting to the base iron. More importantly, zinc corrodes faster than iron because it is higher in the galvanic series. It gives up its own protection to protect the metal below, even if damage to the coating leaves the substrate exposed. This cathodic protection keeps working until the zinc runs out, which usually takes 15 to 25 years in modest commercial settings. Hot-dip galvanization makes coatings that are thicker and last longer than electroplating. The metallurgical bonding keeps the coatings from flaking or peeling when they are put under mechanical stress for galvanized non-flanged pipe plug pipe fittings.

Are galvanized non-flanged plugs suitable for high-pressure systems?

Galvanized non-flanged pipe plug pipe fittings with a Class 300 rating can handle working pressures of up to 1000 psi for oil, gas, and water services. They can be used in most high-pressure industrial uses, such as hydraulic systems, high-pressure steam lines, and process pipes. The most important thing is to install it correctly. Making sure the threads connect all the way to the end and using the right amount of force makes sure the tapered threads compress the seal enough. Systems with more than 1000 psi of pressure or fluids that are very corrosive may need special materials like stainless steel. However, standard galvanized malleable iron fittings meet most industrial pressure needs.

What factors determine choosing between flanged and non-flanged plugs?

This choice is usually based on space limitations—galvanized non-flanged pipe plug pipe fittings work better in crowded pipe configurations because their small profile lets components be closer together. Torque needs to be taken into account as well. Flanged heads spread installation forces over bigger areas, which lowers the chance that the head will deform during high-torque installs. Flanged designs are more expensive than non-flanged designs because they use more material and weigh 30–40% more. When both are put correctly, there aren't many differences in performance, so the choice usually comes down to the installation setting, the tools that are available, and the project budget, rather than which design is better in terms of functionality.

Partner with Zhiyuan Malleable Steel for Reliable Industrial Piping Solutions

With 26 years of experience, Zhiyuan Malleable Steel has been making precision-threaded pipe fittings that meet the strict needs of global industrial projects. With support from ISO 9001, CE, UL, and FM standards that check quality at every stage of production, our NPT and BSPT galvanized non-flanged pipe plug pipe fittings provide the corrosion-resistant, high-strength closing performance your systems require. With the ability to handle 30,000 tons per year and more than 1,000 product specifications in stock, we can ship standard items within hours and meet OEM/ODM needs for unique applications. Our hot-dip galvanization process goes above and beyond what the industry requires. Our double-layer packing keeps goods safe while they're shipped around the world, and our promise of defect replacement keeps your project on track. Email our team at q1236800000@gmail.com to talk about your needs with experienced pipe fitting experts who understand how hard it is for you to buy things. Visit zymalleablepipefitting.com to look through our full catalog and ask for competitive bulk pricing from a reputable supplier of galvanized non-flanged pipe plug pipe fittings.

Conclusion

It's important to strike a balance between technical specs, application needs, and buying factors when choosing galvanized non-flanged pipe plug pipe fittings. Because they are resistant to corrosion through hot-dip galvanization, strong enough to be shaped, and able to seal well with tapered threads, these parts are essential for industrial piping systems. Procurement experts can find parts that will last for a long time if they know about size standards, coating qualities, fitting methods, and criteria for evaluating suppliers. Quality pipe plugs from approved makers are the reliable ending places that system integrity requires, whether your project is for fire protection infrastructure, local water distribution, petrochemical processing, or HVAC systems. Spending time on the right supplier selection and background check pays off in lower maintenance costs, longer service life, and fewer interruptions to operations.

References

1. American Society of Mechanical Engineers. (2020). ASME B1.20.1: Pipe Threads, General Purpose (Inch). ASME Standards Committee.
2. ASTM International. (2019). ASTM A197: Standard Specification for Cupola Malleable Iron. ASTM Material Standards.
3. ASTM International. (2021). ASTM A153: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. ASTM Coating Standards.
4. British Standards Institution. (2018). BS 21 / ISO 7-1: Pipe Threads Where Pressure-Tight Joints Are Made on the Threads. BSI Engineering Standards.
5. National Fire Protection Association. (2022). NFPA 13: Standard for the Installation of Sprinkler Systems. NFPA Fire Protection Standards.
6. Manufacturers Standardization Society. (2017). MSS SP-111: Gray Iron and Malleable Iron Unions, NPT Threaded and Socket-Weld. MSS Pipe Fitting Standards.
