Galvanized Non-Flanged Pipe Plug Fittings for Closing Pipe Ends

When you're managing industrial pipelines—whether for fire protection, municipal water supply, or petrochemical operations—the smallest components often carry the heaviest responsibility. Galvanized non-flanged pipe plug pipe fittings serve as the final guardians in your system, sealing pipe ends against leaks, contamination, and pressure loss. These threaded closures, crafted from malleable iron and protected by hot-dipped zinc coatings, deliver the corrosion resistance and mechanical strength that engineers demand. Available in NPT and BSPT thread standards, they provide secure, wrench-tight sealing without the bulk of flanged alternatives, making them essential for tight installations and system terminations across water, gas, and industrial fluid applications.

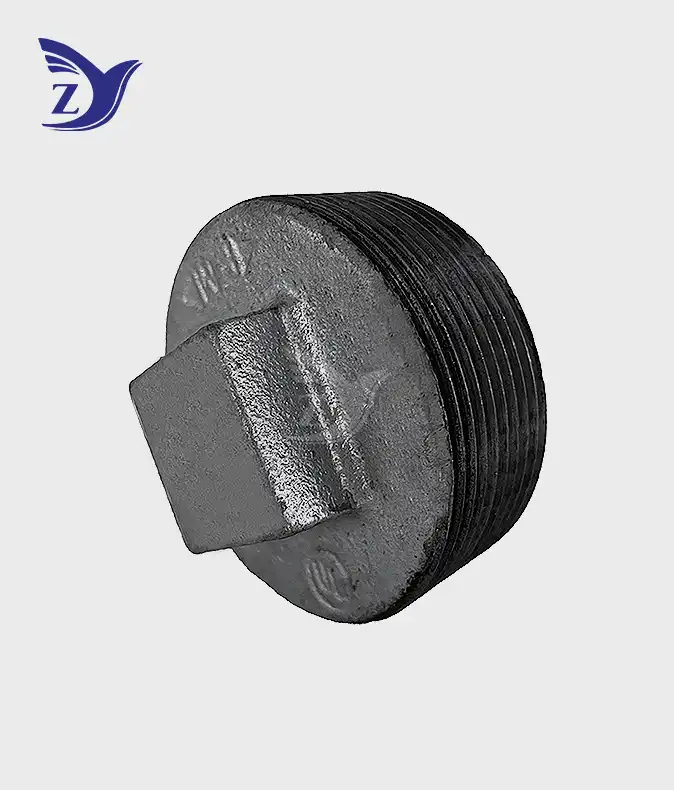

Understanding Galvanized Non-Flanged Pipe Plug Fittings

What Makes These Fittings Essential for Pipeline Systems

Industrial pipe plugs are more than just caps; they are pressure-rated sealing devices that are made to handle practical pressures and keep the structure of the system safe. These fittings are mostly made from moldable cast iron that meets ASTM A197 standards. The weak white cast iron goes through a process that turns it into a flexible, impact-resistant material. The galvanization process, which usually involves a hot-dip zinc coating that is thicker than 500g/m² (about 70–85 microns), makes a barrier that protects the metal below from oxidation, chemical attack, and galvanic corrosion.

The non-flanged design has a small square or hexagonal head that lets the wrench engage directly without the need for extra bolts or gaskets. This profile is slim, which is helpful in tight areas where flanged fittings won't work. The thread geometry follows either NPT (National Pipe Taper with 60-degree flank angle and 3/4-inch taper per foot) or BSPT (British Standard Pipe Taper with 55-degree angle and 1:16 taper ratio) standards. This makes sure that it works with the right female threads and creates metal-to-metal wedging that tightens when pressure is applied for galvanized non-flanged pipe plug pipe fittings.

Material Composition and Corrosion Protection

The base material, blackheart or whiteheart malleable iron, has a tensile strength of about 35,000 to 50,000 psi and can stretch to absorb shock and pressure without breaking. Different types of carbon steel (ASTM A105) are used in higher-pressure situations and can handle working pressures ranging from Class 150 (300 psi) to Class 300 (1000 psi), depending on the wall thickness and core design.

These parts are different from white or black iron ones because they are hot-dipped galvanized. In the coating process, cleaned fittings are submerged in molten zinc at a temperature of about 840°F. This forms a layer that is metallurgically attached to the base and doesn't just stick to the surface. This anodic protection means that the zinc coating gives up its own protection to protect the exposed iron. This makes the system last longer in places like outdoor installations, high-humidity areas, and chemically aggressive areas where rust would normally destroy it within months.

Size Ranges and Industry Standards

Nominal pipe size (NPS) numbers range from 1/8 inch to 6 inches, which is the standard size range for most industrial, commercial, and municipal pipeline applications. Thread engagement depth varies by size, with 5-7 threads for smaller sizes and 8–10 threads for bigger fittings. This contact area is enough to make sure a leak-proof seal when torqued correctly.

Compliance approvals are very important for buying things. ISO 9001 quality management certification makes sure that production processes are always the same, and UL (Underwriters Laboratories) and FM (Factory Mutual) approvals show that the products work well in fire safety situations. When something has a CE mark on it, it means that it meets European safety standards for export markets. These certificates cover the rules that building companies, city governments, and factories must follow during inspections and when they are first put into use.

Comparing Galvanized Non-Flanged Pipe Plug Fittings With Alternatives

Material Performance: Galvanized vs. Stainless Steel

When performance needs and budget concerns come together, it's important to understand the material choices. Galvanized non-flanged pipe plug pipe fittings are a lot cheaper than stainless steel plugs of the same size. They are resistant to rust and can be used in most industrial settings. There is enough protection from atmospheric wetness, chemical exposure, and temperature changes between -20°C and 120°C from the zinc covering.

Stainless steel alternatives, usually 304 or 316 grades, are more resistant to corrosion in harsh environments like chemical plants, marine installations, or places where acidic fluids are used. However, this better performance comes with much higher material costs and possibly longer lead times. With stainless fittings, you don't have to worry about the zinc coating wearing off in steam applications with temperatures above 120°C, which can happen with galvanized coatings.

Flanged vs. Non-Flanged Design Considerations

The differences in structure between flanged and non-flanged pipe plugs are not just cosmetic; they also affect how quickly they are installed, how much space they need, and how easy they are to maintain. Flanged plugs have a bigger collar or shoulder that spreads pressure over a larger surface area. This makes it less likely that stress will build up when the plug is tightened. This design keeps the wrench from damaging the fitting body and makes it easier to take off for upkeep, especially after years of use when rust could seize the threads.

Non-flanged plugs don't need this extra material, so they are lighter, cost less to make, and don't stick out too far from the pipe end. This narrow shape is often needed for installation in small spaces, like behind equipment, in wall cavities, or in pipe racks that are very close together. The hexagonal shape of the head gives it enough grip for standard wrenches while keeping a low profile that won't get in the way of other parts. When maintenance workers need to get to something often, they often choose flanged designs because the shoulder keeps them from over-torquing and damaging the threads.

Procurement Insights: Buying Galvanized Non-Flanged Pipe Plugs for Business

Evaluating Manufacturers and Supplier Credentials

The choice of supplier determines whether your purchase is useful or causes you constant trouble. Manufacturers that have been in business for a long time, like those that have been making things since the early 2000s, have built up a lot of market knowledge and skills in areas like metalworking, threading, and coating for galvanized non-flanged pipe plug pipe fittings. Production capacity is very important for big projects; factories that make more than 30,000 tons of goods a year keep a lot of inventory on hand so they can deliver quickly without sacrificing quality by making things too quickly.

Professional suppliers are different from distributors because they have access to technical staff. When manufacturers hire specialized engineers (ideally 30 or more technical staff), they can answer questions about specifications, give advice on how to use products, and help with unique solutions when standard products don't perfectly meet project needs. Checking quality control systems is important; find out about how they are tested, how often they are inspected, and how common defects are. ISO 9001 certification is a good start for quality assurance, but you should also ask about other steps that are taken, such as checking the thread gauge, testing the coating thickness, and following pressure testing protocols.

Bulk Purchasing Strategies and Cost Optimization

When you buy in bulk, you can save a lot of money in addition to just getting lower prices per unit. Manufacturers usually set different prices for different order sizes. For example, orders of 1,000 units or more get a 5–15% discount, and orders of 5,000 and 10,000 units get even bigger discounts. But the best way to buy things is to weigh the up-front costs against the costs of keeping goods, the space needed for storage, and the amount of capital that is tied up in stock.

When you compare the costs of galvanized malleable iron to other products, you can see that it is much cheaper. Stainless steel plugs that work just as well as galvanized plugs usually cost 150 to 200% more. By being honest about how the service is actually working, you can avoid over-specification that wastes money and time without delivering the right benefits. Negotiation leverage increases when buyers show that they know what's going on in the manufacturing world. Lead times for regular goods from sources with a lot of stock are usually only a few days.

Logistics and After-Sales Support Considerations

Buying things internationally is more complicated than buying things in your own country. Reliable sellers take care of export paperwork like business bills, packing lists, certificates of origin, and material certifications, which makes sure that customs clearance goes smoothly. Standards for packaging keep things from getting damaged during shipping and handling. For example, double-layer corrugated cartons with internal separators keep threaded surfaces and galvanized coatings from wearing down. Shipping items on pallets with shrink wrap and moisture barrier bags protects them from rusting caused by salt air during ocean shipping.

Quality of after-sales help isn't always clear until there are problems. Manufacturers who are responsive to defect claims quickly send out replacement products without having to go through a lot of red tape. Buyers don't lose money because of nonconforming goods when there are clear return policies and guarantee terms. Usually, the warranty covers manufacturing defects instead of installation mistakes or wrong application. Technical support via email and phone helps with questions about installation, fixing problems, and choosing the right product.

Advantages of Galvanized Pipe Fittings in Industrial Applications

Superior Corrosion Resistance in Harsh Environments

Exposure to the environment tests claims of corrosion protection in ways that can't be done in a lab. Outdoor installations are subject to changes in temperature, rain, UV rays, and air pollutants that weaken metals that aren't protected. Hot-dipped galvanized coats can handle these problems because they have electrical protection. The zinc layer corrodes more slowly than the iron underneath, and in normal weather conditions, they usually last more than 25 to 50 years before they need to be replaced.

Chemical resistance changes depending on the substances that are used for galvanized non-flanged pipe plug pipe fittings. These fittings work well in neutral pH environments and can handle some mild alkaline solutions. However, the coating breaks down faster when they are constantly exposed to acids (pH below 6) or highly alkaline substances (pH above 12.5). Zinc coats will last forever in water systems with neutral to slightly alkaline chemistry, but acidic vapor in steam systems or industrial exhaust environments may need to be inspected more often and replaced earlier.

High-Pressure Performance and Operational Safety

Pressure ratings show what kinds of uses are possible and what the safety margins are. At room temperature, standard Class 150 galvanized pipe plugs can safely hold up to 300 psi of water, oil, and gas service. This is enough for municipal water distribution (usually 60 to 80 psi), building HVAC systems (usually 125 to 150 psi), and fire protection networks (often designed around 175 psi). Working pressures of up to 1,000 psi can be handled by Class 300 variants, which are used in high-pressure industrial processes, hydraulic systems, and other specific situations.

Through a unique sealing system, the threaded taper form helps the ability to handle pressure. When the pressure inside the valve goes up, it pushes the male taper into the female threads more tightly. This makes the seal stronger instead of letting air leak out. This ability to self-tighten adds a level of safety that isn't present in mechanical seals that only use gaskets or O-rings, which can come apart under pressure. Operational safety extends beyond pressure containment to include failure mode considerations.

Strategic Procurement Benefits and Sustainability

Lifecycle cost analysis shows benefits that go beyond the price of the initial purchase. Cheaper choices that need to be replaced every 5–10 years cost a lot more over the life of a building than galvanized plugs that need to be replaced every 25–30 years. Accessing confined installations, draining systems, and making repairs all require more maintenance labor than the materials themselves. This makes durability an important economic factor.

In businesses with continuous processes, where production stops cost thousands of dollars an hour, buying choices are based on minimizing downtime. Unplanned maintenance events that stop operations are less likely to happen when parts are reliable. Stocking widely used sizes lets you fix things quickly without having to wait for emergency deliveries. As businesses try to be more environmentally friendly, sustainability issues become more important. These goals can be met with galvanized fittings because they last longer, which means they don't need to be replaced as often and create less waste.

Conclusion

The corrosion resistance, pressure capability, and cost effectiveness that industrial, municipal, and commercial pipeline systems require are provided by galvanized non-flanged pipe plug pipe fittings. Their construction is made of malleable iron, which can withstand mechanical stress. Hot-dipped zinc coatings protect them from environmental damage over many years of use. NPT and BSPT threading options make sure that they can be used with current infrastructure. Smaller, non-flanged designs work well in setups where room is limited and bulkier choices wouldn't fit. Focusing on certified makers with proven production capacity, expert support, and quality management systems is the best way to maximize value while minimizing supply chain risks. These basic parts work reliably to protect system security and keep operations going.

FAQs

What distinguishes flanged from non-flanged pipe plugs?

Plugs that don't have flanges have small hexagonal heads that are meant to fit directly into the pipe end with a key. Wider shoulders on flanged versions spread out torque, keep damage from happening from overtightening, and make removal easier for maintenance. For installations with limited space or permanent closures, choose non-flanged designs. For frequent access or maximum wrench leverage, choose flanged designs.

Can galvanized plugs handle high-pressure applications?

Class 150 galvanized plugs can easily hold up to 300 psi of pressure and are good for fire safety, building HVAC, and public water systems. For industrial processes, Class 300 variants can handle working pressures of up to 1,000 psi. The curved thread design makes seals that get stronger when pressure is applied. Always make sure that the pressure ratings are correct for the job and include the right safety margins as required by engineering standards.

How do I ensure compliance with industry standards?

Ask for proof that the company is certified to ISO 9001 standards for quality and has UL and FM approvals for fire safety uses. Get mill test reports that confirm the composition and mechanical properties of the material. European regulations are met by CE marking and related Declaration of Conformity papers. Keep all of the certificates in the project files so that the inspector can look them over and reference them later when the building is changed or expanded.

Partner With Zhiyuan Malleable Steel for Reliable Pipeline Solutions

Quality pipeline parts are the building blocks of systems that work reliably for decades of tough use. Every galvanized non-flanged pipe plug pipe fitting that Zhiyuan Malleable Steel makes at our 50,000-square-meter factory in Shanxi Province comes from 26 years of casting and manufacturing excellence. Our 30,000-ton annual production capacity means we always have enough stock for quick delivery—standard goods ship within 48 hours—and our 38-person technical team can help you with application advice and create custom OEM solutions that meet your exact needs.

Our galvanized non-flanged pipe plug pipe fittings are ISO 9001-certified, and we keep a close eye on quality. Every fitting meets the requirements for UL, FM, and CE certification, which are global regulatory standards. Our hot-dipped galvanization process gives your investment a coating that is thicker than the industry standard. This protects it from corrosion in harsh environments. We are a reliable company that makes fittings for fire protection companies, government agencies, and industrial facilities all over the world. Email our team at q1236800000@gmail.com to talk about your needs, get technical specs, or get prices for large orders for your next pipeline project.

References

American Society of Mechanical Engineers. (2020). ASME B1.20.1: Pipe Threads, General Purpose (Inch). New York: ASME Press.

ASTM International. (2019). ASTM A197: Standard Specification for Cupola Malleable Iron. West Conshohocken: ASTM International.

British Standards Institution. (2018). BS 21: Specification for Pipe Threads for Tubes and Fittings Where Pressure-Tight Joints Are Made on the Threads. London: BSI Standards.

National Fire Protection Association. (2021). NFPA 13: Standard for the Installation of Sprinkler Systems. Quincy: NFPA Publications.

Underwriters Laboratories. (2017). UL 197: Standard for Commercial Electric Heating Equipment. Northbrook: UL Standards.

Zinc Council International. (2016). Hot-Dip Galvanizing for Corrosion Protection of Steel Products. Durham: Zinc Council Publications.
