Galvanized Male Nipple Pipe Fittings Applications in Plumbing Systems

Modern plumbing infrastructure relies on reliable threaded connectors to link pipes, valves and pipeline equipment across water supply, gas delivery, HVAC and fire suppression networks. This article systematically introduces product specifications, practical usage scenarios, purchasing standards and supplier selection advice for galvanized male nipple pipe fittings, supporting contractors, engineering companies and pipeline distributors to make reasonable product selections for all kinds of construction projects.

Definition, Raw Materials and Technical Standards of Pipeline Thread Connectors

To correctly select pipeline straight connectors for plumbing construction, users first need to understand structural design, manufacturing materials and unified global thread specifications. All parameter indicators directly determine the sealing effect and long-term service stability of pipeline connecting parts.

Structural Composition and Hot-Dip Galvanized Anti-Corrosion Layer Design

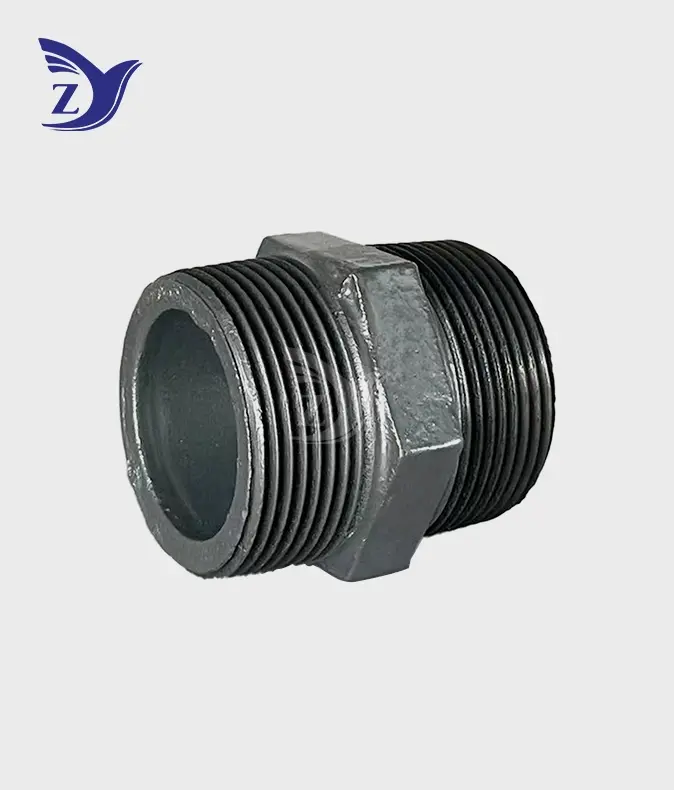

This straight pipe connector features external threads on both ends. Installers connect two female-threaded pipe sections in a straight pipeline layout with this component. The surface protective zinc layer is formed through hot-dip galvanizing technology.

The zinc coating thickness ranges from 70 to 85 microns for standard industrial versions. The metal metallurgical bonding mode effectively blocks oxygen, moisture and weak chemical substances from eroding the base metal inside the fitting. Even if scratches appear during transportation and installation, the zinc layer will corrode first to protect internal metal substrates.

Galvanized male nipple pipe fittings adopt this mature anti-rust coating process to adapt to humid underground and outdoor pipeline environments.

Two Main Industrial Manufacturing Base Materials

Manufacturers use two mainstream metal raw materials to produce industrial threaded straight connectors. The first material is ASTM A53 Grade B carbon steel, with tensile strength exceeding 300 MPa to resist pipeline pressure and external impact force.

The second common raw material is ASTM A197 standard malleable iron. This material has stronger ductility. It can avoid brittle fracture caused by thermal expansion and cold contraction of pipelines in seasonal temperature changes.

All raw material blanks need surface cleaning and flux treatment before galvanizing. Clean workpieces are soaked in molten zinc liquid at about 840°F to form a stable zinc-iron alloy interlayer. This complete production process ensures the overall quality of galvanized male nipple pipe fittings.

NPT and BSPT Two Global Taper Thread Specifications

Tapered threads are the core design to realize pressure-resistant self-sealing of pipeline connectors. Two sets of mainstream thread standards are widely used in global construction markets.

NPT threads comply with ASME B1.20.1 American standard, with a 60-degree thread angle and a taper of 0.75 inches per foot. After full tightening, the thread surfaces squeeze each other to form a wedge-shaped sealed structure without relying on thick auxiliary gaskets.

BSPT threads follow ISO 7-1 British standard, adopting 55-degree Whitworth tooth shape and 1:16 taper ratio. This specification matches European, Middle Eastern and Southeast Asian pipeline engineering standards.

Engineers must confirm the thread standard of construction pipelines in advance. Wrong thread matching will lead to pipeline leakage and hidden safety hazards for galvanized male nipple pipe fittings.

Schedule 40 and Schedule 80 Wall Thickness Pressure Classification

Different fluid delivery pressures require different pipe wall thickness designs for threaded straight connectors. Factories divide finished products into two pressure-resistant grades for market supply.

Schedule 40 products have standard wall thickness and bear a maximum stable working pressure of 150 PSI. They are suitable for conventional domestic water supply, ordinary chilled water HVAC pipelines and low-pressure gas pipelines.

Schedule 80 products adopt thickened extra-heavy walls. Under matching temperature conditions, the safe working pressure can reach up to 2,000 PSI. This specification is the preferred choice for high-pressure fire main pipelines and industrial compressed air pipelines.

Strict precision threading control ensures the dimensional error is controlled within ±0.003 inches, which is a key prerequisite for galvanized male nipple pipe fittings to achieve leak-free assembly.

Competitive Advantages and Multi-Scenario Plumbing Application Cases

After mastering the basic technical parameters of threaded straight connectors, we further analyze their unique engineering advantages compared with other pipe fittings. Combined with real construction cases, this chapter sorts out four core application fields of plumbing systems.

Comprehensive Performance Advantages Compared With Uncoated and Stainless Steel Fittings

Hot-dip zinc coating brings long-term anti-corrosion performance to threaded straight connectors. The salt spray test under ASTM B117 standard proves the product can resist red rust for more than 500 hours.

In terms of procurement cost, the purchase price of this galvanized series connector is 40% lower than stainless steel pipe nipples with the same specification. It can meet most non-strong corrosive pipeline working conditions.

Daily construction tools can complete installation work. Workers only need standard adjustable wrenches without special threading equipment, effectively reducing on-site labor costs of engineering projects.

From the perspective of comprehensive cost performance, galvanized male nipple pipe fittings are the most cost-effective threaded connecting solution for medium and large plumbing projects.

Long-Term Stable Matching for Commercial Fire Sprinkler Pipeline Networks

Fire protection systems put forward ultra-high requirements for the long-term sealing performance of pipe connectors. Pipeline accessories need to maintain zero leakage for decades without frequent disassembly and maintenance.

A commercial office complex in Texas selected Schedule 40 NPT threaded straight connectors for all sprinkler branch pipes and horizontal main pipelines. After 18 years of continuous operation, the overall pressure test of the system showed no pipeline leakage points.

The bidirectional external thread structure supports rapid disassembly and replacement of valves. During tenant interior renovation, construction teams do not need to cut off a large range of fire water supply pipelines.

This stable long-service-life characteristic makes galvanized male nipple pipe fittings the designated standard accessory for large commercial fire protection projects.

Anti-Vibration Performance for Municipal Urban Water Distribution Pipelines

Municipal water supply trunk lines often generate water hammer vibration when the water flow is suddenly switched on and off. Ordinary pipe connectors are easy to loosen under long-term vibration impact.

A municipal water company in the Midwest of the United States carried out the renewal project of aging water delivery pipelines. The construction team chose reducing straight connectors to connect 6-inch main pipelines and 2-inch household branch pipelines.

Five years after the project was put into use, the coating inspection of pipeline connectors showed only 12% loss of the zinc protective layer. Engineers predict the pipeline system can run safely for about 40 years before large-scale replacement.

The self-locking sealing formed by tapered threads effectively resists vibration loosening, which is the core reason why municipal water projects widely select galvanized male nipple pipe fittings.

Integrated Connection for Factory HVAC and Natural Gas Mixed Pipelines

Large industrial manufacturing plants lay multiple types of fluid pipelines at the same time, including compressed air, natural gas and refrigerated water circulation pipelines.

A 50,000-square-meter production factory uniformly adopted NPT standard threaded straight connectors for all pipeline areas. Unified thread specifications simplify the inventory management of maintenance spare parts for factory technicians.

The double external thread design eliminates the need for additional pipe unions in straight pipeline sections. The total number of pipeline accessories of the project was reduced by 30%, and the overall installation labor time was saved by 25 hours.

Unified standard accessories reduce the maintenance difficulty of mixed media pipelines, so galvanized male nipple pipe fittings are widely promoted in integrated industrial pipeline construction.

Supporting Matching Rules With Other Pipeline Auxiliary Components

Reasonable matching of auxiliary pipe fittings can further extend the overall service life of the pipeline system and avoid additional corrosion risks caused by different metal contact.

Install dielectric isolation joints between threaded straight connectors and copper water pipes. This accessory blocks galvanic corrosion between dissimilar metals caused by water conduction.

Try to purchase elbows, tees and other branch pipe fittings from the same galvanizing batch. The consistent zinc coating thickness keeps the electrochemical potential balance of the whole pipeline.

Procuring complete supporting pipeline accessories from one manufacturer can unify quality standards and simplify subsequent after-sales warranty procedures of galvanized male nipple pipe fittings.

Complete Procurement Standard and Customized Manufacturing Solution Guide

After confirming the applicable pipeline scenarios of threaded straight connectors, B2B purchasers need a standardized supplier screening and order negotiation process. This chapter sorts out supplier qualification assessment standards, OEM customized production rules and bulk order preferential policies.

Core Qualification Standards for Screening Qualified Pipe Fitting Manufacturers

Formal manufacturers must have complete standardized quality management and third-party international certification documents. Buyers need to focus on four key qualification indicators during supplier inspection.

First, the factory needs to pass ISO 9001 quality system certification. Second, export engineering orders require UL, FM or CE certification marks to meet the acceptance standards of overseas construction departments.

Each batch of products must be attached with material test certificates that comply with EN 10204 3.1 specifications. The documents record raw material composition, tensile strength and actual zinc coating thickness of each batch of products.

Stable production capacity and sufficient spot inventory are also important screening indicators. Manufacturers with an annual output of 30,000 tons and more than 1,000 product models can deliver standard products within 2 hours for urgent construction orders.

Complete certification documents and sufficient spot supply capacity are important reference conditions for buyers to choose stable suppliers of galvanized male nipple pipe fittings.

ODM and OEM Customized Service for Special Non-Standard Pipeline Projects

Special projects such as pharmaceutical workshops, chemical small-batch fluid delivery and customized equipment supporting pipelines cannot directly use standard-size threaded straight connectors.

Professional manufacturers provide flexible customized transformation services, including adjusting thread length, thickening pipe wall thickness, changing zinc coating thickness and producing reducing connectors with different inlet and outlet calibers.

In a pharmaceutical factory pipeline renovation project, customized reducing straight connectors replaced three separate standard pipe fittings at the same time, directly cutting the overall pipeline installation time in half.

Rich customized production capacity can solve the pipeline connection problems of special working conditions, which is an important added value service of manufacturers supplying galvanized male nipple pipe fittings.

Bulk Order Discount Rules and Standard Custom Product Delivery Cycles

Enterprises with long-term large-scale pipeline construction demands can obtain tiered volume discounts by signing bulk purchase orders. Orders with a total quantity exceeding 10,000 pieces can enjoy a price reduction range of 8% to 15%.

The delivery cycle of standard spot products is controlled within 1 to 3 working days. Customized products need mold opening, sample trial production and full batch quality inspection, and the whole cycle takes 4 to 6 weeks.

Construction group customers can sign long-term framework cooperation agreements with manufacturers. The agreement reserves fixed production capacity during the peak construction season to avoid order delivery delays.

Clear preferential pricing and delivery cycle clauses help purchasers reasonably control the overall project procurement cost of galvanized male nipple pipe fittings.

Conclusion

Threaded straight connectors with hot-dip zinc coating balance service performance, procurement cost and cross-standard compatibility, and can adapt to almost all mainstream water, gas and fire protection pipeline systems.

The dual NPT and BSPT thread specifications realize seamless docking with domestic and foreign old and new pipeline infrastructure. Under regular maintenance, qualified products can maintain stable operation for more than 20 years.

During procurement, purchasers should give priority to manufacturers with complete international certification, independent customized production capacity and transparent batch inspection documents. Scientific product selection can effectively reduce the long-term operation and maintenance cost of the whole pipeline project.

Comprehensive anti-corrosion performance, standardized thread design and cost advantages make galvanized male nipple pipe fittings a universal core connecting component in global plumbing engineering.

FAQ

Q1: Can NPT and BSPT threaded connectors be mixed and installed in one pipeline system?

A1: Mixed installation is strictly prohibited. NPT adopts a 60-degree thread angle, while BSPT is a 55-degree tooth shape. Mismatched threads cannot form complete contact sealing, and hidden spiral leakage gaps will appear on the joint surface. If the project involves mixed standard old pipelines, buyers need to purchase special thread adapter fittings for transition connection.

Q2: Why hot-dip galvanized products are better than electro-galvanized versions for industrial plumbing?

A2: The hot-dip process forms a zinc alloy layer of 50 to 85 microns on the metal surface. The coating thickness of electro-galvanizing is less than 10 microns, which only provides superficial decorative protection. Salt spray comparison tests show that hot-dip products have 5 to 8 times stronger anti-corrosion ability and meet the strict safety certification standards of UL and FM.

Q3: What sealing medium is suitable for the thread joint of this galvanized pipe connector?

A3: High-density PTFE sealing tape can withstand high temperatures up to 500°F, and no chemical reaction will occur with the surface zinc layer. Anaerobic air-curing sealant is suitable for high-pressure pipeline thread gaps. For drinking water pipelines, only hemp paste with NSF-61 health certification can be used to avoid hidden dangers of water quality pollution.

Source Certified Pipeline Connectors From Zhiyuan Malleable Steel Factory

If your project needs long-life, fully certified threaded straight connectors for fire protection, municipal water supply or factory HVAC pipelines, choose Zhiyuan Malleable Steel as your stable long-term supplier.

Our factory has 26 years of casting and pipe fitting production experience, with an annual output of 30,000 tons of galvanized pipeline connectors. All products comply with ASTM A153 hot-dip galvanizing standard, and each batch has complete CE, UL and FM international certification files.

The warehouse stores more than 1,000 different product models, and the spot order delivery can be completed within 2 hours after receiving the customer's notice. The Taigu production base is equipped with eight medium-frequency electric melting furnaces, and 38 professional engineers supervise all production and quality inspection links.

The factory provides complete ISO 9001 batch test reports for all orders, and promises free replacement of all defective products to ensure your project construction progress will not be delayed. We support full ODM and OEM customized production of special-size connectors.

No matter you are a regional pipeline wholesale distributor with bulk purchasing demands or an engineering enterprise needing customized reducing connectors for factory renovation, send your project drawings and parameter demands to our sales mailbox q1236800000@gmail.com.

Log on to the official website zymalleablepipefitting.com to browse the complete product specification data sheet. Submit your demand information to obtain a free professional quotation within 24 hours. We provide one-stop stable supply service of galvanized male nipple pipe fittings for global plumbing customers.
