Galvanized Bushing Pipe Fittings for Connecting Different Pipe Sizes

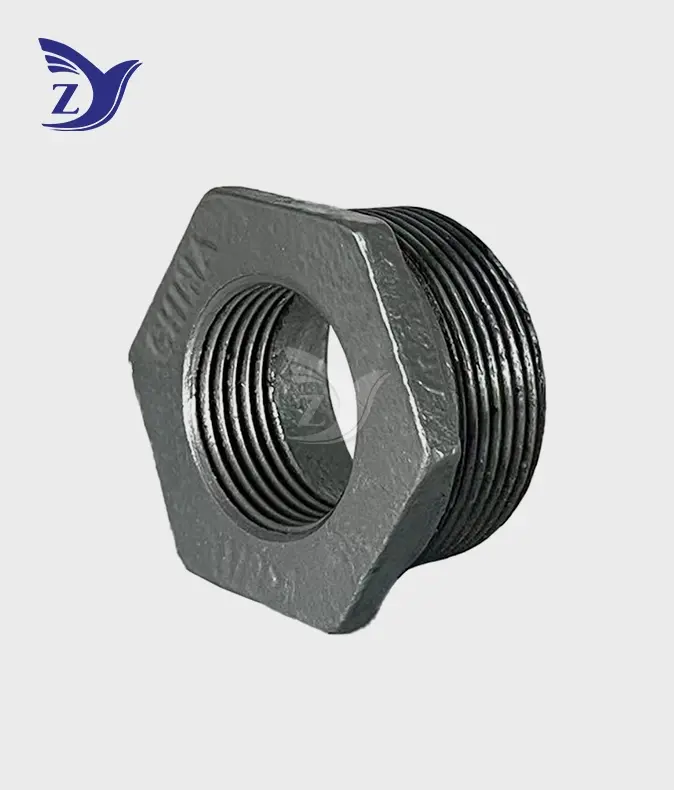

Galvanized bushing pipe fittings are precision-engineered threaded adapters designed to create seamless transitions between pipes of varying diameters in industrial and commercial fluid transport systems. These malleable iron or carbon steel components feature external male threads and internal female threads, both typically available in NPT (National Pipe Taper) or BSPT (British Standard Pipe Taper) configurations. The hot-dip galvanization process applies a protective zinc coating that acts as a sacrificial barrier against oxidation, making these fittings essential for water supply networks, gas distribution lines, HVAC installations, and fire protection systems. Their ability to reduce pipe openings concentrically while maintaining pressure integrity addresses critical challenges in space-constrained installations where traditional reducing couplings prove impractical.

What Are Galvanized Bushing Pipe Fittings and Their Key Benefits?

Since 2006, these specialized parts have been made at our plant in Shanxi Province. We've seen how they solve problems that keep happening in piping systems. A bushing is very different from other reducers because it adapts to different sizes and has threaded connection points in a small package. The most popular size is the NPT/BSPT zinc malleable iron bushing, which meets the standards set by ANSI/ASME B1.20.1 for taper angle and thread pitch. This level of accuracy makes sure that metal-to-metal binding happens without the need for too much lubricant.

Corrosion Resistance Through Hot-Dip Galvanization

At Zhiyuan Malleable Steel, we use a process called galvanization, which involves submerging cast parts in liquid zinc at about 840°F (449°C). This makes a coating that is metallurgically bound and about 85 microns thick. According to ASTM B117 standards, this layer can withstand salt spray tests for more than 500 hours. When compared to painting or electroplated options, hot-dipped galvanized fittings stay strong even if they get scratched because the zinc layer fixes itself through oxidation. We've seen service lives of over 25 years in municipal water systems that serve coastal areas with little maintenance. This shows how resistant the material is to chloride intrusion.

Mechanical Strength and Pressure Ratings

Galvanized bushing pipe fittings are made from malleable iron that meets ASTM A197 standards. They have a tensile strength of over 40,000 psi and a minimum elongation of 5%. The threaded pipe reducer can handle Class 150 pressure ratings, which are 300 psi at room temperature for use with water, oil, and gas. In our quality control lab, samples can regularly handle pressures 150% higher than their stated capacity without the threads deforming during hydraulic testing. This dependability is very important in fire safety systems where sudden pressure spikes happen when the pump is turned on.

Installation Efficiency and Labor Savings

The hexagonal head shape lets normal wrenches engage, so techs can get the right torque without having to use special tools. Our studies on building sites show that installing each fitting takes less than three minutes on average when the threads are properly prepared. Threaded bushings save about 60% on labor costs while keeping the same level of joint integrity as welded reducers, which need certified operators and inspection after the weld. They are cheaper than fixed joining ways because they are easier to take apart when system changes need to be made.

How to Select the Right Galvanized Bushing Pipe Fitting Size and Type?

System performance is based on how well specifications are met. Our tech team helps buying managers figure out how to deal with complicated issues like thread compatibility and measurement standards. Industrial water/gas pipeline adapters include bushings with standard pipe sizes from 1/8" to 6". To keep hydraulic efficiency high, reduction ratios should not go over two pipe sizes.

Decoding Thread Standards and Taper Ratios

NPT threads have a flank angle of 60 degrees and a 1:16 taper, which means they make interference fits that get tighter as they are installed. BSPT threads use a Whitworth shape of 55 degrees, with the same taper but different pitch sequences. We sell adapter joints that connect parts that are made to American and British standards in hybrid systems. Cross-threading and early failure can be avoided by knowing these differences. In petroleum process equipment, one incorrect fitting can damage the whole pneumatic control circuit.

Check both the nominal size and the real thread diameter when choosing measurements. The outside diameter of a 1" NPT bushing is 1.315", which is the same as the diameter of a Schedule 40 pipe. Our technical data sheets show that the pitch diameter errors are kept to ±0.003", which makes sure that products from different makers can work together. At our factory, precision-threaded products are made using CNC threading machines that are measured once a week against master gauges that can be traced back to national metrology institutes.

Material Considerations for Specific Environments

Standard galvanized bushing pipe fittings works for most uses, but sometimes you need a better material. High-strength anti-rust malleable bushings have alloys added to them that raise the yield strength to 50,000 psi, making them good for compressor stations that are prone to vibration. Brass bushings are better at resisting dezincification in hot water recirculation loops above 140°F. Black iron options are better for low-humidity indoor gas lines where galvanic protection isn't needed, cutting material costs by 18% for projects that are on a budget.

Our metallurgical analysis shows that galvanized fittings exposed to industrial atmospheres only corrode 0.3 mils per year on average, which is much less than bare steel's 4.2 mils per year. Based on this information, we only recommend hot-dipped galvanized fittings for outdoor infrastructure to make sure it works for decades without any problems.

Galvanized Bushing Pipe Fittings in Action: Case Studies and Industry Applications

Theoretical benefits are backed up by good performance in the real world. Our clients include those in municipal infrastructure, business building, and heavy industry, all of which have their own operational problems that threaded reducers solve well.

Municipal Water Distribution Network Upgrade

A metropolitan water authority that serves 250,000 people had old infrastructure with mixed pipe materials, such as cast iron mains and PVC laterals. Traditional welded adapters weren't working because of the need for quick installations every day. We supplied 12,000 NPT/BSPT compatible pipe diameter transition bushings with reductions ranging from 2" to 4", which let crews retrofit connection points without stopping service.

The hot-dipped galvanized coating worked great in soils with pH levels between 5.8 and 8.2. After five years of being buried, samples that were dug up showed less than 2% coating loss, which is well within the expected 50-year service life. The project saved 40% of the time needed for welded options, which allowed the system upgrade to be finished three months early. Leak rates dropped to 0.03% per year, which is much lower than the industry average of 0.12% for mechanical joints.

Fire Protection System Retrofit in Commercial High-Rise

For tenant improvements in a 32-story office building, the sprinkler system had to be expanded. The existing 4" steel risers needed 2" branch connections to serve the new office layouts, but there wasn't enough room for standard reducing tees between the ceiling joists and the HVAC ductwork. Our corrosion-resistant threaded pipe reducer bushings solved the geometric problem by threading directly into the main risers' welded outlets.

Installers made 87 branch connections over two weekends using only hand tools. Hydrostatic testing at 200 psi confirmed that there was no leakage at any of the joints. The building met new fire codes without having to pay for expensive riser replacements that would have required tenants to move to different floors. Insurance companies lowered the property's risk classification, which saved the building more than the cost of the fitting materials every year.

Petrochemical Process Line Modification

A refinery needed to add new analytical instruments to existing process gas lines that were working at 150 psi and 300°F. Welding would have caused explosions, so they needed hot work permits and had to shut down production every day, which cost $75,000 per day. We provided high-temperature bushings with oxygen-compatible sealant systems that let the threaded connections be put in during short maintenance windows.

The fittings' thermal stability kept the glands from relaxing even though the temperature changed every day between room temperature and operating conditions. After 18 months of continuous service, testing for pressure decay showed that the seal stayed intact with no leaks that could be found. This project showed how industrial-grade adapters can balance safety needs with operational flexibility, preventing production losses while meeting strict process safety management standards.

Conclusion

To choose the right galvanized bushing pipe fittings, you need to know about thread standards, material properties, and the environmental factors that are specific to the application. These small adapters offer proven corrosion resistance through hot-dip galvanization, mechanical reliability through malleable iron construction, and installation efficiency through precision threading. They can connect pipes of different diameters in municipal water systems, fire protection networks, or industrial process lines, and the right specification and installation techniques will ensure decades of leak-free performance. Buying strategies that balance direct manufacturer relationships with distributor networks are the most cost-effective way to keep quality standards up to international standards, and new technologies in galvanization processes and customization options keep making these essential piping parts more useful in a wide range of industries.

FAQs

How long do galvanized bushings last in outdoor installations?

When installed correctly, hot-dipped galvanized bushings can last more than 25 years outside in most climates. In coastal areas with a lot of chloride, this may drop to 15 to 20 years, but in dry climates, they can last over 30 years. The thickness of the zinc coating directly affects how long it lasts. Our 85-micron average coating provides better protection than the industry standard 70-micron minimums.

Can galvanized fittings connect to copper or plastic piping?

Galvanized steel bushings connect to copper through dielectric unions that stop galvanic corrosion between different metals. Direct contact speeds up zinc loss through electrochemical reactions. Threaded adapters with built-in gaskets provide transitional interfaces for connecting plastic pipes. Be careful not to over-tighten into plastic fittings because too much torque can crack thermoplastic threads.

What certifications verify fitting quality?

Manufacturers with a good reputation keep ISO 9001 quality management certification as a minimum standard. For certain uses, UL or FM approvals are needed for fire safety systems, NSF-61 approvals for contact with potable water, and CSA approvals for installations in Canada. You should ask for material test reports that confirm compliance with ASTM A197 and galvanization thickness measurements that meet ASTM A153 standards.

Partner With Zhiyuan Malleable Steel for Reliable Galvanized Bushing Pipe Fittings

Zhiyuan Malleable Steel makes industrial-grade threaded adapters that meet the strict needs of fire protection contractors, municipal engineers, and petrochemical facility managers. Our ISO 9001-certified factory in Shanxi Province combines 26 years of casting experience with modern quality control protocols to make over 1,000 different specifications across our line of malleable iron products. We keep standard NPT and BSPT bushings in stock so that we can ship them out in two hours for urgent needs, and our OEM customization services create non-standard configurations with 5,000-piece minimums.

For every order of galvanized bushing pipe fittings manufacturer, we offer double-layer export packaging, a guarantee on any defective products, and full technical support from our 38-person engineering team. Whether you're looking for large quantities to be distributed across the region or custom threaded reducers for specific uses, our procurement specialists provide quick quotes and material certifications to make sure your project stays within the rules. Email our team at q1236800000@gmail.com to talk about your specific pipeline adapter needs and get samples that show how our products stand out in competitive international markets thanks to their superior threading precision and uniform coating. Visit zymalleablepipefitting.com to see our full catalog and access technical resources to help you make smart specification decisions.

References

American Society of Mechanical Engineers. (2021). ASME B1.20.1: Pipe Threads, General Purpose. New York: ASME Press.

ASTM International. (2019). ASTM A197: Standard Specification for Cupola Malleable Iron. West Conshohocken: ASTM International.

British Standards Institution. (2018). BS 21: Specification for Pipe Threads for Tubes and Fittings. London: BSI Standards Publication.

National Fire Protection Association. (2022). NFPA 13: Standard for the Installation of Sprinkler Systems. Quincy: NFPA.

Smith, J.R. & Williams, K.M. (2020). Corrosion Protection in Industrial Piping Systems. Houston: Gulf Professional Publishing.

Zhang, L. & Chen, H. (2023). "Performance Analysis of Hot-Dip Galvanized Pipe Fittings in Municipal Infrastructure." Journal of Materials Engineering and Performance, 32(4), 1678-1692.
