Does 1/2 inch square face equal tee come with NPT thread?

When choosing pipe fittings for fire, gas or water systems in factories, being clear about tightening standards can make or break the project's success. The short answer is yes, most 1/2-inch square-face equal tees made for the North American market have NPT (National Pipe Taper) threads built in. NPT black square face straight tee pipe fittings are made to fit NPT threads that meet ASME B1.20.1 standards. This makes sure that the connection is solid and tapered, and that it tightens under pressure and doesn't leak. The thread angles on these fittings are precisely cut to 60 degrees, and the taper is 3/4 inch per foot. This makes an interference fit that gets stronger as the link is put together.

1/2 Inch Square Face Equal Tee and NPT Threading

What Defines a Square Face Equal Tee?

A square face equal tee is different because each opening has a reinforced, squared-off perimeter. Round-face tees have a bent bead that supports them, but square-faced tees have a flat, strong edge that adds more material mass. This improvement to the structure stops bell-mouthing or splitting when workers use a lot of torque during assembly. This is especially important when combining Schedule 40 or Schedule 80 pipes. The word "equal" means that all three openings have the same width, which in this case is 1/2 inch. This lets the flow be evenly spread across pipes that branch off. Black iron that can be shaped easily is very strong and lasts a long time. It has a tensile strength of about 40,000 psi and can stretch to accommodate thermal expansion without breaking.

How NPT Threading Works in Industrial Applications

The male thread diameter gradually grows while the female thread diameter drops. This is how NPT threading works. When these threads are tightened during installation, metal-to-metal contact makes a wedge-like movement that gets stronger with each turn. This process is very important for industrial water and gas pipeline branches, where vibrations, temperature changes, and changes in pressure are always putting pressure on the connections to keep them strong. The threads don't make a full seal by themselves; PTFE tape or pipe dope fills in the tiny spiral leak paths that are built into the thread geometry. Engineers in the fire protection, HVAC, and city water supply industries use this tried-and-true way of sealing because it works well at temperatures ranging from -20°F to 366°F for steam uses.

Industry Standards for Threading Compatibility

When buying from international suppliers, global procurement teams often have to deal with compatibility issues. NPT threads are most common in the US, but BSPT (British Standard Pipe Taper) threads are most common in Europe and Asia. Good news for people in North America: reputable companies like Zhiyuan Malleable Steel offer choices that are precision-threaded and work with both NPT and BSPT. Plug and ring gauges are used to test our 3-way pipe distribution fittings for thread gauging to make sure they meet L1 length and form requirements. This careful attention to size makes sure that when you order a 1/2-inch NPT black square face straight tee pipe fitting, you get a fitting that fits perfectly with the pipes and valves you already have.

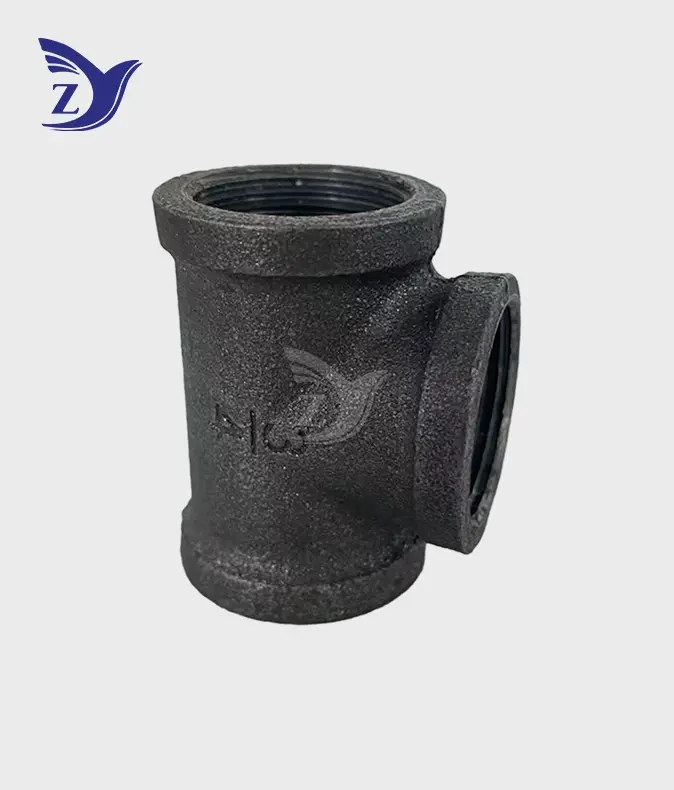

Key Dimensions and Material Specifications of NPT Black Square Face Straight Tee Pipe Fittings

Critical Dimensional Parameters

Knowing the sizes of these industrial-grade 3-way fluid distribution parts helps purchasing managers make sure they are right for the job before they buy them. A 1/2 inch NPT black square face straight tee pipe fittings usually has outlets that are about 2.5 inches apart, but this can vary slightly from one maker to the next. Around the thread entry, the square face itself adds about 1/8 inch of reinforcing material. Thread engagement depth is based on ASME B1.20.1 standards, and at least four to five full threads are needed for proper sealing. These fittings can easily handle 300 psi of water, oil or gas (WOG) at room temperature and 150 psi of saturated steam service. The pressure ratings are in line with Class 150 requirements.

When designing fire sprinkler systems or municipal pipeline networks, these details are very important. When installing hydrant connections, a fire protection engineering company needs to be sure that the fittings will be able to withstand test pressures and stay intact during emergency operations. The orthogonality, or exact 90-degree angles between exits, makes sure that the pipes are lined up correctly and stops stress buildup that could cause them to break early.

Material Composition and Performance Characteristics

These NPT black square face straight tee pipe fittings are mostly made of black iron that can be shaped. The process starts with cupola-melted iron being cast according to ASTM A197 guidelines. Next, annealing the white cast iron in natural gas kilns turns it from rigid to ductile and pliable iron. This heat process makes a microstructure that can handle the impact and bending stresses that are typical in industrial settings. The black oxide or lacquer finish is better than galvanised options in a number of ways. For example, it doesn't let zinc flake get into natural gas lines, the coating doesn't get in the way of thread engagement, and it resists corrosion well enough during storage and transport.

Zhiyuan Malleable Steel has eight sets of 35-ton medium frequency electric furnaces and two 100-ton natural gas annealing kilns that are used in our production facilities to keep the material properties the same across our 30,000-ton annual capacity. Each batch goes through air pressure testing to find casting porosity. This is an important quality control step that tells the difference between professional-grade fits and cheaper ones.

Pressure Ratings and Service Conditions

Where these corrosion-resistant square-edge tees can be used properly is based on the link between the material's strength, wall thickness, and pressure capacity. Class 150 fittings are used in most business and light industrial settings. Class 300 fittings are used in petrochemical plants and power plants that need higher pressure reserves. Pressure rates change a lot with temperature. For example, a fitting that can handle 300 psi at 70°F drops to 150 psi when it comes in contact with 366°F full steam. This downgrading happens because high temperatures weaken the material's yield strength and speed up its creep deformation.

When looking at fittings for HVAC installations, water supply systems, or drainage networks, people who work in procurement should make sure that the pressure ratings match the highest point of the system plus a safety factor. Most of the time, municipal water companies run at 60 to 100 psi, but they have to deal with pressure spikes when pumps start up or valves close. By specifying Class 150 fits, you can leave enough room for these short-term events while still keeping costs low.

Procuring Quality 1/2 Inch NPT Black Square Face Equal Tee Fittings: Tips and Trusted Suppliers

Identifying Reputable Manufacturers

It gives you more choices, but there is a risk if you don't check out your suppliers well enough. When professional buyers are looking for fitting makers, they look at a few key signs. While ISO 9001 certification shows a dedication to process control and ongoing improvement, it does not guarantee the quality of the product itself. Look more closely at how much a factory can make. Plants that make more than 20,000 tonnes of goods a year usually spend more on better tools and systems than small ones. Zhiyuan Malleable Steel's 50,000-square-meter building with 156 sets of processing equipment and 38 technical specialists shows the size needed to keep quality high while keeping prices low.

Certifications that are relevant to your target market give people more faith that you will follow the rules. UL and FM listings are very important for fire safety products sold in North America, where authorities having jurisdiction (AHJs) often require these third-party approvals. Following the ASTM and ASME material and dimension standards makes sure that the product can be used with existing infrastructure. CE marking makes it easier to sell in Europe. When suppliers give buyers full material traceability and test records, they show openness, which keeps buyers safe from fake or low-quality goods.

Procurement Strategies for Bulk Orders

You can get better prices and more secure supplies when you buy in bulk, but you have to weigh the costs of inventory against the savings. Large wholesalers that meet steady regional demand can benefit from annual contracts with quarterly releases. Construction companies that have projects that last more than one year can avoid the ups and downs of the open market by negotiating prices that are tied to specific job timelines. Custom sizing and OEM capabilities give customers more sourcing options than just catalogue sizes. Zhiyuan Malleable Steel's R&D team works with customers who need non-standard configurations or coatings that are specifically made for their needs.

When projects are on a tight schedule, lead time management is very important. Standard sizes can be filled right away from domestic supplies in the United States, but container orders from manufacturing facilities take 6 to 8 weeks. Smart procurement teams keep a safety stock of SKUs that sell a lot of copies while outsourcing production of speciality items that don't sell as quickly. Our two-layer cardboard packaging keeps fittings safe during international shipping, so they arrive at the job site ready to go without any of the corrosion or damage that can happen with other options that aren't packed well.

Building Long-Term Supply Partnerships

Transactional buying is only concerned with the unit price, but strategic relationships offer more than just lower costs. When project needs aren't clear or are changing, responsive expert support helps choose the right parts. Replacement policies for broken goods cut down on downtime and pointing fingers. It also lowers the risk of buying from a source because you know they stand behind their quality. Zhiyuan Malleable Steel's promise to replace faulty products and quick customer service help fire protection system integrators and municipal builders keep up with their busy schedules.

International sourcing can be hard because of things like language barriers, different time zones, and different cultural expectations. Working with makers that send specialised export teams that speak English well and know how business is done in North America makes communication easier and stops misunderstandings. We've been exporting goods for 18 years, working with foreign trading companies and buyers from other countries. This means we know ahead of time what paperwork, shipping, and specification details less experienced suppliers might miss.

Conclusion

The 1/2-inch NPT black square face straight tee pipe fitting is an important part of industrial pipe systems used for fire safety, HVAC, water supply, and gas distribution. Knowing the differences between square face and round face fittings in terms of design, how NPT threading makes reliable seals, and the qualities of black malleable iron help you make smart purchasing choices. Using the right construction methods and upkeep schedules can make fittings last longer and stop leaks that could damage the system. When reviewing choices and choosing providers, focusing on things like dimensional accuracy, material certifications, and manufacturing scale can help you find partners who can meet both short-term project needs and long-term supply security.

FAQs

Can these fittings handle steam with a lot of pressure?

Fittings with a Class 150 rating can safely handle saturated steam up to 150 psi at 366°F. Class 300 fittings with thicker walls and stronger design are needed for higher pressure steam flow. Always compare the actual working conditions to the pressure-temperature ratings that have been published.

How can I tell the difference between NPT and BSP threads when I'm checking out fittings?

At the same nominal size, NPT threads have a coarser pitch, which means they have fewer threads per inch than BSP threads. Using calibrated thread gauges is the only way to be sure of the identification. Quality fittings usually have markings that show the thread standard, but checking the gauge before use avoids mistakes that cost a lot of money.

Are custom thread setups that can be used for specific projects?

Manufacturers with a good reputation who offer OEM/ODM services can make threads with non-standard lengths, special tapers, or mixed designs. Lead times and minimum order numbers change depending on the needs of the tools. Customisation options at Zhiyuan Malleable Steel help customers who need specifics that aren't available in their catalogues.

What kind of sealer works best for natural gas?

Gas-rated pipe dope or yellow PTFE tape made for fuel gas seals properly without adding materials that don't work with gas. Sealants that contain petroleum distillates may mix with gas components or break down over time, so stay away from them.

Partner with Zhiyuan Malleable Steel for Reliable NPT Black Square Face Straight Tee Pipe Fittings

Fire protection companies, municipal contractors, and wholesale distributors all over North America trust Zhiyuan Malleable Steel to provide them with NPT black square face straight tee pipe fittings. Our 30,000-ton annual production capacity makes sure that we always have standard sizes in stock and can send them within two hours. For unique needs, we have a wide range of specifications that includes more than 1,000 variations. Every part that leaves our factory in Shanxi has been checked by the ISO 9001 quality system, has been certified by UL and FM for fire safety, and has been marked with the CE mark for foreign sales. Our focused support team and 18 years of experience exporting allow us to provide solutions that fit your needs and budget. This includes bulk quantities for regional distribution, custom threading for one-of-a-kind uses, and expert advice on choosing the right materials. Email our sales team at q1236800000@gmail.com to talk about the needs of your project and get quotes. You can look through our full catalogue of fittings at zymalleablepipefitting.com and learn how our quality, capacity, and excellent customer service can help your business succeed.

References

1. American Society of Mechanical Engineers. (2013). ASME B1.20.1: Pipe Threads, General Purpose (Inch). New York: ASME Press.
2. ASTM International. (2016). ASTM A197: Standard Specification for Cupola Malleable Iron. West Conshohocken: ASTM International.
3. American Society of Mechanical Engineers. (2012). ASME B16.3: Malleable Iron Threaded Fittings, Classes 150 and 300. New York: ASME Press.
4. National Fire Protection Association. (2019). NFPA 13: Standard for the Installation of Sprinkler Systems. Quincy: NFPA Publications.
5. Hydraulic Institute. (2014). Pipe Fittings: Materials, Pressure Ratings, and Applications in Industrial Piping Systems. Parsippany: Hydraulic Institute Technical Standards.
6. American Water Works Association. (2017). AWWA M11: Steel Pipe—A Guide for Design and Installation (5th ed.). Denver: AWWA Publications.
