Do you need long radius elbow for sewer line​?

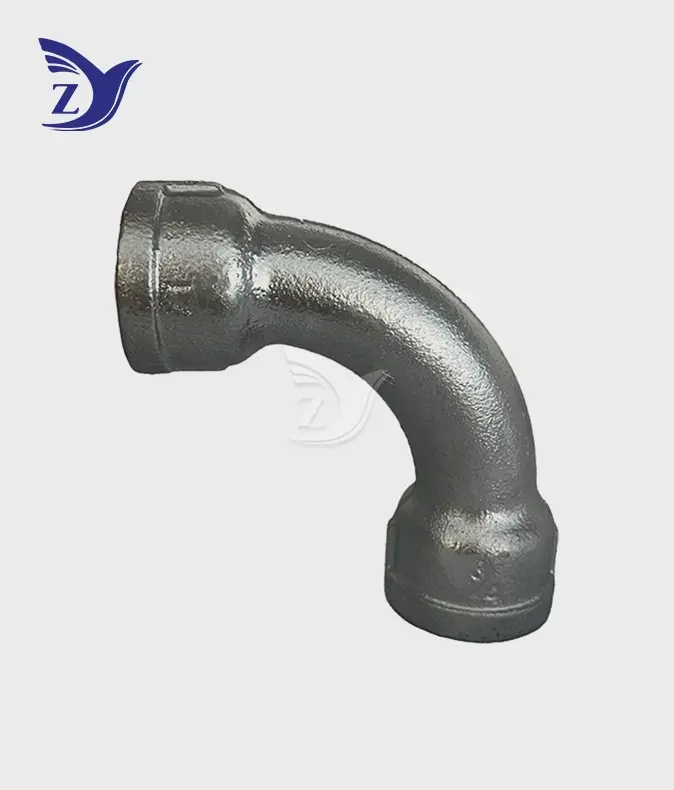

If you're planning or managing a sewer line installation, the short answer is: yes, in most cases, a long radius elbow is the smarter choice. When wastewater changes direction through a tight bend, turbulence builds up, solids accumulate, and pipe walls erode faster than expected. A 90° long radius elbow — particularly an NPT galvanized female-female 90° long radius elbow pipe fitting — addresses these issues directly by providing a gentler, wider arc that keeps flow smooth and steady. ​​​​​​​Whether you're working on a municipal drain system or a commercial plumbing project, the right NPT galvanized female-female 90° long radius elbow pipe fittings make a measurable difference in long-term performance.

Understanding Long Radius Elbows in Sewer Lines

Most people don't realize how important the shape of a long radius elbow is. By definition, a long radius elbow has a radius in the middle that is 1.5 times the width of the pipe. That longer arc has about 30–40% less frictional resistance than a shorter radius option. This number is backed up by hydraulic engineering research published in the Journal of Fluids Engineering.

Why the Bend Radius Affects Flow Quality

In sewer uses, wastewater moves solids that are suspended in water, grease, and other trash. When the radius is small, there is a sudden change in direction, which creates turbulent areas where solids settle out of circulation and plug the pipe. A large radius makes the speed spread more evenly through the turn, which keeps sediment from building up at the elbow. This is especially important in gravity-fed drain systems where the flow speed is already pretty slow.

The Role of Female-Female Threading

A double female-threaded elbow can connect two pipe ends with male threads without the need for a middle joint. This setup gets rid of one possible leak path at each link, which is important for systems that run underground or inside buildings that are hard to get to. ANSI/ASME B1.20.1 sets the rules for NPT galvanized female-female 90° long radius elbow pipe fittings. Thread interference forms a mechanical cover that stops leaks reliably across a wide pressure range.

Specifications and Materials of NPT Galvanized 90° Long Radius Elbow Fittings

When used in sewers, the choice of material is very important for how long a fitting lasts. KTH350-10 malleable cast iron is the main material at Zhiyuan Malleable Steel. It is a high-strength, anti-rust metal that can pull apart at least 350 MPa. This grade has the right amount of elasticity and compression strength, so it won't crack when the temperature changes or when it's vibrated.

These fittings have a hot-dipped galvanized finish that meets ASTM A153 standards. This coating adds a zinc layer that works as a sacrificial anode. This is called cathodic protection, and it happens even if the surface is scratched because the zinc moves to protect the steel that is showing. In sewers, where hydrogen sulfide and water speed up corrosion, this coating makes the product last a lot longer than alternatives that aren't coated.

Precision threading is the last part of the specification. ANSI B1.20.1 says that thread gaging must use L1/L2 ring and plug gages, and Zhiyuan's machining line has 156 sets of processing equipment. Tolerances are checked to make sure that every fitting fits properly and doesn't get too tight. Standard sizes range from 1/8" to 6", and valves are certified by ISO 9001, CE, and FM. This means they can be used for water projects in cities, businesses, and factories all over the United States.

How to Install NPT Galvanized Female-Female 90° Long Radius Elbow Fittings Correctly

The quality of the installation decides whether a great fitting works as it should or becomes a problem. The steps are easy to follow, but there are a few important ones that must be taken before the joint is considered leak-free. Check both the fitting and the pipe end for burrs, cross-threading, or casting flaws before you thread any fitting. Under pressure, even a small flaw on the thread face's surface can make the seal less reliable. If there is dirt on the threads, clean them with a wire brush.

When NPT galvanized female-female 90° long radius elbow pipe fittings are used, the spiral leak path is closed by thread distortion and a sealing material. Before putting the parts together, spread pipe dope or high-quality PTFE tape evenly across the male thread. Depending on the diameter of the pipe, the standard recommendation in the industry is two to three turns past finger-tight. If you tighten a female-female fitting too much, the casting cracks at the thread root. This is a costly mistake that can happen on an installed line. For bigger diameters, it's best to use a calibrated torque wrench. A hydrostatic pressure test at 1.5 times the rated working pressure is done after installation to make sure the shell is solid and to rule out casting porosity. Zhiyuan uses random samples for this test during production quality control, but it is still best to do field testing on fully built systems.

Comparing Long Radius Elbows with Other Elbow Types for Sewer Lines

Not every job needs the same kind of fitting. Procurement teams can make faster, better decisions when they know when a long radius galvanized elbow works best and when other options are more useful. Here is a straight look at the differences between the most widely used choices:

• Long radius vs. short radius galvanized elbows: Long radius fittings reduce pressure drop by 30–40% and keep the bend from wearing down too quickly. Short radius valves take up less room, which is helpful in small mechanical rooms, but they cause more turbulence and wear more quickly in flows with a lot of debris or fast speeds.
• Galvanized steel vs. black iron: For natural gas lines, black iron fittings are usually used instead of galvanized zinc ones because hydrogen sulfide can cause galvanized zinc to flake at high temperatures. Because their zinc layer doesn't rust, galvanized valves work better in sewers that are wet than black iron ones. Always check the local building codes—in some places, black iron is required for gas lines even though galvanized would normally be fine.
• Galvanized malleable iron vs. PVC: PVC is commonly used for home drain-waste-vent systems because it is lighter and doesn't react with chemicals. When it comes to industrial-grade uses where temperature changes a lot, malleable iron works better because it can handle higher pressures and mechanical impact.

Before you send in a purchase order, you should think about these trade-offs. Which option is best relies on the working pressure, the type of fluid, the environment, and the local code.

Procurement Guide for NPT Galvanized Female-Female 90° Long Radius Elbows

A lot of small and medium-sized contractors lose money when they can't find the right fitting at the right price and shipping time. That risk is cut down a lot by following a few organized steps. Before making a deal with a supplier, check their certification paperwork. If you ask, a company that is ISO 9001-certified and makes NPT galvanized female-female 90° long radius elbow pipe fittings will have quality records, material test reports, and data on measurements that can be tracked. Zhiyuan Malleable Steel is certified by ISO 9001, CE, UL, and FM. Its website, zymalleablepipefitting.com, has product catalogs and expert help.

Explain and compare lead times to the plan for your job. Zhiyuan keeps a lot of standard sizes in stock, from 1/8" to 6". Items that are in stock are sent out within two hours of an order being confirmed. When someone asks about non-standard specs or custom OEM/ODM needs, production wait times are made clear at the inquiry stage. Bulk pricing structures encourage buying in bulk. If your project has more than one phase, putting all of your fitting needs into one order, even if the deliveries happen in stages, will usually get you better unit prices and make managing your suppliers easier. Products that aren't working right are changed, and the double-layer cardboard packing keeps the threads together while they're being shipped.

Conclusion

In most sewer line situations, a long radius elbow is not just a personal choice; it is a realistic engineering choice based on measurable hydraulic data. The bigger circle lowers the turbulence, stops sediment from building up, and makes the whole tunnel last longer. When that elbow is made of hot-dipped galvanized, precision-threaded, high-strength, malleable iron that meets NPT galvanized female-female 90° long radius elbow pipe fittings standards, it gives the environment the corrosion resistance and installation dependability it needs. Finding a certified supplier that has the right NPT galvanized female-female 90° long radius elbow pipe fittings for the job takes the guesswork out of buying things and protects the quality of your project on inspection day.

FAQ

1. Are long radius elbows required by code for sewer lines?

For sewage uses, building rules like the International Plumbing Code (IPC) and the Uniform Plumbing Code (UPC) list the types of fittings that can be used. Long-sweep (long radius) elbows are needed on many horizontal drain runs to keep the flow going and keep it from getting clogged. Before specifying fittings, check your local adopted code and the authority that has jurisdiction.

2. How long do galvanized malleable iron fittings last in sewer service?

With an ASTM A153 hot-dip galvanized coating and a KTH350-10 malleable iron body, the service life in a sewer setting is usually between 20 and 40 years, based on the chemistry of the soil, the pH of the fluid, and the amount of mechanical stress.

3. Can I use an NPT fitting where a BSPT connection is required?

No, the thread angle for NPT is 60°, and the thread angle for BSPT is 55°. When you mix them, you get a joint that doesn't fit right, leaks under pressure, and could damage the threads. Zhiyuan Malleable Steel has both NPT and BSPT versions. Before you place an order, make sure you know which pipe type you need.

4. What size range is typically stocked for these elbows?

Standard sizes from 1/8" to 6" are kept in stock and can be used for most sewer uses in homes, businesses, and small factories.

Get a Quote from Zhiyuan Malleable Steel Today

For over 26 years, Zhiyuan Malleable Steel has been making industrial-grade pipe fittings and has ISO 9001, CE, UL, and FM certifications to back this up. We can help you find the best NPT galvanized female-female 90° long radius elbow pipe fittings for a single project or a long-term supply deal. For a quick price and proof of delivery, email your requirements to q1236800000@gmail.com.

References

1. American Society of Mechanical Engineers. ASME B1.20.1: Pipe Threads, General Purpose (Inch). ASME, 2013.

2. American Society for Testing and Materials. ASTM A153/A153M: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. ASTM International, 2016.

3. International Association of Plumbing and Mechanical Officials. Uniform Plumbing Code. IAPMO, 2021.

4. International Code Council. International Plumbing Code. ICC, 2021.

5. Hydraulic Institute. Engineering Data Book: Pipe Friction Loss and Flow Coefficients. Hydraulic Institute, 2018.

6. Nayyar, Mohinder L. Piping Handbook, 7th ed. McGraw-Hill, 2000.
