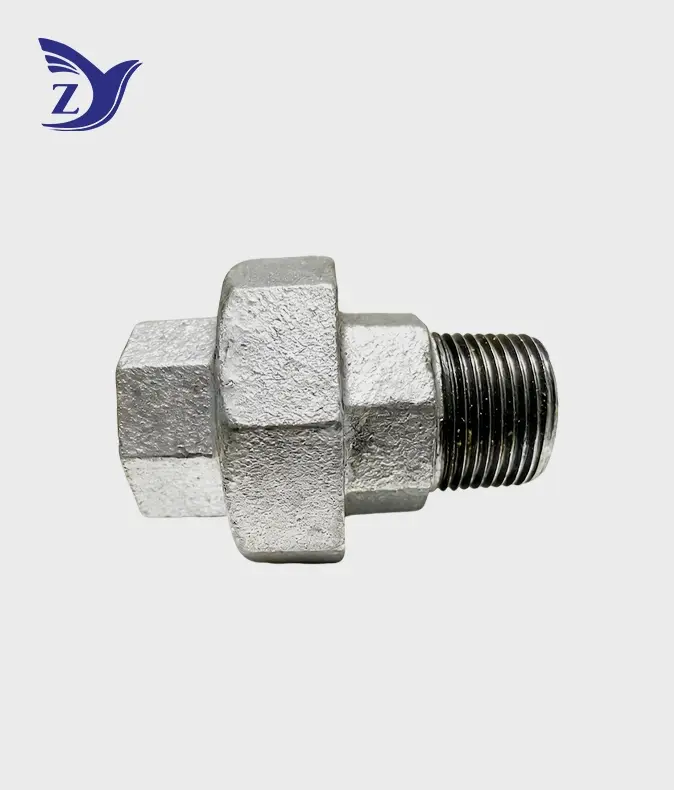

Choose 341 Galvanized NPT Male Female Threaded Union for Outdoor Use

When plumbing systems outside have to deal with bad weather, changes in temperature, and corrosive conditions, picking the right pipe connections is very important. NPT galvanized male female threaded union 341 pipe fittings are the best choice for businesses that need links that are reliable, won't leak, and will last for a long time. These two-threaded, detachable connections have a precision-threaded design and a hot-dipped galvanized finish that makes them work well in water, gas, and HVAC systems. For the right union fitting, you need to find a balance between material strength, thread compatibility, and rust resistance. These are all things that have a direct effect on how well the system works and how much it costs to maintain.

How to Choose the Right 341 Galvanized NPT Male Female Threaded Union?

When making procurement choices, you have to weigh technical requirements against project needs, price limits, and the supplier's abilities. The following factors help pros choose the best NPT galvanized male female threaded union 341 pipe fittings.

Pressure Rating and System Compatibility

Standard 341 zinc unions have Class 150 ratings, which means they can handle 300 psi of water, oil, and gas (WOG) service at room temperature and 150 psi of steam service. For high-pressure systems, Class 300 fittings that can handle 600 psi WOG service may be needed. Checking the pressure embossment on the fitting body made by the maker makes sure that it meets the system design pressures. If you don't specify enough, something terrible could go wrong, and if you specify too much, it will cost more than it needs to.

Most municipal water systems, fire protection networks, and HVAC setups work well within the limits of Class 150. High-pressure air systems, petrochemical process lines, or steam distribution may need Class 300 or other specialized high-pressure designs. Protecting the integrity of the system means matching the fitting specs to the real-life working conditions, such as pressure spikes, water hammer effects, and thermal expansion.

Material Comparison and Application Suitability

When deciding between coated malleable iron, stainless steel, and black steel, you need to look at how resistant they are to rust, how much they cost, and how strong they are. For most outdoor uses, galvanized joints are the best way to keep things balanced. 304 or 316 grade stainless steel is usually better at resisting rust in harsh chemical conditions, but it costs three to five times more than galvanized fittings. Black steel works well in dry indoor environments, but it rusts quickly when it comes in contact with water.

The annealing process of malleable iron turns rigid cementite into temper carbon crystals, which gives it the ability to be bent that gray cast iron doesn't have. This feature stops rapid weak failure during installation or changes in system pressure, which is a very important safety feature. When builders over-torque fittings while they are being installed, pliable iron deforms slightly instead of breaking. This gives them a visual warning before the failure happens.

Thread Accuracy and Dimensional Precision

Thread quality has a direct effect on how well it seals and how easy it is to install. Precision-threaded fittings made on CNC machines have constant thread pitch, depth, and taper, which makes sure that they fit properly with other parts. Poor fittings with rough or uneven threads need more sealant, leak more often, and get damaged when they are taken off for repair.

Accuracy in dimensions goes beyond threads and includes the general shape of the fitting. For 341 unions to join metal to metal, the circular seat machining has to be very accurate—usually within 0.002 inches. Coordinate measuring tools (CMM) and thread gauges are used by reputable makers for quality control. Parts that don't meet specifications are thrown away.

Certifications and Standards Compliance

When NPT galvanized male female threaded union 341 pipe fittings get quality approvals, you can be sure that they meet written performance standards. ISO 9001 certification means that quality management methods are used consistently throughout the producing process. Product approvals like UL (Underwriters Laboratories), FM (Factory Mutual), and CE marks show that a product meets safety standards that are accepted in North America and Europe.

When valves are used with potable water, NSF/ANSI 61 approval makes sure they are lead-free and safe for touch with drinking water. To meet insurance and building code standards, fire protection system builders need fittings that are FM-approved. Keeping track of these licenses during the procurement process provides an audit trail that helps with legal compliance and project approval.

Benefits of Choosing Certified Galvanized Pipe Fittings from Trusted Suppliers

The choice of supplier affects the standard of the NPT galvanized male female threaded union 341 pipe fittings, the dependability of delivery, and the long-term success of the project. Working with well-known makers guarantees that you can get approved goods that come with expert help and a warranty.

Certification and Quality Assurance

Manufacturers who use ISO 9001 quality management systems follow written methods that cover where to get materials, how to make things, how to check them, and how to track them. This methodical approach makes sure that the quality of each production batch is the same and finds problems before they reach customers.

Third-party product approvals are a reliable way to check that performance claims are true. When parts are listed by UL, it means they meet safety standards for certain uses. Parts that have FM approval can be used in fire protection systems, which is needed for insurance and building permits. By marking a product with the CE mark, which shows that it meets EU safety standards, it can be sold all over Europe.

These licenses have real effects on getting projects approved and keeping you safe from harm. If you use non-certified fittings in controlled uses, you could be sued if the system fails. To keep their companies safe, procurement teams check licensing paperwork before buying things to make sure the parts meet all the rules and codes that apply.

Value-Added Services for B2B Buyers

Suppliers that have been around for a while offer services that go beyond just selling products. These services make buying easier and help projects succeed. For big installations, bulk order discounts make the job more cost-effective because they award buying in bulk. Contractors can find the best way to buy things by balancing the costs of keeping inventory with the benefits of lower prices per unit when they use tiered pricing models based on order number.

Special needs that normal catalog goods can't meet can be met with custom sizes and OEM capabilities. For special projects, thread combinations that aren't normal, changes to the dimensions, or special coatings are useful. During the design process, suppliers with in-house engineering teams work together to come up with ideas that either make the system work better or lower the cost of installation.

Options for fast shipping help keep projects on plan. When building delays shorten the time available for installations or when equipment breaks down and needs to be replaced right away, suppliers with a large inventory and flexible operations can keep projects from being delayed, which can be very expensive. Distributors who keep stock in regional sites cut down on lead times so that normal goods can be delivered in days instead of weeks.

Technical Support and Documentation

Having access to skilled technical agents helps specification teams choose the right goods and figure out how to solve problems with applications. When suppliers hire experts who know the industry standards and application requirements, they can help with planning the project and lower the risk of giving wrong specs that lead to problems in the field.

A lot of information about the product helps with installation and upkeep. Accurate system design is possible with detailed specification sheets that show sizes, materials, pressure levels, and certifications. In the installation directions, the suggested steps, pressure values, and ways to seal are all laid out. Facility managers can make good regular maintenance plans with the help of maintenance standards.

For apps that care about quality, test records and material certifications make it possible to track materials. Test results for mechanical properties, chemical makeup, and covering thickness show that the product meets certain standards. This paperwork is very important for project reviews and regulatory reports because it shows that the right materials were chosen and bought.

FAQ

What distinguishes 341 unions from other threaded union designs?

The 341 design uses a precisely carved spherical-to-conical seat that seals metal to metal without using rubber gaskets. Compared to gasket-dependent unions, this design can handle higher temperatures and lasts longer. The shape lets for a small amount of angular misalignment during fitting while still keeping the seal tight up to the rated pressures.

Can NPT and BSPT threads be mixed in the same system?

Not at all. NPT (60-degree flank angle) and BSPT (55-degree flank angle) are both tapered pipe threads, but they can't be used together. When you try to mate threads with different standards, you get leaks, poor contact, and possibly thread damage. Before mixing fittings from different sources or foreign sellers, you should always make sure that the thread types are compatible.

How does coating thickness affect outdoor service life?

When hot-dip galvanization is done according to ASTM A153 guidelines, the zinc covering is usually 85 microns or more thick. This amount of thickness will last 20 to 30 years in mild outdoor conditions. Cheaper imports may have thinner coats that only cover 50 to 60 microns, which shortens the service life to 10 to 15 years. Setting minimum coating thickness requirements in buy orders makes sure that the security is good enough for the conditions of your application.

What pressure ratings apply to standard 341 galvanized unions?

Class 150 unions can handle 300 psi water, oil, and gas service at room temperature and 150 psi steam service, making them good for most public, business, and home systems. For high-pressure uses, Class 300 fittings that can handle 600 psi WOG service are needed. Always make sure that the pressure embossment on the fitting body that was made by the maker meets the design standards of the system.

Conclusion

To choose the correct NPT galvanized male female threaded union 341 pipe fittings for outdoor use, you need to think about the qualities of the material, the compatibility of the threads, the pressure levels, and the resistance to corrosion. The metal-to-metal sealing system, malleable iron structure, and hot-dipped zinc covering of the 341 galvanized design have all been shown to work well in the past. If you know about NPT screw standards, the right way to put these fittings, and how to keep them in good shape, they will last for decades in harsh outdoor conditions. When you work with certified makers who offer full expert help and high-quality documentation, you lower the risks of buying something and improve the system's long-term performance and total cost of ownership.

Partner with Zhiyuan Malleable Steel for Superior Galvanized Union Solutions

Zhiyuan Malleable Steel has been casting and making pipe fittings for 26 years, and they use their skills in hard outdoor uses all over the world. Our ISO 9001-certified factory in Shanxi Province makes more than 30,000 tons of more than 1,000 different types of products every year. These include precision NPT galvanized male female threaded union 341 pipe fittings that are made to work in tough conditions. We keep a lot of certifications, like CE, UL, and FM approvals, to make sure that our goods meet quality standards in North America and Europe. Our expert team can customize ODM and OEM orders, we offer discounts for large orders, and we have a lot of standard goods in stock, so we can ship them within two hours of receiving an order. Double-layer cardboard packing keeps your fittings safe during foreign shipping, and our promise to replace any defective products shows that we trust the quality of our production. Email our engineering team at q1236800000@gmail.com to talk about the needs of your project, get technical specs, or set up a free review. You can look at our whole selection of products at zymalleablepipefitting.com and learn how working with a top NPT galvanized male female threaded union 341 pipe fittings manufacturer can help you get the best deals.

References

1. American Society of Mechanical Engineers, "ASME B16.39: Malleable Iron Threaded Pipe Unions Classes 150, 250, and 300," ASME Standards Publication, 2019.
2. ASTM International, "ASTM A197: Standard Specification for Cupola Malleable Iron," ASTM Material Standards, 2018.
3. National Fire Protection Association, "NFPA 13: Standard for the Installation of Sprinkler Systems," NFPA Fire Protection Standards, 2022.
4. American Water Works Association, "AWWA Manual M11: Steel Pipe—A Guide for Design and Installation," AWWA Publications, 2017.
5. Copper Development Association, "Threaded Pipe Fittings: Installation and Maintenance Guidelines for Industrial Applications," Technical Reference Manual, 2020.
6. International Organization for Standardization, "ISO 7-1: Pipe Threads Where Pressure-Tight Joints Are Made on the Threads—Part 1: Dimensions, Tolerances and Designation," ISO Standards Catalogue, 2016.
