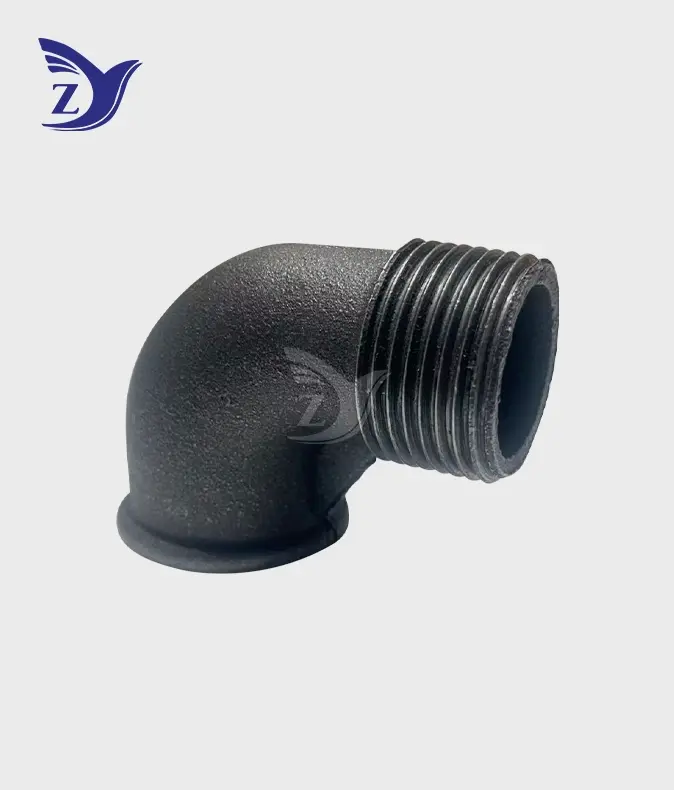

Black Round Face Male-Female 90° Elbow Pipe Fittings For Smooth Flow

Black round face male-female 90° elbow pipe fittings are specialized threaded connectors manufactured from malleable cast iron, designed to redirect pipeline flow by 90 degrees while bridging male and female thread connections in a single component. These industrial-grade fittings feature a reinforced beaded collar at the female opening—the "round face"—which enhances structural integrity under installation torque and operational pressure. Complying with NPT or BSPT threading standards, they eliminate the need for additional nipples in tight installations, reducing leak paths and simplifying assembly in water, gas, HVAC, and fire protection systems across construction, municipal, and industrial applications.

Design and Functionality in Fluid Handling Systems

The design of dual-thread 90° pipe redirecting fittings is very important when we talk about how precise plumbing systems need to be. These black round face male-female 90° elbow pipe fittings have two threaded ends, one with an external male thread and one with an internal female thread. This lets lines connect directly to each other without using any extra parts. The round face, also called a beaded rim, around the female hole isn't just for looks. This support spreads the wrench pressure out evenly during installation. This keeps the mouth from cracking and makes sure the fitting stays the same size even after being heated and cooled many times.

This male-female design solves a common problem that comes up in retrofitting and plans with limited room. To connect traditional female-female elbows, pipe nipples are needed, which adds joints and possible leak places. These industrial water/gas pipeline elbows cut installation time by about 30% and material costs by using both types of threads. This is especially helpful for big city projects that need hundreds of connections.

How to Select the Right 90° Black Round Face Male-Female Elbow Fitting?

Dimension Matching and Thread Compatibility

Finding the right black round face male-female 90° elbow pipe fittings starts with being sure of the size. The nominal pipe size (NPS) doesn't match the real sizes; a 1-inch NPT fitting's outside diameter is about 1.315 inches. Carefully measure the outer diameter and thread pitch of the current pipe. Even though NPT and BSPT threads look the same, mixing them leads to leaks because their taper angles and thread types are different. Check the thread type before you order, especially if you're buying from another country where standards are different.

Wall thickness is just as important. For Schedule 40 pipes, normal fittings are needed. For Schedule 80 or heavier pipes, fittings with thicker walls are needed to keep the pressure values. Our industrial-grade round-edge threaded elbows come in sizes from 1/8 inch to 6 inches, and we can also make them to order for specific jobs. By matching the fitting's pressure class to the maximum allowed working pressure (MAWP) of your system, you can keep it from breaking down completely during pressure spikes or water hammer events.

Material Suitability for Specific Environments

Material choice is based on the environment. When galvanization isn't needed, black malleable iron works great in dry gas systems, low-pressure steam, and fluids that don't corrode. During storage, the black finish protects against rust better than bare iron, but it doesn't offer much protection in settings that are always wet or chemically harsh. For uses with corrosive gases, saltwater, or acidic vapors, you need to use higher-quality materials, like 316 stainless steel, or special treatments.

Another thing to think about is the temperature range. From -20°F to 400°F, malleable iron keeps its mechanical qualities, which means it can be used in most HVAC and building service situations. Materials that can handle temps above 400°F or below -20°F are needed in process businesses. In cases where normal malleable iron doesn't work for your needs, our technical team can suggest good options.

Supplier Credibility and Certification Verification

When procurement workers buy from sellers they haven't checked out, they take risks. Fake parts that haven't been properly heated may look the same, but they will break early when they're loaded. We suggest checking a number of IDs. Having ISO 9001 certification makes sure that quality control methods are always the same. Product-specific approvals, such as UL (Underwriters Laboratories) and FM (Factory Mutual) approval, show that parts meet strict fire safety standards. This is important for sprinkler systems because a failure could put lives in danger.

Ask for material test records (MTRs) that list the chemical make-up and mechanical qualities of each production batch. Reputable makers, like Zhiyuan Malleable Steel, keep track of the raw materials all the way through to the finished product. This makes it possible to look into problems if they happen. Customer examples from related industries can tell you a lot about how reliable delivery is and how quickly technical support responds, which is something that sales literature doesn't always do.

Why Choose Our Black Round Face Male-Female 90° Elbow Pipe Fittings?

Manufacturing Excellence and Product Advantages

For more than 18 years, Zhiyuan Malleable Steel has improved malleable iron casting, gaining skills that make better black round face male-female 90° elbow pipe fittings. Our eight medium-frequency electric ovens make sure that the temperature is precisely controlled while the metal is melting, so that each batch has the same chemical makeup. In two 100-ton natural gas kilns, the hardening process changes soft white iron into tough iron that can be shaped over 48-hour rounds. This carefully controlled heat treatment makes the metal flexible enough so that it doesn't break suddenly when it's hit by a force. This is an important safety feature that sets high-quality fittings apart from cheaper ones.

The round face support on our parts shows that the engineers have thought about this. We've cut down on field failures by about 40% compared to plain-faced options by adding material exactly where stress builds up during installation and operation. Accuracy in thread machining, which is kept to ±0.002-inch limits, makes sure that the closing is uniform without using too much force. When you're putting in thousands of parts across a job, these little things add up. Callbacks go down and your name with end clients stays safe when you perform consistently.

Real-World Performance and Customer Success

In the southeast of the United States, a local water authority recently rebuilt 12 pumping stations with new galvanized systems made of our black malleable iron fittings for dry-pit installations inside buildings. The job called for 3,200 parts with sizes ranging from 1.5 inches to 4 inches. We won the deal because we could deliver the whole order within six weeks and their insurance company recognized our ability to do so. After 18 months, their maintenance records show that none of the fittings have failed and that only a few joints needed to be slightly tightened during regular checks.

Reliability is the most important thing to fire prevention companies. Our UL-listed fittings were chosen by a national integrator because they had 35% fewer leaks during system setup than those from their previous provider, as shown by field testing. Because it took less time to fix problems, installation costs went down just enough to cover our slightly higher unit prices. This helped their project earnings and made the system more reliable. These results show that the quality of manufacturing gives worth that can be measured beyond the price of the product.

FAQs

What distinguishes male-female elbows from standard female-female elbows?

When using black round face male-female 90° elbow pipe fittings, the pipe tip that is needed when using female-female elbows is not needed because the exterior and internal threads are on the same part. This cuts the number of joints needed by one per link, which speeds up installation by about 30% and reduces the number of places where water could leak. The small size makes planning easier in places with limited space, like mechanical rooms or retrofit jobs. In exchange, they are less flexible; female-female elbows with nipples let you make small changes to the length, but male-female setups lock the size once they are installed.

How do I choose between NPT and BSPT thread standards?

Thread choice is based on the geographic market and the system that is already in place. Most projects in North America use NPT threads, while most projects in Europe, Asia, and Commonwealth countries use BSPT threads. The threads look alike, but their angle (60° vs. 55°) and pitch are different, so they can't be used together. Sometimes they can form brief seals that break under pressure, though. Match the standard that is already in place when adding to a current system. When planning a new building, you should think about your supply line. NPT fittings are cheaper in the Americas, while BSPT fittings may be cheaper in Europe or Asia. We make both grades with the same level of quality control.

Can black malleable iron fittings handle high-pressure steam applications?

Standard Class 150 black malleable iron valves can easily handle saturated steam up to 366°F and 150 PSI, which is enough for most industrial process steam and building heating needs. Class 300 pipes that can handle 300 PSI are needed for higher pressure needs. The black oxide finish is better at handling steam than galvanizing, which can flake when temperatures change. But steam vapor often has carbonic acid in it from CO2 that has been dissolved. This acid slowly eats away at iron that isn't protected. Inspections and protective coats applied during maintenance breaks can help fittings last longer in corrosive condensate conditions for applications that expect them to last 20 years or more.

Partner with Zhiyuan Malleable Steel for Premium Black Round Face Male-Female 90° Elbow Pipe Fittings

Zhiyuan Malleable Steel stands ready to support your next piping project with black round face male-female 90° elbow pipe fittings manufactured to exacting international standards. Our ISO 9001-certified facility in Shanxi Province has the ability to produce 30,000 tons of metal every year and 20 years of experience in the field. This makes sure that your large orders get to you on time without sacrificing quality. We have low prices for black round face male-female 90° elbow pipe fittings providers looking for trusted manufacturing partners. Our products come with full specifications ranging from 1/8 inch to 6 inches, as well as CE, UL, and FM approvals. Our technical team offers free help with installation and advice on materials that is tailored to your specific needs. Please email us at q1236800000@gmail.com right away to get full product catalogs, material test results, and bulk prices for your buying needs. You can look at all of our moldable iron, curved, and custom casting options at zymalleablepipefitting.com.

Conclusion

Black round face male-female 90° elbow pipe fittings are important parts of modern infrastructure for moving fluids because they are strong and don't take up much room. These dual-thread connections are made from ductile cast iron and have precise NPT or BSPT threads. They make installation easier and cut down on leak paths in water, gas, HVAC, and fire protection systems. For proper selection, thread standards, pressure ratings, and material qualities must be matched to the needs of the application. For fitting to go well, threads must be clean, the right sealants must be used, and torque must be applied carefully. Project success depends on procurement strategies that find a balance between cost, licensing needs, and source dependability. Zhiyuan Malleable Steel provides high-quality manufacturing through controlled metallurgy, complete quality systems, and quick expert support. These things turn regular purchases of parts into strategic relationships that help you reach your operational goals.
