Are Square Face Pipe Couplings Suitable for Outdoor Applications?

Square face galvanized square edge coupling pipe fittings are genuinely well-suited for outdoor use. The hot-dipped zinc coating creates a sacrificial barrier that protects the underlying malleable iron from moisture, soil acidity, and atmospheric corrosion. The reinforced square edge collar adds mechanical resistance during high-torque installation, reducing the risk of cracking under stress. Based on ISO 1461 and ASTM A153 standards, a zinc layer exceeding 70 microns can extend service life well beyond a decade in harsh outdoor environments, making these fittings a sound choice for industrial water, gas, and HVAC pipeline systems.

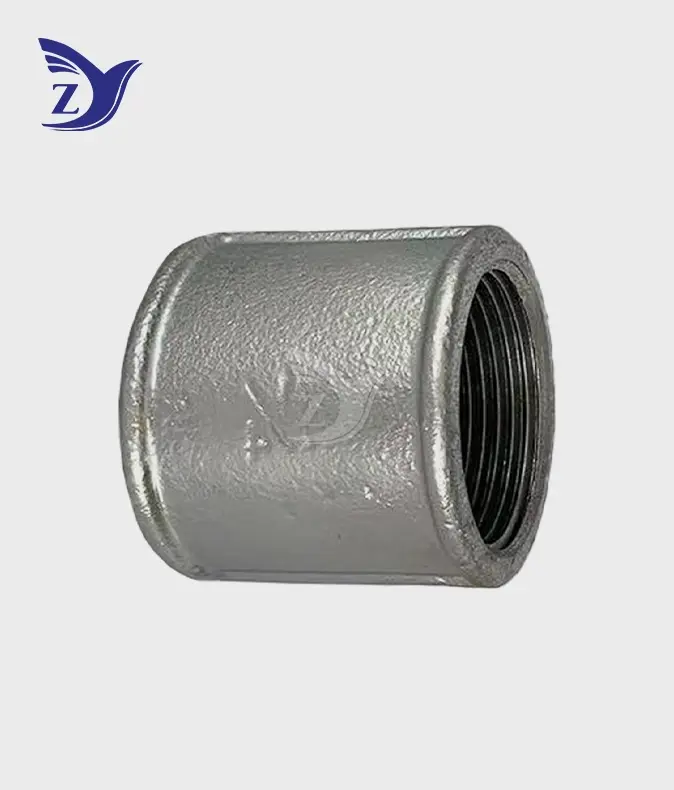

Understanding Square Face Galvanized Square Edge Coupling Pipe Fittings

It's helpful to know what makes this product different from other couplings before choosing a pipe fitting for an outdoor project.

What Is a Square Face Design?

"Square edge" refers to a flat, strengthened band that goes around each hole in the socket. A beaded (rounded) edge doesn't spread the wrench load over a larger surface area like a flat collar does. This makes radial cracks less likely during installation. In comparison to plain-end styles, this adds about 15–20% more mass to the collar.

Materials and Thread Standards

The square face galvanized square edge coupling pipe fittings are made of blackheart malleable iron (grade KTH300-06 or KTH330-08), which has a tensile strength of at least 300 MPa. You can get them with NPT (60° thread angle) or BSPT (55° thread angle, ISO 7-1) thread faces. It is important to never mix NPT and BSPT threads because the angles are not suitable, which leads to thread cross-mating and leaking.

Key Technical Specifications

At room temperature, the working pressure can reach 25 Bar (362 PSI). At 120°C, it drops to 20 Bar. Hot-dip galvanization must follow ASTM A153 or ISO 1461, and the zinc coating must weigh at least 500 g/m². These compliance standards have a direct effect on performance outside, which is why it's important to check certification documents before placing large orders.

Advantages of Using Galvanized Square Edge Couplings for Outdoor Applications

Pipelines that are outside are exposed to UV light, rain, changes in temperature, and soil, all of which speed up the corrosion of standard iron fittings. Below is the reason why galvanized malleable iron couplings work well when others don't.

Corrosion Resistance Through Hot-Dip Galvanizing

As a sacrifice anode, the zinc layer oxidizes before the iron does. This keeps the base metal safe even if the coating gets scratched. The American Galvanizers Association says that hot-dip galvanized steel in normal manufacturing settings usually lasts more than 50 years before it needs to be fixed. Because they last longer, buyers in bulk save money on repair costs.

Mechanical Strength of the Square Edge Profile

Thermal cycles of expansion and contraction are common in outdoor steam or HVAC lines, but the square face galvanized square edge coupling pipe fittings can handle them. The flat-band design keeps the dimensions stable, while beaded edges can chip when stressed over and over again. This means fewer warranty claims and return packages for procurement teams that source companies further down the line.

Maintenance Recommendations

Galvanized connections that are placed outside don't need much maintenance, but it's still a good idea to plan for it. Follow these main steps to keep your money safe:

• Annual visual inspection: Check for white rust (zinc oxide buildup) at joints. White rust is superficial and does not indicate base metal failure, but heavy buildup warrants a zinc-rich touch-up spray.
• Thread sealant renewal: In high-vibration environments, re-apply PTFE tape or thread sealant compound every 3–5 years to maintain gas-tight or water-tight seals.
• Torque verification: After the first seasonal temperature cycle, check that fittings remain hand-tight. Thermal cycling can slightly loosen connections in the first year.

By doing these things, you can keep a galvanized threaded coupling working well after its normal design life is over. This saves the value chain below, which relies on the product quality staying the same.

Installation and Measurement Guidelines for Optimal Outdoor Performance

If you don't measure or put it right, even the best corrosion-proof industrial-grade coupler will not work. Being precise now will save you a lot of money later on.

How to Measure Pipe Fittings Accurately

Never measure the outer diameter directly; always measure the nominal pipe size (NPS) of the pipe end with the male thread. As an example, the outside width of a 1-inch NPS pipe is actually 1.315 inches. Checking the NPT or BSPT thread pitch with a calibrated thread gage before putting the parts together stops connections that don't match from leaking when pressure is applied.

Best Practices for Field Installation

Spread the thread sealant out evenly on the male thread before you join them. First, tighten by hand. For NPT threads, then use a pipe wrench to add another 2–3 full turns. Do not tighten the fitting any more than the maker recommends. Tightening an iron fitting too much can cause tiny cracks near the collar, especially when it's cold outside and iron is a little more brittle.

Common Installation Pitfalls

In the real world, an irrigation contractor in the Middle East put in 2-inch galvanized straight pipe couplings without checking to see if they were compatible with BSPT or NPT. After 72 hours of pressure tests, sixteen of the thirty joints leaked. The fix involved taking everything apart and replacing it, which was an unnecessary cost. Always make sure that the thread standards are the same throughout the whole pipeline before starting the bulk assembly.

Comparing Square Face Couplings with Other Coupling Types for Outdoor Use

Picking between different connection styles is a purchase choice that will have long-term costs. Take a look at this fair analysis.

Square Face vs. Round Edge (Beaded) Couplings

People who care about price will choose the beaded edge because it is lighter and costs a little less per unit. But in outdoor uses that need to be put together and taken apart more than once, like yearly irrigation lines, the beaded edge wears down faster when it comes into touch with a pipe wrench. The square face design makes a flat surface that is easy to grab and keeps its shape after multiple installation processes.

Galvanized Steel vs. Stainless Steel for Outdoor Use

In marine or chloride-heavy environments, 316 grade stainless steel couplings work better than galvanized iron ones. But each one costs three to five times as much. For buying a lot of standard industrial water and gas lines in places that aren't on the coast, hot-dipped galvanized malleable iron offers the same level of corrosion protection at a much lower cost. This is why most B2B distributors who want to make $200,000 to $1,000,000 in annual purchases choose this specification.

Selecting a Manufacturer: What to Verify

When looking at a company that makes square face galvanized square edge coupling pipe fittings, make sure they have proof that they follow ISO 9001, CE, and ASTM A153. Make sure the seller has more than 1,000 SKUs in all common thread types and sizes. Most of the time, batch consistency, especially zinc coating regularity across a whole container supply, is where bulk orders go wrong.

Conclusion

For outdoor industrial pipeline systems, square face galvanized square edge coupling pipe fittings have been used for a long time and are a good value. The hot-dipped zinc coating protects them from environmental damage, the square collar handles mechanical stress during installation, and the fact that they work with both NPT and BSPT threads means they can be used with the most pipeline standards around the world. When it comes to B2B wholesalers who are in charge of multiple SKU stocks for hardware shops and contracting teams, these fittings provide the batch consistency and quality stability that keep customers coming back.

FAQ

Are these couplings safe for potable water systems?

Yes, as long as the galvanizing uses zinc that doesn't contain lead and meets NSF/ANSI 61 or a similar area standard for cleanliness. Under normal circumstances, the zinc covering keeps iron from getting into the water system.

Can I use a BSPT coupling on an NPT pipe?

No, the angle for BSPT threads is 55° and the angle for NPT threads is 60°. Cross-threading and leakage happen when you mix them. Always check the thread standard that is written on the fitting before putting it together.

How do I verify galvanization quality before purchasing?

Ask the seller for a Preece Test (copper sulfate dip test) certificate. This test makes sure that the zinc layer is even. A dull gray finish or flaking that can be seen when it arrives are signs of poor covering bonding.

What maintenance schedule applies to outdoor installations?

Visual inspections should be done once a year. In places with a lot of vibration or pressure, you should reapply thread sealant every three to five years. For most normal workplace outdoor situations, there is no need to paint or add another coating.

What is the maximum working pressure for outdoor gas lines?

At room temperature, these valves can handle 25 Bar (362 PSI). This grade is well above what is normally needed for LP gas or natural gas low-pressure distribution lines.

Source Your Galvanized Square Edge Couplings from Zhiyuan Malleable Steel

Zhiyuan Malleable Steel has been making pipe parts out of malleable iron since 2006. They can make more than 1,000 different types of products every year. Our catalog of square face galvanized square edge coupling pipe fittings meets ISO 9001, CE, and ASTM A153 standards and ships from stock that has been checked. The thread standards we cover include NPT and BSPT. Products that are broken are always replaced. To get a quote right away, email us at q1236800000@gmail.com or go to zymalleablepipefitting.com.

References

1. American Galvanizers Association. Hot-Dip Galvanizing for Corrosion Protection: A Specifier's Guide. 2022.
2. ASTM International. ASTM A153: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. 2023.
3. British Standards Institution. BS EN 10242: Threaded Pipe Fittings in Malleable Cast Iron. 2018.
4. International Organization for Standardization. ISO 1461: Hot Dip Galvanized Coatings on Fabricated Iron and Steel Articles. 2022.
5. International Organization for Standardization. ISO 7-1: Pipe Threads Where Pressure-Tight Joints Are Made on the Threads. 2020.
6. Nayyar, M. L. Piping Handbook, 7th ed. McGraw-Hill. 2000.
