Are malleable iron elbows strong and durable?

When you're specifying pipe fittings for fire protection systems, industrial gas distribution, or MEP installations, the question of strength and durability isn't academic—it's mission-critical. Malleable iron elbows have earned their reputation as reliable workhorses in demanding piping applications, but understanding exactly why requires looking beyond surface claims. A malleable iron 90 degree elbow combines mechanical resilience with practical advantages that address real-world challenges: impact resistance during installation, predictable performance under pressure cycling, and corrosion protection when properly finished. These fittings are produced from black-heart malleable iron through controlled sand casting and annealing, resulting in a material structure that balances strength with ductility. Unlike brittle cast iron, malleable iron can absorb sudden shocks without fracturing, making it suitable for systems where mechanical stress and pressure fluctuations are routine concerns.

Understanding Malleable Iron 90-Degree Elbows: Strength & Durability Fundamentals

Material Composition and Manufacturing Process

The question of strength and durability is not just a nice-to-have when you're choosing pipe fittings for MEP installations, industrial gas distribution, or fire protection systems. Malleable iron 90-degree elbows have a reputation for being dependable workhorses in tough pipe uses, but to really understand why, you need to look past what is on the surface. A malleable iron 90-degree elbow blends mechanical strength with useful benefits that solve problems in the real world, such as impact resistance during installation, reliable performance under pressure cycling, and corrosion resistance when properly finished. The fittings are made from black-heart malleable iron that has been controlled sand cast and annealed to create a material structure that is strong but flexible. In contrast to brittle cast iron, malleable iron can handle rapid shocks without breaking. This makes it ideal for systems where mechanical stress and pressure changes are common.

Malleable iron fittings start out as white cast iron castings that are heated for a long time, usually by annealing at temperatures between 900°C and 950°C, to change the brittle iron carbides into polygonal graphite groups within a ferrite matrix. For malleable iron to have its toughness and shock resistance, it goes through this metallurgical transformation process. The black-heart malleable iron that is made has a tensile strength of 340 to 450 MPa and an elongation value of 10 to 18%. This is a good mix between strength and flexibility that cast iron can't match.

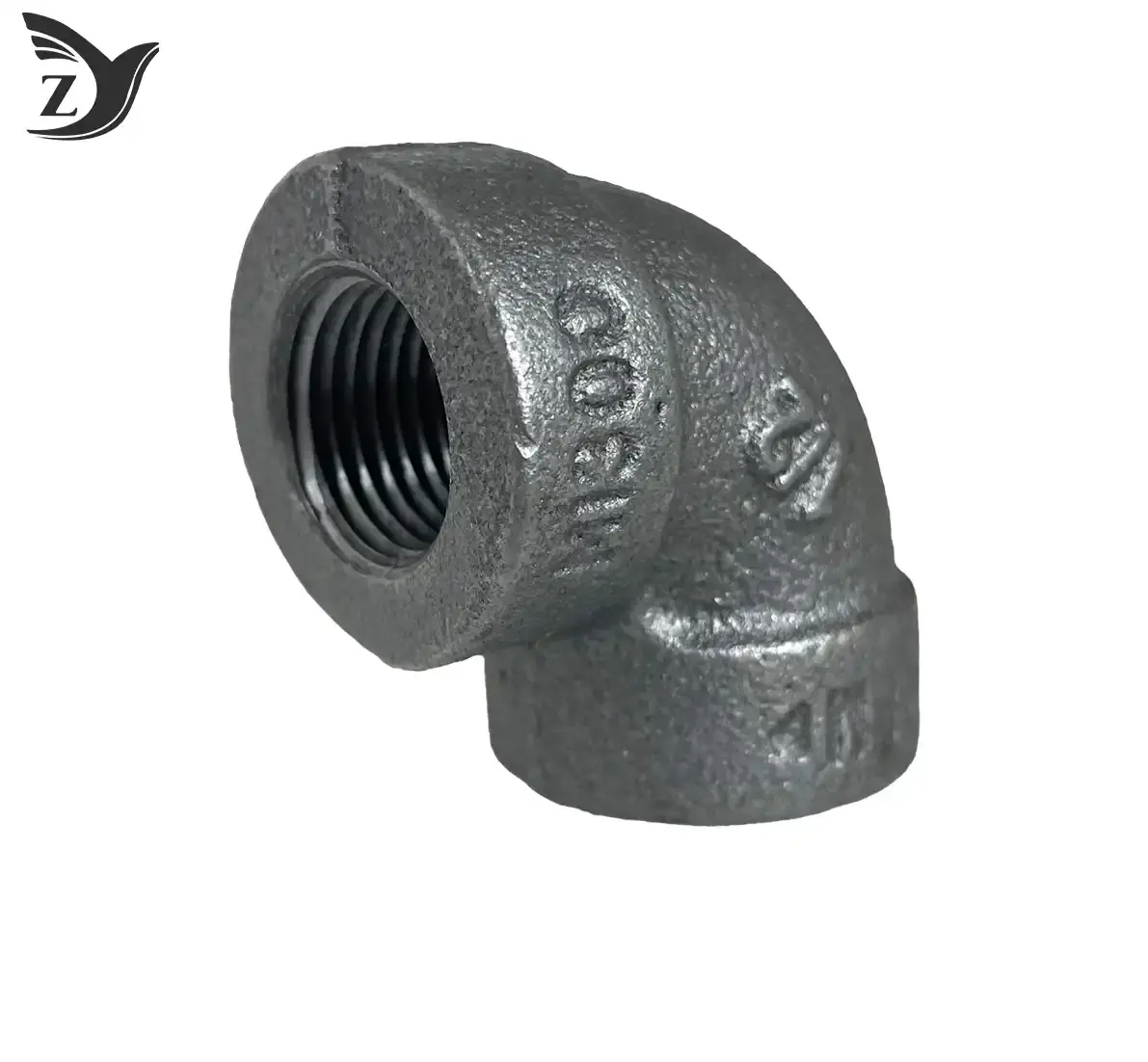

Sand casting is used to make standard malleable iron 90-degree elbows because it lets complex internal geometries and threaded connections be made directly. The female-by-female threaded design works with steel pipes or nipples that have threads on the outside at both ends. This makes safe mechanical joints that can be used in systems with pressure. Either BSPT (British Standard Pipe Taper) or NPT (National Pipe Taper) standards are met by thread profiles. This makes sure that they can be used with both new and old infrastructure and foreign supply lines.

Technical Specifications and Pressure Ratings

Malleable iron 90-degree elbows produced in accordance with EN10242, ASME B16.3, and GB/T3287 standards have pressure values of PN16 to PN25 (1.6 to 2.5 MPa), making them suitable for low-pressure gas systems, fire sprinkler networks, and medium-pressure water distribution. The temperature range of -20°C to 300°C covers most ambient and process conditions. However, if installation methods aren't good, thermal cycling can slowly weaken joints.

Sizes range from 1/8" to 6" nominal diameters, which is enough for most light commercial and industrial piping needs. Each size class has its own wall thickness and thread depth, which makes sure that the mechanical strength is the same across the whole range of products. Dimensional limits in these standards make sure that parts from different sources can be used interchangeably. This lowers the risk of buying and makes it easier for workers handling multi-phase projects to keep track of their inventory.

Surface Treatments and Corrosion Resistance

Surface finish has a big effect on how long something lasts. Black iron fittings that can be shaped are given a thin layer of oil or black oxide finish that protects them temporarily while they are being stored or installed indoors where they won't be exposed to much water. Hot-dip galvanizing, on the other hand, puts on a zinc coating that is usually 45 to 85 microns thick. This coating protects against corrosion for many years in wet, buried, or outdoor conditions. As both a shield and a sacrificial anode, the galvanizing layer keeps the iron below safe, even if the surface gets slightly damaged.

According to ASTM B117, salt spray testing shows that properly galvanized malleable iron 90-degree elbows can withstand over 500 hours of constant exposure before red rust forms. This means that they meet the durability requirements of fire protection engineers and public utilities. This resistance to corrosion is very useful for sites near the coast, pipe runs that go underground, and systems that are subject to condensation cycles.

Comparative Analysis: Malleable Iron 90-Degree Elbows vs. Other Materials

Malleable Iron vs. Carbon Steel Elbows

Because they are made to ASTM A234 WPB standards, carbon steel buttweld elbows can handle higher pressures and have smoother internal flow profiles. This is why they are chosen for high-pressure process pipes and steam systems. Steel elbows get rid of the risk of leaks in threaded joints and can easily handle pressures above 300 psi. However, they need to be installed by trained welders and take a lot of time and money because they need to be tested with x-rays and heated.

When pressures stay below 2.5 MPa and installation speed is important, malleable iron 90 degree elbows offer a cost-effective alternative. With threaded connections, you only need a few simple hand tools to put them together. This makes the work 60% easier than with welded joints. The trade-off is that threaded connections slow down flow and cause a small drop in pressure. They are also not as good for heavy cyclic loading or temperatures above 300°C.

Malleable Iron vs. Stainless Steel Fittings

Stainless steel threaded elbows (ASTM A182 F304/316) are better at resisting corrosion in harsh chemical conditions, marine areas, and food-grade settings where contamination is not acceptable. Austenitic stainless grades keep their mechanical qualities over a bigger range of temperatures and don't rust in chloride-filled environments, where galvanized iron would finally break down.

The price difference is big—stainless fittings usually cost 300–500% more than galvanized malleable iron 90-degree elbows. Lifecycle costs and capital expenditure must be weighed by procurement managers. For example, water, air, and natural gas systems can be made to last longer with malleable iron that has been properly treated on the outside for a lot less money. Stainless steel is only cost-effective when it is needed for chemical compatibility or hygiene reasons.

Malleable Iron vs Ductile Iron Alternatives

Ductile iron (ASTM A536) has spheroidal graphite lumps that make it even stronger and more flexible than malleable iron. It can reach tensile forces of 600 MPa. Ductile iron pipe fittings are used for most large-diameter city water mains and sewer force mains that are underground and subject to thermal movement and earth loading.

In smaller bore sizes (under 4"), where casting difficulty and machining needs favor its production costs, malleable iron still offers benefits. Threaded malleable iron 90-degree elbows are easy to find, have short wait times, and are priced competitively. On the other hand, ductile iron fittings of the same size usually have longer production processes and cost more per piece. In normal building service situations, where design pressures rarely go above 10 bar, the changes in mechanical properties don't matter much.

How to Select and Install Malleable Iron 90-Degree Elbows for Optimal Performance？

Selection Criteria for Procurement Teams

Before picking the right fitting, make sure that the system design parameters and product specifications are compatible. Make sure that the pressure number (PN16 or PN25) gives you enough safety margin above the highest working pressure to account for short-term surges. During pump startup, there are sudden pressure spikes that can be 30–40% higher than steady-state conditions in fire protection systems using malleable iron 90-degree elbows.

The threads must be compatible with the pipe material and the standard that is being used. In North America, NPT threads are most common. In the Commonwealth and the Middle East, BSPT threads are more common. When you mix thread types without transition adapters, the joints will leak and break. Check that the supplier's certifications include records of measurement inspections that show the thread gauge meets ASME B1.20.1 or ISO 7-1 standards.

When projects need MTC 3.1 mill test papers that show the chemical make-up and mechanical qualities, being able to track the materials becomes very important. When a provider cares about quality, they keep records of each batch that connects each malleable iron 90 degree elbow to its pour date, heat treatment cycle, and inspection records. This paperwork is very important during the start-up of a project and governmental checks, especially in places with strict rules about product liability.

Installation Best Practices

Preparing the threads is the first step in a proper installation. Check threads for damage, debris, or mistakes in the way they were made before putting them together. Use PTFE tape (3–5 wraps for diameters up to 2"; 5–7 wraps for larger diameters) or an approved thread sealant based on the requirements for fluid compatibility. Yellow PTFE tape made for natural gas and LP applications is often required for gas systems. Potable water systems, on the other hand, may have limits on certain sealant chemicals.

Tighten the fitting by hand until the resistance goes up. Then, use wrench power to get the threads to engage 2-3 times beyond hand-tight. If you over-tighten, the fitting body could crack or the threads could come off, but if you under-tighten, the fitting could leak or come loose when it shakes. Different sizes have different torque requirements, but as a general rule, 30 to 40 ft-lbs for 1" fits and a similar amount for other widths.

When aligning or supporting pipes, don't use fittings as leverage points. Malleable iron can handle accidental impacts better than cast iron, but too much bending moment applied through threaded joints can cause micro-cracking that spreads when pressure cycles. Use pipe supports and hangers to keep fittings away from structural loads and thermal expansion forces.

Maintenance and Inspection Protocols

Visual inspection should find surface corrosion, weeping joints, or mechanical damage before they break. As the zinc layer oxidizes, galvanized surfaces naturally get a dull gray patina; this is protective and doesn't mean the surface is breaking down. Red rust staining, on the other hand, means the zinc is running out and needs to be fixed before base metal corrosion gets worse.

In places where vibrations are common, retorquing threaded joints on a regular basis during the first year of service can help the initial stress relax. Set up inspection schedules that are in line with how important the system is: check fire protection risers every three months, review building services once a year, and do event-triggered inspections after pressure changes or seismic activity.

Conclusion

When specified and installed correctly, malleable iron 90 degree elbows provide proven strength and durability for medium-pressure pipe systems. Controlled heat treatment of cast iron gives them mechanical qualities like impact resistance and pressure capacity that meet the needs of fire protection, gas distribution, and building services. There are times when other materials are better, but when it comes to balancing performance needs with budget realities, contractors and procurement professionals should choose malleable iron because it is widely available, doesn't rust, and isn't too expensive. For long-term system reliability, it's important to pay attention to thread compatibility, surface finish selection, and supplier qualification during implementation.

FAQ

1. Can malleable iron elbows handle high-pressure steam applications?

Standard PN16–PN25 valves made of malleable iron 90-degree elbows can be used in low-pressure steam lines that are less than 2.5 MPa and 300°C. For steam uses that go beyond these limits, you need higher-quality materials like carbon steel or alloy steel buttweld valves that are made to ASTM A234 standards. Always make sure that the pressure and temperature numbers give you enough safety margins for the situations you'll be using it in, even if they change quickly.

2. How does galvanizing affect thread dimensions and joint integrity?

When you hot-dip galvanize something, about 45 to 85 microns of zinc are added, which can make the thread clearance a little smaller. Reliable manufacturers either chase the threads after galvanizing or use oversized taps during production to account for zinc buildup and keep the thread gauge in line. When combined with the right sealants, galvanized threads that have been properly handled work just as well as black threads for closing. Ask providers to prove that they follow the guidelines set out in ASME B16.3 for the sizes of galvanized threads.

3. Are custom sizes or special coatings available for unique project requirements?

A lot of companies give customizing services, such as non-standard angles, unique thread shapes, and different coatings, like epoxy or powder finishing, for different types of environments. There are usually minimum order numbers, which are usually between 500 and 1000 pieces per configuration, and wait times are longer than for catalog items. Talk about your needs early on in the planning process so that there is enough time for production schedule and pattern development, if needed.

Partner with Zhiyuan Malleable Steel for Reliable Malleable Iron 90 Degree Elbow Supply

In Shanxi Province, Zhiyuan Malleable Steel has a 50,000-square-meter factory that makes and ships 30,000 tons of certified malleable iron fittings to fire protection builders, MEP experts, and gas distribution companies around the world every year. Our production process follows EN10242, ASME B16.3, and GB/T3287 guidelines. It is backed by ISO 9001 quality management and FM/UL/CE certifications that meet the strictest project requirements. With 156 machining units, eight medium-frequency furnaces, and dedicated galvanizing lines, we keep a deep inventory of more than 1,000 SKUs and can ship standard sizes in two hours. Technical buyers like our full documentation packages, which include MTC 3.1 certificates, dimensional reports, and batch traceability. These packages make it easier to get project approvals and follow regulations. Whether you need truck loads of malleable iron 90 degree elbows for fire sprinkler projects or black fittings for gas distribution systems, our team can quickly give you a quote and make the product exactly how you want it. Email our procurement experts at q1236800000@gmail.com to discuss your malleable iron 90-degree elbow supplier needs.

References

1. American Society of Mechanical Engineers. ASME B16.3: Malleable Iron Threaded Fittings - Classes 150 and 300. New York: ASME Press, 2016.

2. British Standards Institution. EN 10242: Threaded Pipe Fittings in Malleable Cast Iron. London: BSI Standards Publication, 2013.

3. Davis, J.R., ed. Cast Irons: Properties and Selection. Materials Park, OH: ASM International, 1996.

4. National Fire Protection Association. NFPA 13: Standard for the Installation of Sprinkler Systems. Quincy, MA: NFPA, 2022.

5. Schweitzer, Philip A. Metallic Materials: Physical, Mechanical, and Corrosion Properties. Boca Raton: CRC Press, 2003.

6. Smith, William F., and Javad Hashemi. Foundations of Materials Science and Engineering. 6th ed. New York: McGraw-Hill Education, 2019.
