Are Galvanized 45° Square Edge Elbows Right for Your Project?

If you are sourcing pipe fittings for water, gas, or industrial pipeline systems, the short answer is yes — square face galvanized 45° square edge elbow pipe fittings are very likely the right choice. These malleable iron fittings redirect flow at a precise 45-degree angle while their hot-dip galvanized zinc coating blocks rust in demanding environments. With NPT or BSPT threading precision-machined to ASME B1.20.1 standards, they connect cleanly to existing piping without adapter workarounds. Whether you buy one container or one hundred, understanding what makes these fittings perform is what separates a smart bulk order from an expensive mistake.

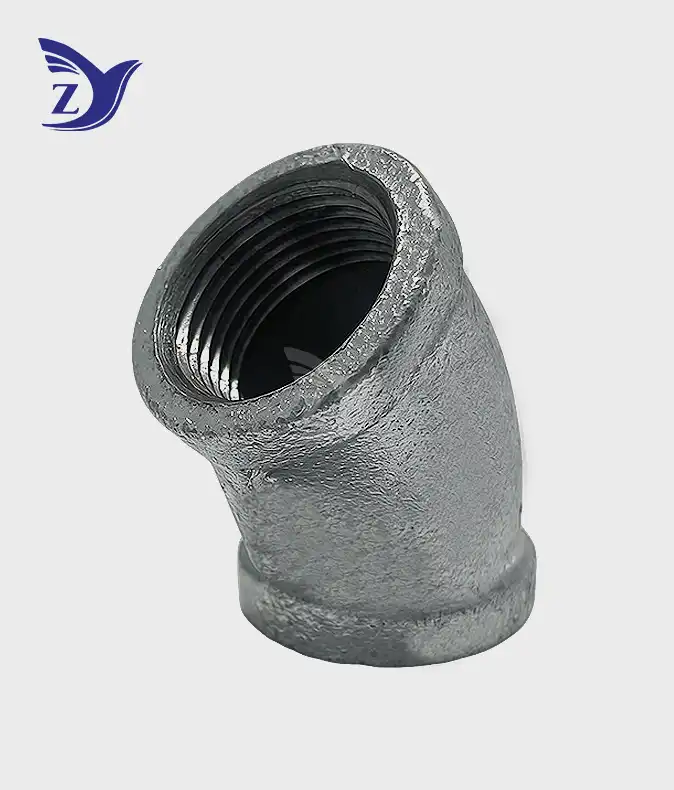

Understanding Galvanized 45° Square Edge Elbow Fittings

What "Square Edge" Actually Means?

The word "banded" is sometimes used to describe the square edge, which refers to the flat, rectangular support ring at each threaded outlet. This band, instead of a smooth beaded edge, has a flat surface that pipe tools can grab while tightening with a lot of force. In the field, where a sliding wrench wastes time and can break a fitting, that little detail is very important.

Material and Coating Standards

These fittings are made from ASTM A197 cupola malleable iron, which is stronger and more flexible than gray iron and can handle sudden changes in temperature without breaking. The hot-dip galvanized coating is in line with ASTM A153 and usually adds a zinc layer that is thicker than 85 microns. There are two ways that zinc protects: a physical barrier separates the two, and cathodic sacrifice, which means that zinc corrodes before the iron below it.

Thread Standards and Dimensional Compliance

While ASME B1.20.1 calls for a 60° thread angle and a 1°47' taper for NPT threads, BS 21 calls for a 55° thread angle for BSPT threads. The sizes meet the requirements of ASME B16.3 Class 150 or Class 300. These approvals show that fittings made by a qualified company will work with pipes from different sources without having to be reworked or have too much sealing compound added.

Benefits and Practical Advantages of Galvanized 45° Square Edge Elbows

Cost-Effectiveness Compared to Alternatives

Galvanized malleable iron fittings are usually 60–75% less expensive per unit than their 316 stainless steel counterparts. They can still handle water, oil, and gas service up to 300 psi WOG at room temperature. That difference in cost directly affects the margins of wholesale distributors who put together orders with different specifications.

Corrosion Resistance in Real Conditions

The American Galvanizers Association says that hot-dip galvanized fittings usually last 20 to 50 years in moderately corrosive or outdoor settings. This service life cuts down on the number of times that rooftop HVAC pipes, fire suppression headers, and outdoor irrigation manifolds need to be replaced and the number of guarantee claims that come after, which cut into the distributor's profit.

Maintenance and Longevity in Practice

Here are some useful maintenance benefits that these fittings offer in the field:

• No surface preparation before installation: The zinc layer is finished at the plant. Installers put PTFE tape or pipe dope on the threads and tighten them. There is no need to prime or paint, which saves time on big jobs.
• Disassembly after years of service: Because the zinc surface doesn't rust, maintenance crews can break joints apart years later without using heat or other damaging force. This saves building owners a lot of money on repair costs.
• Compatibility with standard sealing compounds: Galvanized iron threads can be used with both PTFE tape and liquid pipe dope. This gives installers options without voiding any warranties on the materials.

Because of these benefits, galvanized 45° elbows are a safe choice in fields like water management, petrochemicals, and building where unexpected downtime can cost a lot of money.

Comparing Galvanized 45° Square Edge Elbows with Other Fittings

45° vs. 90° Elbows: When Each Angle Wins

For the same diameter pipe, a 45° elbow causes about 40% to 50% less friction loss (equal pipe length) than a 90° elbow. Using square face galvanized 45° square edge elbow pipe fittings at direction changes saves energy in long-run pipes where pumps have to keep pressure over a long distance. A 90° elbow is still the best choice when space is limited and the pipe needs to turn all the way around in a short distance. Both angles are used together in a lot of industrial layouts, so it makes sense to keep both in stock when ordering full containers.

Galvanized Iron vs. Stainless Steel and Copper

Galvanized malleable iron is the main material used for water and gas pipes in factories. 304/316 stainless steel is better at resisting acids and chlorides, but it costs three to five times more per fitting and needs special tools to cut. Copper doesn't rust and is light, but it's too expensive to use on a large scale, and many building codes don't allow it for gas lines. Galvanized iron is the best choice for wholesalers who work with hardware shops and installation companies because it is cheap, easy to find, and meets all building codes in most areas.

Supplier and Brand Selection Criteria

When looking for a seller of square face galvanized 45° square edge elbow pipe fittings, the most important things to look at are similar to what experienced purchasing managers already do:

• Certifications: ISO 9001, CE, UL, and FM certifications are concrete signs of good process control. It is hard to check batch-to-batch consistency from afar without them.
• Zinc coating verification: To check the zinc coating, ask for a copper sulfate (Preece) dip test report or XRF coating thickness data. Before you place an order for a container, these two tests make sure that the hot-dip zinc layer meets ASTM A153.
• Thread gauge records: Ask for records of each batch's go/no-go gauge inspections. In the pipe fittings category, the main reason for distributor returns is NPT or BSPT threads that don't match.

When you choose a maker with a history of quality control, you protect your customers and lower the risk of having to pay for expensive returns.

Installation and Procurement Guide for Galvanized 45° Square Edge Elbows

Step-by-Step Installation Overview

When joints are installed correctly, they won't leak and the zinc finish will last longer. Before putting it together, wrap two or three wraps of PTFE tape clockwise around the male thread. First, tighten by hand. Then, for the last two or three turns, use a pipe wrench on the square edge band. Do not over-tighten, as this can cause the fitting mouth to crack. The tapered NPT or BSPT thread makes a pressure-tight seal through interference, not just torque.

Bulk Ordering and Logistics Considerations

Before completing the buy order, make sure that your SKU list matches the manufacturer's catalog for distributors who are ordering in 20GP or 40HQ containers. Make sure that the export packaging meets the needs of your market. Woven polypropylene bags and double-layer cardboard protect against damage and moisture during ocean freight. If your warehouse doesn't have a lot of space, ask for deliveries to be spread out over time, and find out how long it will take to get non-stock sizes before you commit to downstream sales.

Pricing Factors and ROI

Prices for fittings depend on the average pipe size, the type of zinc finish (standard or heavy), and the number of fittings ordered. Higher numbers are rewarded with different prices. For example, a 10-ton order of 1/2" NPT galvanized 45° elbows usually has a lower unit price than a 1-ton sample order. Before you place the order, compare your landed cost (FOB price plus freight and taxes) to the local wholesale price to make sure you're on track with your profit goal.

Making the Right Choice for Your Piping Project

There are four things that affect the choice: the surroundings, the pressure grade, the thread standard, and the total cost of ownership. Galvanized 45° square edge elbows can be used in most industrial water and gas pipe jobs as long as the working pressure stays within Class 150 or Class 300 limits and the pipes will be exposed to high humidity or the outdoors. If you need something that can handle strong acid or high salt levels in the water, you should use stainless steel. For everything else, like building, HVAC, fire suppression, oil field auxiliary lines, and city water distribution, the galvanized malleable iron 45° square edge elbow works well and is cheap enough to make mass distribution profitable.

Conclusion

Galvanized 45° square edge elbows are used in industrial piping because they protect against corrosion well, have thread standards that have been proven to work, and are affordable. Banded square edges give wrench grip and radial strength that rounded edges can't match. These square face galvanized 45° square edge elbow pipe fittings are a low-risk, high-margin item for bulk wholesalers because the zinc coating quality is always the same, the threading meets ASME standards, and the packing is ready to go in a container. To get the most out of each procurement cycle, check the certifications of your suppliers, ask for coating test data, and make sure that the number of items you order matches the pricing levels.

FAQ

Can I use NPT fittings with BSPT pipes?

No, BSPT threads are angled 55°, while NPT threads are angled 60°. When you mix them, you damage the threads and make leak paths that can't be fixed with sealant. Before you place a large order, you should always make sure you know what thread standard your target market uses.

What pressure rating do standard galvanized 45° square edge elbows carry?

At room temperature, Class 150 fittings can handle 300 psi WOG (Water, Oil, and Gas). When the temperature goes above 150°F (65°C), the pressure drops. For uses with higher pressure, there are Class 300 variants.

How do I verify the galvanized coating quality before committing to a large order?

Ask for an XRF thickness measurement report or a copper sulfate (Preece) dip test report. Look for a zinc layer that is at least 85 microns thick. Rough areas or zinc spikes (dross) on sample fittings show that the bath control wasn't good enough during galvanizing.

Do these fittings require thread sealant?

Yes, interference fit is used for NPT and BSPT tapered threads, but the circular shape still leaves a small leak path. PTFE tape or liquid pipe dope fills in that gap and greases the threads to keep them from getting stuck when they are tightened.

Are galvanized fittings safe for potable water?

Yes, as long as the zinc coating is made from NSF/ANSI 61-certified lead-free materials. When ordering fittings for drinking water applications, always ask for the manufacturer's NSF compliance paperwork.

Partner with Zhiyuan Malleable Steel for Your Next Bulk Order

Zhiyuan Malleable Steel has been making pipe fittings for 26 years. They make 30,000 tons of them every year and have more than 1,000 specifications in their catalog. Our square face galvanized 45° square edge elbow pipe fittings are made to meet the standards of ISO 9001, CE, UL, and FM. The hot-dip galvanized zinc finish is backed up by records of batch inspections. We offer OEM/ODM services, export-standard packaging, and tiered pricing for container orders. Contact our team at q1236800000@gmail.com or visit zymalleablepipefitting.com to request a quote from a trusted square face galvanized 45° square edge elbow pipe fittings manufacturer.

References

1. American Galvanizers Association. Hot-Dip Galvanizing for Corrosion Protection: A Specifier's Guide. 2023.
2. ASME. ASME B16.3: Malleable Iron Threaded Fittings, Classes 150 and 300. 2021.
3. ASME. ASME B1.20.1: Pipe Threads, General Purpose (Inch). 2019.
4. ASTM International. ASTM A153: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. 2022.
5. ASTM International. ASTM A197: Standard Specification for Cupola Malleable Iron. 2020.
6. NSF International. NSF/ANSI 61: Drinking Water System Components — Health Effects. 2023.
