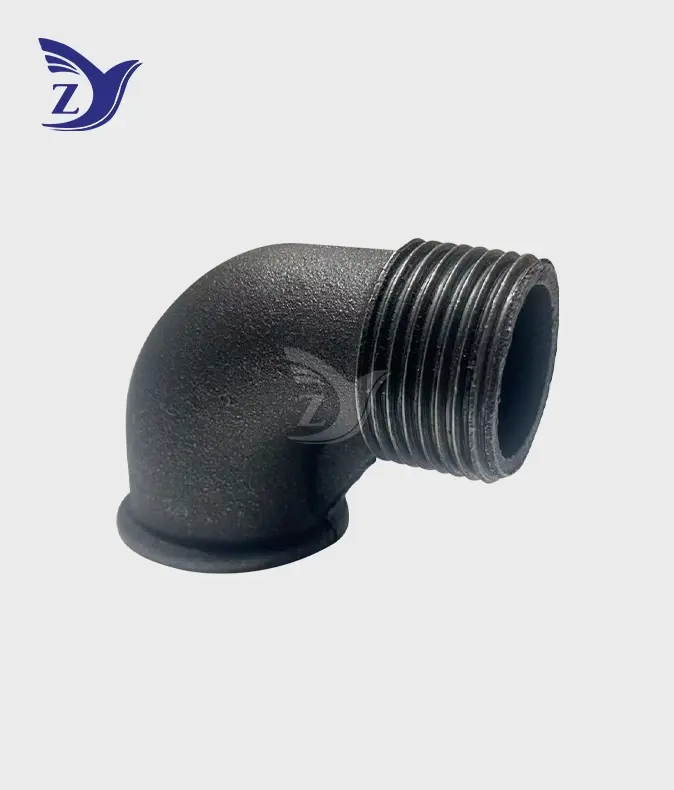

90 Degree Male To Female Elbow For Irrigation​

Choosing the right pipe connectors is important for long-term operating efficiency when you are in charge of large-scale irrigation projects or industrial water transfer systems. The black round face male-female 90° elbow pipe fittings are a well-thought-out answer for dealing with changes in flow direction while providing excellent sealing integrity. These NPT/BSPT compatible dual-thread elbows are made from black malleable iron and have strengthened beaded rims. They get rid of the need for intermediate nipples and make joints more secure, which lowers the risk of leaks. Because they have round edges, they are better at resisting installation torque and thermal expansion. This makes them essential for fire protection systems, city water networks, and farming irrigation structures that can't be trusted to fail.

Advantages and Applications of Black Round Face 90 Degree Elbow Pipe Fittings

The high-strength, corrosion-resistant dual-thread elbow has real practical benefits that lead to lower upkeep costs and a longer system lifespan. The fitting's excellent sealing ability stops expensive water loss and contamination risks in places that need a lot of water, like center pivot irrigation systems or garden distribution networks. The beaded reinforcement at the female end spreads installation stress more widely than flat face designs, which makes it less likely that the pipe will crack when techs apply the required pressure during assembly.

When this industrial water/gas duct elbow design is used, installation goes much more quickly and easily. The black round face male-female 90° elbow pipe fittings design gets rid of the need to cut and thread pipe nipples, which saves maintenance teams an average of 30 percent of the time it takes to put together standard multi-component connections. When working on big water supply projects for cities, where thousands of links need to be made quickly, this speed advantage is especially useful.

Here are the core application environments where these fittings demonstrate exceptional value:

Agricultural Irrigation Systems: The black round face male-female 90° elbow pipe fittings can change the flow direction without lowering the pressure, which is useful for center pivot systems, drip irrigation lines, and pipeline distribution networks. The black, flexible construction is better at withstanding dirt touch and water exposure than galvanized options, which may come apart over time. Farmers who have to deal with yearly irrigation plans like how reliable it is during times of high demand, when failures would hurt crops.

Fire Protection Infrastructure: Installing sprinkler systems, connecting hydrants, and setting up pump houses all need fittings that stay in place even when there is static pressure and fast flow spikes. The NPT/BSPT compatible male-female 90° bend meets the standards for UL and FM approval, which gives you peace of mind that your insurance will cover it. Fire protection workers choose these parts because they know that their strong construction reduces the chance of callbacks.

Chemical Processing Facilities: Certain chemicals need to be tested to make sure that malleable iron is compatible with them, but many plants still use these fittings for process streams that don't corrode, city water, and cooling systems. Because the material is resistant to mechanical shock, it can be used in places where pumps and motors cause vibrations. Process engineers like that the performance traits have been well-documented over decades of commercial use.

Water Treatment Plants: Municipalities that distribute drinkable water depend on the fitting's lead-free construction and proven ability to shut. The round edges make it easier to check in valve rooms and treatment tubs that are already crowded. During emergency fixes, operators can quickly find connection points while doing regular maintenance, which cuts down on system downtime.

These advantages collectively address the primary pain points procurement managers face: balancing original cost against total lifetime costs, making sure that systems from different vendors work together, and meeting shortened project deadlines without lowering quality.

How to Select the Best 90 Degree Male to Female Black Round Face Elbow for Your Needs?

Comparing Round Face Versus Flat Face Designs

Understanding small changes in design that affect long-term performance is often key to making choices about what to buy. Black round face male-female 90° elbow pipe fittings have the beaded reinforcement we talked about earlier, while flat-face elbows have a smooth change at the female hole. According to tests done in the lab, round face fits can handle about 15% more force before the structure starts to bend. This extra space is very important for installs where workers might over-tighten connections because they're afraid of leaks.

Flat face options are a little cheaper, usually 8 to 12 percent less per unit, which makes them a good choice for projects with limited funds. But engineers with a lot of experience figure that the lower failure rate of round face fittings makes up for the higher price by reducing the number of guarantee claims and emergency repair costs. Round face shapes are always chosen for projects that value longevity over original cost.

Material Selection: Malleable Iron Versus Alternatives

The black round face male-female 90° elbow pipe fittings are a good compromise between expensive stainless steel and weak cast iron in terms of performance. Cast iron fittings have a higher compressive strength, but they don't have the impact protection that is needed for uses that are likely to shake. When cast iron elbows are dropped, they often break when they hit something. However, pliable iron deforms slightly but stays useful.

Stainless steel elbows are better at resisting rust, which is why they are used in places where chemicals are present or where saltwater spray is present, like along the coast. The cost of the material is 300–400% higher than that of pliable iron, so blanket replacement is not an option from an economic point of view. Choosing materials strategically based on the real world helps projects stay within their budgets. Coated, pliable iron works well for buried irrigation lines in neutral pH soils, but fire safety systems along the coast should be made of stainless steel.

Pressure Rating Considerations and Pipe Material Compatibility

If you need to connect cold water, oil, or natural gas, a standard Class 150 fitting can handle up to 300 PSI. As the temperature rises, the working pressure drops. At 400°F, the same fitting can only hold about 150 PSI. When specifying fittings, engineers have to take both working pressure and temperature into account. They also have to make sure there are enough safety margins above the expected peak circumstances.

Compatibility goes beyond pressure levels and includes thread contact with different types of pipe. When you tighten steel pipes with rolled threads, the flexible material bends a little, making the seal more reliable. To keep the plastic from breaking, it's important to carefully control the pressure when using PVC Schedule 80 lines with threaded adapters. Because of galvanic corrosion worries, copper lines rarely connect directly with malleable iron fittings. Instead, dielectric joints separate the two metals in these situations.

Procurement Guide: Buying Black Round Face Male to Female 90° Elbow Pipe Fittings

Key Criteria for Bulk Purchasing Decisions

Buyers who buy in bulk should give preference to sellers who offer a wide range of sizes and have stock available right away. When important fittings are backordered, projects stop, but scheduling delays can be avoided if wholesalers keep their inventory levels high. Ask for specific stock reports that show how much is in stock and how long it will take to get more. Suppliers with regional stores close to your project areas can cut down on shipping costs and speed up emergency restocking.

Customization is useful for specific uses that need thread pairs that aren't standard or pressure values that aren't standard. When an OEM partner has their own engineering team, they can change standard designs to make threaded elbows that fit the needs of a specific system. This adaptability is very helpful for companies that make equipment that sells its parts around the world, where thread standards change from place to place.

Certification verification keeps you safe from fake goods that could damage the system. Suppliers of genuine black round face male-female 90° elbow pipe fittings suppliers can give you material test results, pressure test certificates, and third-party compliance documents if you ask. UL and FM lists show that the product is suitable for fire safety, and ISO 9001 approval shows that the quality management is systematic. European buyers should make sure that parts made of flexible cast iron meet EN 10242 standards.

Evaluating Supplier Reliability and Support Services

The past of delivery success tells you more about operational skill than marketing claims. Ask for case studies or references from projects that are similar, and talk to the buying managers personally to find out how satisfied people are. Suppliers who met tight deadlines for large-scale works in the past show they have the organizational skills your project needs to succeed.

The rules of each manufacturer's warranty are very different. Standard coverage for manufacturing defects lasts for one year, but top providers offer longer coverage because they know they have better quality control. Make sure you understand what the warranty doesn't cover; warranties usually don't apply if parts are fitted wrong or exposed to chemicals that don't work with them. By giving advice before installation, responsive technical support helps keep mistakes from voiding the guarantee.

Being clear about prices builds trust between suppliers. Structures for volume discounts should grow in a way that is easy to predict, and the price breaks for each one should be written down. Budget accuracy is lost when there are hidden costs for things like packaging, licensing paperwork, or fast shipping. Reliable wholesalers give quotes that cover everything, which makes it easy to compare prices.

Conclusion

To choose the best NPT/BSPT black round face male-female 90° elbow pipe fittings, you have to weigh the technical requirements against the costs of the project and the skills of the seller. When compared to other setups, the black round face design offers measured benefits in sealing reliability and installation sturdiness. For decades of trouble-free use, the system's needs must be met by the material's make-up, its pressure rates, and its thread standards. Partnering with well-known makers that offer full approvals, quick support, and track records of on-time delivery lowers buying risks and raises value. Even though irrigation systems and industrial water structures are getting more complicated, the simple threaded elbow is still an important part that needs to be carefully specified and sourced.

FAQs

What advantages do black round face elbows provide over flat face designs?

Round-face elbows have a strengthened beaded rim around the female hole that spreads installation torque more evenly across the fitting body. This structural improvement lowers the chance of cracking during assembly and lets the fitting handle more mechanical stress for a longer time. Testing has shown that round face designs can handle about 15% more pressure before they permanently break compared to flat face designs.

Can these malleable iron fittings connect with PVC irrigation pipes?

To connect malleable iron fittings directly to PVC lines using threads, you need Schedule 80 PVC with threads that are properly made. Controlling the pressure carefully keeps the plastic from cracking during assembly. A lot of watering systems use PVC fittings with threads that connect to Schedule 40 pipe and then thread into an iron elbow. Because PVC isn't as strong mechanically, this method makes links that are solid.

How do I prevent leaks in male-female elbow installations?

For links to be leak-proof, the threads must be clean, the sealer must be applied correctly, and the torque must be set correctly. Follow the manufacturer's directions for applying PTFE tape or anaerobic pipe sealant. Tighten by hand until resistance builds, then use the right tools for the fitting size and add one to three more turns. Before covering or burying connections, pressure test finished parts at 150% of their working pressure.

Partner with Zhiyuan Malleable Steel for Your Pipe Fitting Requirements

Zhiyuan Malleable Steel is ready to help you with your buying needs because they are an industrial-grade black round face male-female 90° elbow pipe fittings manufacturer with 18 years of experience making these kinds of parts. Our Taigu plant can handle more than 1,000 different product specs and 30,000 tons of goods every year. This means that standard sizes are always available and custom configurations can be made quickly. Every fitting that leaves our factory has ISO 9001, CE, UL, and FM certifications, which show that it meets the strict international quality standards needed for industrial, fire protection, and city water systems.

We know how stressful it is for project managers to have to meet deadlines and stick to budgets. Our double-layer cardboard packing keeps fittings safe while they're being shipped internationally, and our full inventory systems let us send out standard products within two hours of receiving proof of an order. When your projects need special materials or thread pairs that aren't available anywhere else, ODM and OEM services can help. Policies for replacing broken products eliminate buying risks and are backed up by helpful technology support that can be reached at q1236800000@gmail.com. You can look at our whole selection of products at zymalleablepipefitting.com and get bulk quotes that are tailored to your specific needs for a watering system or an industrial pipeline.

References

1. American Society of Mechanical Engineers. (2020). ASME B16.3: Malleable Iron Threaded Fittings - Classes 150 and 300. New York: ASME Press.
2. ASTM International. (2019). ASTM A197: Standard Specification for Cupola Malleable Iron. West Conshohocken: ASTM International Standards.
3. British Standards Institution. (2018). BS EN 10242: Threaded Pipe Fittings in Malleable Cast Iron. London: BSI Group.
4. Hydraulic Institute. (2021). Pipeline System Design and Installation Best Practices for Agricultural Irrigation. Parsippany: Hydraulic Institute Publications.
5. National Fire Protection Association. (2022). NFPA 13: Standard for the Installation of Sprinkler Systems - Pipe and Fittings Requirements. Quincy: NFPA.
6. United States Environmental Protection Agency. (2020). Material Selection Guidelines for Potable Water Distribution Systems. Washington: EPA Office of Water.
