NPT Black Male-Female Union 341 Pipe Fittings

NPT Black Male-Female Union 341 Pipe Fittings

When you need reliable, detachable connections in your piping systems, NPT Black Male-Female Union 341 Pipe Fittings convey remarkable execution. These specialized flexible press connectors unravel basic get together challenges by permitting you to interface and disengage pipe segments without cutting or turning the whole pipeline. The 341 assignment highlights a predominant brass-to-iron situate structure that gives upgraded fixing capabilities for gas, steam, and oil applications. With their special male-female arrangement, these fittings dispose of the require for extra areolas, streamlining your establishment handle whereas decreasing potential spill points.

Our fittings are manufactured at Shanxi Taigu Zhiyuan Malleable Iron Company Limited, where 18 a long time of casting ability guarantees each fitting meets the most noteworthy quality measures. You get the unwavering quality your mechanical applications demand.



Detail Photo

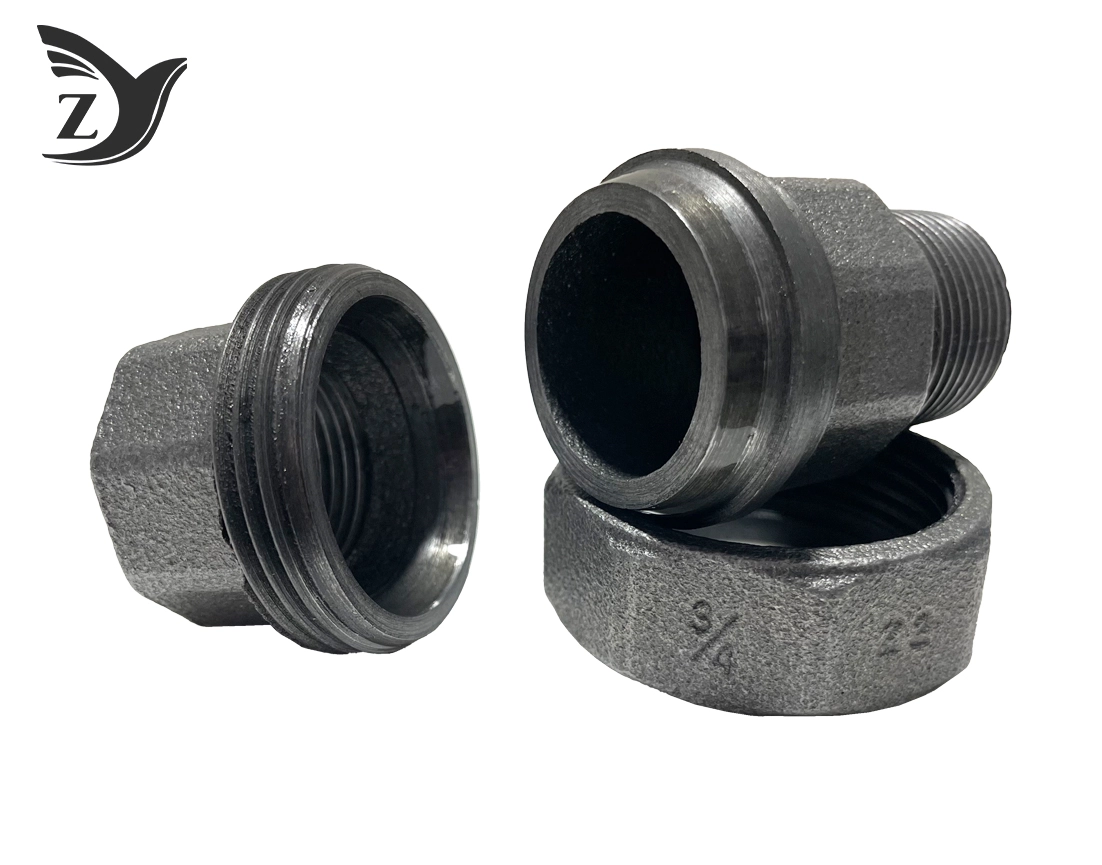

Black Male-Female Union 341 Pipe Fittings 1

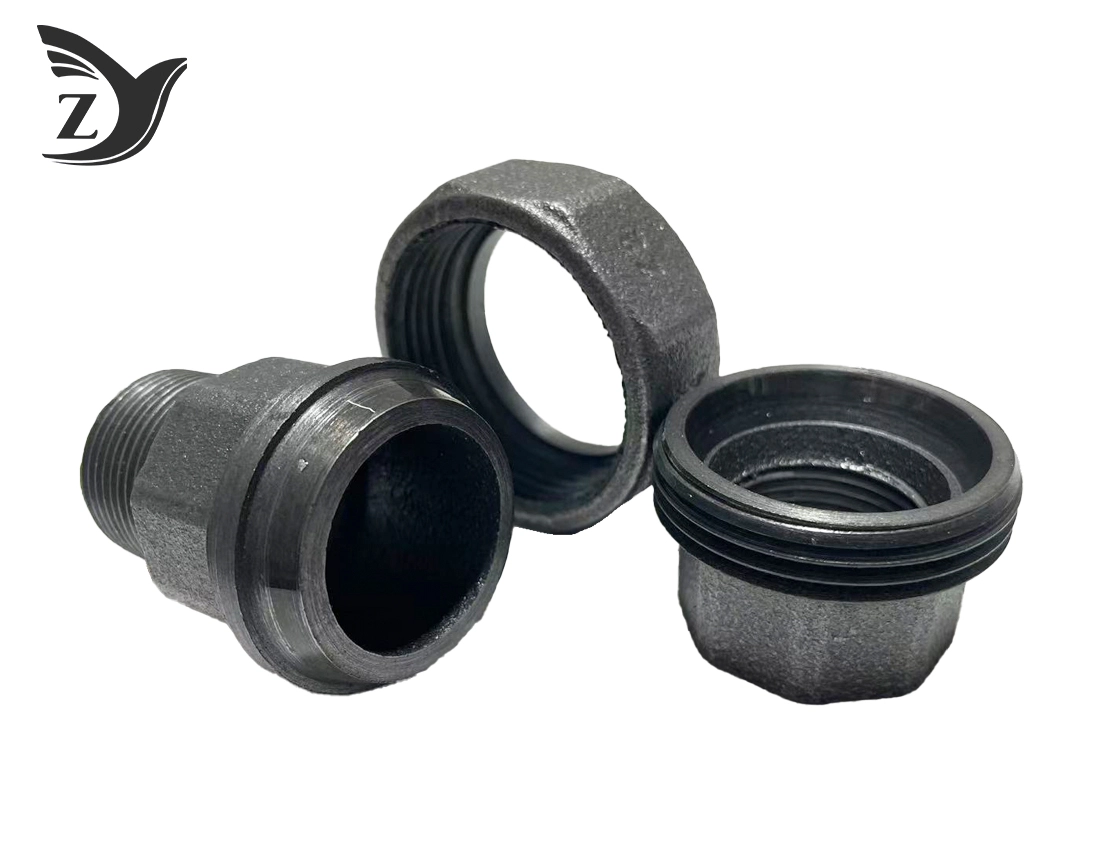

Black Male-Female Union 341 Pipe Fittings 2

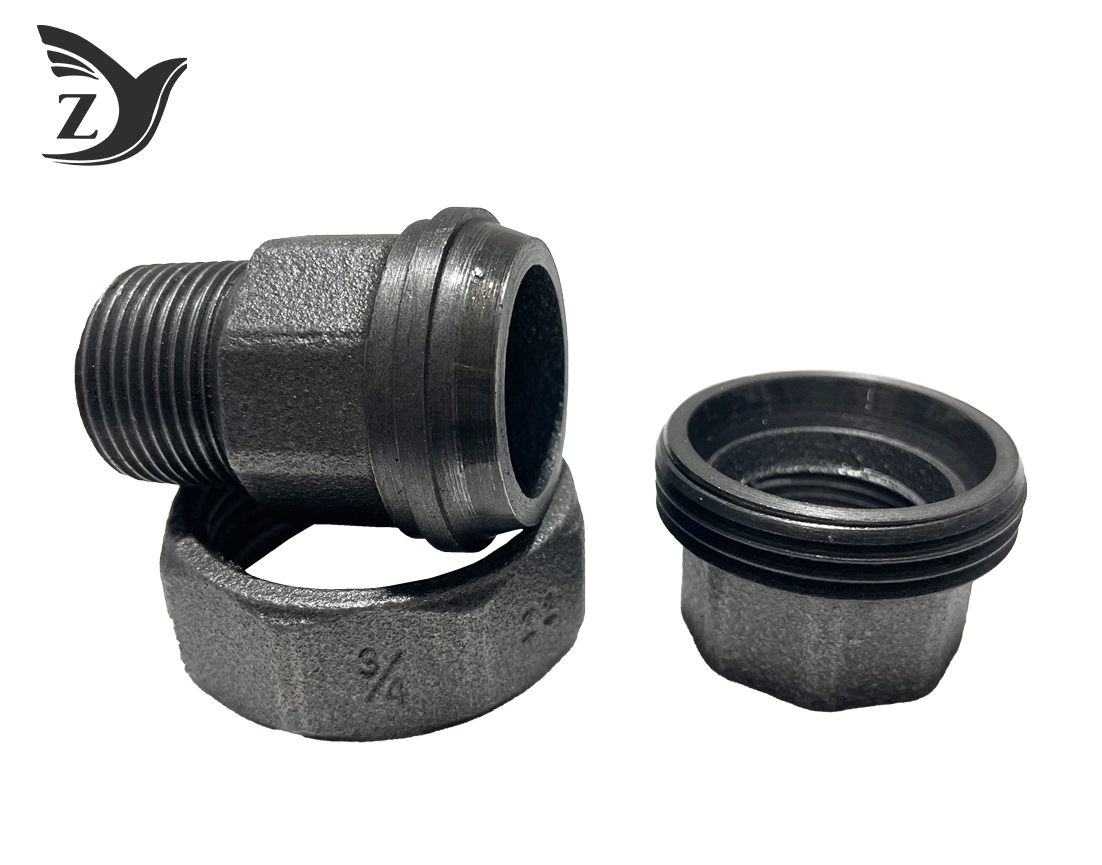

Black Male-Female Union 341 Pipe Fittings 3

Technical Specifications

Key Features

Superior Brass Situate Innovation: The 341 show consolidates a brass situate ring that makes a soft-to-hard metal seal. This plan beats standard iron-to-iron contact, particularly in high-pressure steam applications.

Space-Saving Plan: The male-female setup combines union and areola capacities into one component. You spare establishment space and diminish gathering time.

High-Vibration Resistance: The brass situate misshapes somewhat beneath weight, keeping up tight seals indeed in situations with critical vibration or warm cycling.

Easy Upkeep Get to: You can evacuate gear without destroying whole pipe runs. This include drastically diminishes upkeep labor costs.

Corrosion-Resistant Wrap up: The dark coating gives great assurance for indoor gas, steam, and oil applications where galvanization isn't required.

Materials and Surface Treatment

Our pliable press development takes after strict ASTM A197 guidelines, guaranteeing reliable quality and execution. The fabricating prepare incorporates controlled cooling that makes the perfect adjust of quality and ductility.

The dark surface treatment comprises of a specialized polish or oil wrap up. This coating gives erosion resistance amid capacity and benefit in non-corrosive situations. The wrap up too makes a difference recognize gas lines from water lines in mechanical installations.

Standards and Certifications

• ASTM A197 / ISO 5922 Material Compliance
• ANSI/ASME B1.20.1 Thread Standards
• ASME B16.39 Pressure Ratings
• ISO 9001 Quality Management System

Application Areas

Industrial Steam Frameworks: Your steam trap gatherings advantage from the 341's warm cycling resistance. The brass situate keeps up judgment through rehashed warming and cooling cycles.

Natural Gas Foundation: Gas meter bars and controller stations depend on these fittings for secure, leak-free associations. The dark wrap up meets industry benchmarks for gas line identification.

Hydronic Warming Frameworks: Commercial evaporator rooms utilize these unions for pump associations. The plan permits vibration segregation whereas empowering simple pump evacuation for maintenance.

Oil and Petroleum Lines: Refineries and chemical plants depend on these fittings for prepare channeling where separable associations are essential.

Installation Instructions

1. Prepare Pipe Strings: Clean and review NPT strings on both pipes
2. Apply Sealant: Utilize PTFE tape or pipe dope as it were on NPT pipe strings (never on union nut threads)
3. Hand Get together: String the male and female closes into your framework hand-tight
4. Tighten Association: Utilize pipe torques to accomplish legitimate torque without over-tightening
5. Final Get together: Bring union faces together and fix the union nut until snug

Packaging and Shipping

Each NPT Black Male-Female Union 341 Pipe Fitting gets defensive bundling to avoid string harm amid transport. We utilize moisture-resistant materials to keep up the dark wrap up quality.

Standard packaging includes:

• Individual defensive caps on strung ends
• Bulk cartons with froth inserts
• Detailed item recognizable proof labels
• Certificate of compliance documentation

Quality Control

Our quality administration framework guarantees each fitting meets your details. We conduct weight testing, string confirmation, and dimensional assessment on each generation batch.

Quality checkpoints include:

• Raw material verification
• In-process dimensional checks
• Final pressure testing
• Surface finish inspection
• Thread gauge verification

OEM and Customization Services

We offer comprehensive customization choices for your particular applications. Our building group can adjust measurements, weight appraisals, or surface medicines to meet one of a kind requirements.

Available customizations:

• Special size requirements
• Modified pressure ratings
• Alternative surface finishes
• Custom marking and labeling
• Specialized packaging

Frequently Asked Questions

Q: What's the difference between 340 and 341 unions?

A: The 341 model features a brass-to-iron seat, while 340 uses iron-to-iron contact. You get better sealing performance with the brass seat design.

Q: Can I use these for potable water applications?

A: No, these fittings are designed for gas, steam, and oil applications. The black finish may affect water quality.

Q: Do I need thread sealant on union nut threads?

A: Never apply sealant to union nut threads. Only use sealant on the NPT pipe connection threads.

Q: What's the maximum temperature rating?

A: These fittings handle temperatures up to 400°F (204°C), making them suitable for most steam applications.

Contact Us

Ready to enhance your piping systems with reliable NPT Black Male-Female Union 341 Pipe Fittings? Our technical team stands ready to help you select the right specifications for your application.

Email: zhiyuan@mifittings.com

Contact us today for technical specifications, pricing information, or custom solutions. We're committed to providing the quality fittings your projects demand, backed by 18 years of manufacturing excellence.
