High Pressure Forged Socket Couplings
2.Seamless one-piece forging structure, free of internal casting defects for higher loading capacity .
3.Accurate socket bore machining ensures full weld penetration and reliable leakproof performance .
4.Fine sandblasted finish removes forging burrs and improves coating adhesion optionally .
5.Wide stocked dimension range from 1/2'' to 3'', both small trial and bulk orders are welcomed .
6.Strict batch inspection including hardness and pressure testing before delivery .
7.Compliant with ASME B16.11 norms, applicable to petrochemical, power and industrial plumbing .
8.Customized packing and marking services are available to satisfy diversified export demands
Description

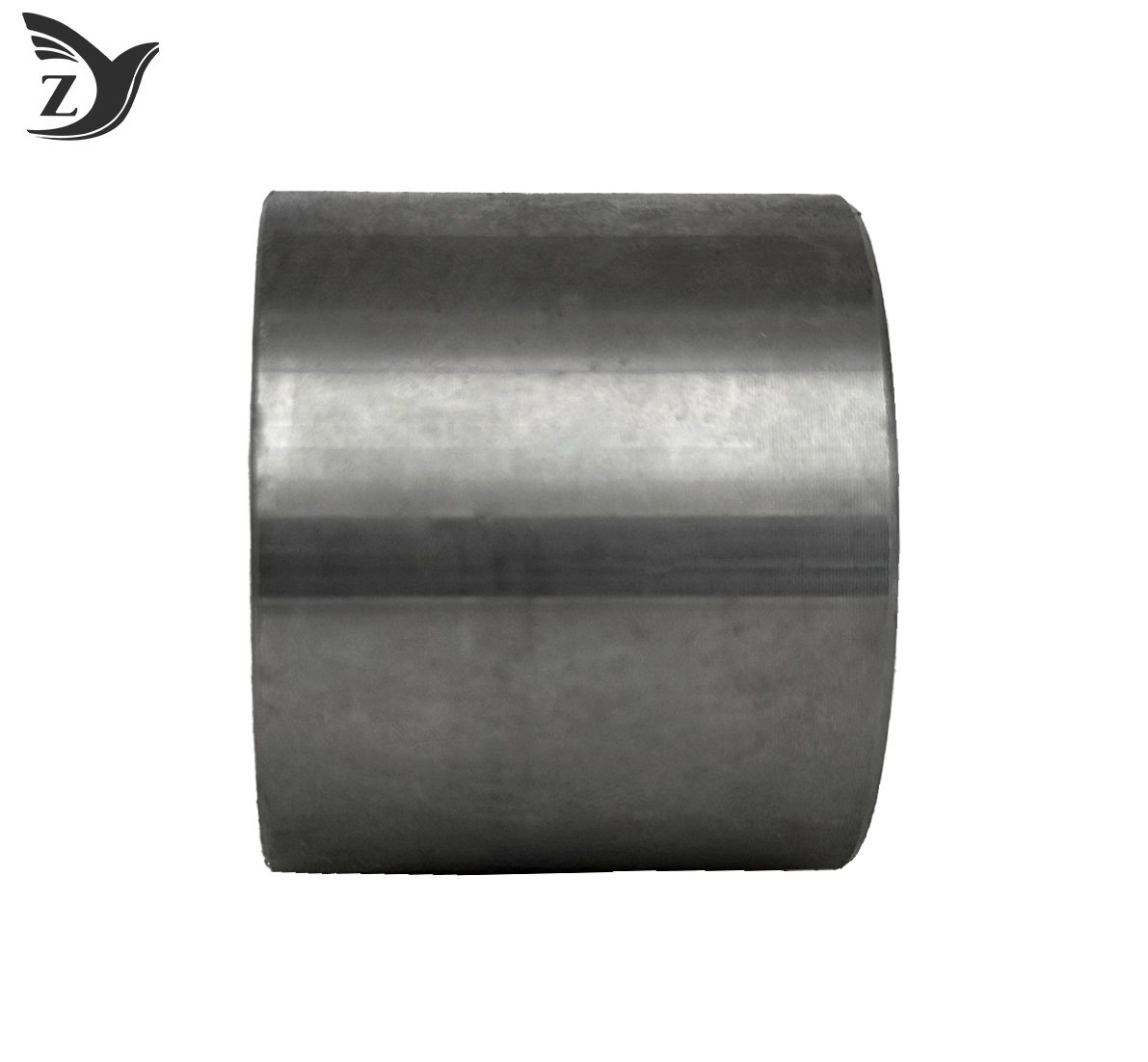

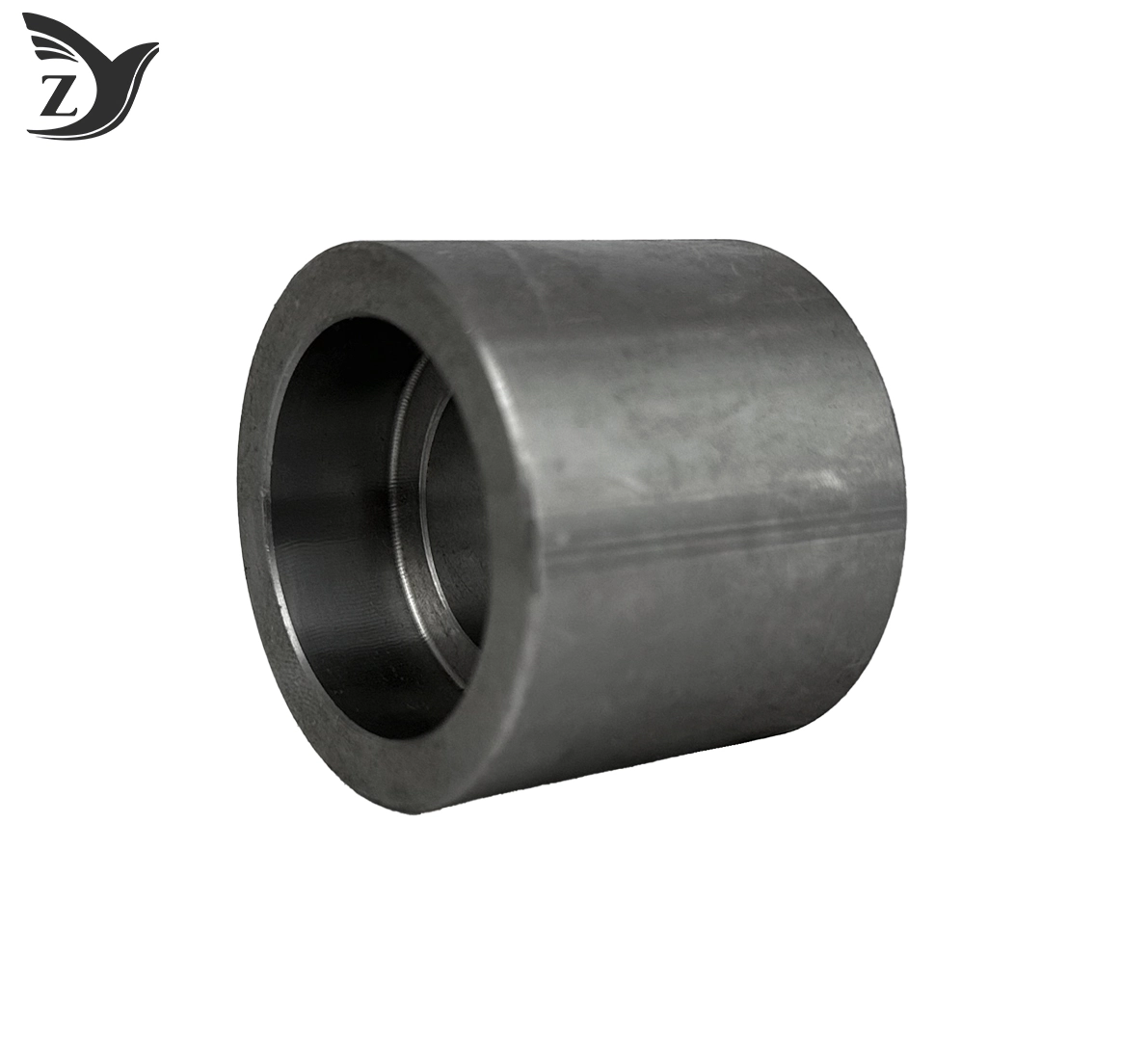

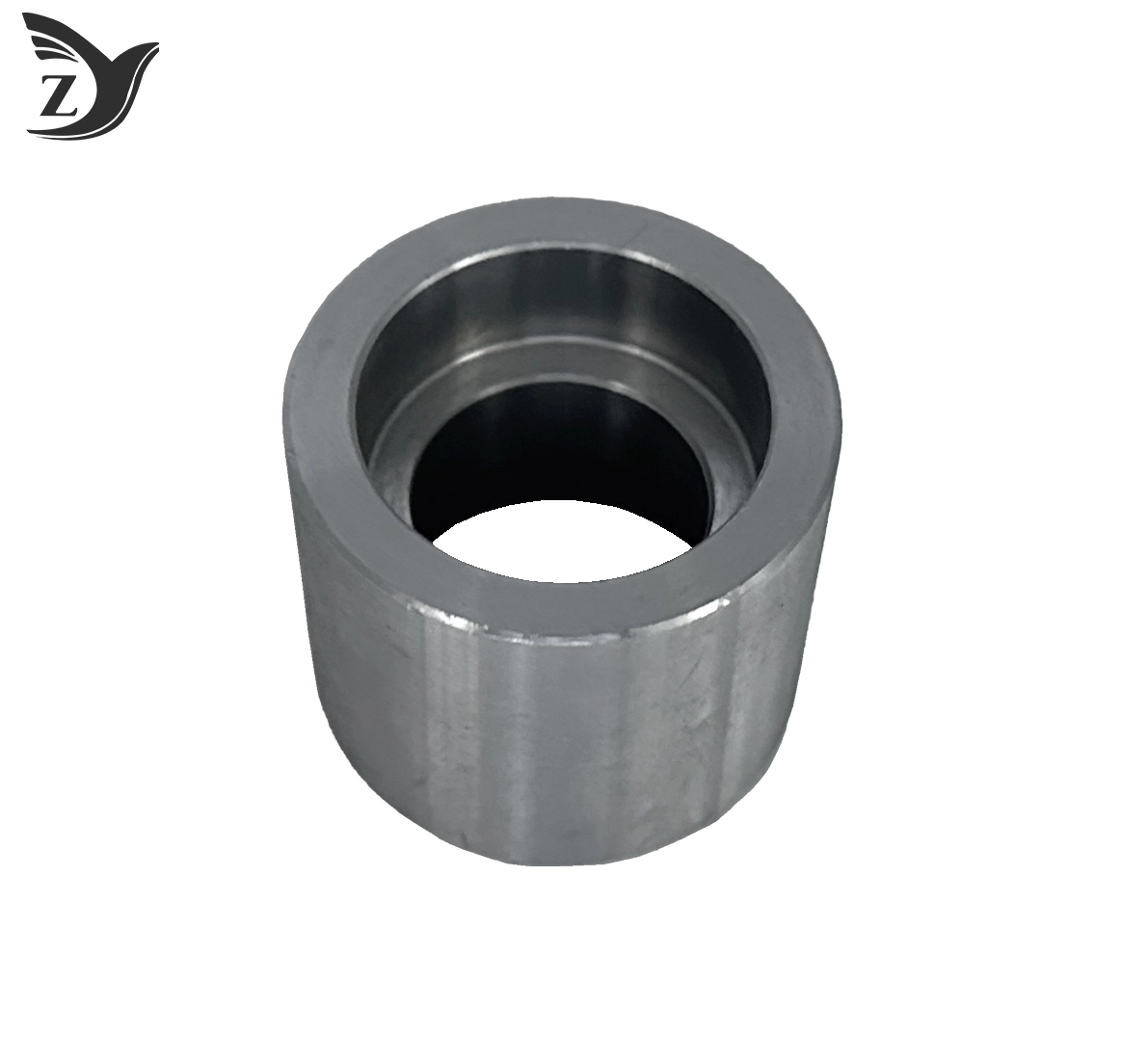

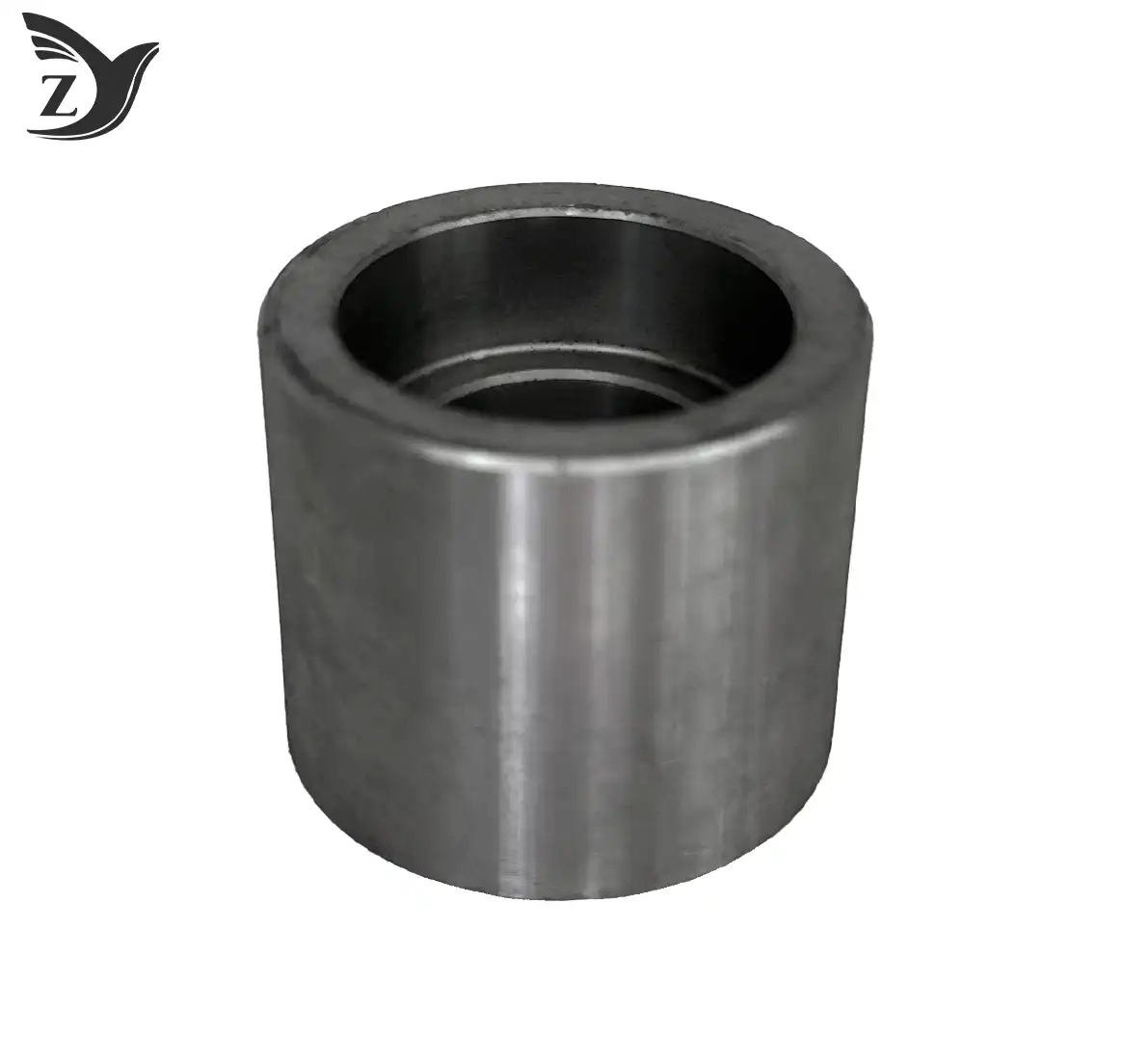

Forged Carbon Steel Socket Weld Coupling High Pressure Pipe Fitting
For high-pressure industrial pipeline straight connection, our ASTM A105 forged socket weld coupling serves as the optimal piping solution for heavy-duty engineering. Equipped with two uniform standard socket weld bores, it supports full penetration argon arc welding to form tight, zero-leakage joints, eliminating the need for extra transition fittings.
Manufactured from solid A105 carbon steel through integrated die forging molding, the coupling owns a dense seamless monolithic structure with superior mechanical impact toughness, capable of enduring extreme high temperature and pressure operating environments, fully meeting ASME B16.11 Class 3000 & 6000 technical specifications. Uniform sandblasted raw surface provides stable anti-rust and chemical corrosion resistance, greatly extending the service cycle of indoor and outdoor pipeline projects. Standard sizes ranging from 1/2" to 3" are kept in stock for fast bulk delivery. Custom wall thickness, laser OEM logo engraving and special dimension processing are all acceptable. It is extensively adopted in power plants, petrochemical factories, shipbuilding, heating supply and fire protection high-pressure piping projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | ASTM A105 Forged Carbon Steel Socket Weld Coupling High Pressure Pipe Fitting |
| Pressure Class | Class 3000 / 6000 Heavy High Pressure Grade |
| Raw Material | Solid A105 carbon steel, integrated one-piece die forging, dense internal grain structure |
| Surface Finish | Uniform sandblasted surface coated with anti-rust oil, stable anti-corrosion & moisture-proof performance |
| Connection Type | Two-way standard socket weld bores, support full penetration argon arc welding |
| Working Temperature | -29℃ ~ 425℃ |
| Applicable Medium | Steam, crude oil, natural gas, industrial water, weak corrosive industrial fluid |
| Certification Standard | Fully complies with ASME B16.11 forged socket weld pipe fitting standard |
| Application Scenario | Thermal power plant, petrochemical plant, shipbuilding, heating supply, fire-fighting high-pressure pipeline projects |
Key Features
1.Excellent Anti-corrosion & Chemical Resistance
Sandblasted dense metal surface effectively resists rust, moisture and corrosive fluid. Stable long service life for indoor & outdoor heavy industrial high-pressure pipeline projects.
2.Tight Dual-End Socket Weld Sealing
Standard uniform dual socket groove design for full penetration welding. Achieves zero-leakage straight pipeline connection without extra fittings, reliable for high temperature & pressure media.
3.Efficient On-site Straight Pipeline Installation
Dual-port layout realizes seamless inline pipe connection, compatible with standard welding operation. No extra adapters needed to shorten construction period massively.
4.High Toughness Forged Structure
Integral one-piece A105 carbon steel die forging, seamless monolithic body with strong impact resistance. Meets Class 3000/6000 high pressure standard, conforms to ASME B16.11.
5.Wide Industrial Application & Full Customization Support
Suitable for power, petrochemical, shipbuilding, heating and fire-fighting high-pressure straight pipelines. Full stock sizes 1/2"-3", support OEM customized wall thickness, laser logo marking and special dimension drawing processing.
Dimensions and Specifications
Our Class 3000/6000 forged socket weld couplings support full standard inch sizes, mainstream options include:
- 1/2", 3/4", 1"
- 1-1/4", 1-1/2", 2", 2-1/2", 3"
- Custom size, OEM laser logo engraving and special export packaging requests are acceptable
Every coupling is produced with strict precise dimensional tolerance. Solid integral one-piece forged straight structure effectively avoids deformation and leakage under long-term high temperature & high pressure working conditions.
Materials and Surface Treatments
1.Main Body Raw Material
Solid A105 carbon steel (compliant with ASME B16.11) features high mechanical toughness, strong impact resistance and stable performance under Class 3000 & 6000 heavy pressure rating, ideal for straight inline pipeline connection systems.
2.Surface Finish
Uniform sandblasted finish forms dense anti-corrosion metal surface, resisting rust, moisture and various weak chemical media for long-term indoor & outdoor industrial pipeline service. Anti-rust oil can be added on demand.
3.Connection Processing
Standard uniform-depth dual socket weld ends for full penetration argon arc welding, delivering stable zero-leakage inline joints when matched with standard carbon steel pipes.
Standards and Certifications
Our products comply with rigorous international industry standards:
- Compliant with ASME B16.11 (Class 3000 / 6000 Forged Socket Weld Pipe Fittings)
- ISO9001 quality management system certified
All forged socket weld couplings undergo comprehensive testing for pressure resistance, socket dimensional matching and sealing performance before packaging delivery.
Applications
1.Petrochemical & Power Pipeline
Fit for high-temperature steam, oil, gas and corrosive fluid high-pressure straight connecting piping in power plants and chemical factories.
2.Shipbuilding Pipeline Systems
Applied to marine fuel, hydraulic and heating high-pressure pipeline inline connection works.
3.Fire Protection & Heating Piping
Suitable for fire sprinkler and central heating high-pressure circulation straight pipeline connections.
4.Heavy Industrial Fluid Delivery
Used for compressed air, high-pressure industrial fluid transfer, petroleum and process industrial straight pipeline layouts.
Installation Instructions
- Weld Preparation: Clean the inner socket groove and pipe outer surface, remove rust, oil and burrs before welding.
- Position Alignment: Insert pipes fully into the dual socket shoulders at both ends, keep the coupling body horizontal without offset or tilt.
- Full Penetration Welding: Adopt argon arc full penetration welding on the two socket ports, ensure uniform weld bead without air holes or cracks.
- Pressure Leak Test: Complete high-pressure hydrostatic test after cooling to check zero leakage of the two welding joints.
- Periodic Inspection: Regularly inspect the two end weld seams to guarantee long-term high-pressure pipeline safety.
Follow industrial high-pressure pipeline welding specifications and local safety standards during installation work.
Packaging and Shipping
Each forged socket weld coupling is wrapped with anti-collision protective film to prevent scratches and deformation during transit. Moisture-proof packaging keeps the sandblasted anti-corrosion surface intact. Bulk orders are loaded on standard export pallets for convenient handling and container shipment.
Our factory is located in Taigu, Shanxi. We cooperate with mature global logistics channels covering major overseas ports, providing fast, cost-effective mass delivery for all industrial pipeline projects.
Quality Control
1.Raw Material Spectral Composition & Mechanical Test
Every batch of A105 carbon steel raw forgings will undergo full spectral analysis and tensile impact testing to meet ASME B16.11 Class 3000/6000 high pressure performance standards.
2.Dual-port Hydraulic Burst Pressure Inspection
Random finished forged socket weld couplings are selected to conduct hydraulic burst test according to the rated working pressure of the pipeline.
3.Dual Socket Dimension Precision Calibration
Special custom go-no-go gauges measure the depth, inner diameter and step of two socket ports to ensure perfect matching with standard carbon steel pipes and leakproof welding joints.
4.Full Surface Visual Defect Screening
100% manual visual inspection after sandblasting to remove burrs, rust stains, cracks and machining flaws, guarantee stable long-term anti-corrosion performance.
OEM and Customization Services
We reach an annual production capacity of 30,000 tons and support large-volume OEM & ODM customized orders. Our professional engineering team provides one-stop customization solutions: custom wall thickness, non-standard inch sizes, laser engraving brand logos and exclusive export packaging for all kinds of heavy industrial pipeline projects. We possess complete forging moulds covering 1/2"~3" specifications, which greatly shorten sample production and mass delivery lead time.
FAQ
Q: Can this forged socket weld coupling be buried underground?
A: Extra external anti-corrosion coating is mandatory for underground buried installation. Direct burial without protective anti-corrosion treatment will greatly shorten the service life of the straight pipeline fitting. Custom anti-corrosion coating solutions can be provided on request.
Q: What is the standard installation method for this Class 3000/6000 forged socket weld coupling?
A: Fully insert the pipe into the socket positioning shoulder of each port, adopt full penetration argon arc welding for the two joints, strictly avoid incomplete weld penetration to prevent high-pressure leakage.
Q: Can it withstand pipeline thermal expansion?
A: This is a rigid integrated forged coupling fitting. We recommend installing expansion joints for long-distance pipelines with large temperature fluctuation ranges to absorb thermal deformation stress.
Q: Is it compatible with different steel pipes?
A: It perfectly matches standard carbon steel pipes with matched outer diameter for socket welding. Please confirm the outer diameter and wall thickness of the pipe before formal welding construction.
Q: Why choose forged socket weld coupling instead of stainless steel pipe fittings?
A:Integral ASTM A105 die forging brings excellent mechanical impact toughness and stable Class 3000/6000 high pressure bearing capacity. The sandblasted anti-corrosion surface has outstanding cost performance for heavy-duty industrial straight high-pressure pipeline systems.
